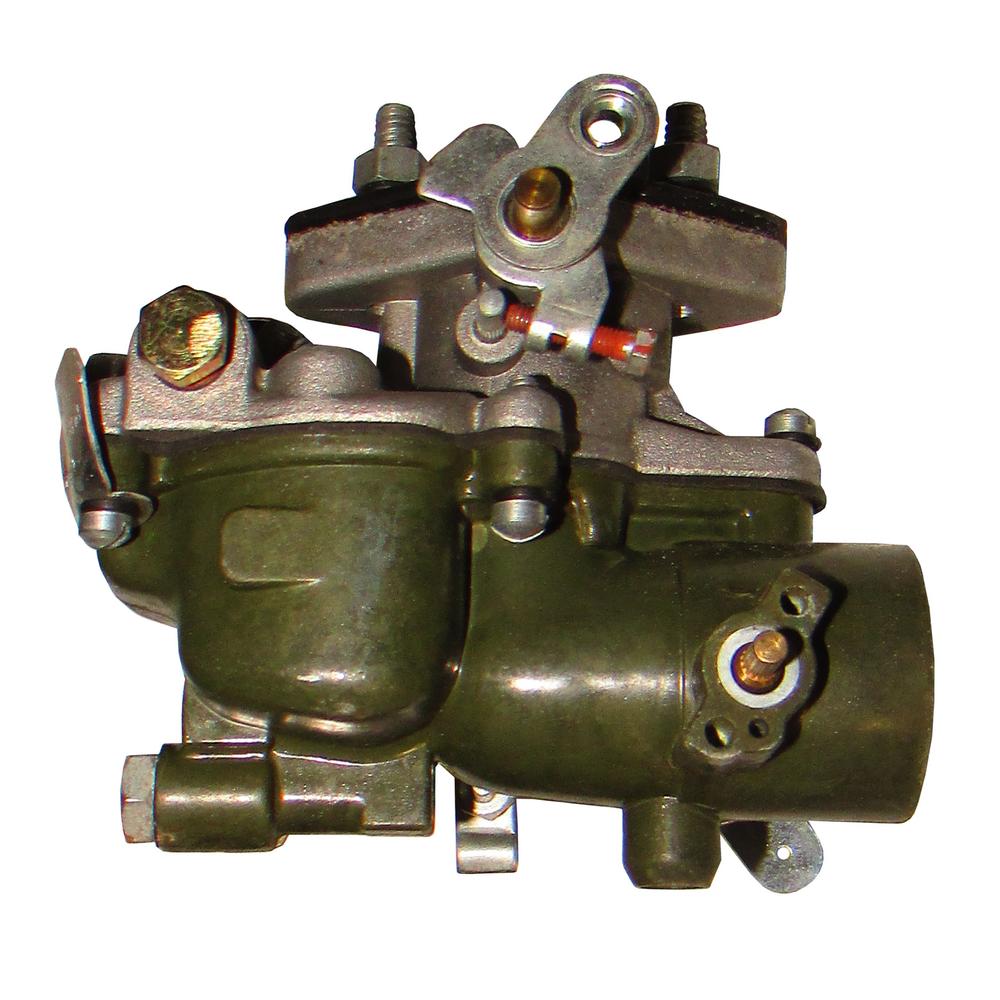

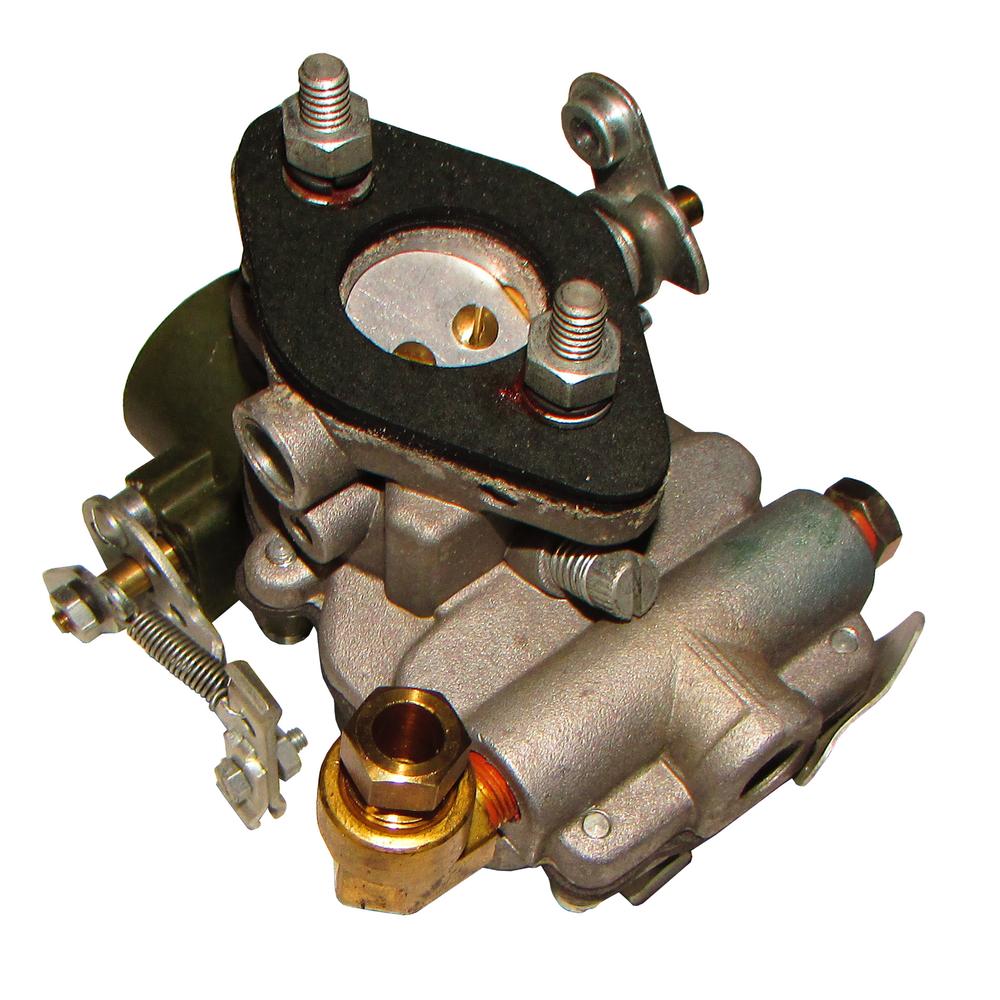

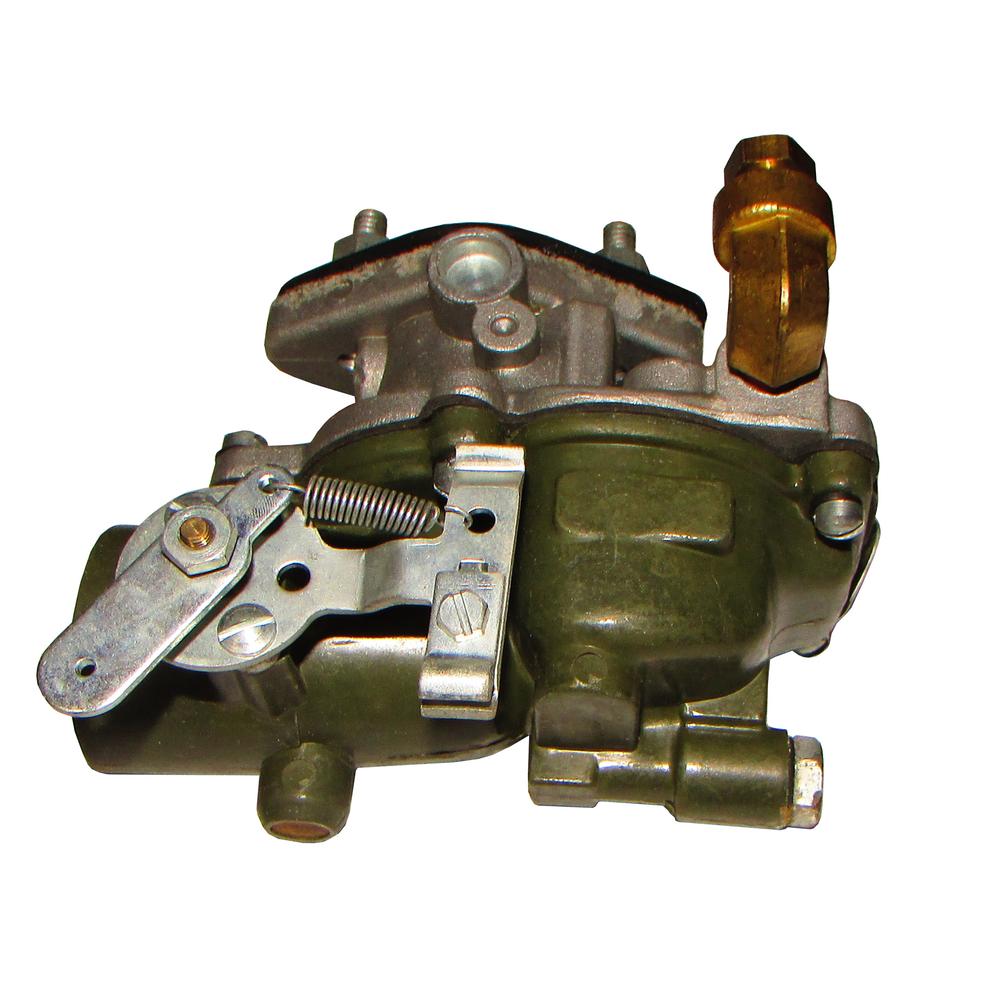

Zenith Carburetor Fits Case-IH Tractor 154 184 185 70949C92 71523C93

Name: Zenith Carburetor Fits Case-IH Tractor 154 184 185 70949C92 71523C93
SKU: 70949C92-RAP
Price: 233.99 USD
Availability: InStock

Zenith Carburetor Fits Case-IH Tractor 154 184 185 70949C92 71523C93

$233.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

(1) One New Aftermarket Replacement Zenith-Style Carburetor

Fits Case, Fits IH Fits FARMALL, Fits Cub Tractor:
154, 184, 185 With Engine Serial Number 312390 and up13781, 13794

Fits Cub, Fits Cub 154 LO-BOY, Fits Cub 184 LO-BOY, Fits Cub LO-BOY

Fits The Listed Zenith Style Carb Only

Replaces Part Number(s):
Zenith style Carburetor: 70949C92 71523C93 70949C91

Tech Info:
The throttle bore measures 1-1/64".
The carb mounting studs measure 1-13/16" center to center.
The choke air horn (air inlet) measures 1-5/8" OD.
The fuel inlet measures 1/8" NPT.
The carb mounting flange gasket is included.

NOTE: On Older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly.

Models This Part Fits:

154, Cub, 185, 184

Additional Information:

Type: Zenith The Throttle Bore Measures 1-1/64" The Carb Mounting Studs Measure 1-13/16" Center to Center The Choke Air Horn (Air Inlet) Measures 1-5/8" O.D. The Fuel Inlet Measures 1/8" NPT
