TX10809 TX10808 Front Axle Steering Spindle Kit & Bushings For White Tractors

$344.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Front Axle Steering Spindle Kit

Fits White/Oliver Tractor Models: 1250, 1250A, 1255, 1265, 1270, 1355, 1365, 1370, 2-50, 2-60

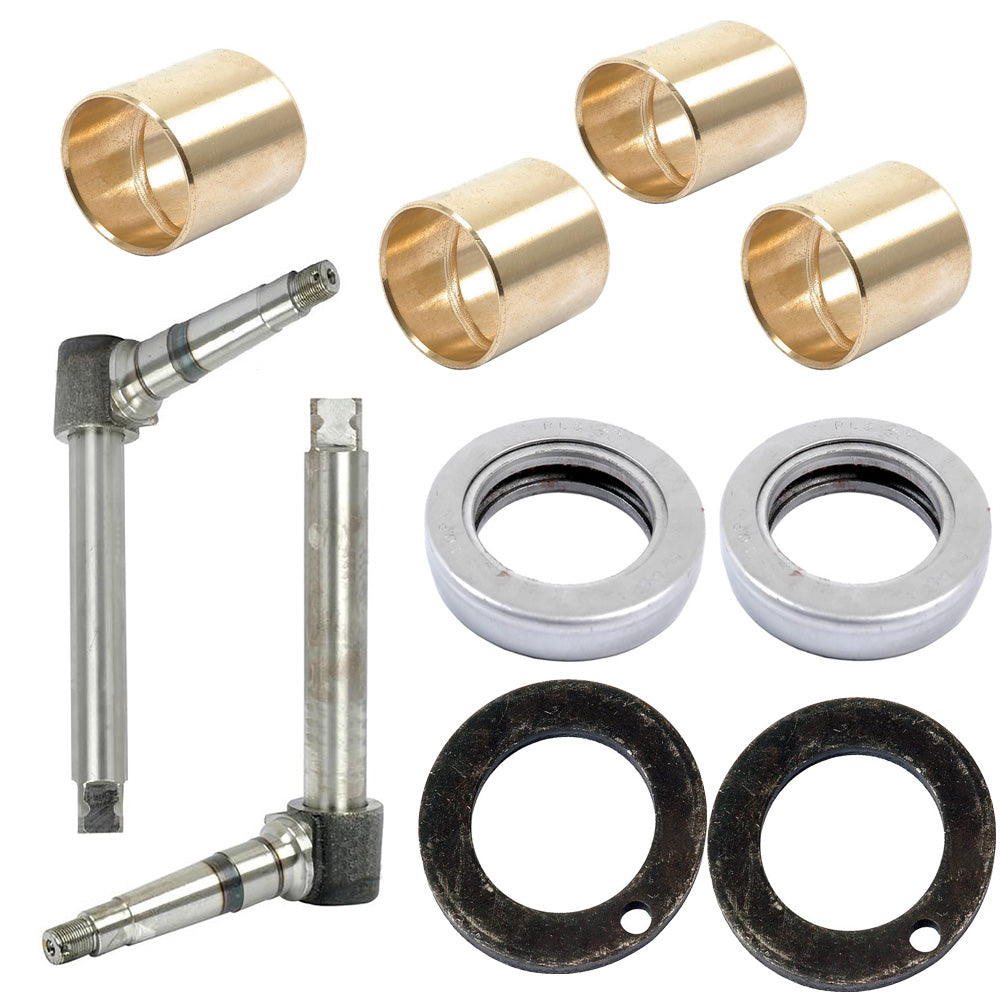

Kit Contains:

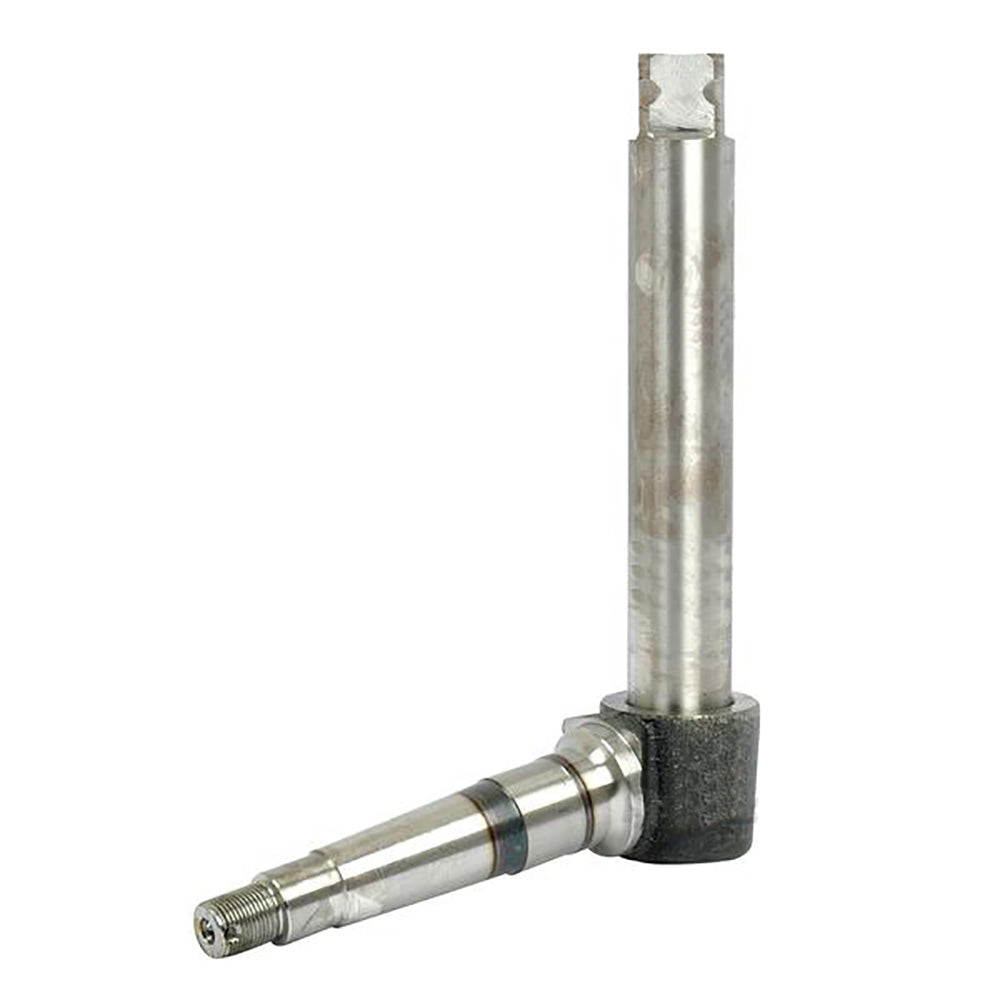

(1) Left Hand Spindle
Fitting: Keyway
Fitting: LH
Wheel Hub Thread: 3/4 UNF
Inner Bearing: 1.38" (35.02 mm)
Outer Bearing: 0.99" (25.02 mm)
Replaces Part Number: TX10809

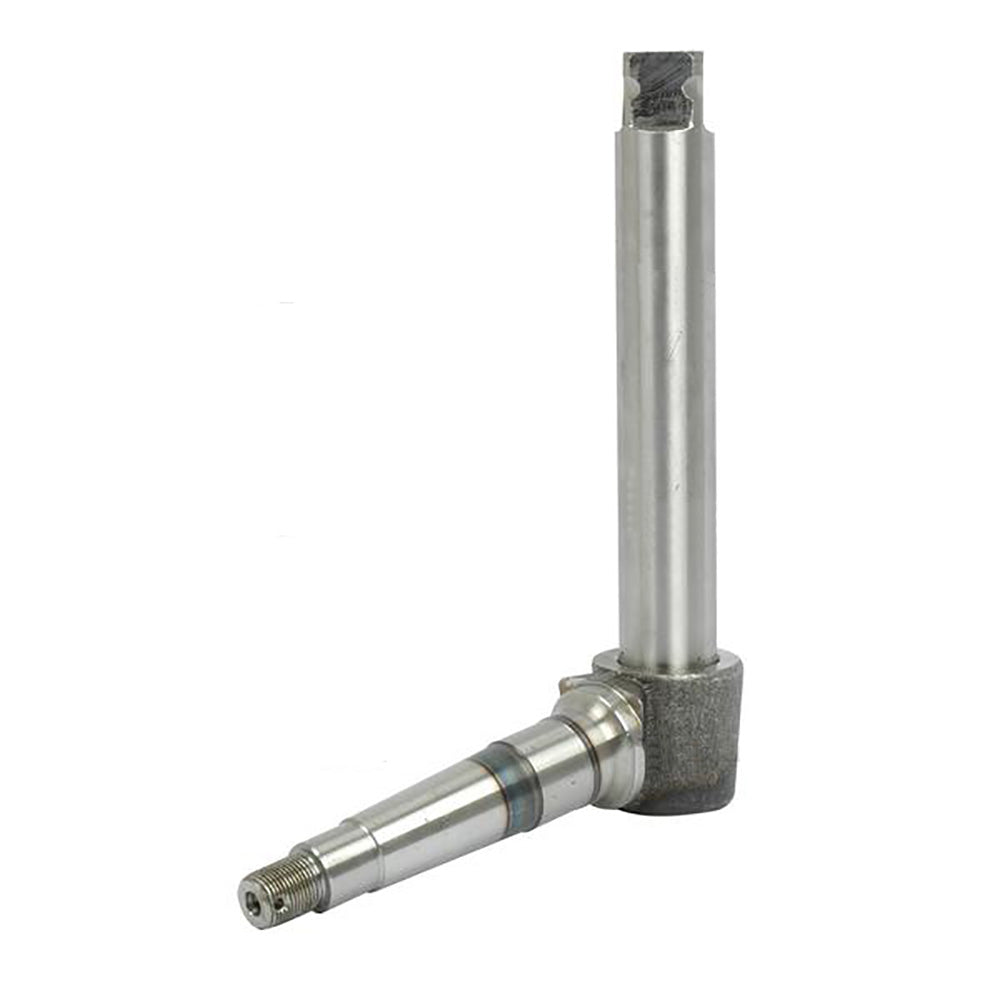

(1) Right Hand Spindle
Replaces Part Number: TX10808

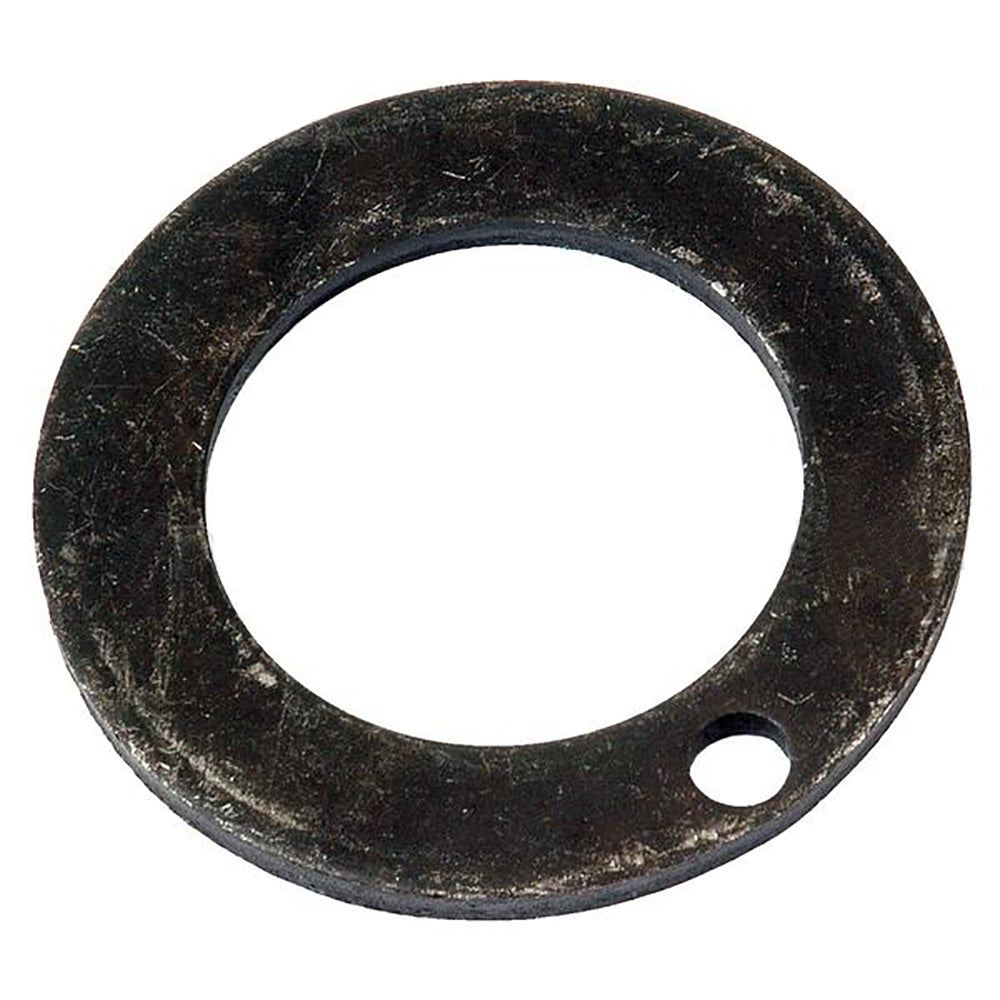

(2) Top Thrust Washers
Washer w/ Pin Hole
OD: 2-3/8"
ID: 1-9/16", 1/8"
Replaces Part Number: TX10838

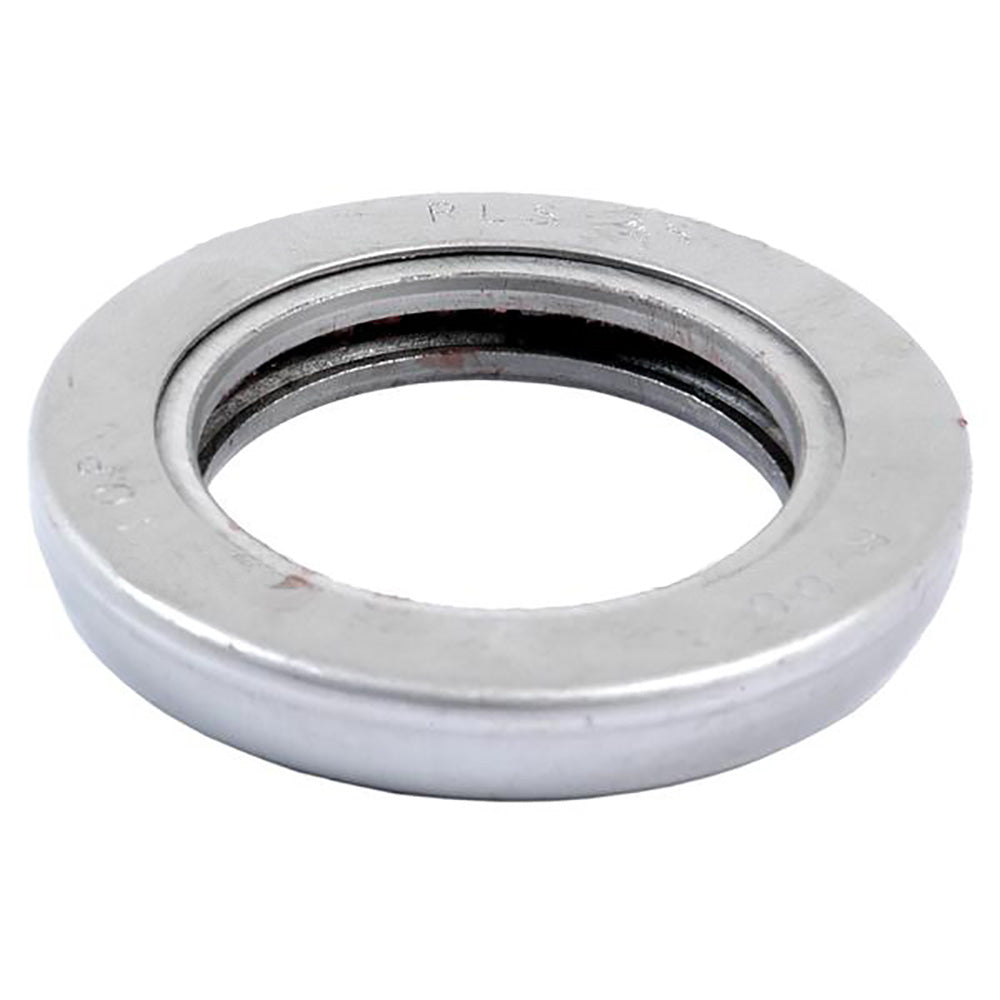

(2) Bottom Thrust Washers
O.D: 2.380"
I.D: 1.500"
Thickness: .177"
Replaces Part Number: TX10839

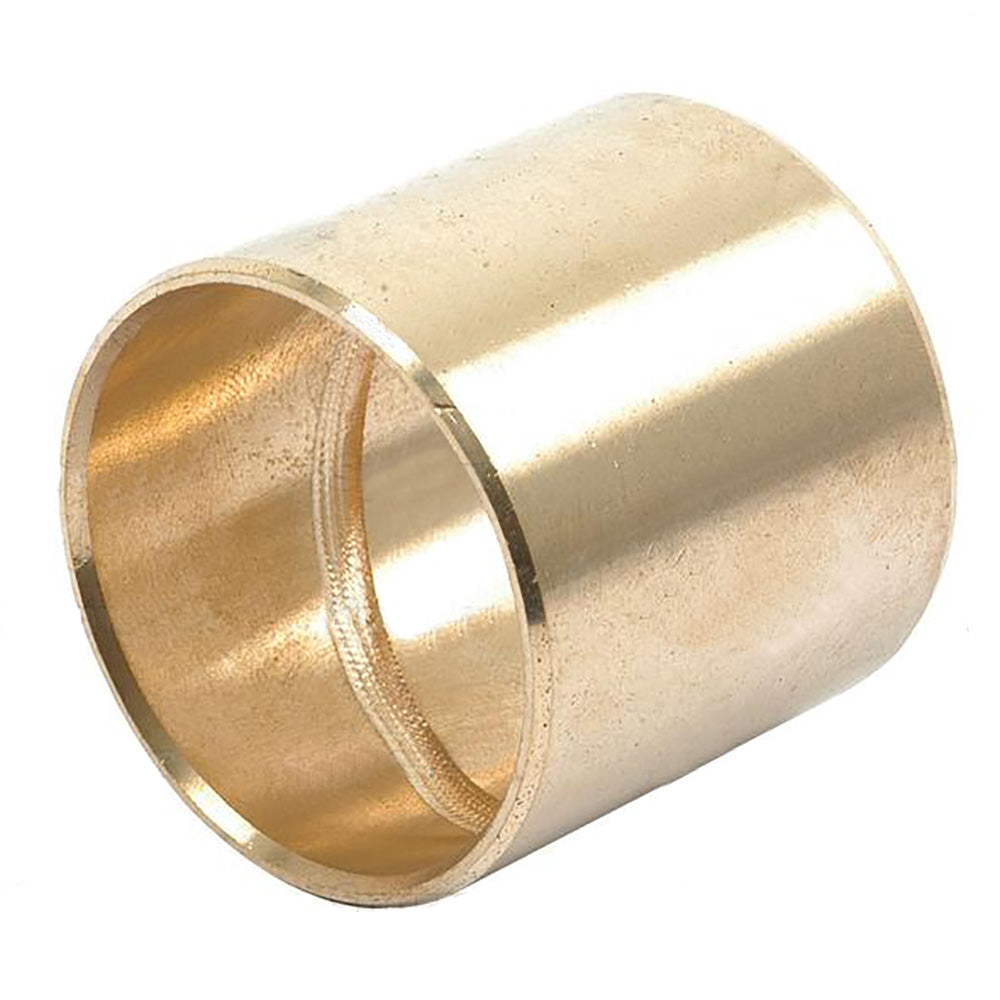

(4) Spindle Bushings
Replaces Part Number: TX10843

Additional Information:

Kit Contains: (1) Left Hand Spindle Fitting: Keyway Fitting: LH Wheel Hub Thread: 3/4 UNF Inner Bearing: 1.38" (35.02 mm) Outer Bearing: 0.99" (25.02 mm) Replaces Part Number: TX10809 (1) Right Hand Spindle Replaces Part Number: TX10808 (2) Top Thrust Washers Washer w/ Pin Hole OD: 2-3/8" ID: 1-9/16", 1/8" Replaces Part Number: TX10838 (2) Bottom Thrust Washers O.D: 2.380" I.D: 1.500" Thickness: .177" Replaces Part Number: TX10839 (4) Spindle Bushings Replaces Part Number: TX10843
