Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Allis Chalmers

Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Allis Chalmers

$67.99 USD
$67.99 USD
Sale Sold out
Shipping calculated at checkout.

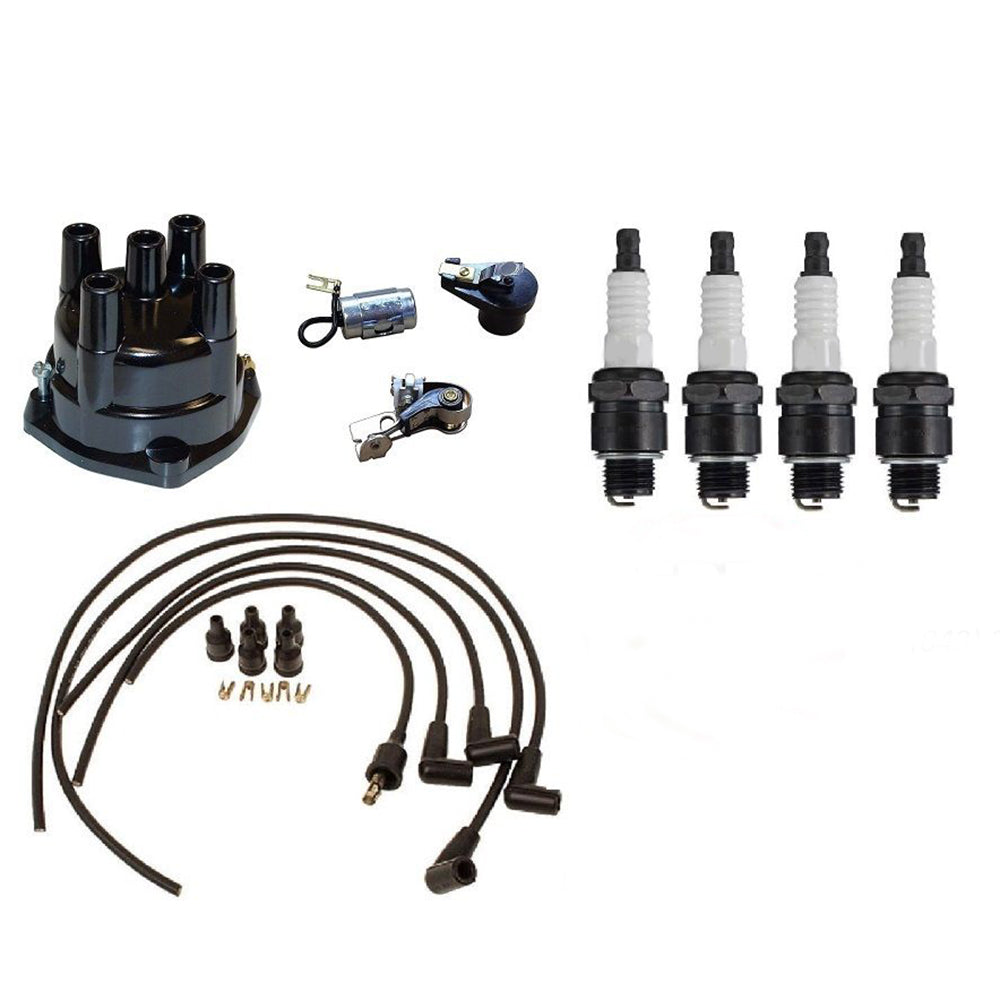

One New Aftermarket Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap

Tech Info:
 -(1) 4 Cylinder Spark Plug Wiring Set
 --These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
 --Note: You must cut the wires to length and crimp the ends with a crimping tool.
 --Wire lengths are approximately;
 -(2) 24-3/4" spark plug wires
 -(1) 29-3/4" spark plug wire
 -(1) 34-1/2" spark plug wire
 -(1) 23-1/2" long coil wire.
 --The coil wire is made from excess wire left over from the spark plug wire.
 -
 -(4) Spark Plugs
 -Thread Size: 18mm
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Resistor: No
 -Thread Pitch: 1.5mm
 -
 -
 -(1) Distributor Cap
 -For use on 4 cylinder Fits Delco distributor with screw held cap (1963 and up)
 -Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016
 -
 -(1) Ignition Tune-Up Kit
 -Contains: Points, Rotor and Condenser
 -Fits distributors with screw held cap
 -Point Gaps vary by applications
 -Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367A

Made to Fits Allis Chalmers:
 Tractor Models: D15, D17, H3, 170, 175
 Replaces Part Number(s): 79001128, 79001168, 4058876, 74058876

 Industrial/Construction Models: 615
 Model Breaks: with Late Fits Delco Distributor 1112490 and screw held distributor cap
 Replaces Part Number(s): 79001128, 79001168, 4058876, 74058876

Models This Part Fits:

3165, 2400B, 2-44, M670 Super, 3500A, 551, 2514B, D15, 574, 2135, 202, U302 Super, 1010, 454, 2405B, 550, 302, 2400A, 215, 50, 3020, 2500A, 165, 2010, 255, 204, 2500, 615, 674, U302, 30, 2200, 464, 356, 135, 552, 3400A, 65, 500, 304, 170, 2505B, 2410B, 35, 175, 150, 544, D17, 2500B, 3010, H3, 180, 2412B

Additional Information:

(1) 4 Cylinder Spark Plug Wiring Set -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. -Note: You must cut the wires to length and crimp the ends with a crimping tool. -Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (4) Spark Plugs Thread Size: 18mm Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Gap: .028" (0.7mm) Heat Range: 2 Resistor: No Thread Pitch: 1.5mm (1) Distributor Cap For use on 4 cylinder Delco distributor with screw held cap (1963 and up) Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016 (1) Ignition Tune-Up Kit Contains: Points, Rotor and Condenser Fits distributors with screw held cap Point Gaps vary by applications Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367A

Reference Numbers:

156360A, 156365A, 156367A, 19545587, 1954566, 1956007, 1962640, 10P3024, 10P3025, 10P3022, 30-3024016, 79001128, 79001168, 4058876, 74058876, R11257, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024914M91, 1024916M1, 839008M1, 839008M91

Product Sub Group:

Ignition Components
