Tie Rod Assembly 70254660 Fits Allis Chalmers WD WD45 D17 170 175 180 185 190 20

Name: Tie Rod Assembly 70254660 Fits Allis Chalmers WD WD45 D17 170 175 180 185 190 20
SKU: 70254660_5
Price: 89.99 USD
Availability: InStock

Tie Rod Assembly 70254660 Fits Allis Chalmers WD WD45 D17 170 175 180 185 190 20

$89.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

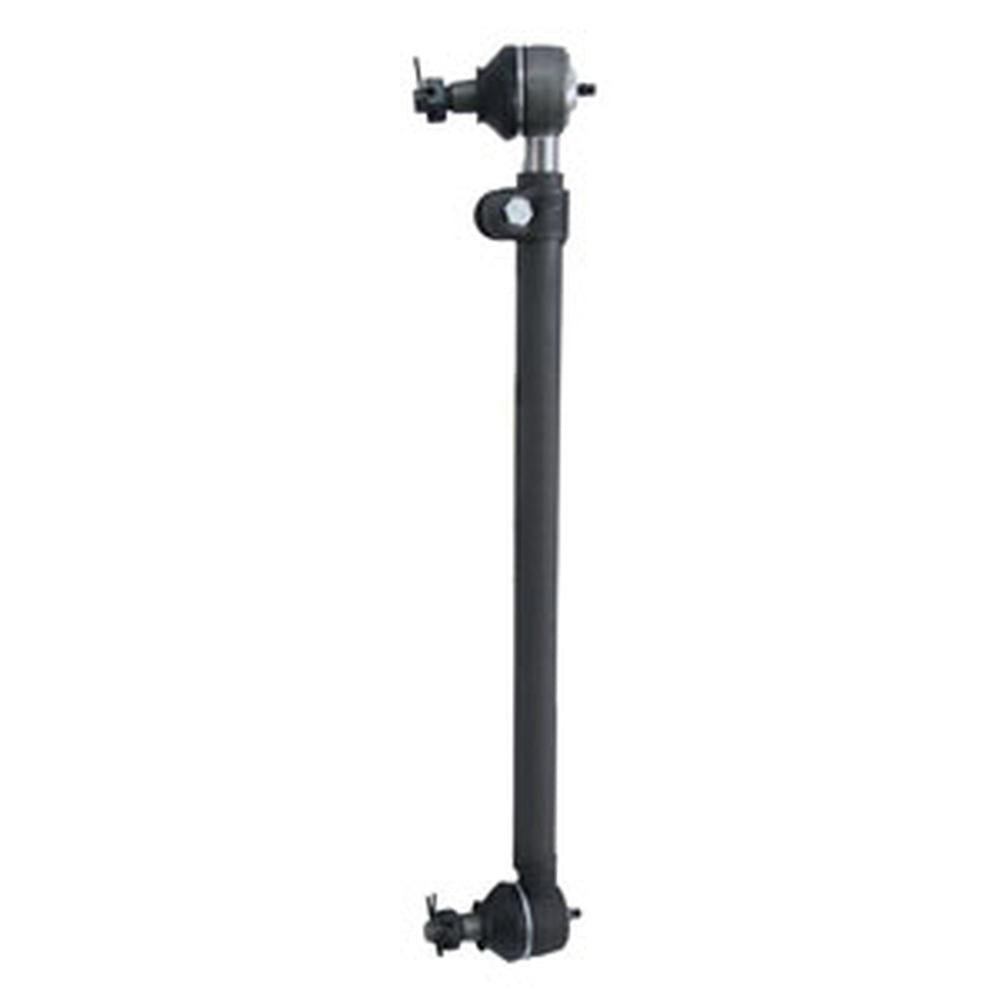

One New Aftermarket Replacement Complete Tie Rod Assembly that Fits Allis Chalmers Tractor Models: 170, 175, 180, 185, 190XT, 200, D14, D15, D17, D19, WD, WD45

Note: Male tie rod may need to be cut to length depending on model.

Assembly Includes:

- Female Tie Rod End

- Male Tie Rod End

- Cap Screw

- Nut

- Lock Washer

Replaces Part Number: 70254660, 254660

Models This Part Fits:

D14, 175, 170, 185, D15, D17, 190XT III, D19, 190, 200, 190XTIII, WD, 180, 190XT, CA, WD45

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

70254660, 70254661, 70254662, 70254662V, 254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280, 70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418
