Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120

Name: Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120
SKU: AY-FRN30-0033
Price: 69.99 USD
Availability: InStock

Steering Sector Drag Link Kit Fits John Deere LA100 LA105 LA110 LA115 LA120

$69.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Repair Kit

Fits John Deere Models:
LA100
LA105 1GXD110E BEFOR SERIAL #700000
LA110 1GXD110E BEFOR SERIAL #700000
LA115 1GXD110E BEFOR SERIAL #700000
LA120 1GXD110E BEFOR SERIAL #700000
LA130 1GXD110E BEFOR SERIAL #700000

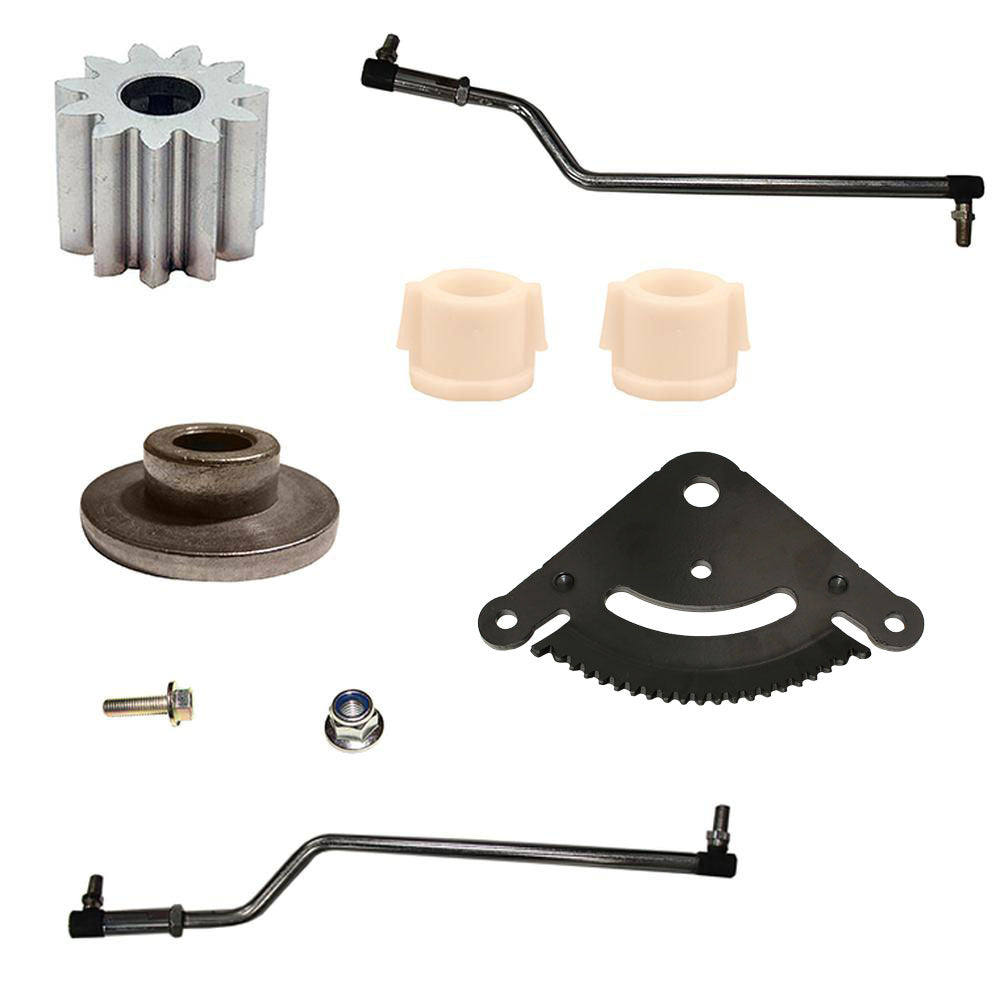

Kit Contains:

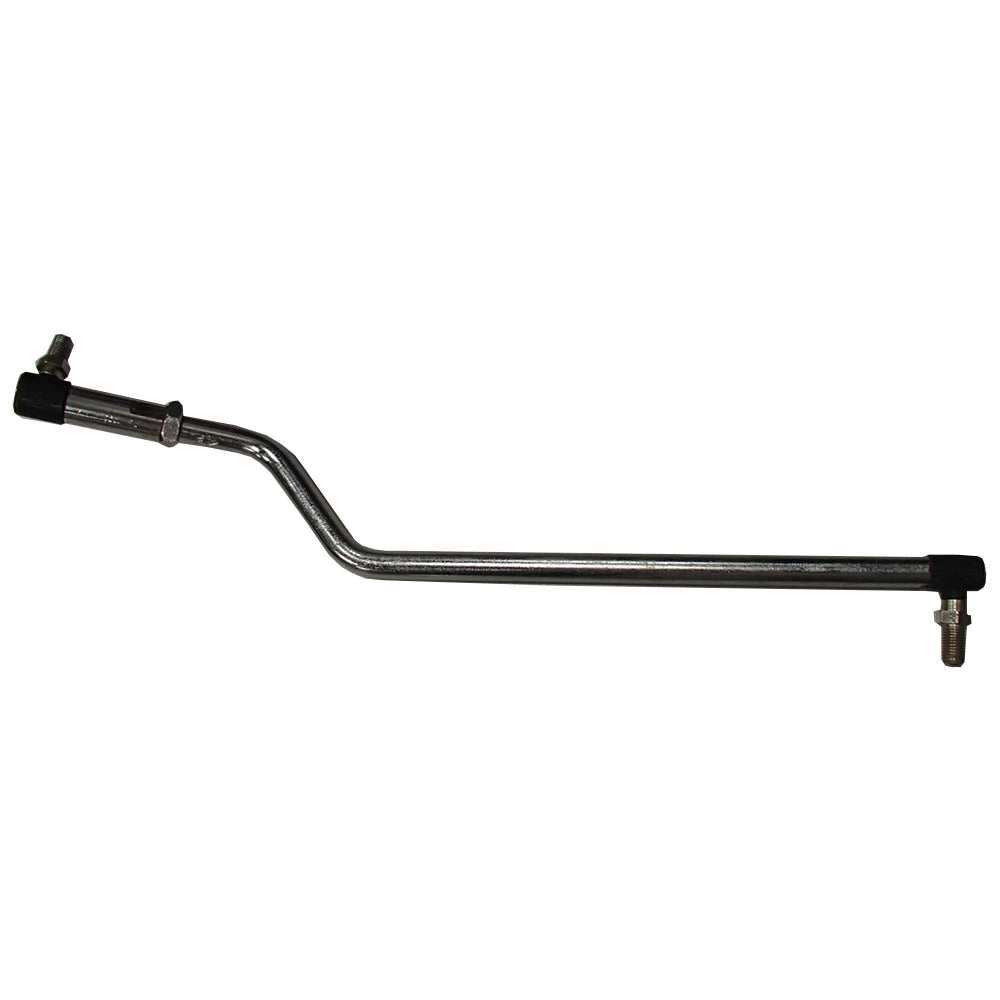

1-Left Drag Link

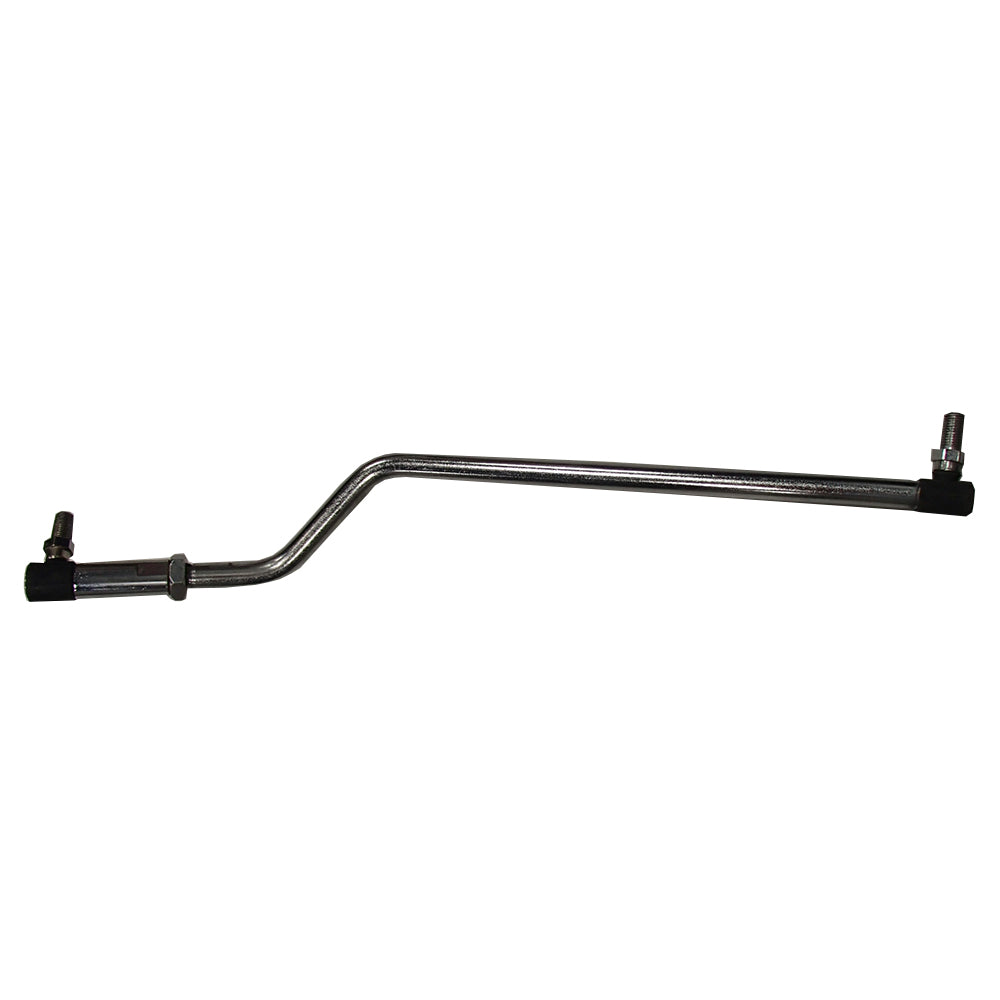

1-Right Drag Link

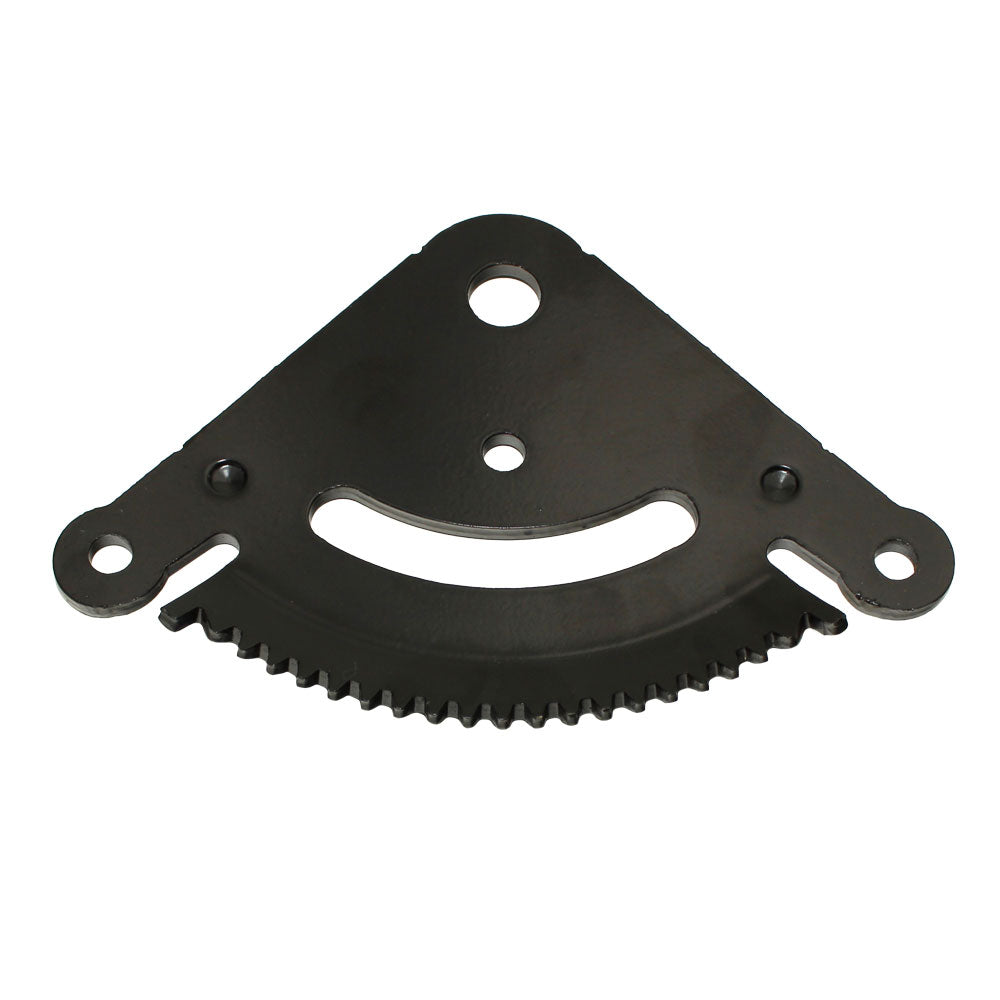

1-Sector Gear

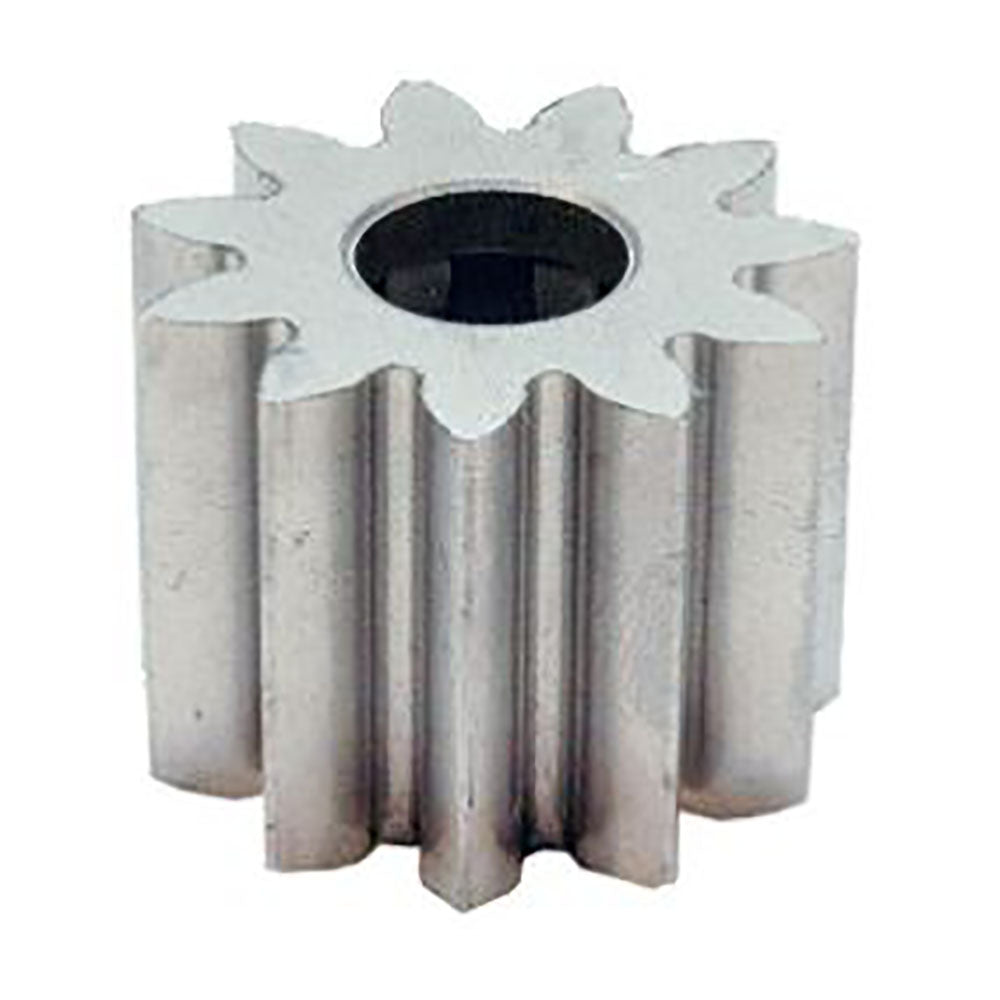

1-Pinion Gear

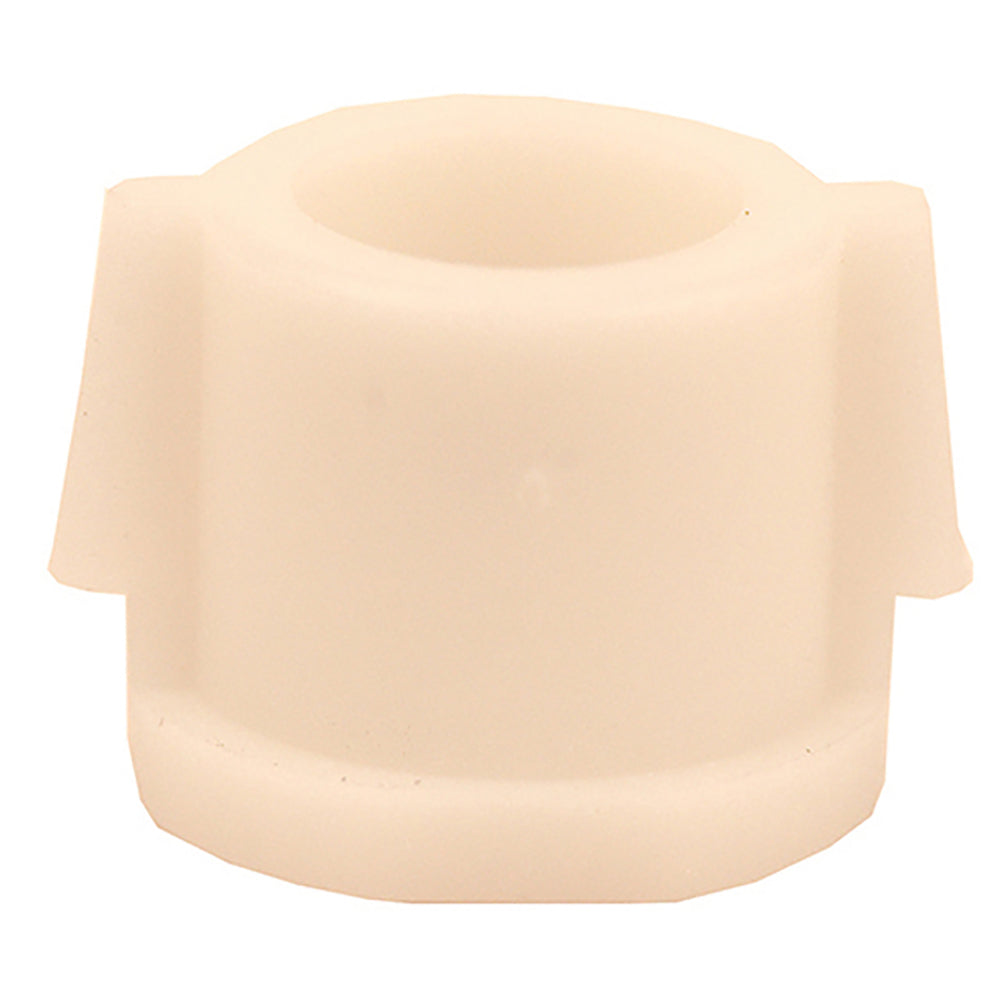

2-Steering Shaft Bushings

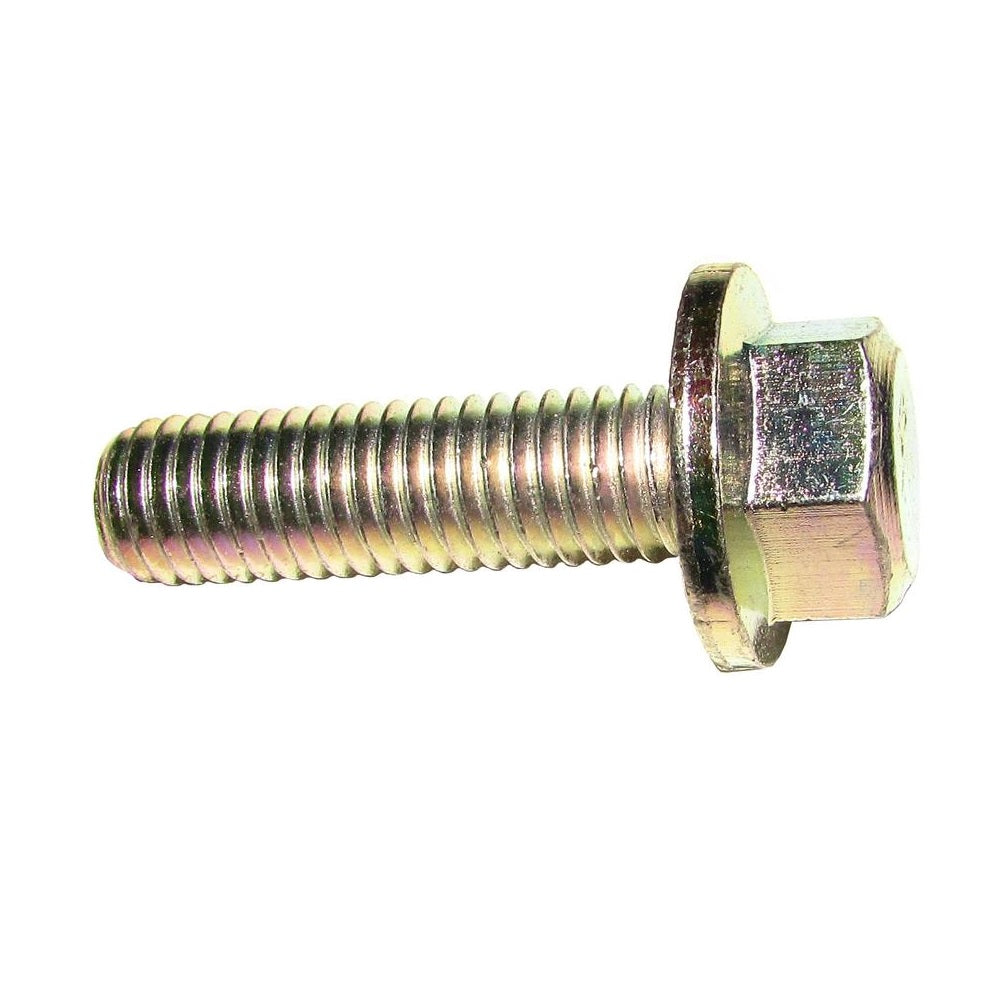

1-Bolt

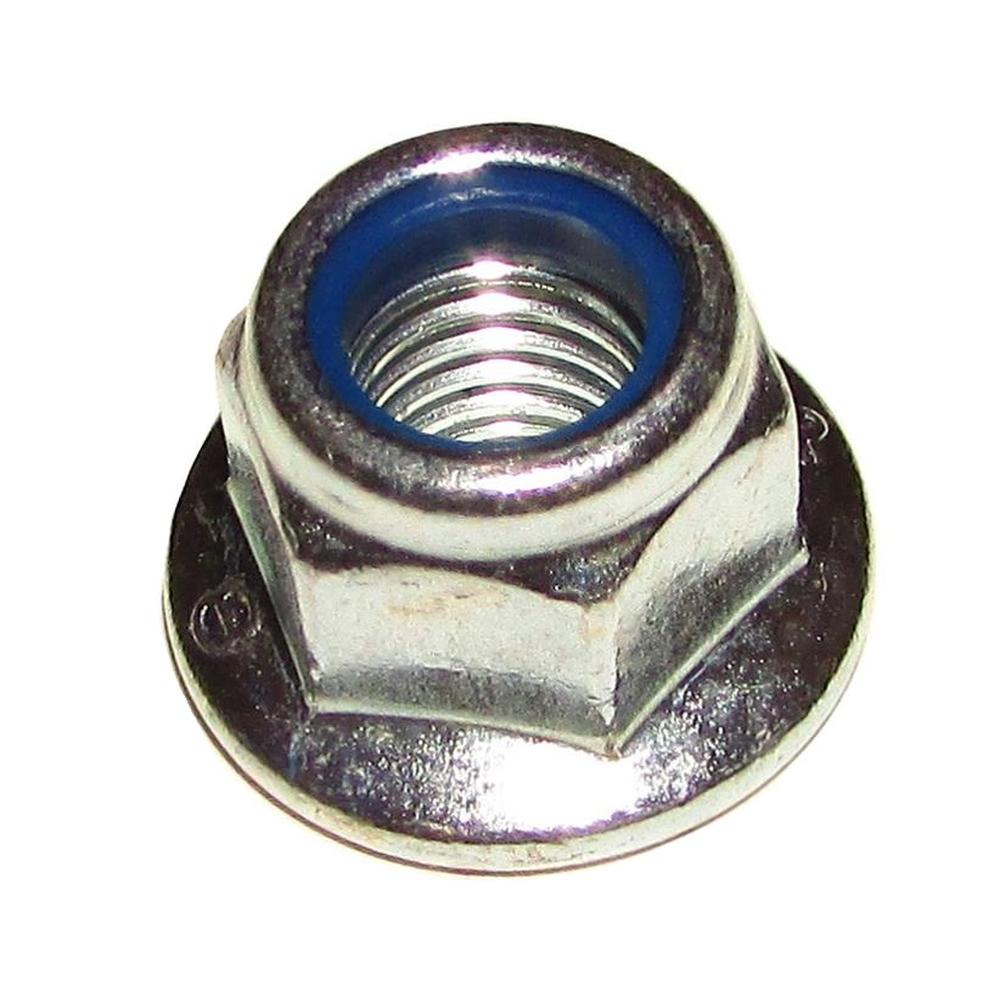

1-Locknut

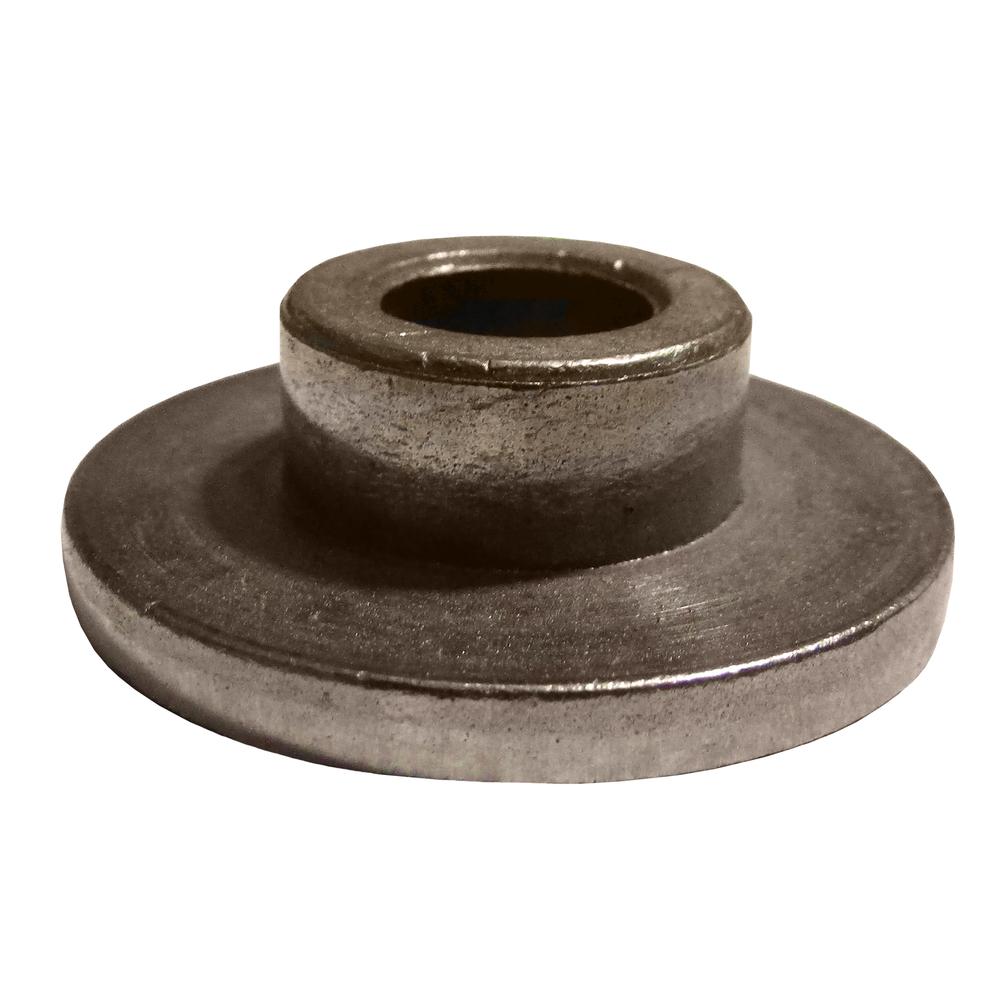

1-Spacer Bushing

Models This Part Fits:

125, D140, 190C, D150, X110, D155, LA105, 155C, GX21994, LA110, X165, D160, D100, LA115, LA130, 102, LA175, GY21250, D105, X155R, 105, X125, LA145, LA150, X130R, GX21924BLE, LA165, D125, D110, D170, GX20053, LA140, LA135, 115, 135, D120, LA120, D130, LA100, X145, 145

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400
