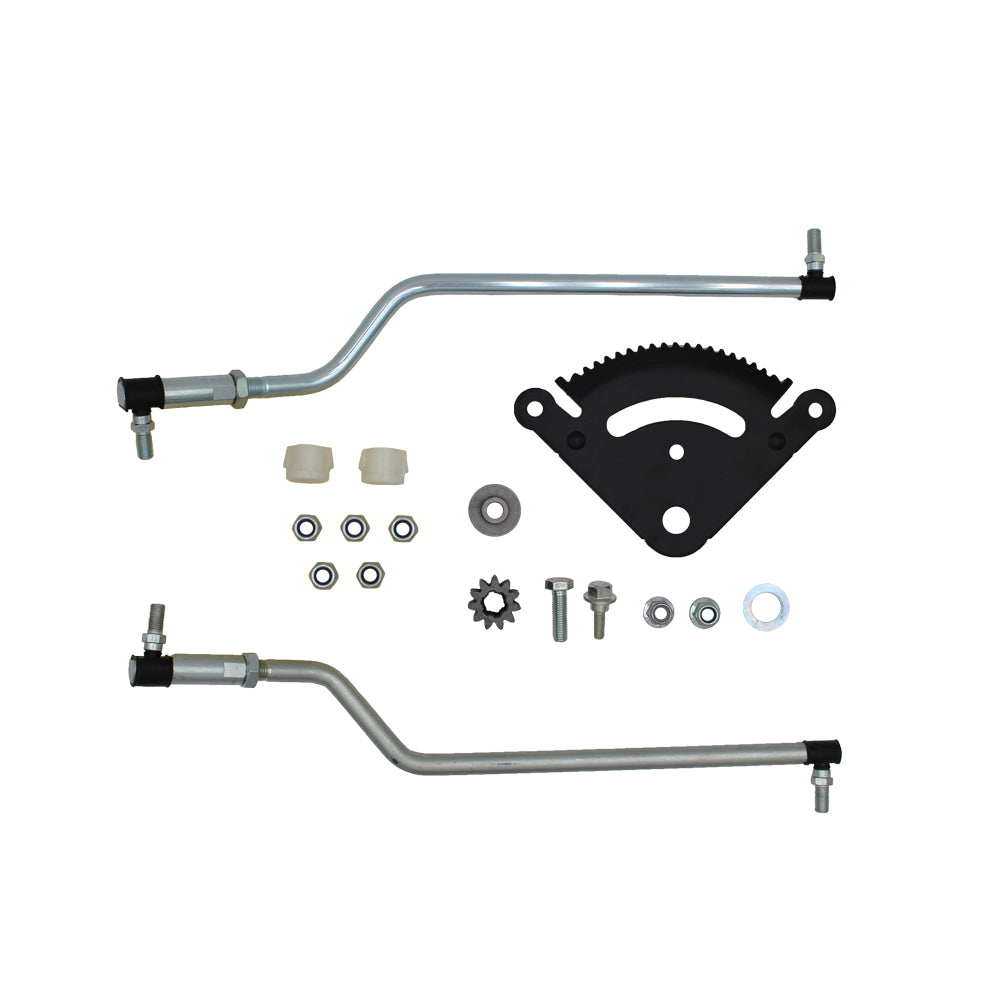

Steering Sector Drag Link Kit Fits John Deere D140 D150 D155 D160 D170, VIC35969

Steering Sector Drag Link Kit Fits John Deere D140 D150 D155 D160 D170, VIC35969

$87.99 USD
$87.99 USD
Sale Sold out
Shipping calculated at checkout.
One Brand New Aftermarket Replacement
Steering Gear Hardware Kit
Fits John Deere Models: D140, D150, D155, D160, D170

--Hardware Kit to mount steering sector gear.

Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)

Part Numbers: GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053 Fits JD, 14M7396, M153513, 20225, GX21994, GX21994 Fits JD, 14M7455.

Models This Part Fits:

D140, 190C, 125, 135, 145, LA105, LA175, D100, X145, 105, D170, D130, D155, LA130, LA150, 115, 107H, LA100, 155C, LA110, D125, D105, X105, LA115, LA125, X165, LA140, LA120, D120, X115R, D110, LA165, 102, 92H, X155R, X125, 107S, X130R, D160, X135R, S240, D150

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513

Reference Numbers:

GY20770, GY21250, 14M7400, GY21251, GY20771, GX20053, GX21924BLE, UC13360, 19M7835, 24M7053, GX21994, 14M7455, M153513

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Other Steering Components
