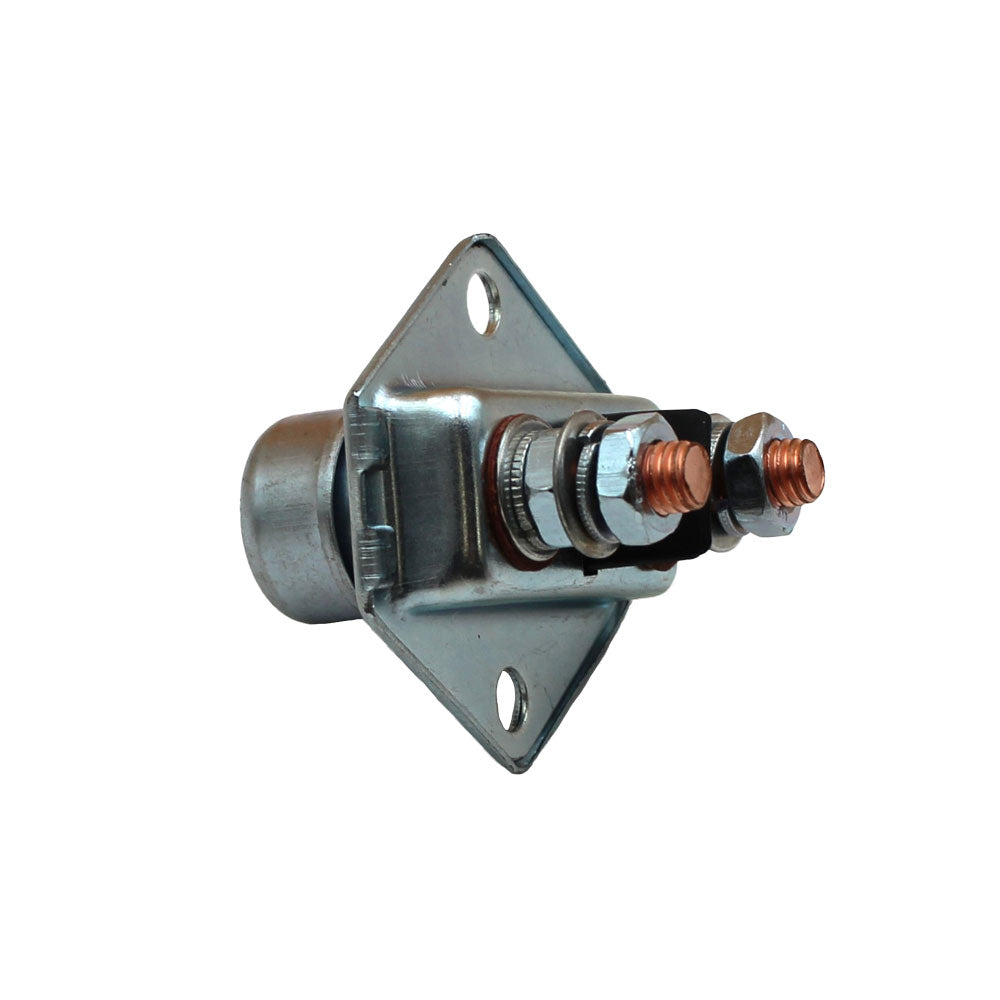

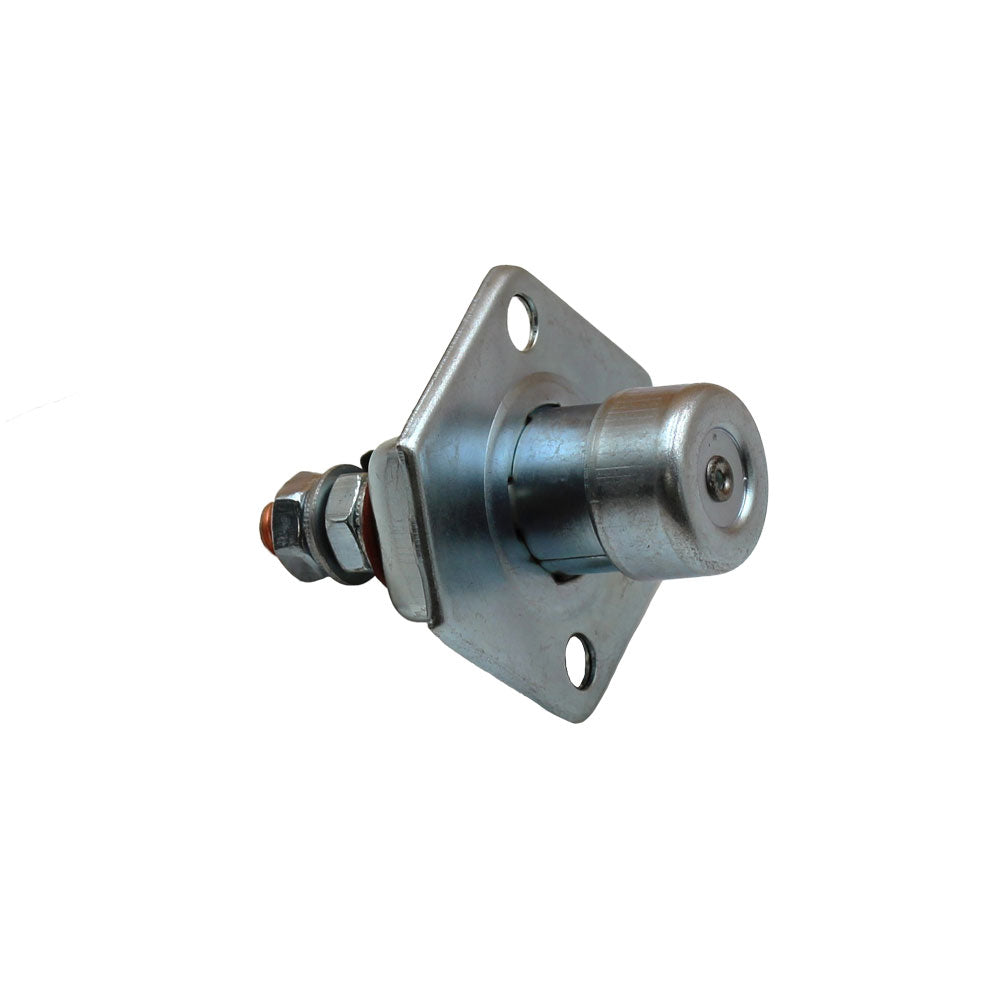

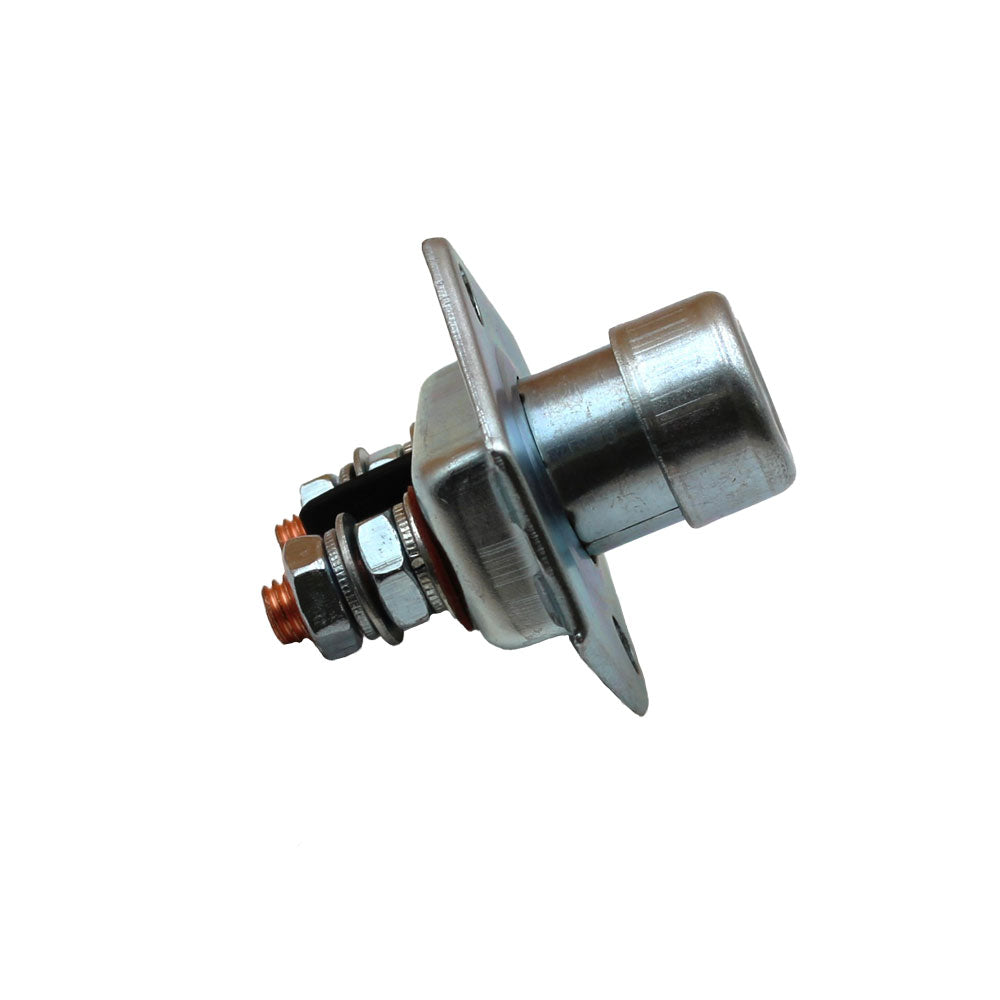

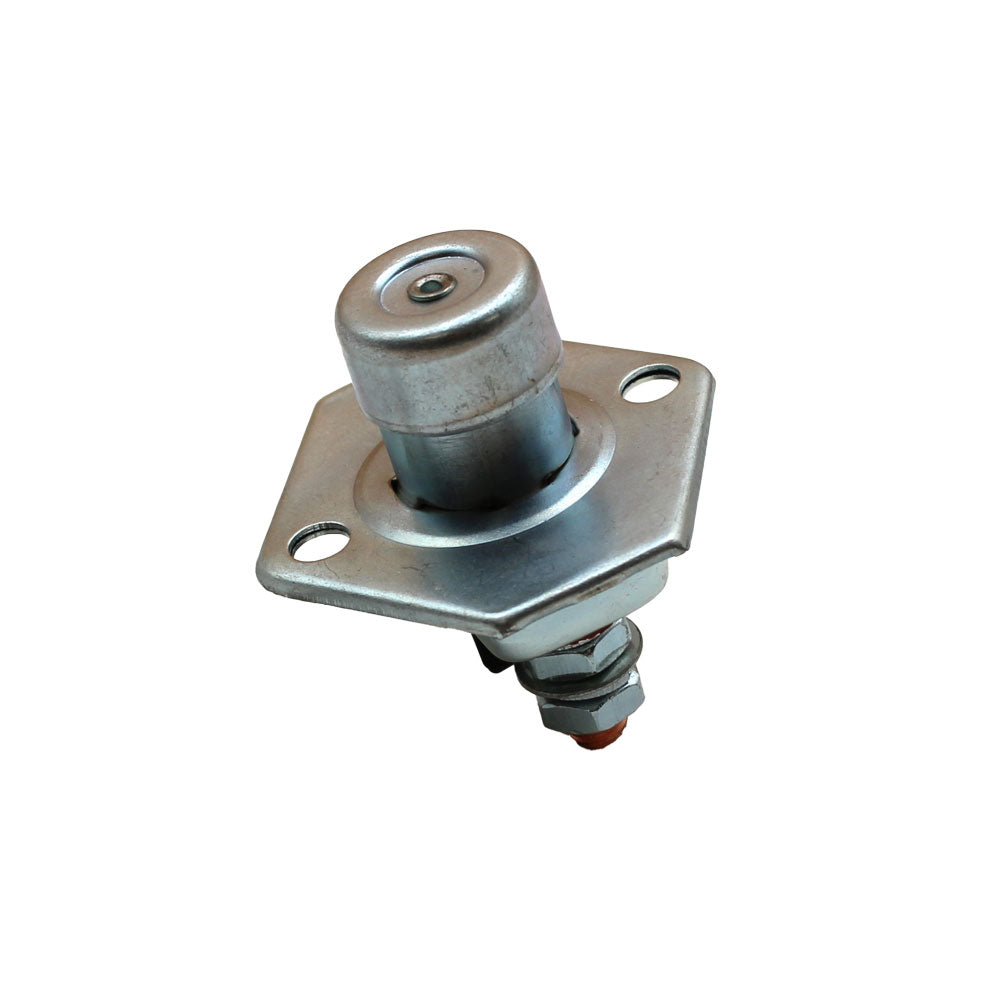

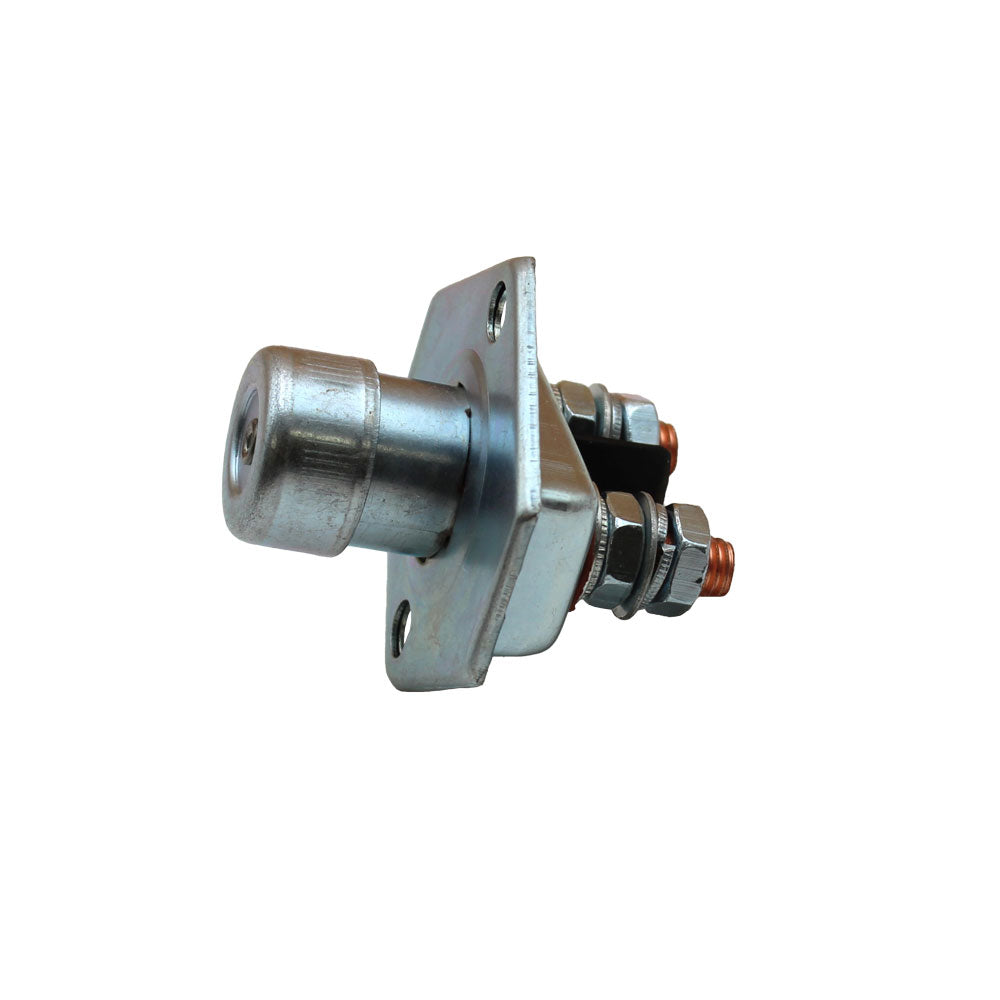

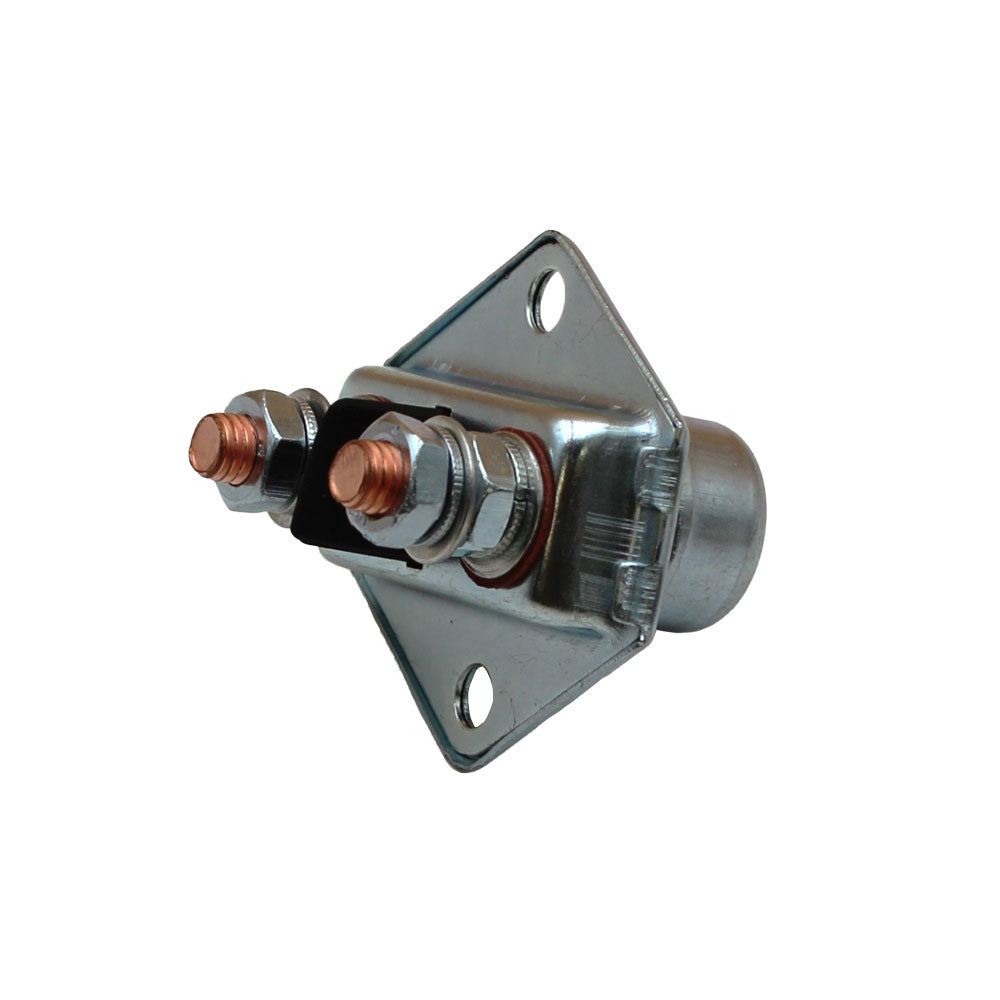

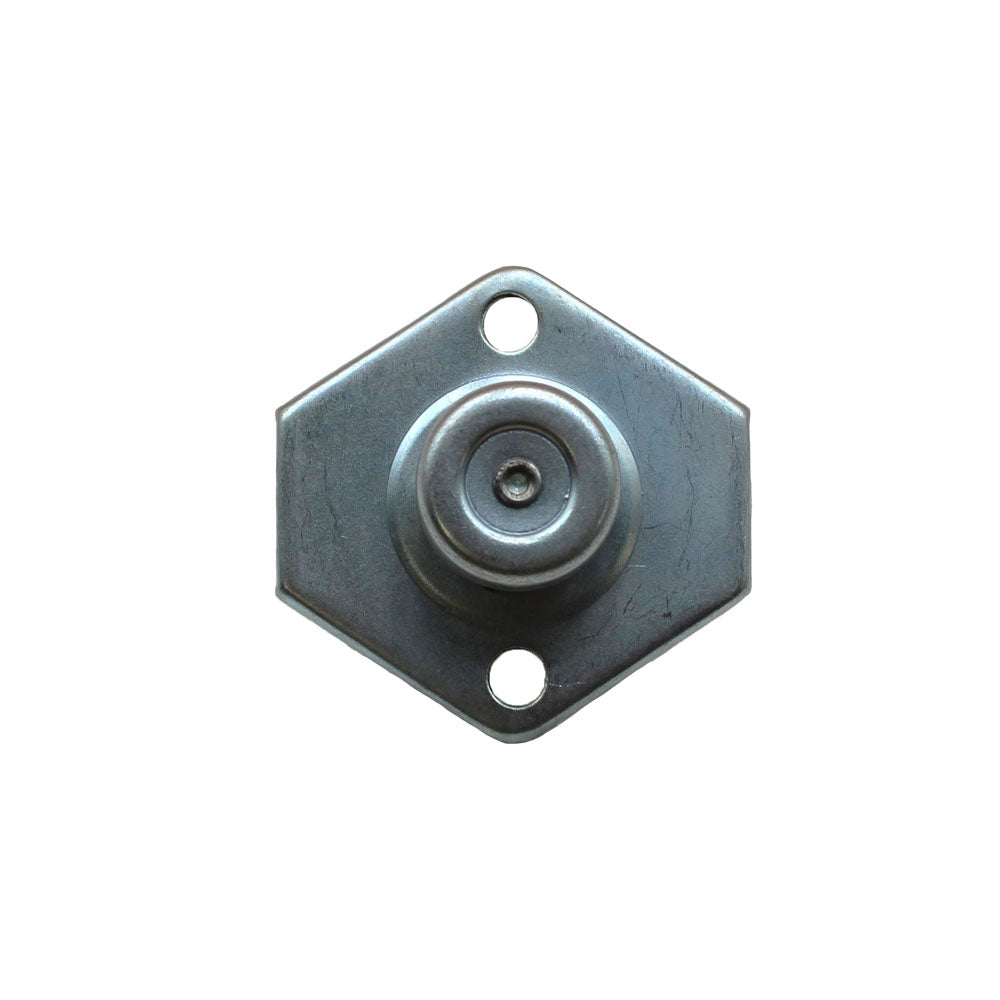

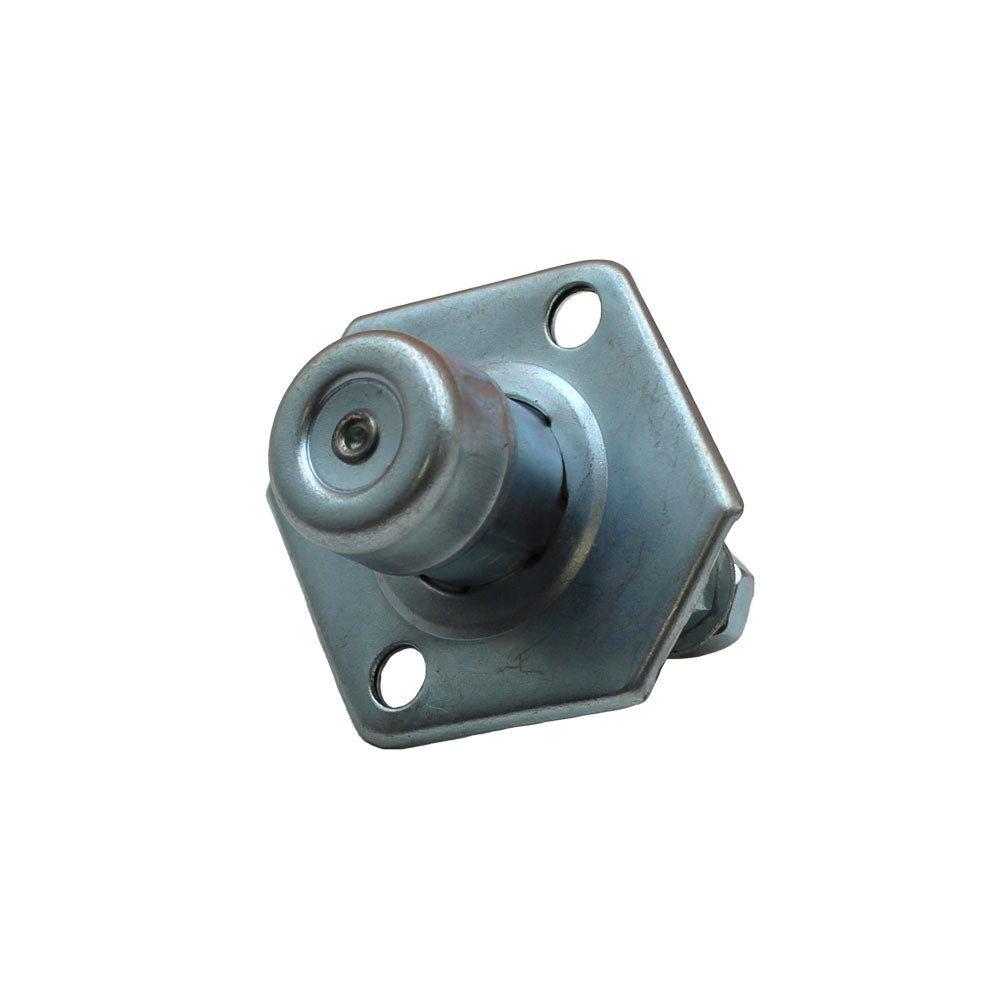

Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30

Name: Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30
SKU: 181679M1_17
Price: 19.89 USD
Availability: InStock

Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30

$19.89 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Push Button Starter Switch Fits Massey Ferguson TE/TO Series Tractors

This push button starter switch is a direct-fit replacement for the electrical system on Fits Massey Ferguson TE and TO series tractors, as well as compatible Fits International Harvester and Cockshutt applications. The momentary-action, gear-shift-lever-operated switch provides reliable engine cranking engagement. It is a Single Pole Single Throw (SPST) design rated at 70 amps max, operating on 6/12V systems with two screw terminals and a two-hole mounting plate.

Specifications

Type: Push Button Starter Switch (Momentary, SPST)
Amp Rating: 70 Amp Max
Voltage: 6/12V
Contact Configuration: Single Pole, Single Throw (SPST)
Number of Positions: 2
Number of Terminals: 2
Mounting: 2 x 7.1mm holes, 38mm apart
Lighted: No
Anti-Restart: No
Weather Sealed: No
Self Grounding: No

Compatible Models

Fits Massey Ferguson: TE20, TEA20, TO20, TO30, TO35

Fits International Harvester (Fits FARMALL/IH): Fits Cub (SN: 224401-239826), Fits Cub Lo-Boy (SN: 18701 and up), 140 (SN: 26801-45000)

Cockshutt / White: Cockshutt 30 (1946-1959), White (Cockshutt) 30 (1952-1959), CO-OP 30

Other Applications: Fits Allis Chalmers (1942-1950 applications), Gambles Farmcrest 30 4-cyl (1946-1954), Buda 4B-153 (1946-1955), Nash Applications

Replaces Part Number(s):

181679M1, 181679M91, 181679V1, TO11450A, 376295R91, G13047, AE13547, AE13547E, AN151896, VT3588, B7392A, 10-MS106, 7-1006, CH9183, SPL6003, SWX47, SW2916, SW4001, SW4002, SW4005, SW4010, SW4013, SW4015, SW4017, SW4101, 20A1748

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

300, TE20, agricultural, 320B, 100, 300 Diesel, 320, 400B, 420B Diesel, 550, 80, 300B Diesel, 90, planting equipment, TEA20, 320 Diesel, TO20, tillage and planting equipment, 300B, 70, 2-44 DIESEL, TO30, Cub, SUPER 99, Cub Loboy, tillage equipment, 301B, 320B Diesel, 420B, 550 DIESEL, 140, 60, tractors, 2-44

Additional Information:

70 Amp mp Range100 Anti-Restart False Contact Config Single Pole, Single Throw (SPST) Lighted False Momentary True Mounting(2) 7.1mm Holes, 38mm Apart No of Positions 2 No of Terminals 2 Self Grounding False Voltage Input 6/12V Weather Sealed False

Reference Numbers:

376295R91, 181679M1, G13047, VT3588, 181679M1, TO11450A, AE13547, AE13547E, AN151896, SWX47, SW2916, SW4001, SW4002, SW4005, SW4010, SW4013, SW4015, SW4017, SW4101, 10-MS106, 7-1006, CH9183, SPL6003, B7392A, G13047
