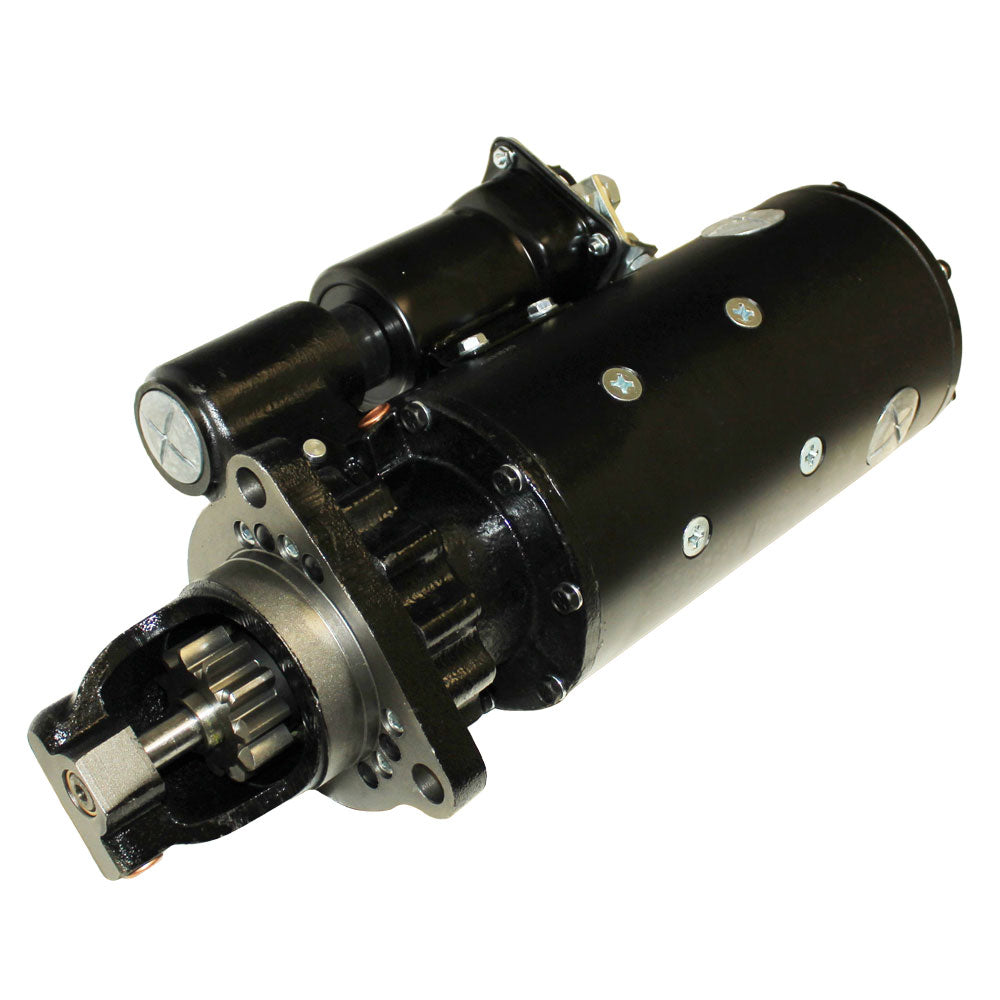

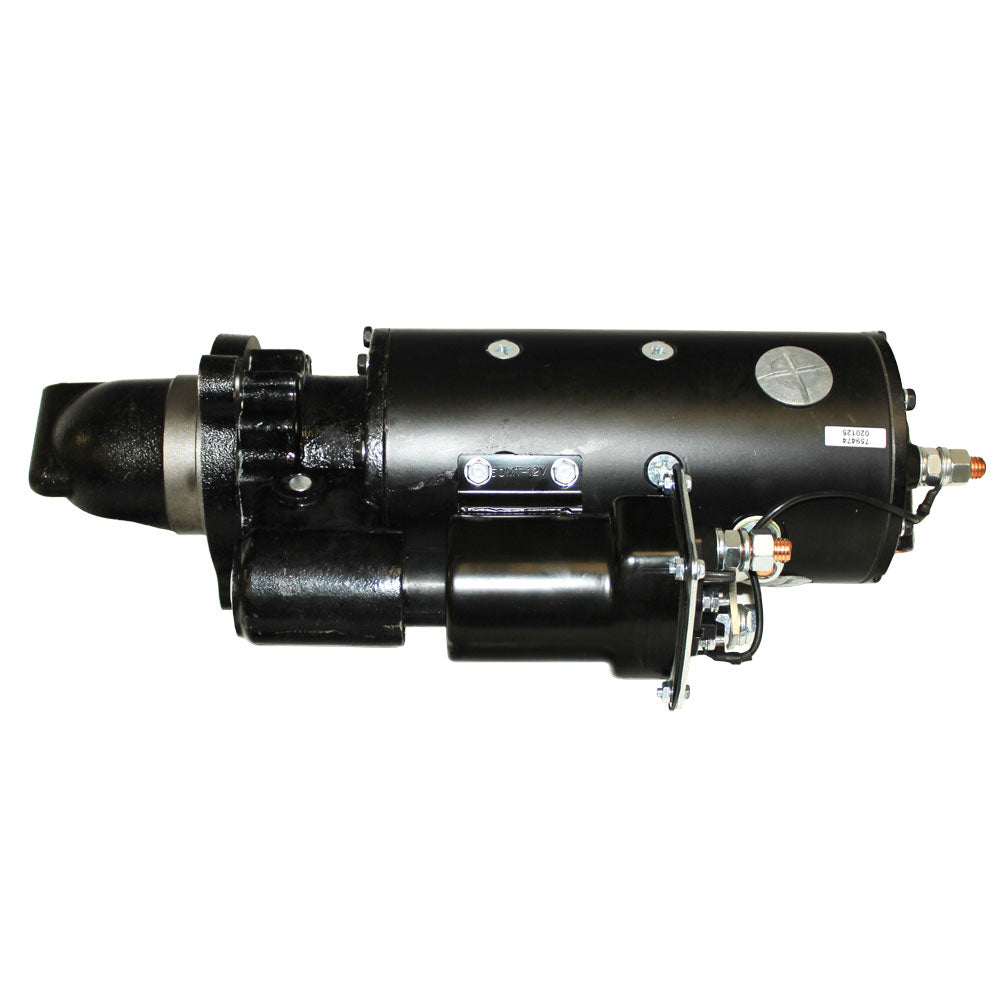

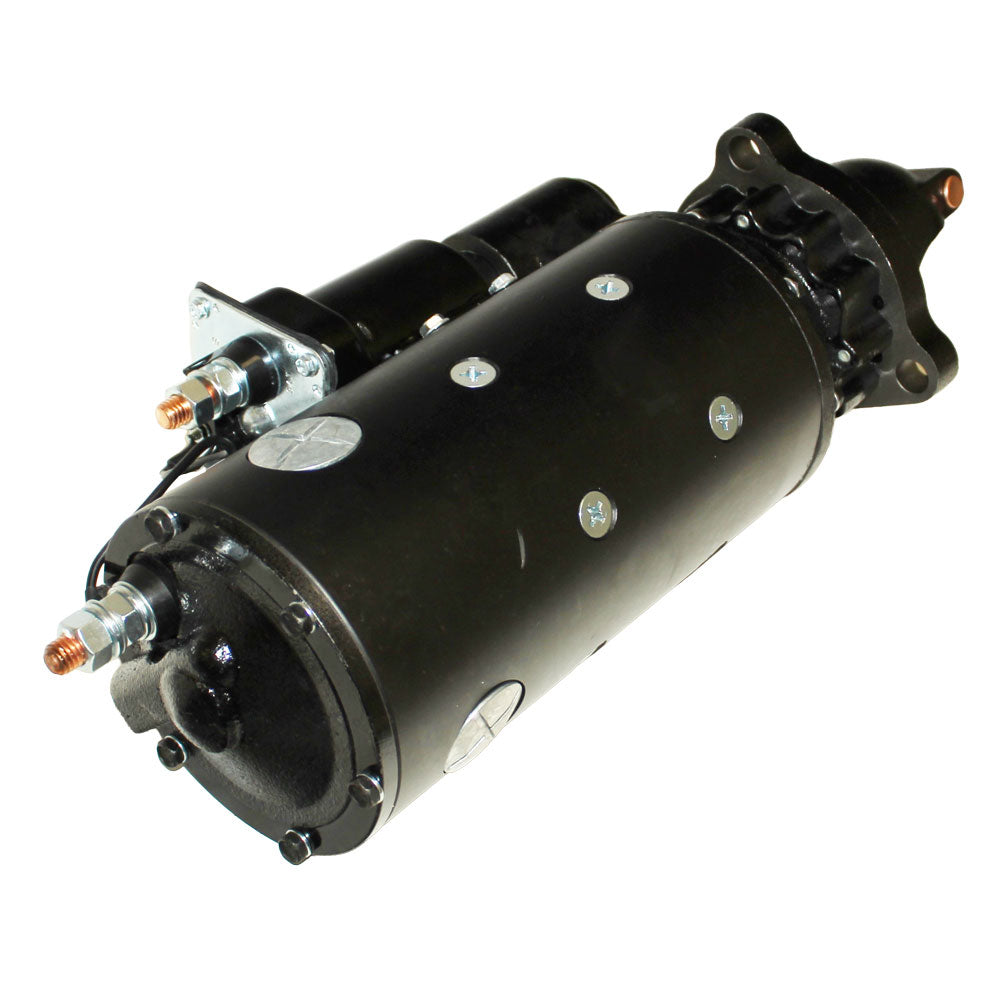

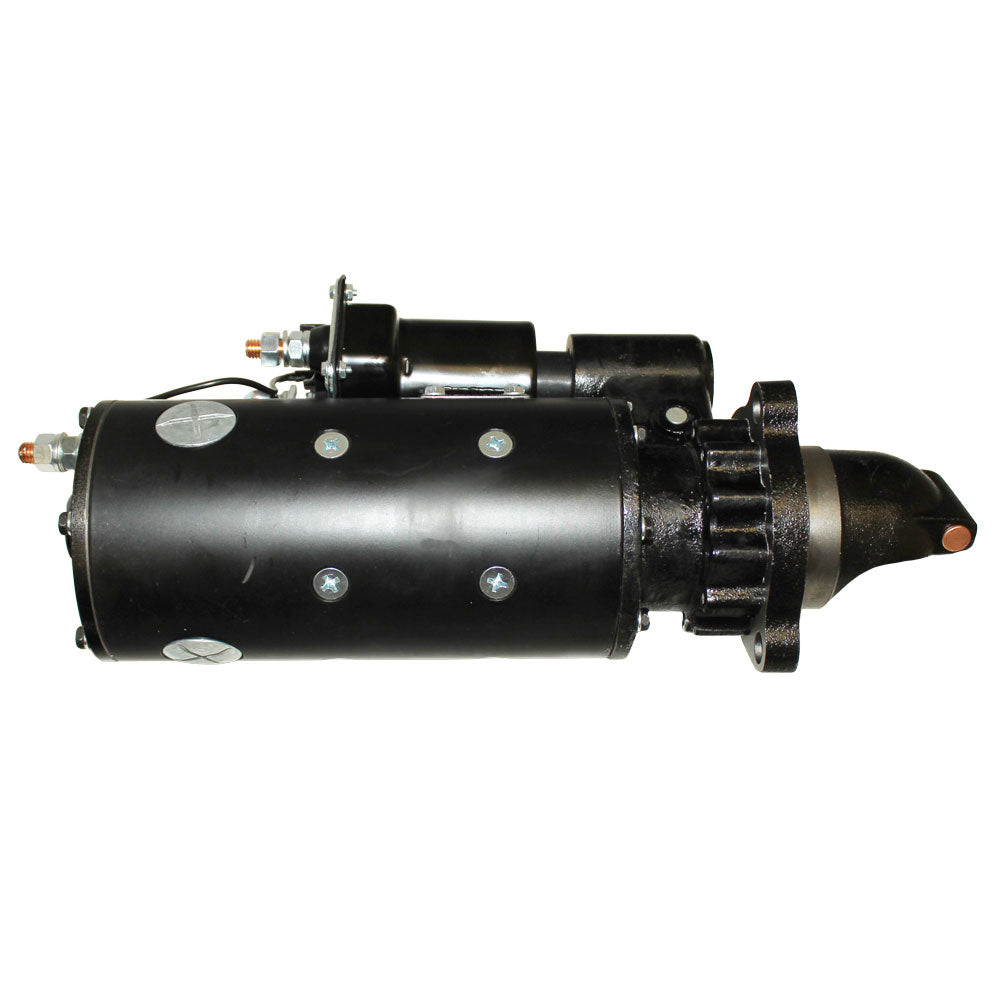

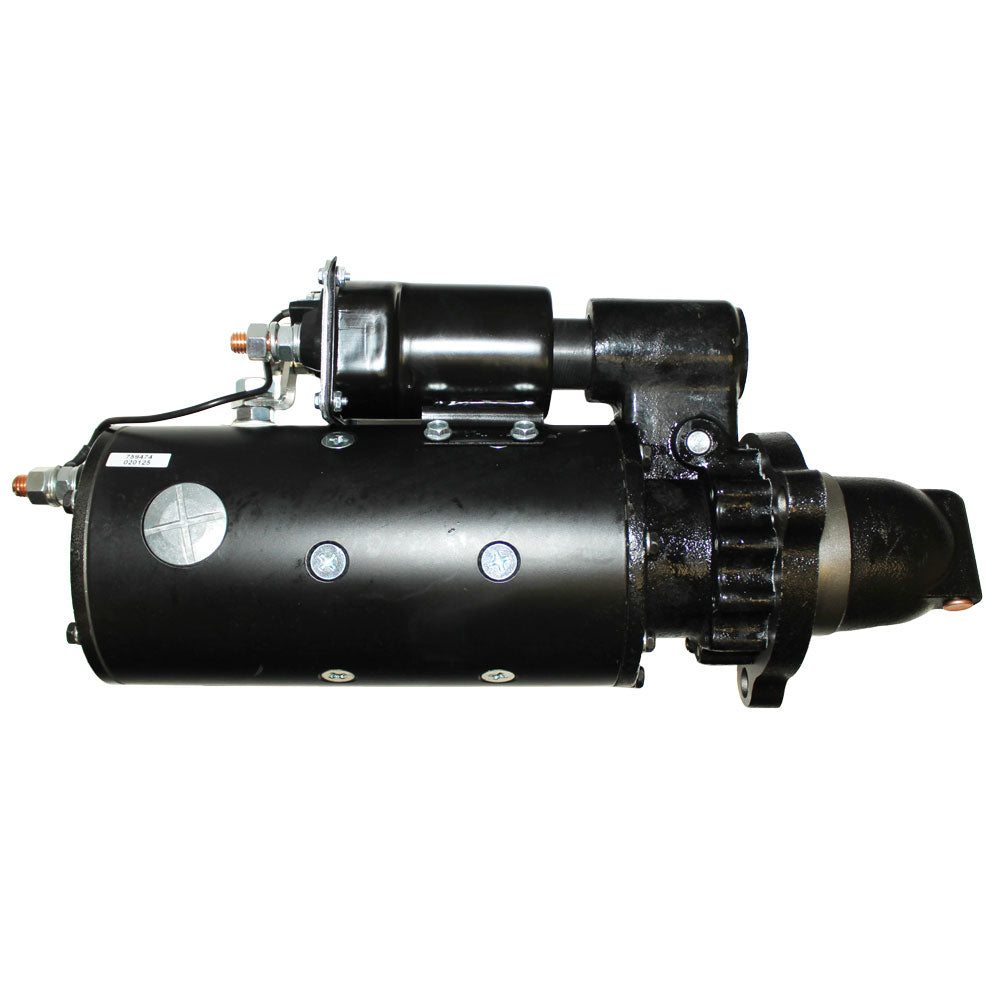

Starter Fits Western Star Replaces 10461056

Starter Fits Western Star Replaces 10461056

$534.99 USD
$534.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Starter

Tech Info:
 -Volt - 12
 -Power - 8.500 kw
 -HP - 11.399
 -Rotation Direction - Clockwise
 -Electric Starter Type - Direct Drive (DD)
 -Number of Teeth - 11
 -Gear OD - 2.201" (55.900mm)
 -Solenoid Position - 68
 -Length - 16.417" (417 mm)
 -Mount Hole ID 1 - 0.660"
 -Mount Hole 1 Type - Unthreaded
 -Mount Hole ID 2 - 0.660"
 -Mount Hole 2 Type - Unthreaded
 -Mount Hole 3 Type - Unthreaded
 -Semi Solid Link - TRUE
 -Standard Version, with Semi Solid Link
 -Solenoid Position - 68

Made to Fit Western Star:
 Engines Models: 12.1L V8 (8V-92): 3800, 4800, 4900 (1981–1990); Series 60 (11.1L / 12.7L): 3800, 4800, 4900 (1989–1999); 18.0L V8 (12V-71): 4800, 4900 (1982–1985); 10.3L (3176 / C-10): 3800, 4800 (1989–1997); 14.6L (3406 Series): 4800, 4900 (1981–1984); 10.0L (L-10): 3800, 4800, 4900 (1984–1998); 14.0L (N14 / NTC-855): 3800, 4800, 4900 (1985–2001)
 Replaces Part Number(s): SA-750, SA-750A, 3604680RX, 10461056, 10478813, 1109295, 1109545, 1109554, 1109790, 1990261, 1990277, 1990298, 1993864, 1993968, 323-789, E4HZ-11002-A, E4HZ-11002-B

Models This Part Fits:

12.1L V8 (8V-92): 3800, 4900 (1984–1998); 14.0L (N14 / NTC-855): 3800, 4900 (1985–2001), 4900 (1989–1999); 18.0L V8 (12V-71): 4800, 4900 (1982–1985); 10.3L (3176 / C-10): 3800, 4800 (1989–1997); 14.6L (3406 Series): 4800, 4900 (1981–1990); Series 60 (11.1L / 12.7L): 3800, 4900 (1981–1984); 10.0L (L-10): 3800, 4800

Additional Information:

Volt - 12 Power - 8.500 kw HP - 11.399 Rotation Direction - Clockwise Electric Starter Type - Direct Drive (DD) Number of Teeth - 11 Gear OD - 2.201" (55.900mm) Solenoid Position - 68 Length - 16.417" (417 mm) Mount Hole ID 1 - 0.660" Mount Hole 1 Type - Unthreaded Mount Hole ID 2 - 0.660" Mount Hole 2 Type - Unthreaded Mount Hole 3 Type - Unthreaded Semi Solid Link - TRUE Standard Version, with Semi Solid Link Solenoid Position - 68

Reference Numbers:

SA-750, SA-750A, 3604680RX, 10461056, 10478813, 1109295, 1109545, 1109554, 1109790, 1990261, 1990277, 1990298, 1993864, 1993968, 323-789, E4HZ-11002-A, E4HZ-11002-B
