Starter Fits Kubota - 15501-63010, 15501-63011, 15501-63012, 1900-0128
Starter Fits Kubota - 15501-63010, 15501-63011, 15501-63012, 1900-0128
Couldn't load pickup availability

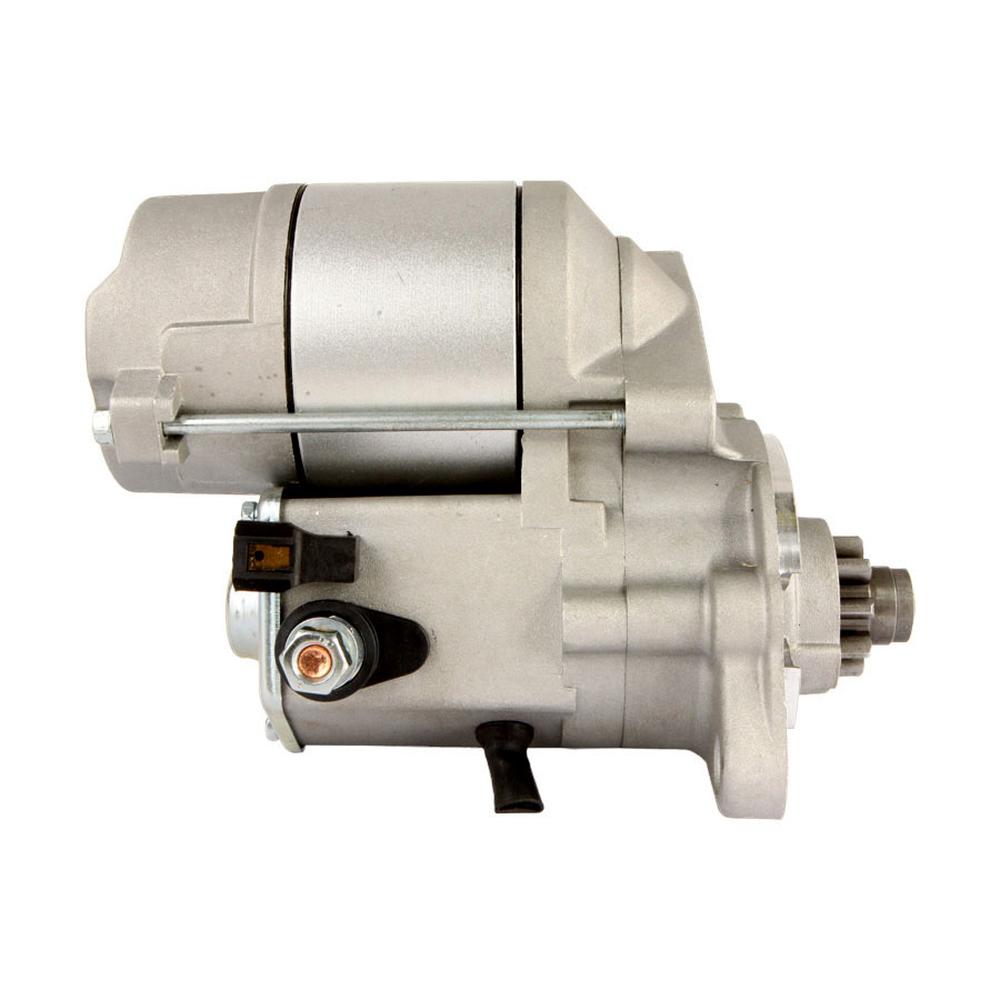

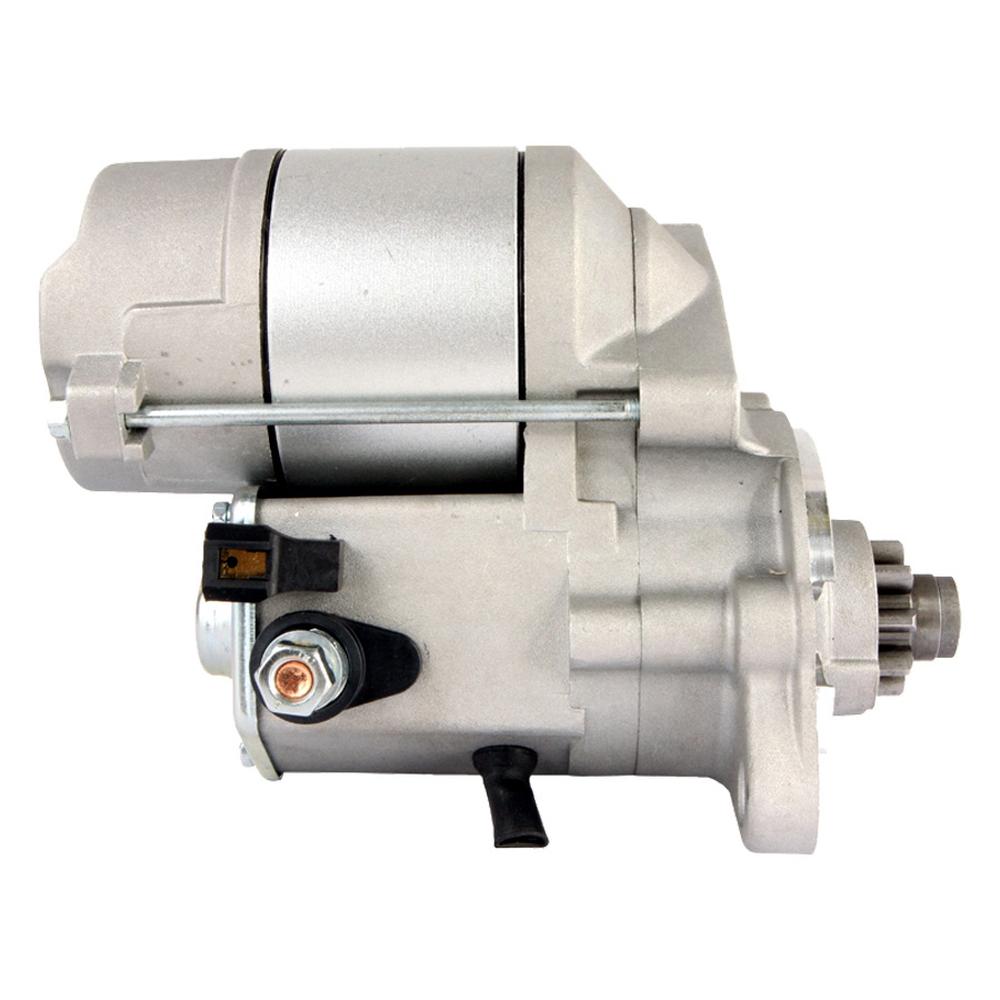

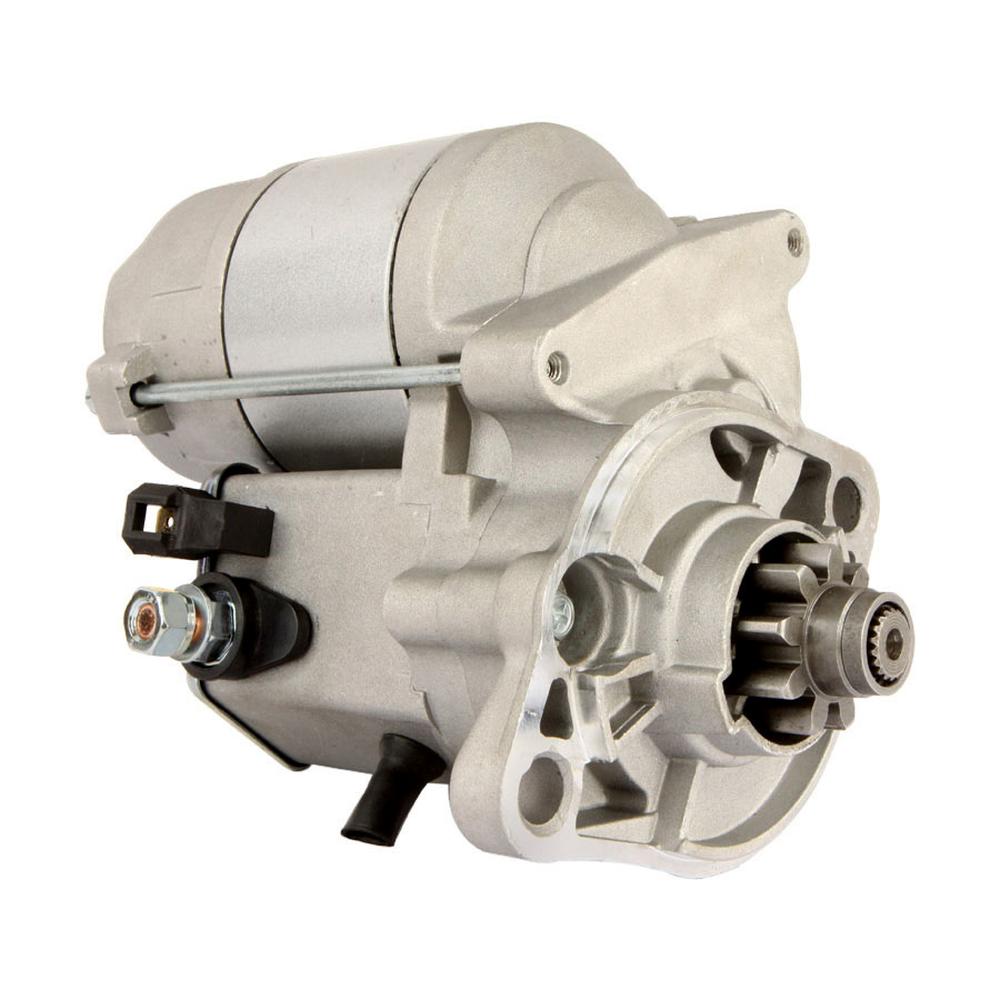

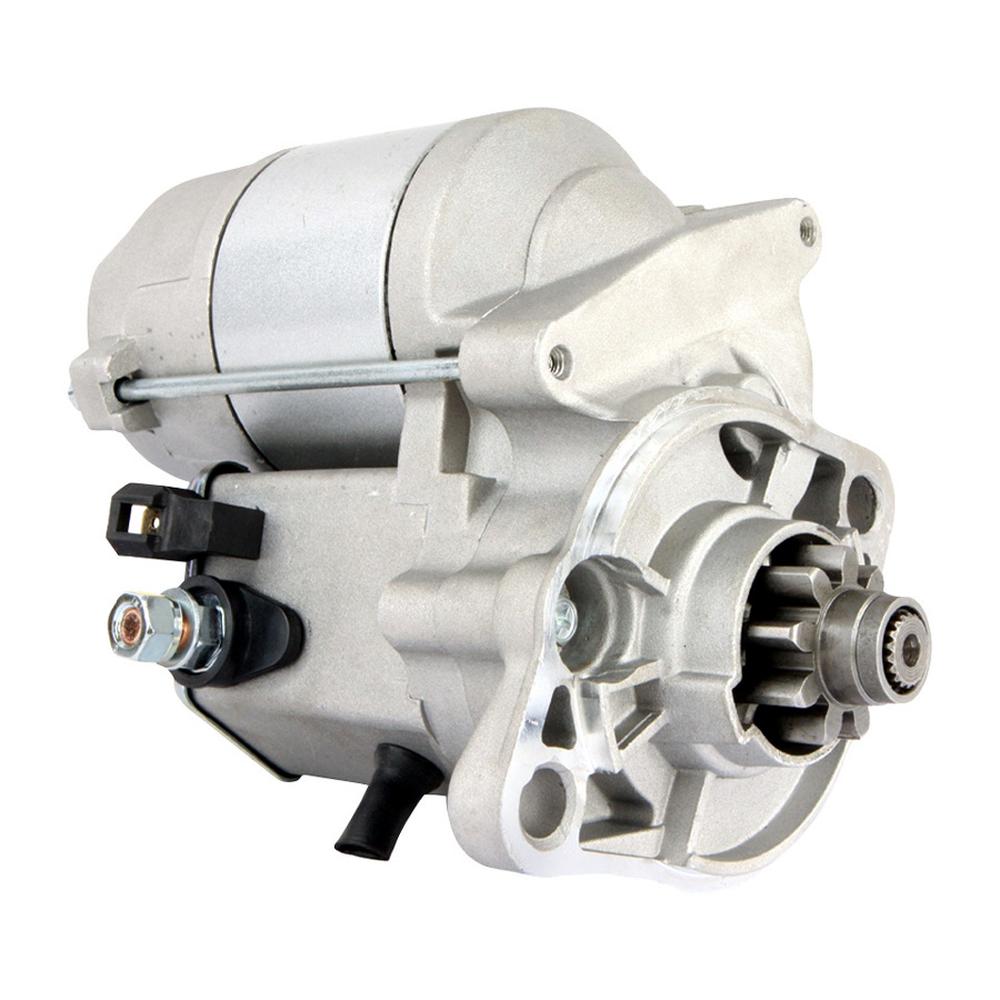

One New Aftermarket Replacement 12V OSGR Starter for Kubota Compact Tractors
This Denso-style Offset Gear Reduction (OSGR) starter is a direct aftermarket replacement for Kubota compact tractor and carrier applications. It mounts to the engine block and engages the flywheel ring gear to crank the diesel engine. The 12-volt, clockwise-rotation design with a 9-tooth pinion is a direct fit replacement for the original Kubota starter on a wide range of L-Series compact tractors spanning model years from the mid-1970s through the late 1990s.
Specifications
- Voltage: 12V
- Power: 1.0 kW
- Rotation: Clockwise (CW)
- Starter Type: Offset Gear Reduction (OSGR) - Denso Style
- Number of Teeth: 9
- Pinion OD: 33.5 mm / 1.319 in
- Mount Holes: 2 x 11.2 mm ID Unthreaded
Compatible Models
Kubota Compact Tractors: L225 (1973-1977), L225DT (1973-1977), L225F (1973-1977), L235DT (1981-1985), L235F (1981-1985), L245 (1977-1982), L245DT (1977-1982), L245HC (1977-1989), L275DT (1981-1985), L275F (1981-1985), L2050DT (1989-1990), L2050F (1989-1990), L2350DT (1991-1997), L2350F (1991-1997), L2650DT (1990-1996), L2650F (1991-1993), L2650GST (1991-1993)
Kubota Carriers: KC15 (1976-1991)
Replaces Part Number(s):
988CNC2644181, 15501-63010, 15501-63011, 15501-63012, 15501-63020, 17311-63010, 1900-0128
Aftermarket Interchange Numbers
Arrowhead: 410-52302 | Lester: 16221, 17363 | Denso: 028000-3610, 028000-3611, 028000-8430, 028000-8431, 028000-8432, 128000-6620, 128000-6621, 128000-6622, 128000-6840, 128000-6841, 128000-6842, 128000-6843
New aftermarket replacement part - not remanufactured, not used.
