Starter Fits Ford Fits Holland 4230 4430 4835 5530 5635 6530 6635 504059251

Starter Fits Ford Fits Holland 4230 4430 4835 5530 5635 6530 6635 504059251

$265.99 USD
$265.99 USD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Starter for Ford / New Holland, Case IH, Fiat, Long, and Allis Chalmers Tractors

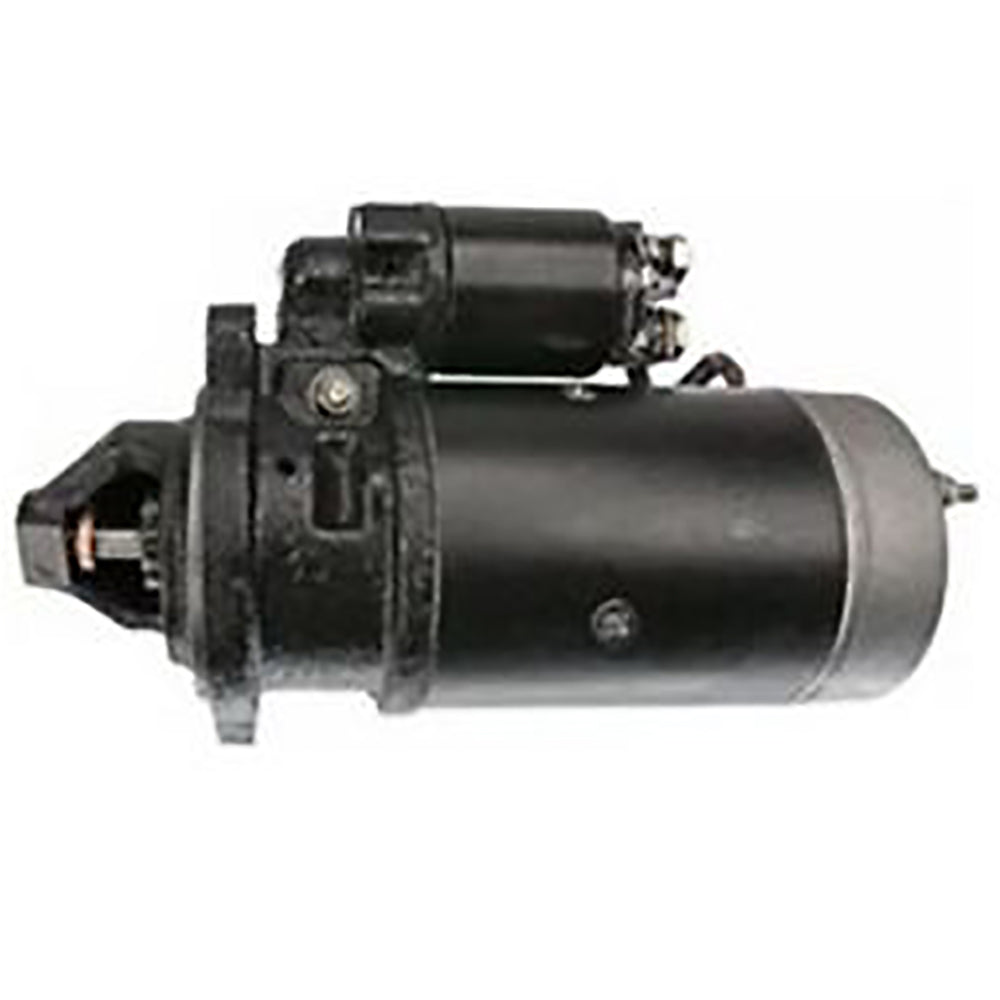

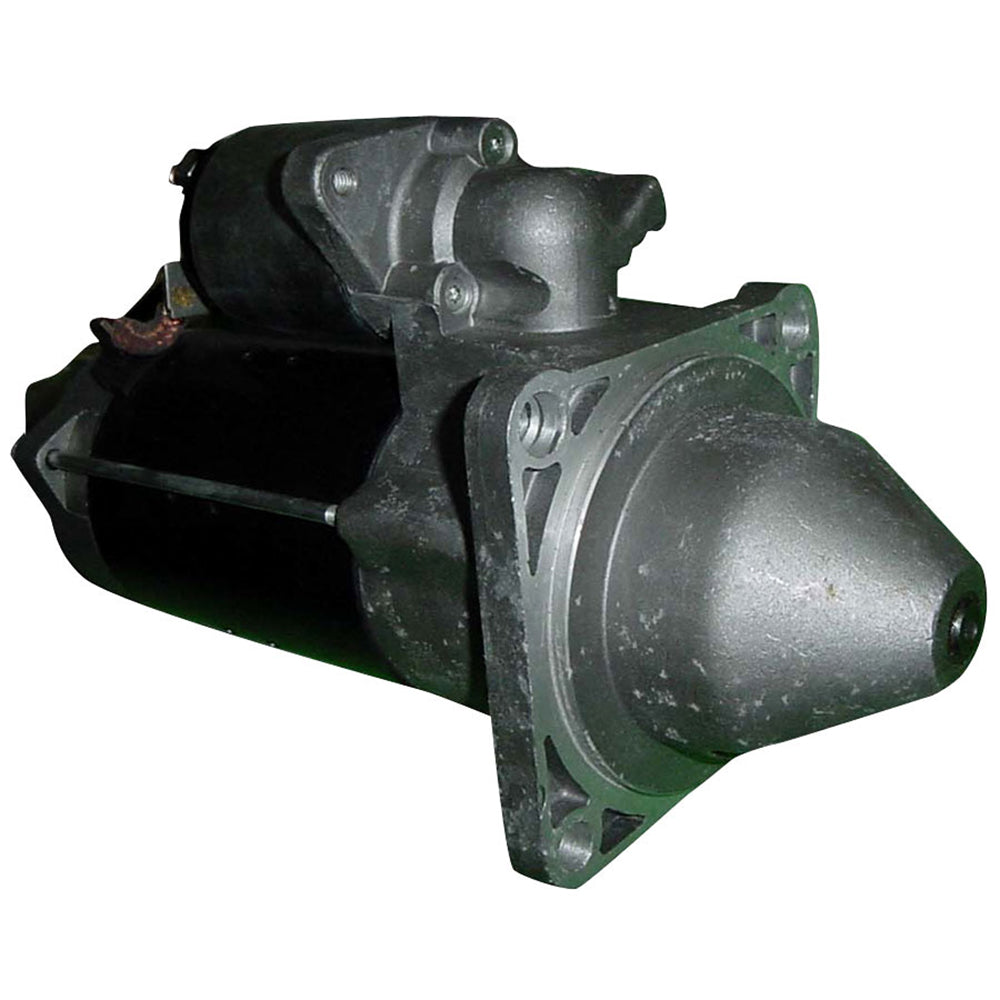

This 12-volt direct drive (DD) Bosch-style starter motor replaces the original equipment starter on a wide range of Ford, New Holland (formerly Ford New Holland), Case IH, Fiat, Long, and Allis Chalmers utility and compact tractors. It mounts via a 3-hole unthreaded flange and drives a 9-tooth gear clockwise to crank diesel engines across these platforms.

Specifications

  • Voltage: 12V
  • Power: 3 kW / 4.02 HP
  • Rotation: Clockwise (CW)
  • Starter Type: DD (Direct Drive), Bosch-style
  • Number of Teeth: 9
  • Gear OD: 1.346 in / 34.2 mm
  • Mounting: 3-hole, 11 mm unthreaded

Compatible Models

Ford / New Holland Tractors: 3830, 4230 (1992-1996), 4330V (1996-2000), 4430, 4430N (1992-1998), 4430V (1997-1998), 4835 (1995-1998), 5530, 5530HC (1992-1996), 5635 (1996-1999), 6530 (1992-1997), 6635 (1996-1999), 7530 (1992-1996), 7635 (1996-1999), 3010S, 4010S, 5010S, TD55D, TD70D, TD75D, TD80D, TD90D, TD95D, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TL-5, TL70, TL80, TL90, TL100, TN55, TN55DS, TN60ADASA, TN60VA, TN65, TN65DFS, TN65F, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70S, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75SA, TN75V, TN75VA, TN80F, TN85F, TN90F, TN95F, TN95FA, TN95VA, TT55, TT60A, TT65, TT75, TT75A, FL-4C, FL-4D, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, LB75, LB75CP, L-60 (1996-1997), L-65 (1996-1997), L-75 (1996-1997), L-85 (1996-1997), L-95 (1996-1997), Z Series

Case / International Harvester Tractors: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N (2005-2008)

Fiat Tractors: 55.85, 60-90, 65-46, 65-56, 65.66, 65.88, 65.9, 65-93, 65-94, 70-56, 70.65, 70-66, 70.75, 70.86, 70-76F, 70-76LP, 70-76V, 70-88, 70.9, 70-90, 72-85, 72-93, 72-94, 80-66, 80.65, 80.75, 80.88, 80-88, 80.9, 80-90, 82.86, 82-93, 82-94, 85-90, 85.55, 85.9, 88-93, 88-94, FG-65A, 8065

Long Tractors: 310, 340, 350, 360, 445, 460, 500, 510, 530, 540, 550, 560, 600, 610, 640, 850

Allis Chalmers / White / AGCO Tractors: 260, 2360, 2360 DTC, 2460, 2460 DTC, 2630, 3400, 3400R, 3550, 3550AL, 3550R, 5040, 5045, 5050, 1010, 2-60, 70.9

IVECO / White / Oliver: See models metafield for additional compatible units.

Replaces Part Number(s):

4832942, 504059251, F504059251, 500333271, 500325145, 500338952, 500339852, 5801441814, 82980757, 87470949, 87538219, 99449113, 4755109, 4807375, 4169096, 4699705, 4702248, 4703751, 4169096, 88205006, 31-2903335, 31-2906208, 0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082, SR914X, SR9980N, 47783079

Aftermarket Interchange Numbers

Bosch: 0-001-230-007, 0-001-230-010, 0-001-230-023; Bosch Reman: SR9979X, SR9979N; Arrowhead: SBO0136, SBO0067; Lester: 18374; Mahle: MS79; Cargo: 113182; Lucas: LRS01562; Sparex: S-62406; DB Electrical: 410-24066

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

545B, JX80, TN65V, 550, JX90U, TD95D, TN95FA, TN75F, 2360 DTC, 600, TD90D, 4330V, TK80MA, 530, JX95, TL90, JX1095N, JX80U, JX1070N, TD70D, 72-94, TT75, 7635, FL-4D, JX100U, TN65F, TN95F, TN70F, 70-90, 8065, 850, 360, TD75D, 3830, 2360, 5040, TK76, TK100A, FG-65A, TN75D, 4230, 4835, 460, 640, 510, FL-4C, 80-88, JX65, 85-90, JX1070C, 65.88, 70-56, JX55, 65.9, 1010, JX1075C, TT75A, 70-66, TK85, JX70, 3550, 85.55, 260, 82.86, TN65, TL-5, 85.9, 5635, TT65, 70-88, 88-93, 3010S, 80.65, 80.88, TN60VA, TN55DS, 2610, 5050, 72-93, TL100, 70-76F, 6530, JX85, JX1075N, 72-85, TN95VA, 70.75, 82-94, 70-76LP, 70.86, TN70S, TN75, 65-93, TK85M, TN75V, 65.56, JX90, TN75SA, Z Series, 55.85, TN70, TN75S, TN85F, 4030, TT60A, 70.9, TL70, 80-66, 65.66, TT55, 500, 4430, TN65DFS, TN75DA, 560, 80.9, TN90F, 60-90, TN55, JX60, TK80A, TN60ADASA, TK90MA, 340, JX75, TN70DA, 70-76V, TN75VA, 2460, 3400R, TN70A, 2460 DTC, TK90A, 3400, JX70U, TL80, TN70D, 88-94, 350, 610, 80-90, 6635, TD55D, JX1060C, TD80D, 3550AL, 5530, 82-93, TN70VA, 65-46, 65-94, 80.75, 7530, 4010S, TN80F, 70.65, 2630, 445, 3550R, 2-60, 310, 5045, TN75A, 5010S

Additional Information:

Voltage: 12 Power: 3kW / 4.02HP Rotation: CW Starter Type: DD Number of Teeth: 9 Gear OD: 1.346in / 34.2mm 3 Holes: 11mm Unthreaded

Reference Numbers:

4755109, 47783079, 4807375, 500325145, 500333271, 500338952, 500339852, 504059251, 5801441814, 82980757, 87470949, 87538219, 99449113, F504059251, 500333271, 31-2903335, 31-2906208, 0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082, SR914X, SR9980N, 4169096, 4699705, 4702248, 4703751, 4755109, 4807375, 88205006
