Starter 4172113 Fits Case IH JX75 JX85 JX95

Starter 4172113 Fits Case IH JX75 JX85 JX95

$265.99 USD
$265.99 USD
Sale Sold out
Shipping calculated at checkout.

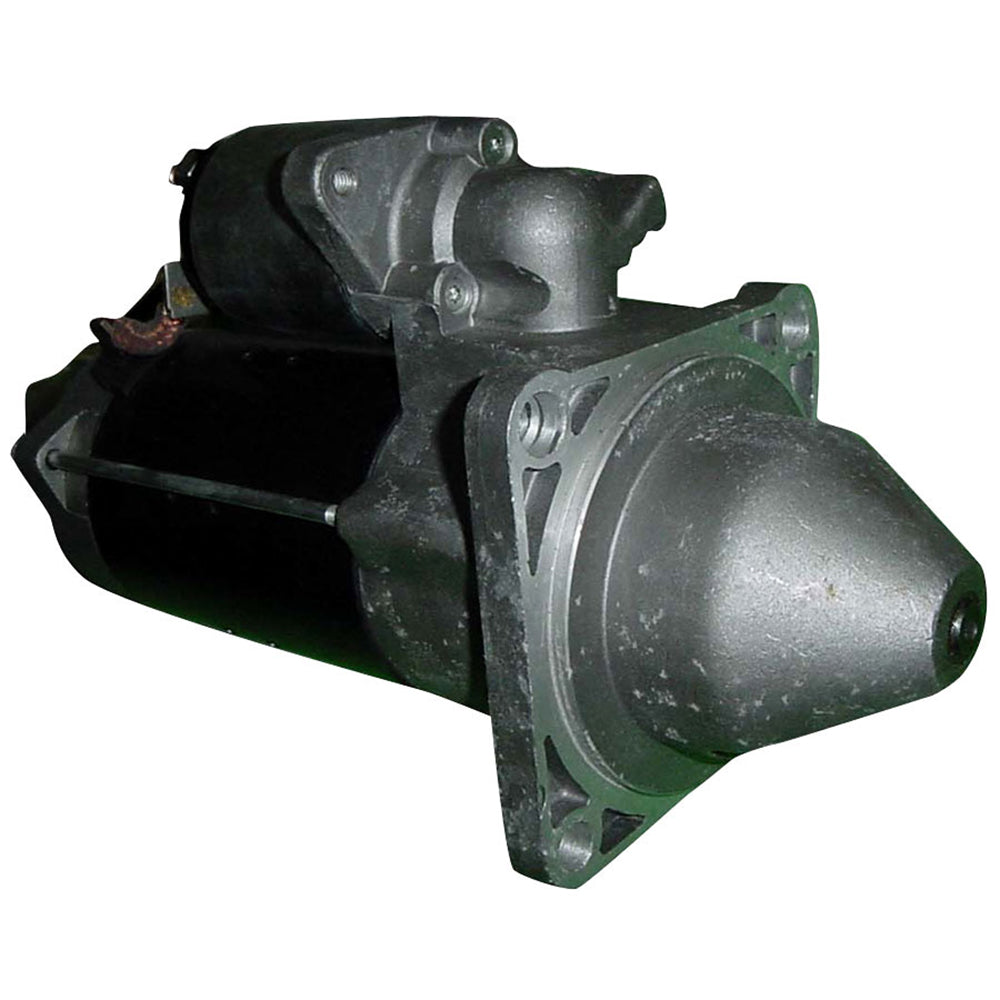

One New Aftermarket Replacement Direct Drive Starter for Case IH (Case/International Harvester), Fiat, Ford/New Holland, Long, White, Allis Chalmers, and IVECO Tractors

This 12-volt direct drive (DD) starter delivers reliable engine cranking for a wide range of Case IH (Case/International Harvester), Fiat, Ford/New Holland, New Holland, Long, White, Allis Chalmers, and IVECO agricultural tractors. It mounts via a 3-hole flange pattern and is a direct replacement for the original Bosch/Iskra-family starter used across these platforms.

Specifications

  • Voltage: 12V
  • Power: 3 kW / 4.02 HP
  • Rotation: Clockwise (CW)
  • Type: Direct Drive (DD)
  • Number of Teeth: 9
  • Gear OD: 1.346 in / 34.2 mm
  • Mounting: 3-hole, 11 mm unthreaded

Compatible Models

Case IH / Case International Harvester Tractors: JX55, JX60, JX65, JX70, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N

Fiat Tractors: 55.85, 60-90, 65.9, 65.56, 65.66, 65.88, 70-56, 70-66, 70-76F, 70-76LP, 70-76V, 70-88, 70-90, 70.65, 70.75, 70.86, 70.9, 72-85, 72-93, 72-94, 80-65, 80-66, 80-75, 80-88, 80-90, 80.65, 80.75, 80.88, 80.9, 82-93, 82-94, 82.86, 85-90, 85.55, 85.9, 88-93, 88-94, 7090, 7090DT, 8065

Ford/New Holland Tractors: TN55, TN55DS, TN60ADASA, TN60VA, TN65, TN65DFS, TN65F, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70S, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85F, TN90F, TN95F, TN95FA, TN95VA, TL-5, TL70, TL80, TL90, TL100, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TD55D, TD70D, TD75D, TD80D, TD90D, TD95D, TT55, TT60A, TT65, TT75, TT75A, 4835, 5635, 6635, 7635, 4030

New Holland Tractors: 460, 5040, 5045, 5050, 7090, 7530

Long Tractors: 310, 340, 350, 360, 445, 460, 500, 510, 530, 545B, 550, 560, 600, 610, 640, 850, 1010, 2360, 2360 DTC, 2460, 2460 DTC, 2610, 2630, 3010S, 3400, 3400R, 3550, 3550AL, 3550R, 3830, 4010S, 4030, 4230, 4330V, 4430, 5010S

White Tractors: 2-60, 260

Allis Chalmers Tractors: 5045, 5050

IVECO: Z Series

Additional Models: FL-4C, FL-4D, FG-65A

Replaces Part Number(s):

4172113, 4832942, 4169096, 4699705, 4702248, 4703751, 4755109, 4807375, 88205006, 500333271, 47783079, 500325145, 500338952, 500339852, 504059251, F504059251, 5801441814, 82980757, 87470949, 87538219, 99449113, 31-2903335, 31-2906208

Aftermarket Interchange Numbers

Bosch: 0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082; Remy/Standard: SR914X, SR9980N; Marelli: 4832942; Iskra: 11.130.140

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

60-90, TK100A, TN75VA, 5040, JX95, TT60A, TN95F, 70-76F, TD80D, 8065, 70-56, 5010S, 600, 65.66, 82-94, 88-93, 2460, TD75D, TN75SA, 260, 850, 70.65, 2360, 65.56, 65-94, 2630, TT75A, 4010S, JX1095N, 85.9, 1010, 65.88, 640, 2-60, TN60VA, TK90A, TK85, 310, TK76, 70.75, 5530, 80.88, TT75, TN75, TL-5, 360, TN70D, 6530, 2460 DTC, 4430, TN75S, 65.9, 5050, TT55, TN95FA, 70.86, TN70, 3550, JX1075N, 70-88, 80.65, 80-66, 500, 80.9, 5635, 545B, 460, 3550R, TK90MA, TN70F, TN70S, TN70A, JX60, 72-85, 510, TL100, TL80, TK85M, 3010S, 4030, TN60ADASA, TN95VA, JX55, 85.55, 7635, 70.9, JX90, 6635, 340, 80-88, 610, 65-93, JX1075C, JX65, 70-66, TN65V, TL70, JX75, 55.85, JX1060C, 3830, 7530, 85-90, 560, TN85F, 80-90, Z Series, 3400R, TK80A, 70-76LP, TT65, JX70, 82.86, TN75D, 4330V, 3400, 72-94, FL-4C, 2360 DTC, 70-76V, TN55DS, 530, FG-65A, 4230, TD95D, FL-4D, 80.75, TN80F, TN75A, TN70VA, 2610, TL90, 82-93, JX1070N, 4835, 88-94, 350, TN55, TN75DA, TN65, JX1070C, 72-93, 445, JX70U, TN65DFS, 550, JX90U, TD70D, TN65F, TD90D, JX80U, JX80, 3550AL, TN75V, 5045, JX85, TN90F, JX100U, 65-46, TD55D, TK80MA, TN75F, TN70DA, 70-90

Additional Information:

Voltage: 12 Power: 3kW / 4.02HP Rotation: CW Starter Type: DD Number of Teeth: 9 Gear OD: 1.346in / 34.2mm 3 Holes: 11mm Unthreaded

Reference Numbers:

0-001-359-021, 0-001-359-102, 0001367028, 0-001-367-028, 0-001-367-082, SR914X, SR9980N, 500333271, 4169096, 4699705, 4702248, 4703751, 4755109, 4807375, 88205006, 31-2903335, 31-2906208, 4755109, 47783079, 4807375, 500325145, 500333271, 500338952, 500339852, 504059251, 5801441814, 82980757, 87470949, 87538219, 99449113, F504059251
