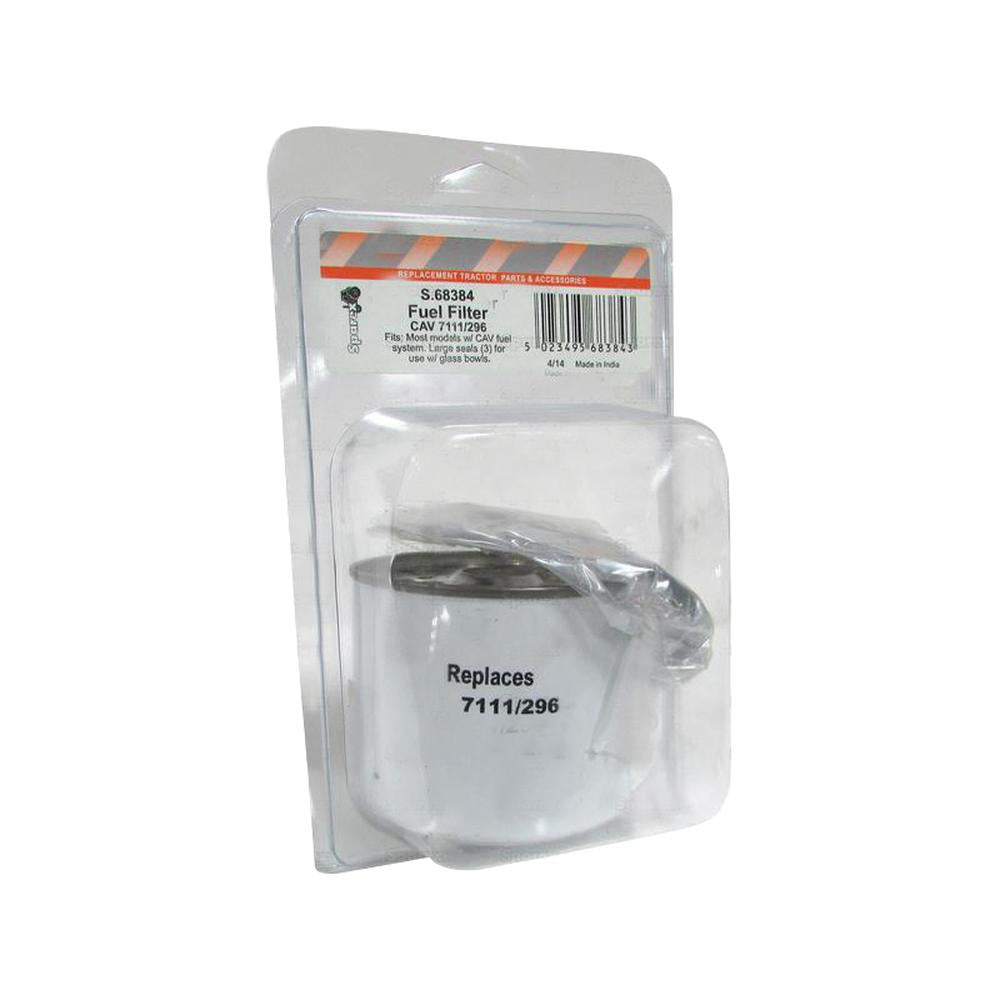

S.68384 Filter, Fuel, 7111/296

One New Aftermarket Replacement Fuel Filter Element Fits Ford, Fits Massey Ferguson, Fits John Deere, Fits Case IH, David Brown, and Long Tractors

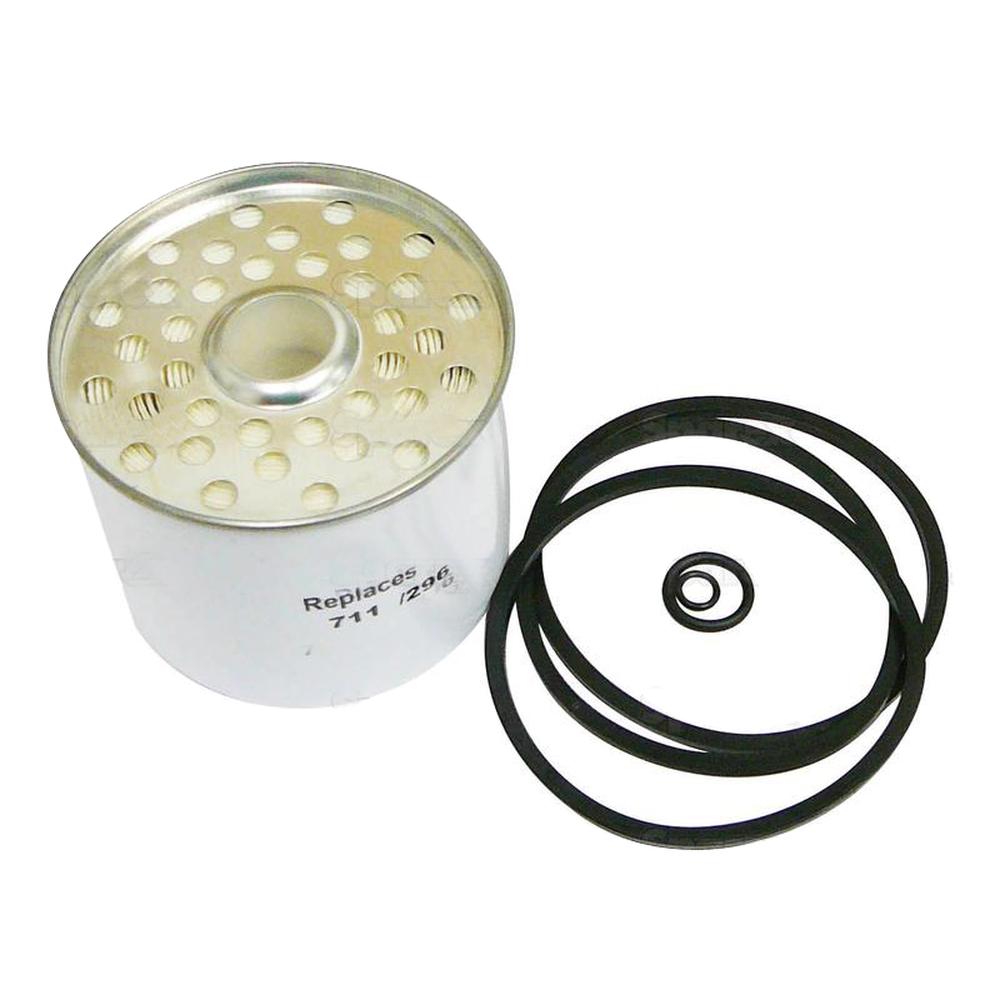

This CAV-style fuel filter element (CAV 7111/296) fits the CAV DPA injection pump fuel system found on a wide range of agricultural tractors. Sparex part number S.68384. Dimensions: 84mm (3-3/8 in.) outer diameter, 19mm I.D. end 1, 17mm I.D. end 2, 72mm (approx. 2.85 in.) overall height. Note: this is the short 72mm / 2.85 in. version -- verify your current filter height before ordering, as some of the same models may use the taller CAV 7111/796 element instead.

Specifications

• Filter Type: Fuel Element (CAV-style, short version)
• Outer Diameter: 84mm (approx. 3-3/8 in.)
• Inside Diameter - End 1: 19mm
• Inside Diameter - End 2: 17mm
• Overall Height: 72mm (approx. 2.85 in.)

Compatible Models

Fits Ford / Fits Ford New Holland: 2000, 2310, 2600, 2610, 2810, 2910, 3000, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4600, 4610, 5000, 5110, 5600, 5610, 5700, 6600, 6610, 6700, 6710, 7000, 7600, 7610, 7700, 7710, 8000, 8200, 8600, 8700, 9000, 9200, 9600, 9700

Fits Massey Ferguson: 30, 31XP, 35, 35X, 40, 50, 65, 130, 133, 135, 140, 145, 148, 152, 155, 158, 165, 168, 174, 175, 178, 184, 185, 187, 188, 194, 206, 230, 233, 235, 240, 244, 245, 254, 255, 260, 263, 275, 285

Fits John Deere: 820 (3-cyl.), 1010, 1020, 1520, 2010 (SN: 42001 and up), 2020, 2030, 2510, 2520, 2755

Fits Case IH: 238, 248, 258, 268, 276, 278, 288, 353, 354, 364, 374, 383, 384, 385, 423, 424, 433, 434, 444, 453, 454, 474, 475, 484, 485, 533, 574, 584, 585, 633, 644, 654, 674, 684, 685, 724, 733, 743, 744, 745, 784, 824, 833, 844, 884, 885, 895, 946, 953, 955, 995, 1046, 1055, 1246, 1255, 1455, B275, B414

David Brown, Long Tractors, Leyland, Fiat, Perkins (engine applications)

Replaces Part Number(s):

7111/296, 7111-296, CAV7111296, AT17387, AT17387T, D2NN9176A, D8NN9N074AA, EDPN9N074AA, C7NN9162B, D9NN9165BA, C5NE9165C, 83937061, 81811612, 1446017M91, 1851890M1, 1077260M91, 1049939M91, 3388840M2, 3388840M3, 3405418M1, 3405418M2, 3438731M91, 836218M91, 842332M1, 1502155C91, 3044506R91, 3044506R93, 3062788R91, 3069205R91, 3144117R91, 3144477R91, 26560017, 26561117, 26560110, 26550005, 2656615, 2656613, 5836B230

Aftermarket Interchange Numbers

S.68384 (Sparex), S.68384-SPX, FF3000 (TRAC), P502420 (Fits Donaldson), TX10314

New aftermarket replacement part - not remanufactured, not used.
