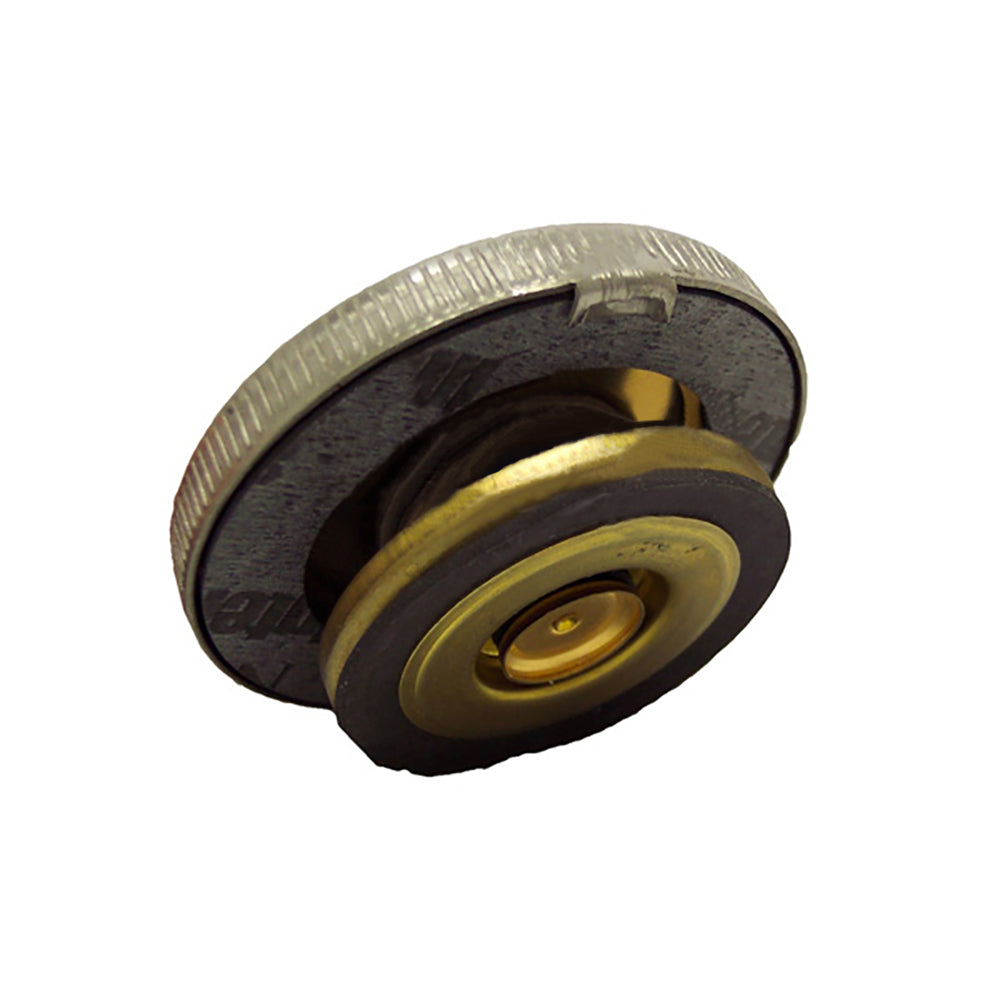

RW0021-292B 7 LB Radiator Cap (For Radiator Overflow Reservoir)
RW0021-292B 7 LB Radiator Cap (For Radiator Overflow Reservoir)
Couldn't load pickup availability
One New Aftermarket Replacement 7 LB Radiator Cap Fits John Deere Agricultural Equipment
This 7 PSI radiator cap is designed for use on radiator overflow reservoir systems found on Fits John Deere tractors, combines, and other agricultural equipment. It seals the coolant overflow reservoir filler neck, maintaining proper system pressure and preventing coolant loss. Important: Matching the existing PSI rating is critical when selecting a replacement radiator cap.
Specifications
- Pressure Rating: 7 LB (PSI)
- Filler Neck Outer Diameter (O.D.): 2-11/16" (approx. 2.7")
- Filler Neck Depth: 3/4" (approx. 0.75")
- Internal Height With Spring Extended: 3/4"
- Upper Seal: Yes
- Upper I.D.: 2-3/4"
- Lower Seal: Yes
- Lower Seal Diameter: 2"
- Overall Height: 0.96"
- Overall Diameter: 2.8" (with upper seal)
- For Coolant Reservoir Systems: Yes
Compatible Models
Fits John Deere (Fits JD): Fits John Deere tractor and combine models equipped with a 2-11/16" O.D., 3/4" deep filler neck radiator overflow reservoir. Confirmed Fits John Deere combine radiator applications including 9400, 9410, 9500, 9500SH, 9510, 9510SH, and 9550 series. Also compatible with select Fits Massey Ferguson and White tractor models (6175, Late 6195, 6215; MF 9240) equipped with this filler neck specification. Verify your filler neck dimensions before ordering.
Replaces Part Number(s):
RW0021-292B
New aftermarket replacement part - not remanufactured, not used.
