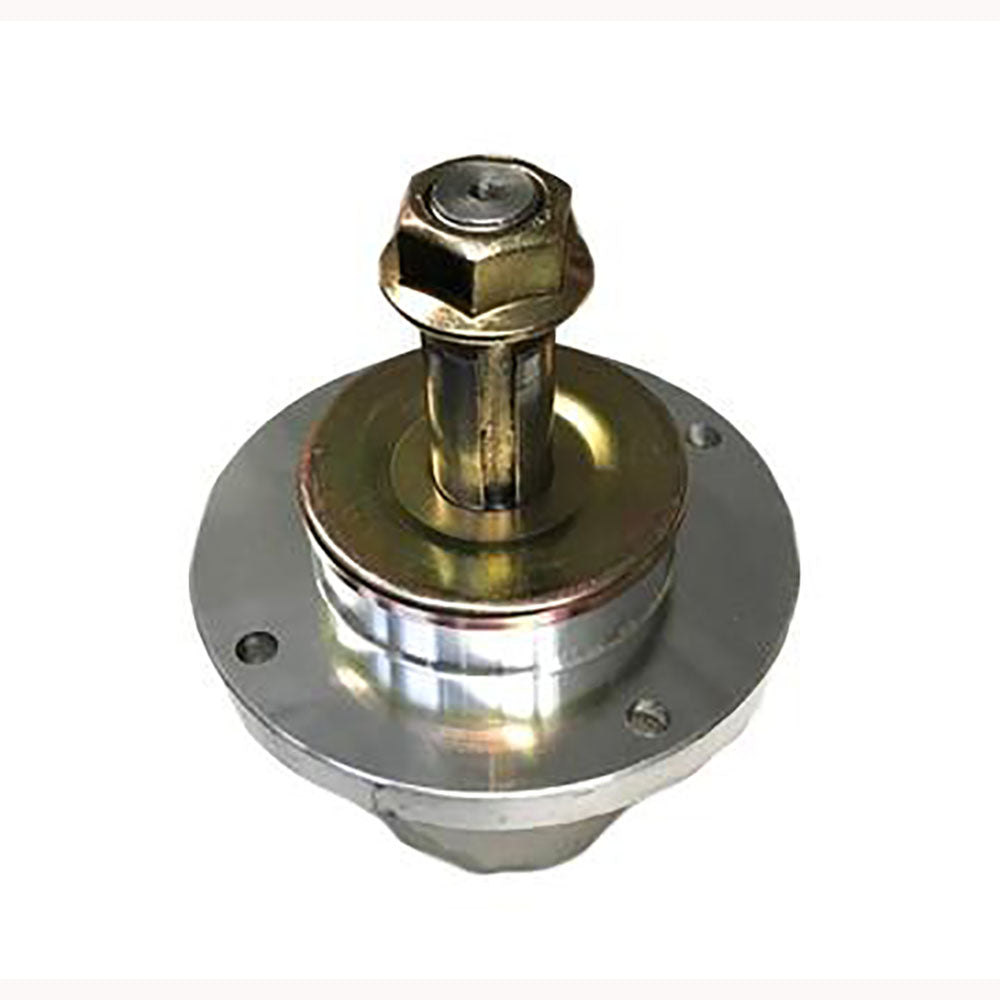

Replacement Spindle Assembly Scag Freedom Z 461950
Replacement Spindle Assembly Scag Freedom Z 461950
Couldn't load pickup availability
One New Aftermarket Replacement Mower Deck Spindle Assembly for Scag Freedom Z, Liberty Z, Patriot, and Freedom Z Pro Zero-Turn Mowers
This aftermarket replacement deck spindle assembly mounts to the mower deck and drives the cutting blade on Scag Freedom Z, Freedom Z Pro, Liberty Z, Patriot, and SFW walk-behind mowers with 36", 48", 52", and 61" cut decks. The spindle assembly houses sealed arbor bearings and includes a grease zerk fitting for routine maintenance, ensuring consistent blade rotation and a smooth, even cut.
Specifications
- Overall Height: 7-1/2"
- Housing Outer Diameter: 5-1/4"
- Includes grease zerk fitting
Compatible Models
Scag Freedom Z (SFZ): SFZ36-18FS, SFZ48-18FR, SFZ48-18FS, SFZ48-19KA, SFZ48-20FS, SFZ48-21FR, SFZ48-22KT, SFZ48-24BS, SFZ48-24KT (SFZ52H-26KT), SFZ48-26BS, SFZ48-600FS, SFZ52-19KA, SFZ52-20FS, SFZ52-23FS, SFZ52-24KT, SFZ52-25BS, SFZ52-26BS, SFZ52-27BS, SFZ52-600FS, SFZ52-691FS, SFZ52H-26KT, SFZ61-24FS, SFZ61-27BS, SFZ61-28BS, SFZ61-30BS, SFZ61-730FS
Scag Freedom Z Pro (SFZP): SFZP52-23FS, SFZP52-25BS, SFZP61-24FS, SFZP61-27BS
Scag Liberty Z (SZL): SZL48H-21FR, SZL52-21FR, SZL52-23FR, SZL52-24KT, SZL52H-23FR, SZL61-26KT, SZL61H-24FR
Scag Patriot (SPZ): SPZ52H-22FX, SPZ52H-23CV, SPZ52H-26BV, SPZ61H-23FX, SPZ61H-25CV, SPZ61H-26BV
Scag Walk-Behind (SFW): SFW36-16BV, SFW48-16BV
Replaces Part Number(s):
461950, 462014, 14081
New aftermarket replacement part - not remanufactured, not used.
