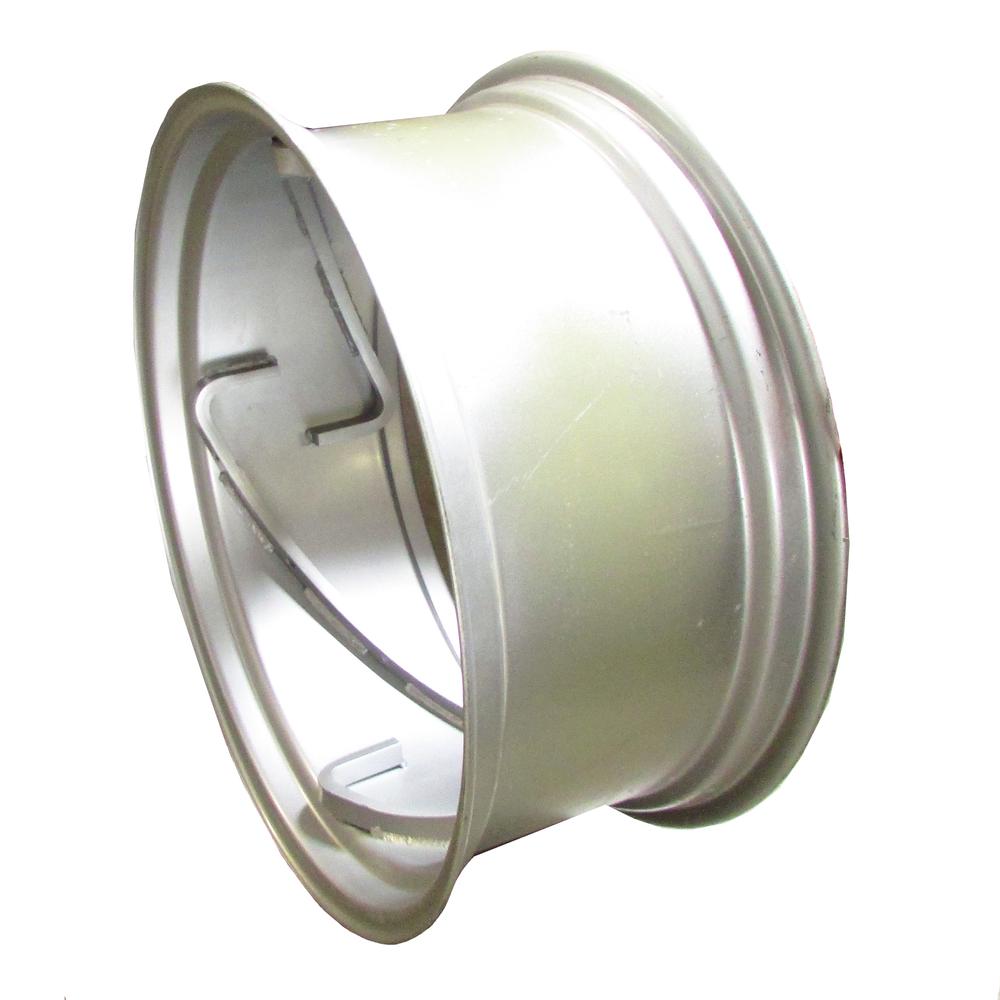

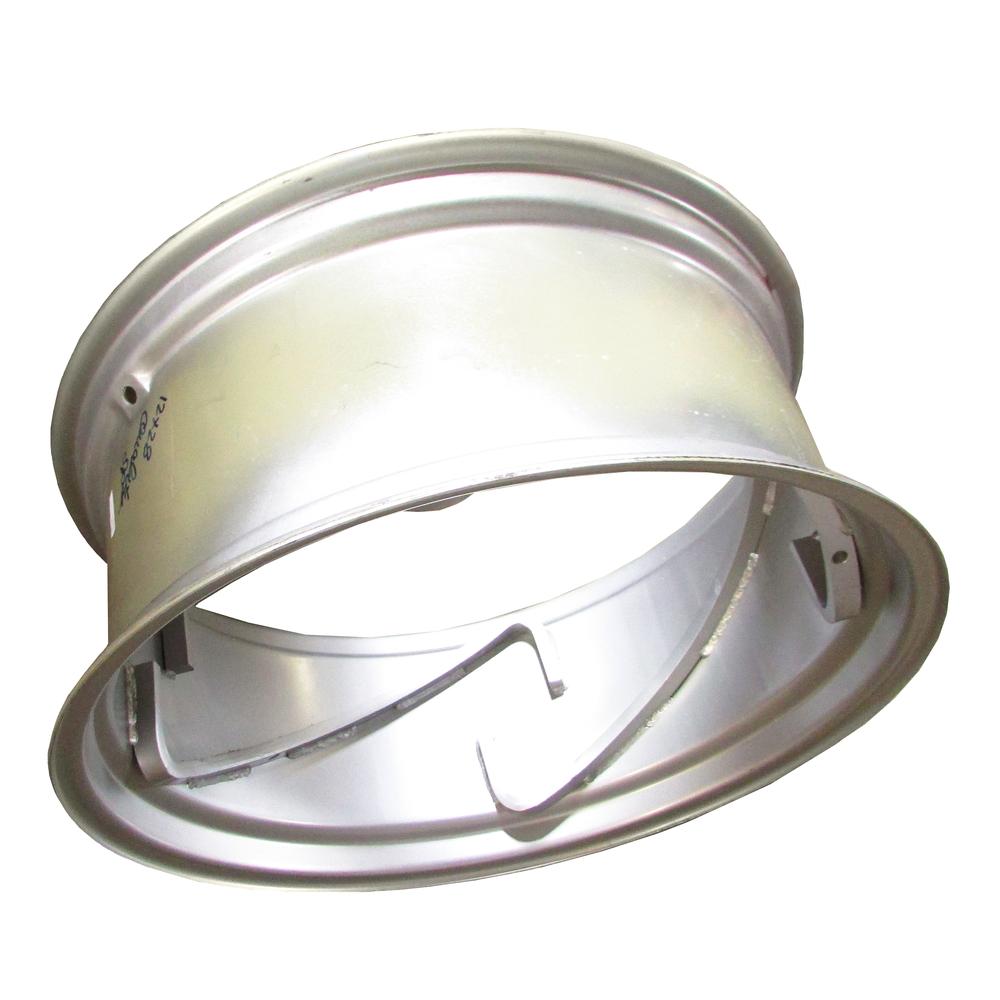

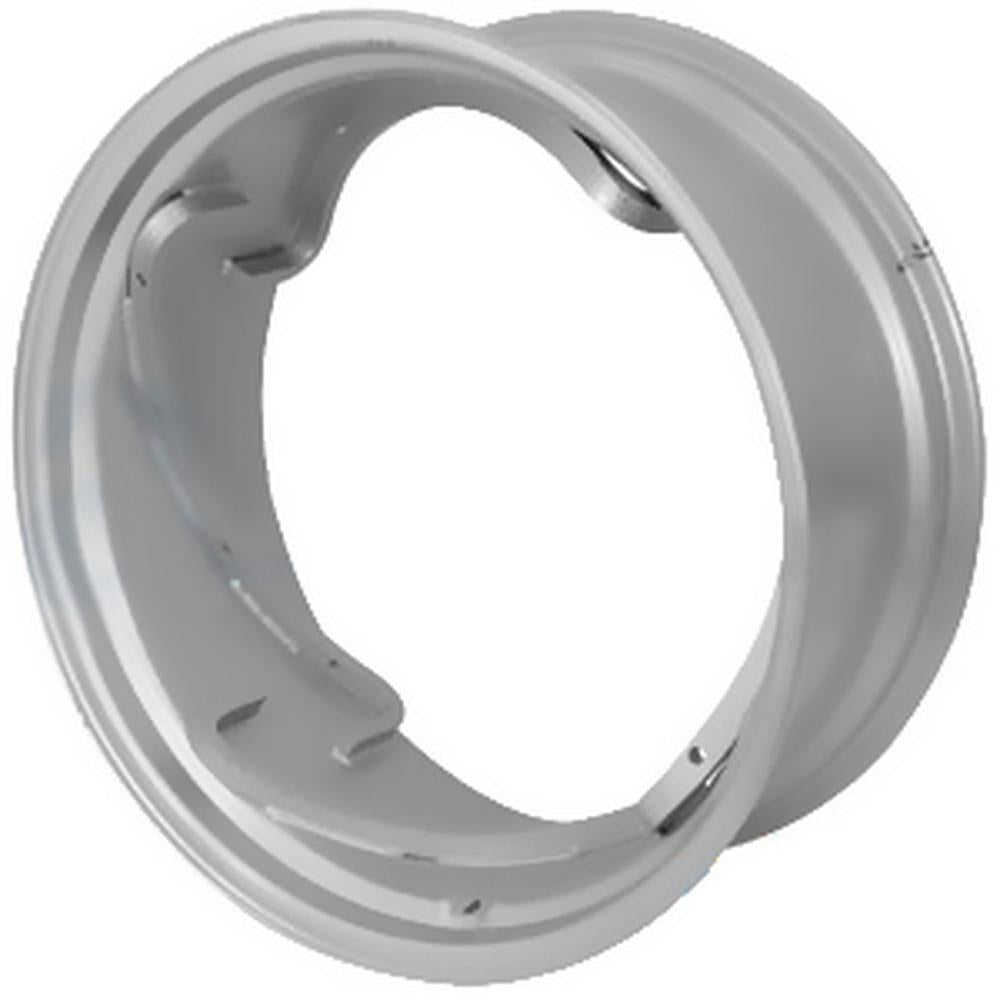

Rear Rim 12" x 28" Fits Cockshutt Replaces 100047AS

$618.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Rear Rim 12" x 28"

Tech Info:
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail Height

Fits Cockshutt:
Utility Tractor Models: 540
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 156072A, 100047AS

Models This Part Fits:

540

Additional Information:

4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
