RE29878 B3127R Complete Overhaul Clutch Kit Fits John Deere Fits JD Tractor 50

Models This Part Fits:

520, 530

Additional Information:

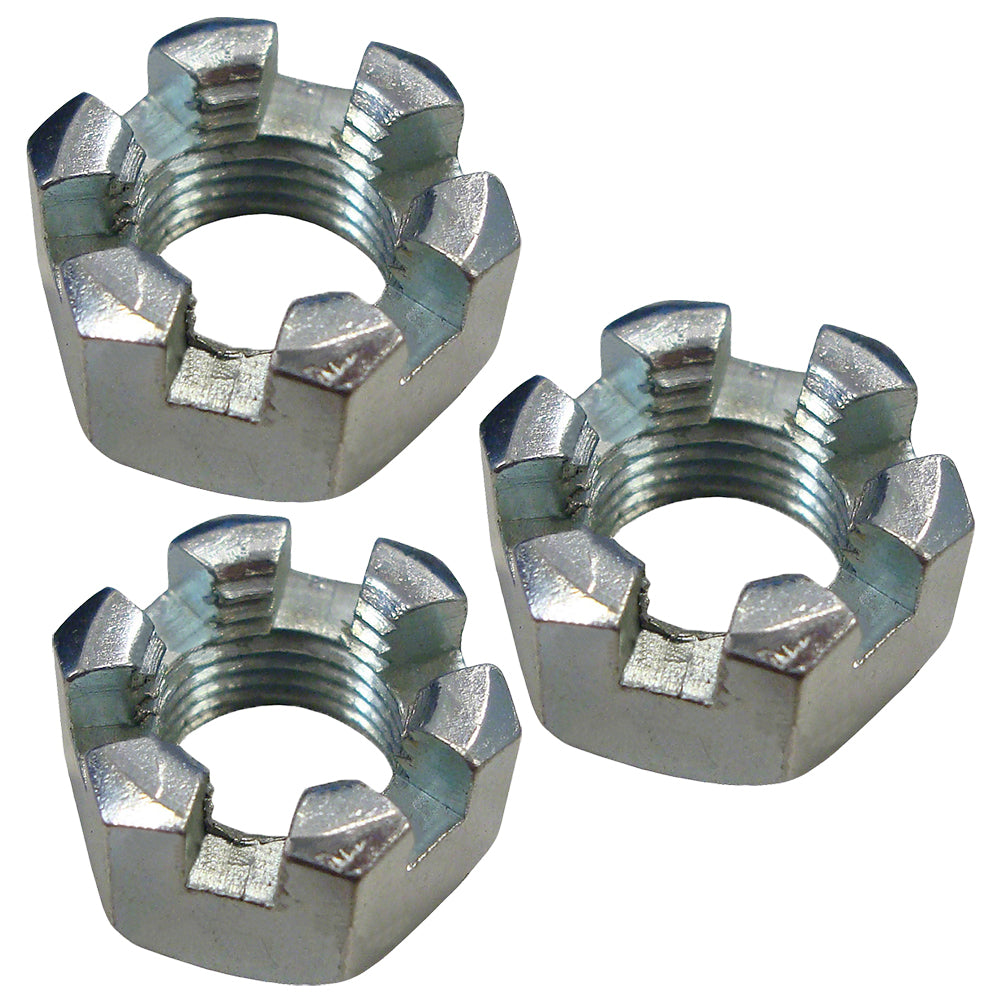

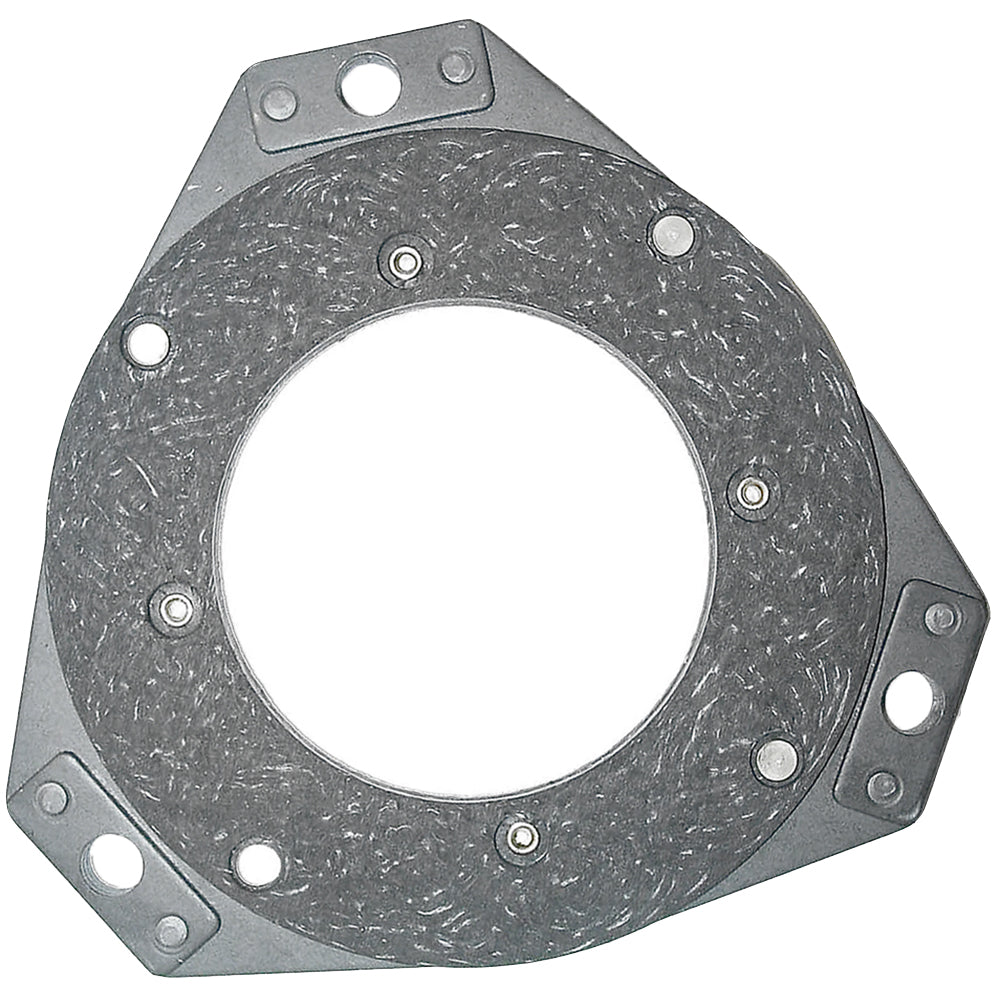

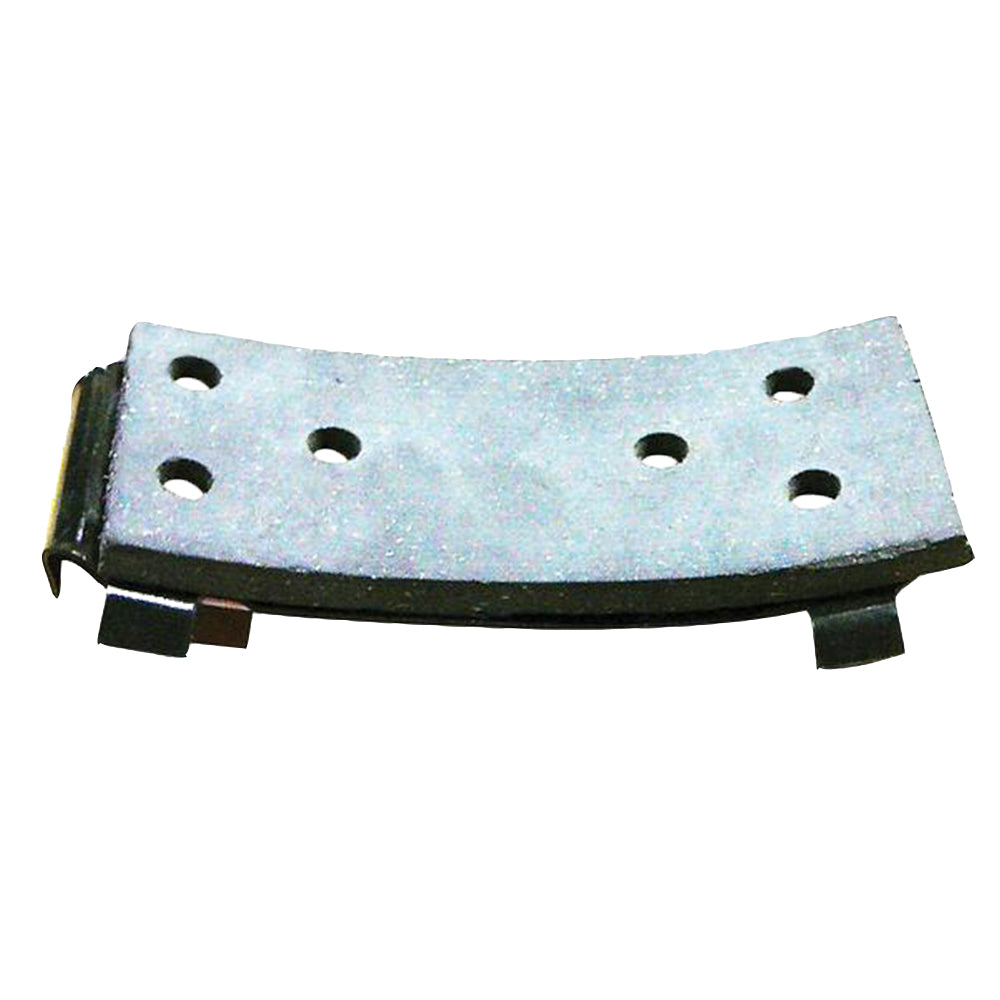

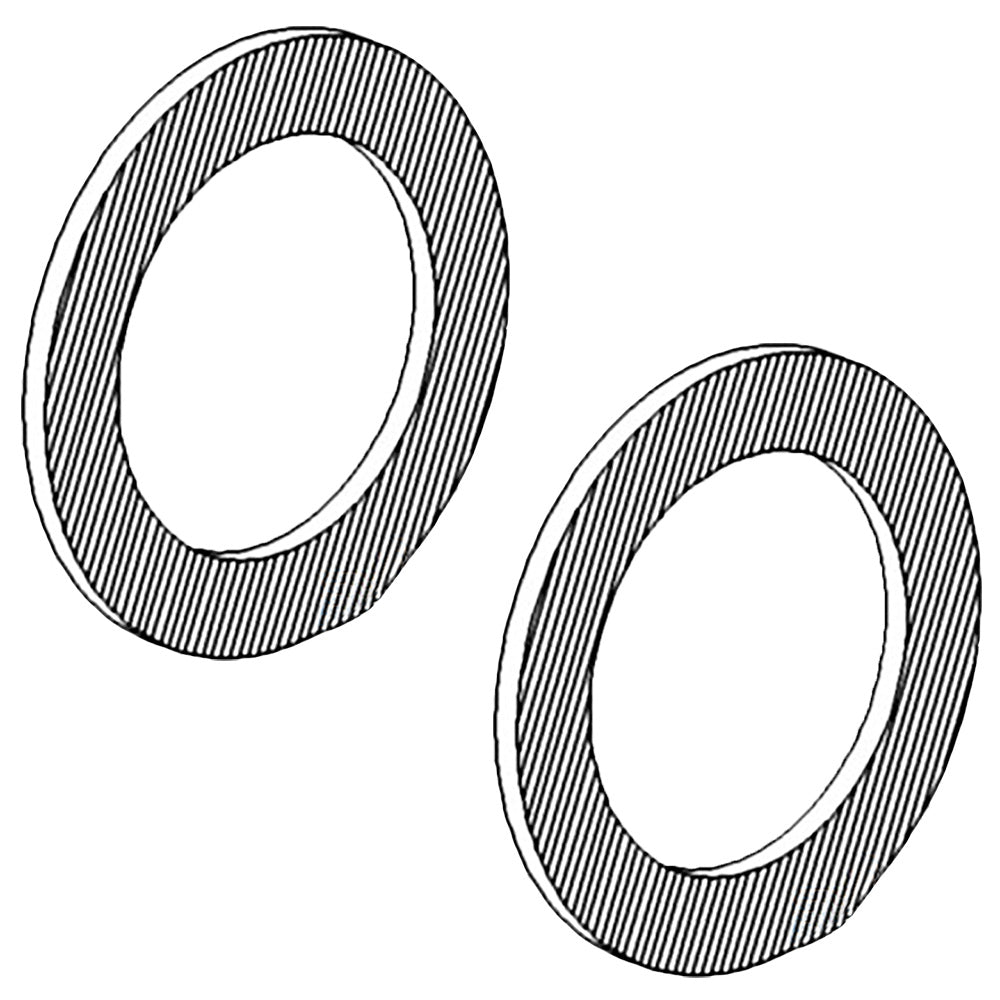

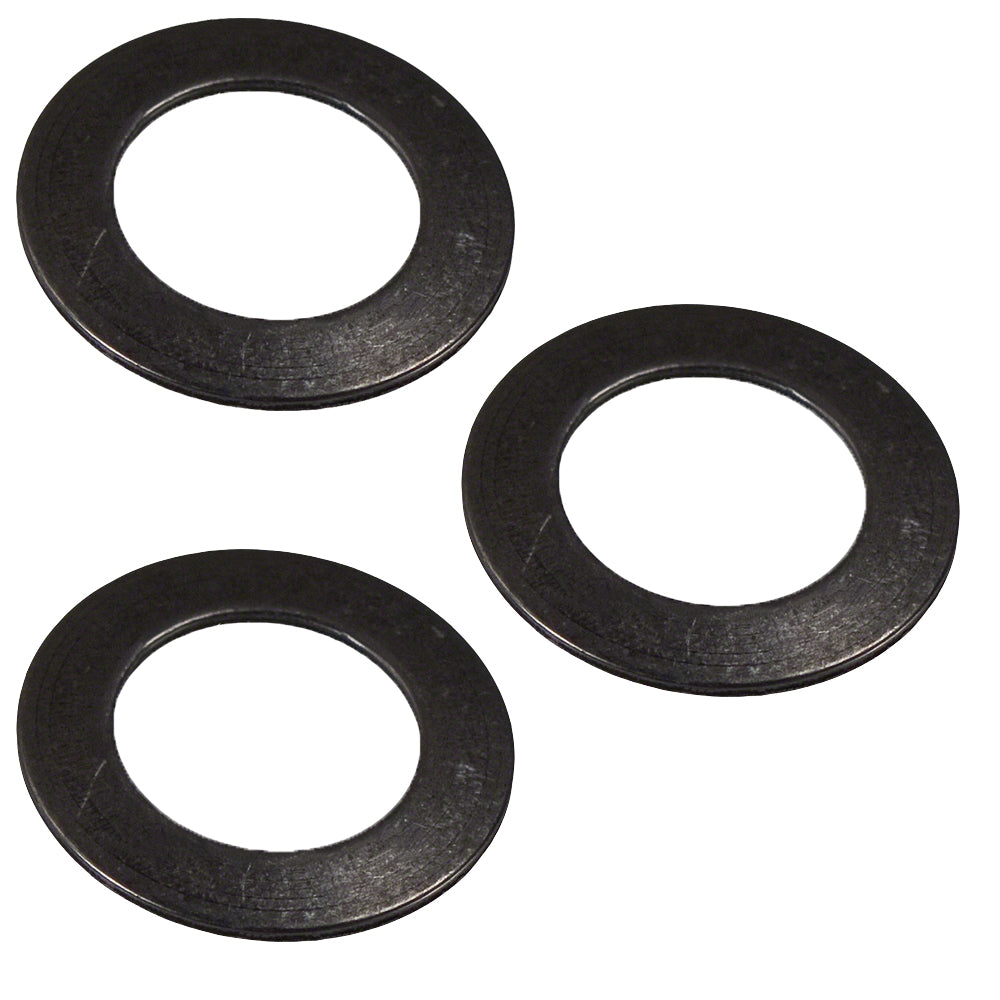

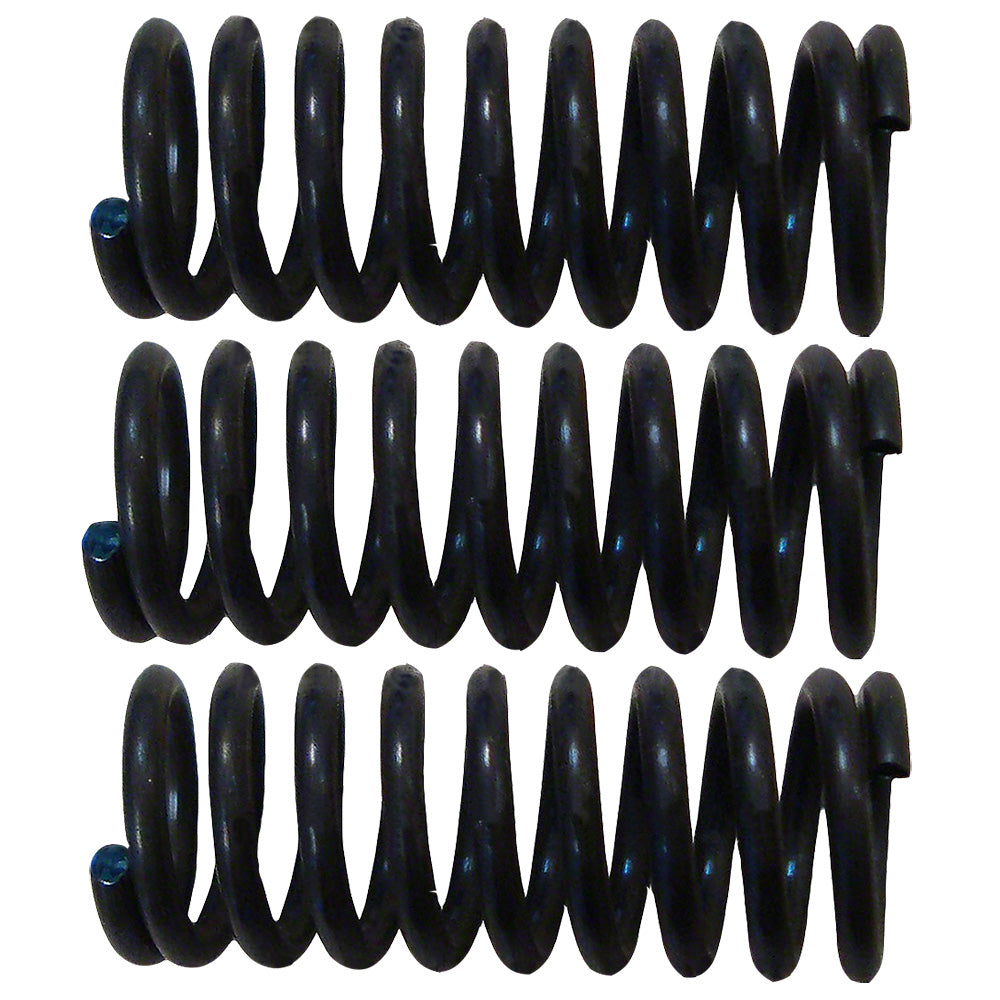

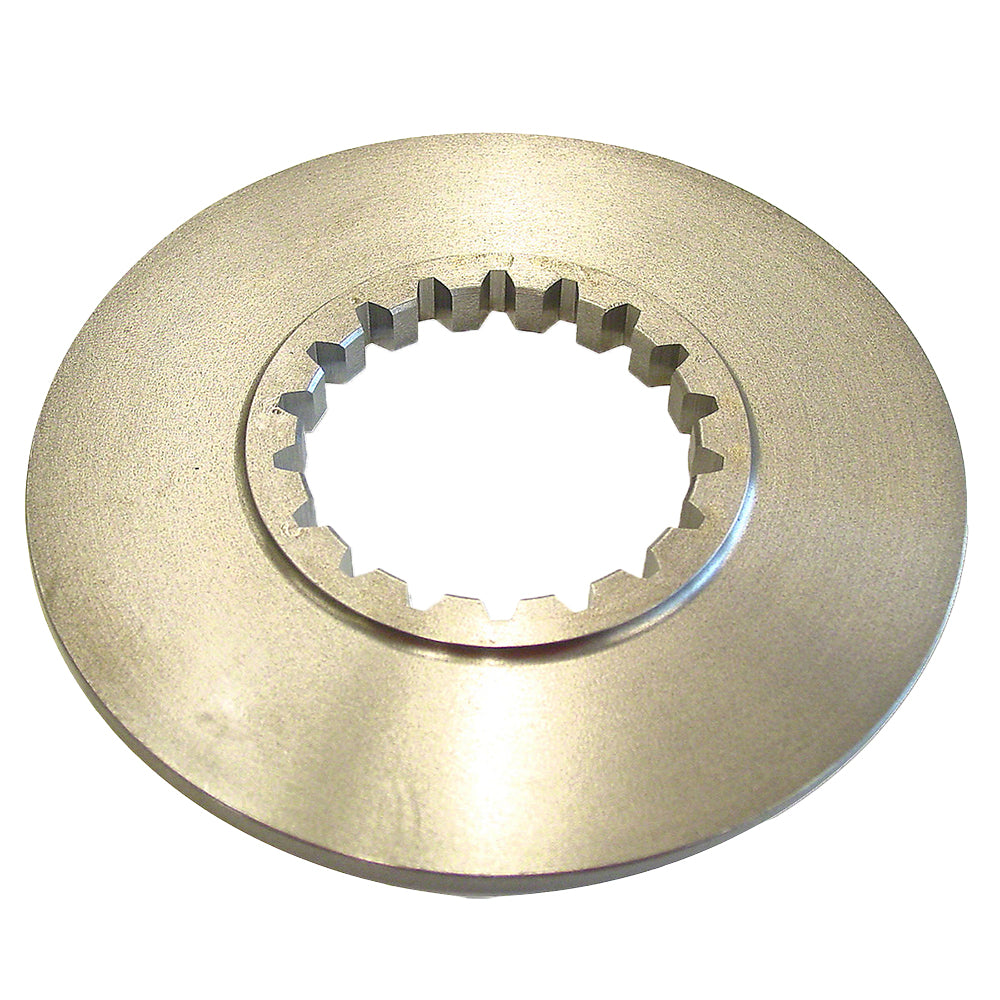

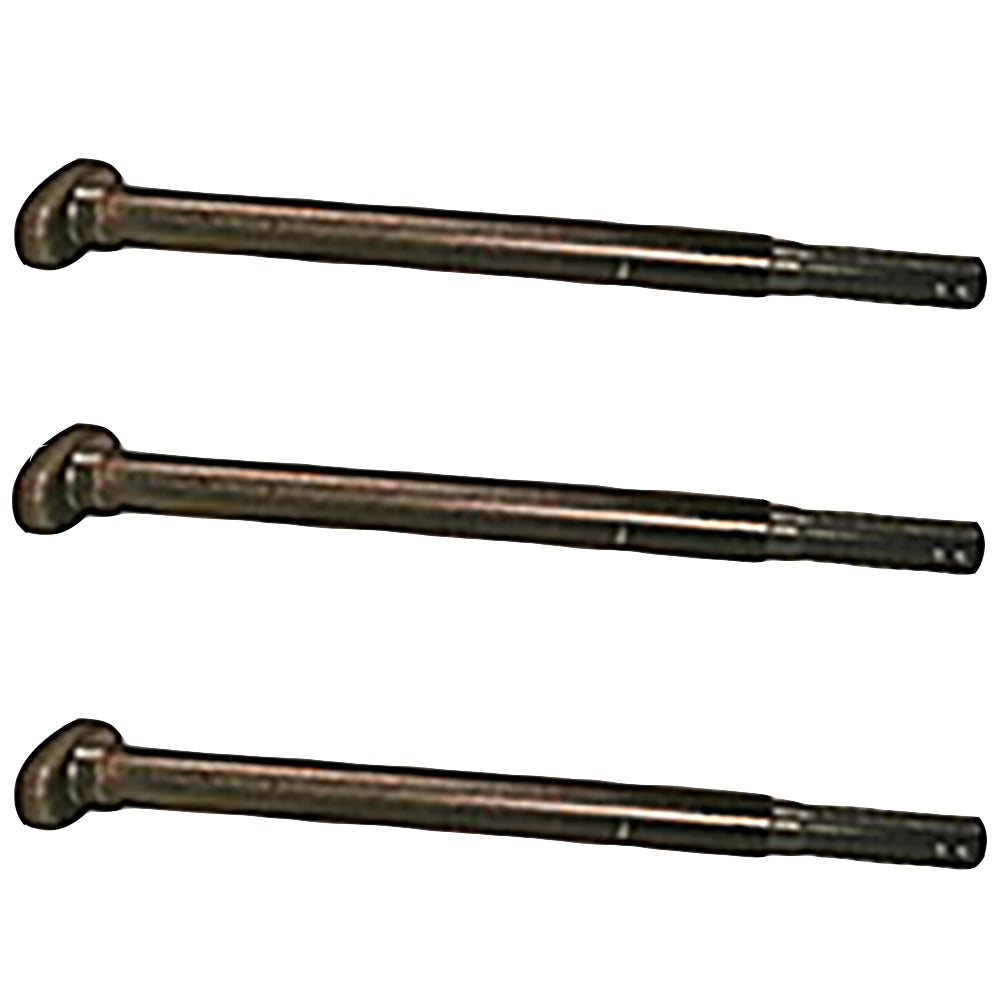

Kit Contains: (1) Pulley Clutch Discs w/ Bonded Lining Includes Riveted Lining 0.445" Thick 1-1/2" Lining Width Replaces Part Number(s): AB3471R, B2355R, AB4828R, RE29878 (2) Floating Clutch Facing Discs 7" OD x .160 Thick Replaces Part Number(s): R90220 (1) Belt Pulley Brake Pad Lining Woven Non-Asbestos Lining with Countersunk Brass Rivets Replaces Part Number(s): AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Springs It Mounts to the Outer Cast Iron Adjusting Disc Replaces Part Number(s): B161R (3) Clutch Adjusting Nuts 1/2" - 20 Nf Grade 5 Zinc Slotted Hex Nut, 1/2" 3 Used Per Tractor Replaces Part Number(s): B3279R, AA4967R, A335R, 14H994 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" Inside Diameter 0.937" Outside Diameter 0.035" Thick Spring Steel Torque Initially to 15 Ft Pounds, Then Adjust as Needed Use to Smooth Out the Hand Clutch Engagement 3 Used Per Tractor Replaces Part Number(s): AR21803R, R21647 (1) Clutch Slider Disc 0.250" Thick and 6.988" Outside Diameter Replaces Part Number(s): B3127R (3) Clutch Operating T-Bolts This T-Bolt Is 6-3/4" Long and Has a 1/2" Diameter Three (3) Used Per Tractor Replaces Part Number(s): B3278R, R47570 (3) Clutch Dogs 3 Used Per Tractor Replaces Part Number(s): B2351R (3) Clutch Dog Pins 0.431" Diameter 2.000" Usable Length 3 Used Per Tractor Replaces Part Number(s): B2352R (3) Clutch Dog Toggles 1.688" Overall Length Three (3) Used Per Tractor Note: When Installing, the End with the Hole Fits into the Clutch Dog Replaces Part Number(s): B144R, JDS3369

Reference Numbers:

AR21803R, R21647, AB3471R, B2355R, AB4828R, RE29878, R90220, AB4748R, AF4748R, RE29790, B3279R, AA4967R, A335R, 14H994, B3127R, B161R, B3278R, R47570, B2351R, B2352R, B144R, JDS3369

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Group:

Clutch Parts
View More: Clutch Parts Replacement Parts
