RE173541 Tractor Tie Rod Inner LH Fits John Deere 8100 8110 8130 8200 8210 8220+
RE173541 Tractor Tie Rod Inner LH Fits John Deere 8100 8110 8130 8200 8210 8220+
Couldn't load pickup availability

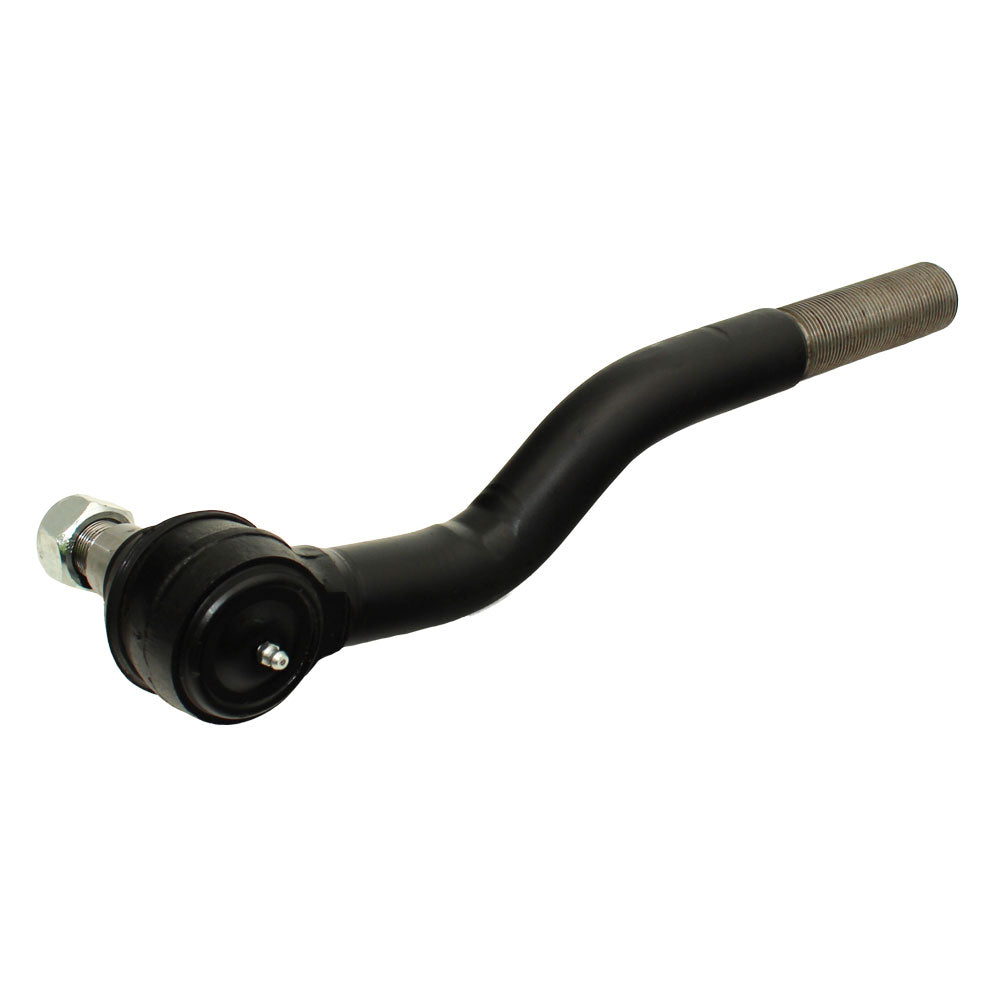

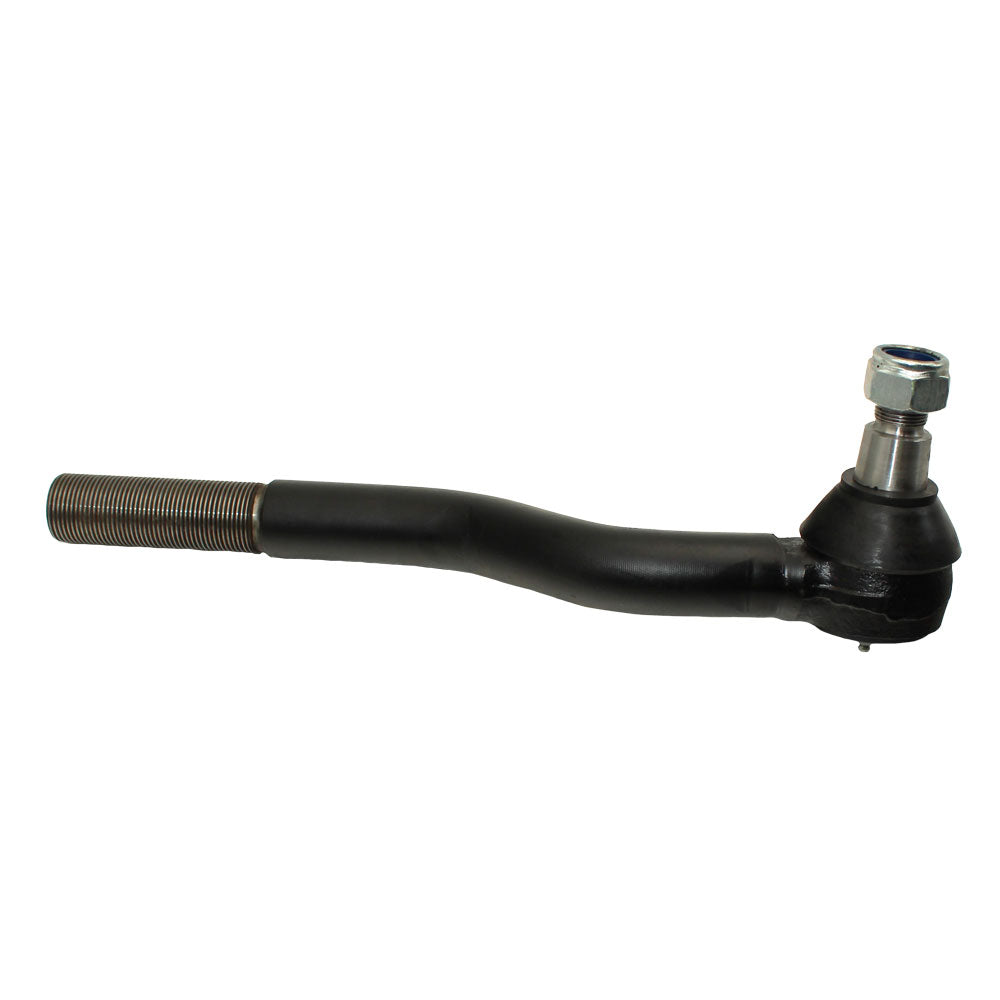

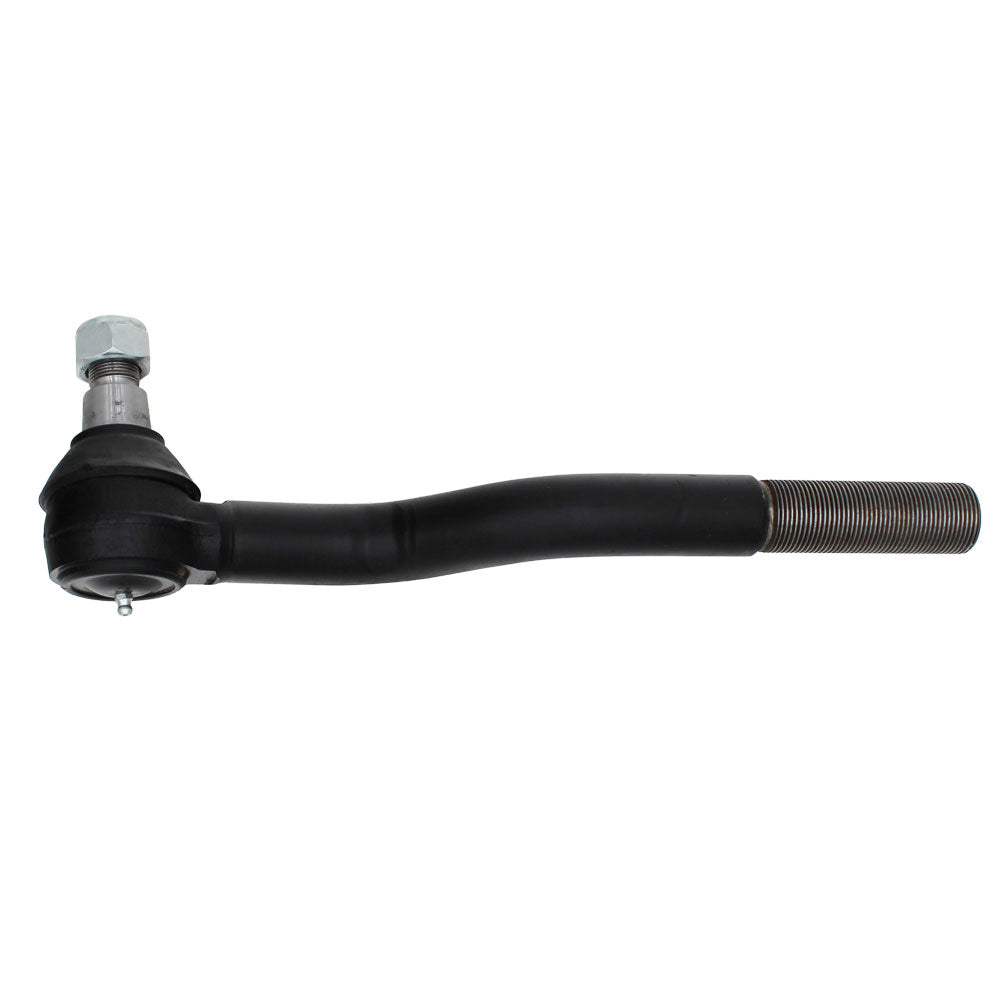

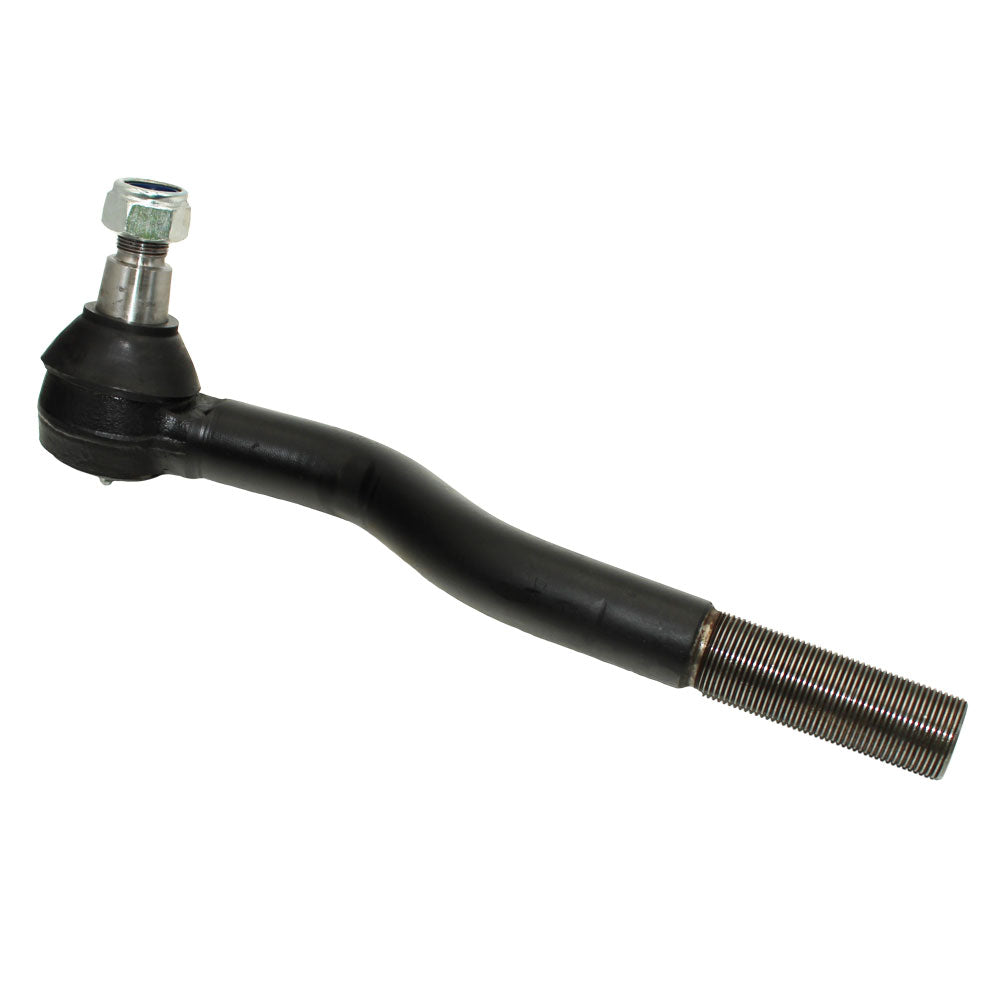

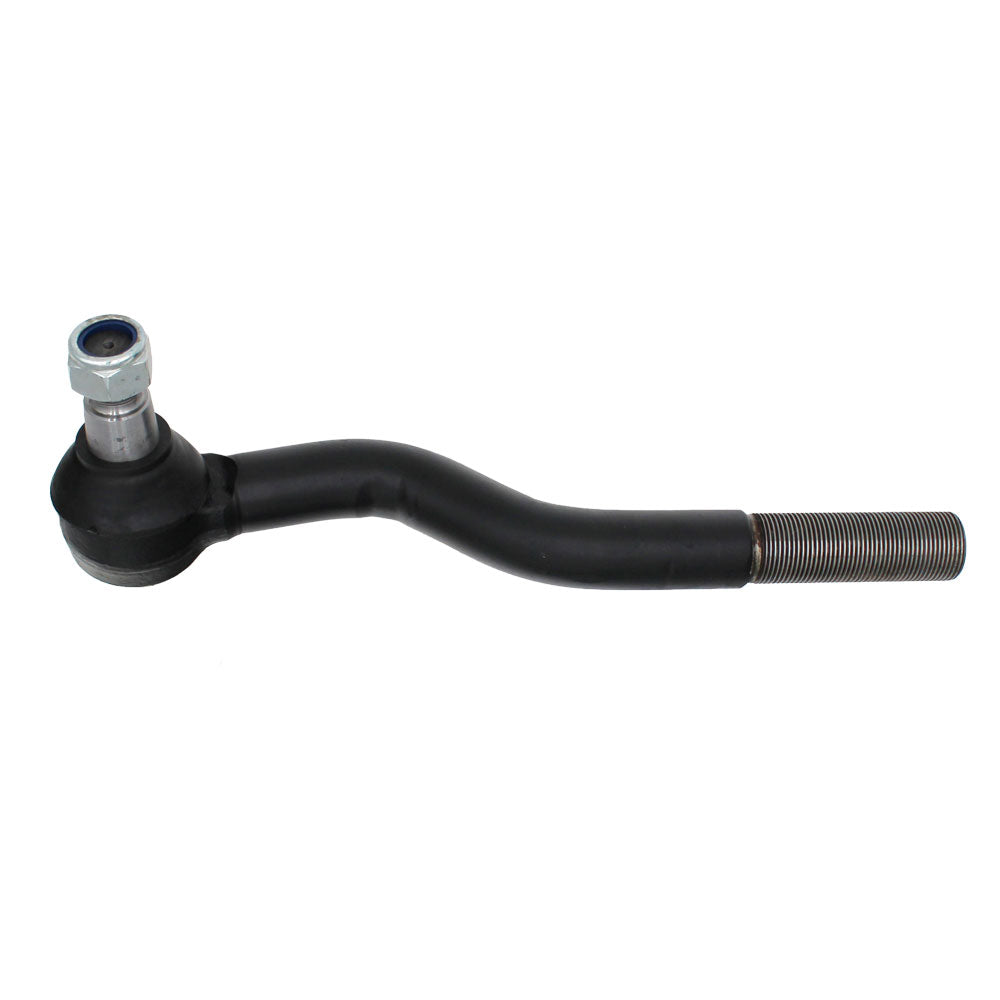

One New Aftermarket Replacement Inner Tie Rod End - Left Hand (LH) for John Deere (JD) 8000 Series Tractors
This left-hand inner tie rod end is a direct aftermarket replacement for John Deere RE173541, used in the MFWD (Mechanical Front-Wheel Drive) front axle steering system on John Deere 8000, 8010, 8020, 8030, and 8R Series tractors. The tie rod transfers steering input from the center link to the steering knuckle on the left side of the front axle. For MFWD-equipped tractors only.
Specifications
- Height: 5.00 in
- Length: 15.60 in (approx. 16 in / 385 mm working length)
- Outer Diameter: 2.40 in (36 mm rod)
- Rod Side Thread Diameter: 1-1/4 in Left Hand Thread
- Threads Per Inch: 14 (Fractional)
- Taper Diameter: 25-31 mm
- Side: Left Hand (LH)
- Drivetrain: MFWD Only
Compatible Models
John Deere 8000 Series: 8100, 8200, 8300, 8400
John Deere 8010 Series: 8110, 8210, 8310, 8410
John Deere 8020 Series: 8120, 8220, 8320, 8420, 8520
John Deere 8030 Series: 8130, 8230, 8330, 8430
John Deere 8R Series: 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8R 230, 8R 250, 8R 280, 8R 310, 8R 340
All models listed require MFWD front axle. Verify drivetrain before ordering.
Replaces Part Number(s):
RE173541, RE61402, RE61502, A-RE173541, AMRE173541, HR173541, HR61402, WNRE173541, WN-RE173541
Aftermarket Interchange Numbers
Spicer 10007578
New aftermarket replacement part - not remanufactured, not used.
