OL80HIMP Universal Pack of 4 #80H Roller Chain Offset Links
OL80HIMP Universal Pack of 4 #80H Roller Chain Offset Links
Couldn't load pickup availability

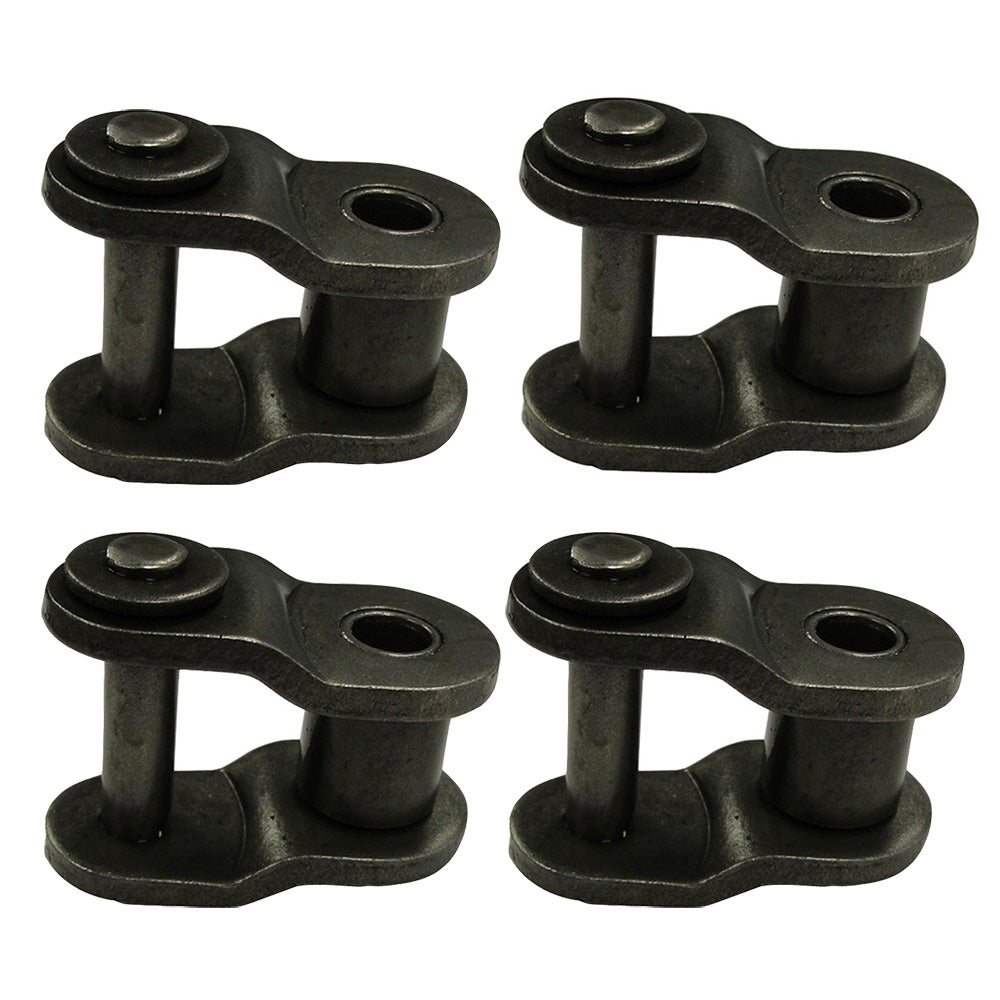

Four New Aftermarket Replacement #80H Heavy Roller Chain Offset Links - Pack of 4
This pack contains four #80H heavy-duty roller chain offset links (also known as half links or crank links) designed for use with ANSI #80H heavy roller chain. Offset links are used to adjust chain length, make field repairs, or connect a strand of chain that requires an odd number of pitches. The #80H designation indicates a 1-inch pitch heavy series chain link, with thicker side plates than standard #80 chain for increased strength and load capacity. These import-grade links meet ANSI B29.1 dimensional standards and are compatible across agricultural equipment, construction machinery, and general industrial drive applications wherever #80H roller chain is used.
Specifications
- Chain Size: #80H Heavy Series
- Pitch: 1 in.
- Pin Diameter: 0.312 in.
- Link Plate Height: 0.820 in.
- Link Plate Thickness: 0.156 in. (heavy duty)
- Overall Width: 1.500 in.
- Standard: ANSI B29.1
- Quantity: Pack of 4
Compatible Applications
Universal fit for all equipment using ANSI #80H heavy roller chain, including agricultural equipment (combines, balers, planters, conveyors), construction machinery, and general industrial drive systems. Verify chain series (#80H heavy vs. standard #80) before ordering - the thicker side plates on #80H links are not dimensionally identical to standard #80 offset links.
Replaces Part Number(s):
OL80HIMP, RCC50-0011, 80OFHD, 673-HH80
New aftermarket replacement part - not remanufactured, not used.
