RC80IMP New Universal Import 10-Ft Roll #80 Roller Chain for Several Models
RC80IMP New Universal Import 10-Ft Roll #80 Roller Chain for Several Models
Regular price
$98.15 USD
Regular price
Sale price
$98.15 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

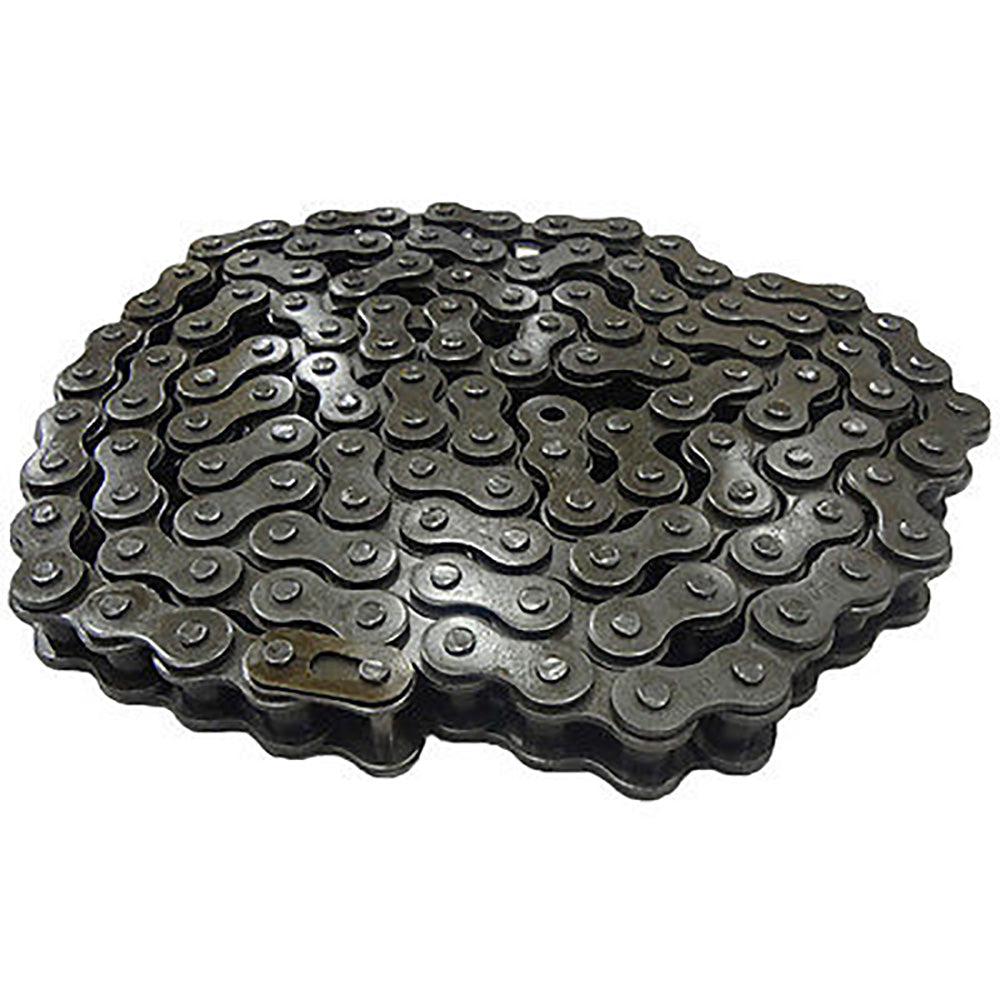

One New Aftermarket Replacement #80 Roller Chain - 10-Ft Roll, Import
This ANSI #80 single-strand roller chain is a heavy-duty, 1-inch pitch chain widely used in agricultural, construction, and industrial power transmission applications including conveyor drives, PTO-driven equipment, and machinery drives. Sold as a 10-foot roll, this import chain meets ANSI B29.1 dimensional standards and is compatible with any standard ANSI #80 sprocket.
Specifications
- Chain Standard: ANSI #80 (ANSI B29.1)
- Pitch: 1.0 inch (25.4 mm)
- Roller Diameter: 0.625 inch (15.88 mm)
- Width Between Inner Plates: 0.620 inch (15.75 mm)
- Pin Diameter: 0.311 inch (7.92 mm)
- Inner Plate Depth: 0.944 inch (24.00 mm)
- Plate Thickness: 0.128 inch (3.25 mm)
- Ultimate Tensile Strength (min): 12,886 LB
- Weight: approx. 1.747 lb/ft
- Links per 10 Feet: 120
- Roll Length: 10 feet
- Type: Import, single-strand
Compatible Models
Universal Fitment: Compatible with any agricultural, construction, lawn and garden, or industrial equipment using a standard ANSI #80 roller chain and sprocket. Verify chain size and pitch before ordering.
Replaces Part Number(s):
RCC40-0001, RC80IMP, TCE80, 80IMP, C30-3105, 80RC, 673-R80
New aftermarket replacement part - not remanufactured, not used.
