RC120IMP 10' Foot FT Roller Chain #120
RC120IMP 10' Foot FT Roller Chain #120
Couldn't load pickup availability

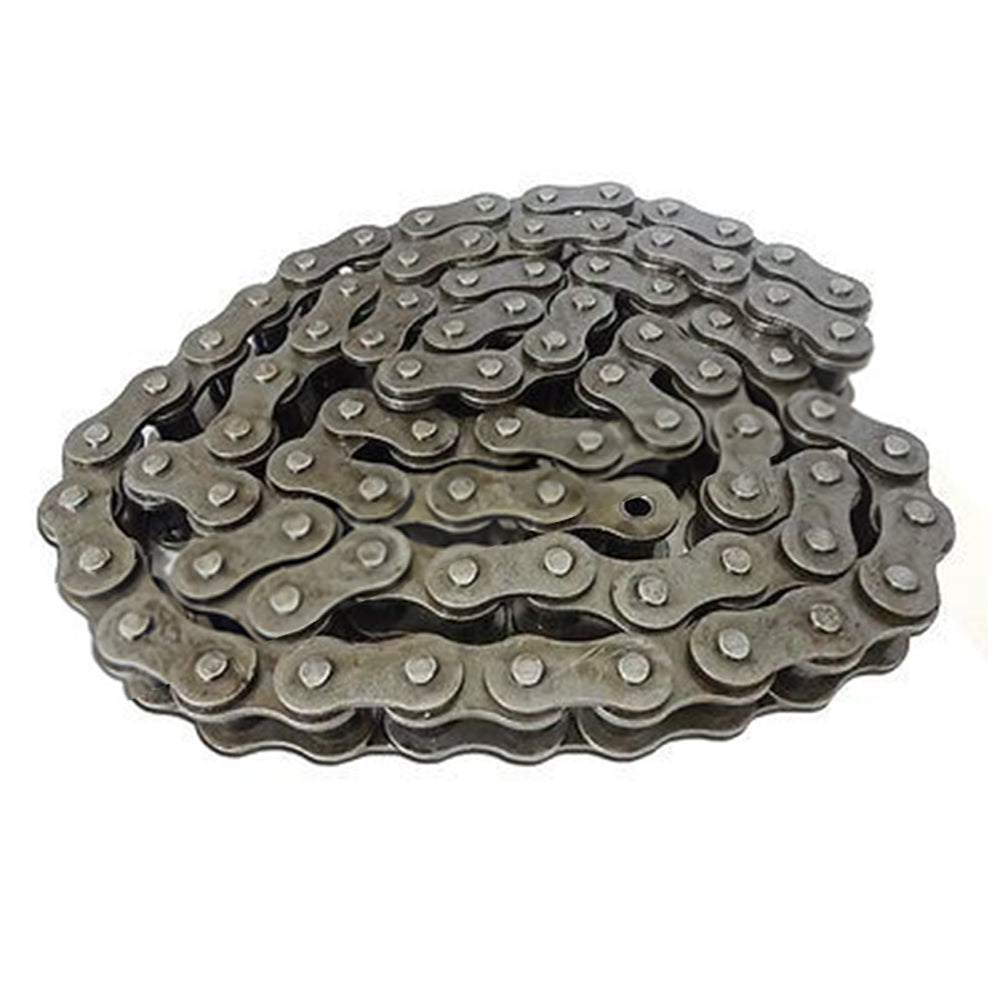

One New Aftermarket Replacement #120 Roller Chain - 10 Foot Roll - Universal Fit
This ANSI #120 standard roller chain is a universal aftermarket replacement sold in a 10-foot roll. It is widely used on agricultural equipment, lawn and garden machinery, and general industrial drive applications including conveyors, augers, and power transmission assemblies. Conforms to ANSI B29.1 standards and directly interchanges with other ANSI 120 chain brands and manufacturers.
Specifications
- Chain Standard: ANSI #120 (also referenced as 120-1, RC120, 24A-1)
- Pitch: 1-1/2"
- Roller Diameter: 0.875"
- Width Between Plates: 1"
- Pin Diameter: 7/16" (0.437")
- Overall Chain Width: 2.030"
- Plate Height: 1.410"
- Plate Thickness: 0.187"
- Average Ultimate Tensile Strength: 35,100 lbs
- Weight Per Foot: 2.6 lbs
- Roll Length: 10 feet
Compatible Applications
Universal fit - suitable for agricultural equipment (tractors, combines, balers, augers), lawn and garden machinery, and general-purpose power transmission drive systems requiring ANSI #120 standard roller chain. Compatible with equipment from Fits John Deere, Fits Case IH, Fits New Holland, Ariens, Fits Toro, Troy-Bilt, Jacobsen, Fits Briggs and Stratton, Sears, and other manufacturers using standard #120 chain.
Replaces Part Number(s):
RC120IMP
Aftermarket Interchange Numbers
A-R120IMP, WN-RC120IMP, WNRC120IMP, 673-R120, 120RC, 803-11200010, 80311200010, SW120X10US, RC120, 120-1, 24A-1, ASA 120-1
New aftermarket replacement part - not remanufactured, not used.
