Spindle Bushing Fits John Deere 5410 5200 5320 5520 5425 5300 5400 5510 5420 531

Name: Spindle Bushing Fits John Deere 5410 5200 5320 5520 5425 5300 5400 5510 5420 531
SKU: R109452
Price: 63.99 USD
Availability: InStock

Spindle Bushing Fits John Deere 5410 5200 5320 5520 5425 5300 5400 5510 5420 531

$63.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

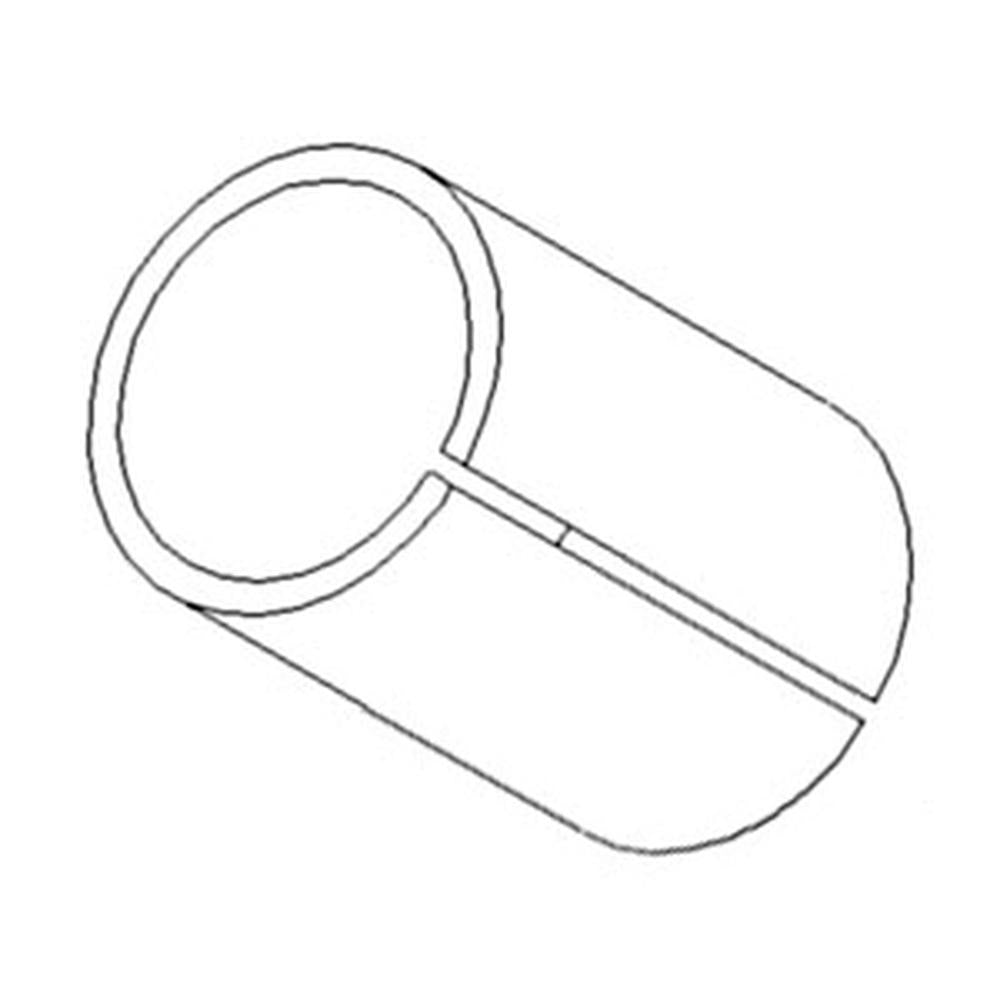

One New Aftermarket Replacement Spindle Bushing Fits John Deere Tractors

This spindle bushing fits the front axle spindle assembly on Fits John Deere (Fits JD) utility tractors. Also identified as a knee bushing, it sits at the spindle/knuckle pivot point in the front non-powered axle, controlling play and maintaining precise steering geometry. This is a precision-fit part -- confirm your serial number against the model breaks listed below before ordering.

Specifications

Outside Diameter (OD): 1.53 in (39 mm)
Inside Diameter (ID): 1.38 in (35 mm)
Width (W): 1.96 in (50 mm)

Compatible Models

Fits John Deere (Fits JD) 5000 Series Tractors: 5076EN, 5083EN, 5090EN, 5093EN, 5101EN, 5103, 5105, 5200, 5203, 5205, 5210, 5220, 5300, 5303, 5310, 5310N, 5320, 5320N, 5325N, 5400, 5400N, 5403, 5410, 5415, 5415 (Narrow), 5420, 5420N, 5425N, 5500, 5500N, 5510, 5510N, 5520, 5520N, 5525N, 5615, 5715, 5725N

Serial Number Restrictions (BSN = Below Serial Number): 5103 (SN <001433), 5203 (SN <001134), 5303 (SN <001080), 5415 (SN <005672), 5420 (SN <443959), 5520 (SN <453300), 5615 (SN <004136), 5715 (SN <008654)

Replaces Part Number(s):

R109452, 1404-1016

Aftermarket Interchange Numbers

AMR109452 (Abilene Machine), A-R109452

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5425N, 5520N, 5325N, 5105, 5420, 5500N, 5403, 5090EN, 5520, 5725N, 5500, 5210, 5083EN, 5203, 5200, 5310N, 5320, 5303, 5415, 5103, 5715, 5220, 5400, 5525N, 5320N, 5205, 5400N, 5420N, 5101EN, 5510, 5310, 5615, 5093EN, 5410, 5300, 5076EN, 5510N
