Pump TX17203 for Long 2360 2460 2510 2610

Pump TX17203 for Long 2360 2460 2510 2610

$235.99 USD
$235.99 USD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Hydraulic Pump for Long, Fiat, Fits Case IH, Fits Ford, and Fits New Holland Tractors

This counter-clockwise (CCW) rotation gear-type hydraulic pump replaces OEM part number TX17203 and services the main hydraulic system on Long 2360, 2460, 2510, 2610, and 680 tractors, as well as a wide range of compatible Fiat (Hesston-Fiat), Fits Case IH, Fits Ford, and Fits New Holland models. It is a gear pump with a keyed shaft, single-pump design, rated at 7.5 GPM and a maximum operating pressure of 2900 PSI.

Specifications

  • Rotation: Counter-Clockwise (CCW)
  • Flow Rate: 7.5 GPM (approx. 28-31 LPM)
  • Max Pressure: 2900 PSI
  • Displacement: 14.5 cc
  • Shaft Type: Keyed
  • Pump Type: Single gear pump
  • Inlet Shaft Diameter: 0.58 in. (14.7 mm)
  • Bolt Circle (small): 1.20 in. (30.5 mm)
  • Bolt Circle (large): 1.60 in. (40.5 mm)
  • Outlet Shaft Diameter: 0.78 in. (19.8 mm)

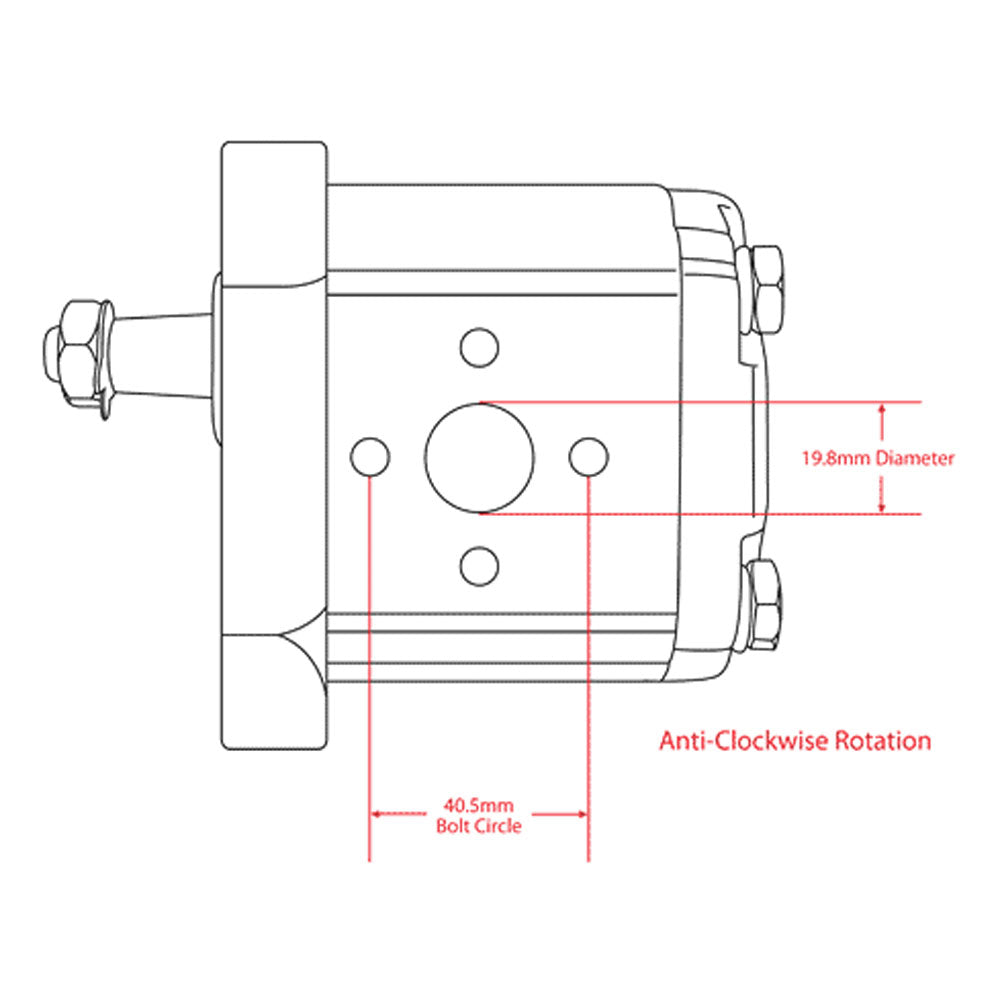

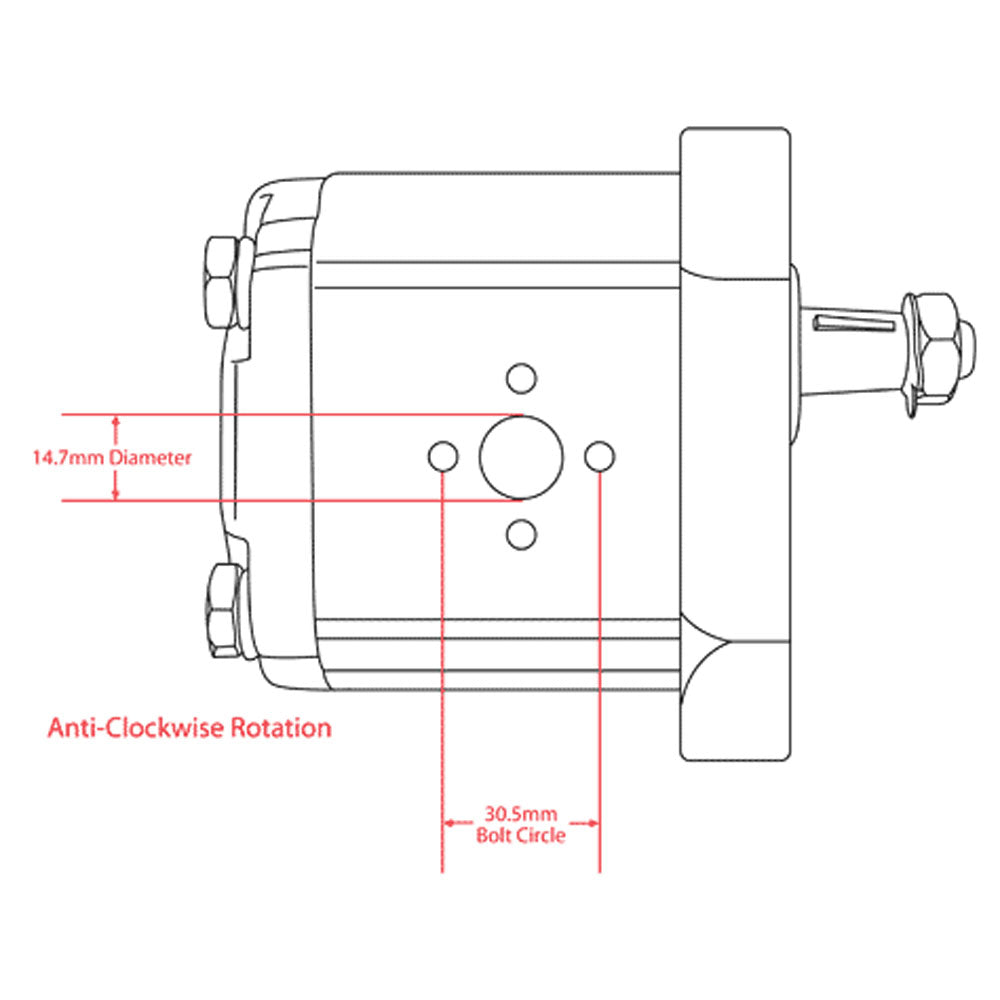

  • See product images for port orientation clarification

Compatible Models

Long Tractors: 2360, 2460, 2510, 2610, 680

Fiat / Hesston-Fiat Tractors: 45-66, 45-66DT, 50-66, 50-66DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-66LP, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-66LPDT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 60-97DT, 65-56, 65-56DT, 65-88, 65-88DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66DTHC, 70-66F, 70-66FDT, 70-66HC, 70-66LP, 70-66LPDT, 70-66S, 70-66SDT, 70-66SDTHC, 70-66V, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-86SVDT, 70-86VDT, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86FDT, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66DTHC, 80-66F, 80-66FDT, 80-66HC, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 90-90DT, 92-94, 95-55, 100-60DT, 100-90, 100-90DT, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT

Fits Case IH Tractors: JX80, JX90, JX90HC, JX95, JX95HC

Fits Ford/New Holland Tractors: 3010S, 3435, 3830, 4010S, 4030, 4030 3 Cyl, 4230, 4330V, 4430, 5010S, 5530, 6530, 7530

Fits New Holland Industrial/Construction: TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK85, TK85M

Fiat Industrial/Construction: TD80D, TD85F, TD95DHC Plus

Fits New Holland Combines: 680

Replaces Part Number(s):

TX17203, TX17199, 0510525348, 1901324, 1909915, 1909919, 1930052, 1930057, 1930068, 30-3012875, 5086286, 5094391, 5113284, 5120277, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84467651, 84530156, 85086286, 87325370, 87721169, 87737603, 9967928, A31X

Aftermarket Interchange Numbers

VPK1034, 1101-1038

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

50-66, 70-66S, 70-66V, 60-66LPDT, 115-90DT, TK76, 80-88, agricultural, 70-90DT, 7530, 80-66DT, 85-90, 6530, 70-76V, 65-56, 60-76FDT, 65-94DT, TT65, 72-86LPDT, 72-94, 70-88DT, 70-90, 55-76FDT, 2610, 70-66FDT, 70-66SDTHC, 55-66DT, 70-76F, TK85, 60-86F, 72-93, 100-90DT, 55-66LP, 3435, 72-86FDT, 72-93DT, 80-66, TK75V, 4230, 65-93, 60-97DT, 60-86FDT, 4030 3 Cyl, 45-66DT, 70-88, 55-76F, 70-76FDT, 2510, 72-85M, 60-56, 115-90, 82-93, 60-66DT, 85-90DT, 65-88DT, 50-86VDT, 70-66F, TD85F, 80-66DTHC, 80-90, 90-90, 90-90DT, 70-66SDT, 70-66, 70-66LPDT, 70-86SVDT, JX90, 5530, TK75M, 80-66FDT, JX80, 70-76LP, TT75, 72-94DT, 4010S, 65-90DT, 45-66, 2360, 60-86SVDT, 82-93DT, TK75F, JX95, 2460, 55-76VDT, 55-56DT, 3830, 100-60DT, 60-86VDT, 70-76LPDT, 80-88DT, 50-66DT, 88-93, tillage equipment, 60-56DT, 5010S, 70-66DTHC, 80-90DT, 82-94DT, 65-93DT, 65-90, 140-90DT, TK85M, 4330V, 70-66DT, 130-90, 130-90DT, 4430, JX95HC, 65-56DT, 60-76F, 65-94, 60-94DT, 88-94DT, 55-56, 80-66F, 65-88, TK75MA, 92-94, 55-66, 680, 72-85, 95-55, 70-86VDT, 60-66, 100-90, 60-86SV, tractors, 110-90DT, 110-90, 60-94, 82-94, 80-76FDT, 80-76F, 55-76V, TK75FA, TT55, 60-86V, 60-93, TK75VA, 70-56, 3010S, 45-76V, 60-93DT, 70-66HC, 60-90DT, 140-90, TD95DHC Plus, 70-66LP, TD80D, planting equipment, 70-56DT, 88-93DT, 88-94, 80-66HC, 60-90

Additional Information:

3.1 Litres/Min 0.58" (14.7mm) Diameter 1.20" (30.5mm) Bolt Circle 1.60" (40.5mm) Bolt Circle 0.78" (19.8mm) Diameter See Images for Clarification

Reference Numbers:

TX17199, 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603, 1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156, 0510525348, 1901324, 1930052, 1930057, 1930068, 5113284, 5120277, 5120297, 5120849, 5169772, 8280127, 8282339, 9967928, A31X
