Pump - Main Hitch Hydraulic Fits International 1566 1586 3688 886 1486 986 1086

Name: Pump - Main Hitch Hydraulic Fits International 1566 1586 3688 886 1486 986 1086
SKU: AGER1284889
Price: 580.4 USD
Availability: InStock

Pump - Main Hitch Hydraulic Fits International 1566 1586 3688 886 1486 986 1086

$580.40 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Main Hitch Hydraulic Pump Fits International Harvester (IH) / Fits Case IH Tractors

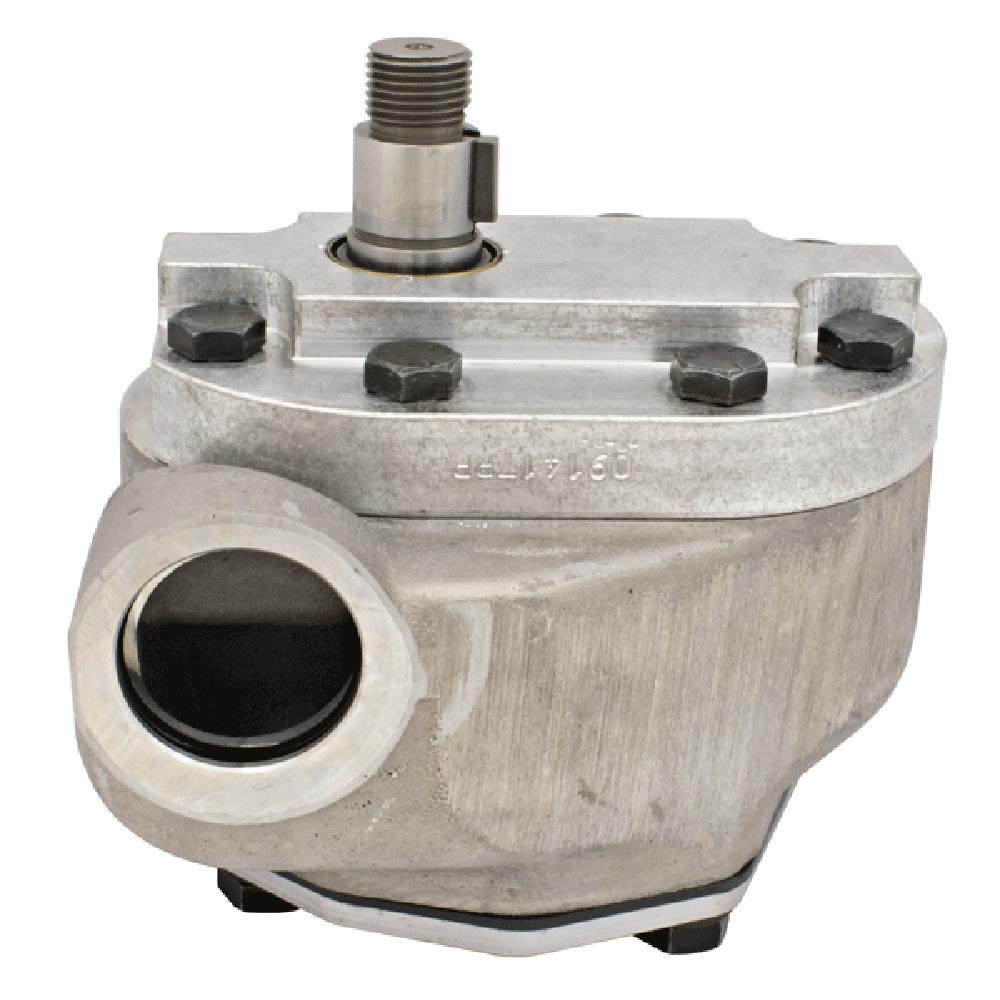

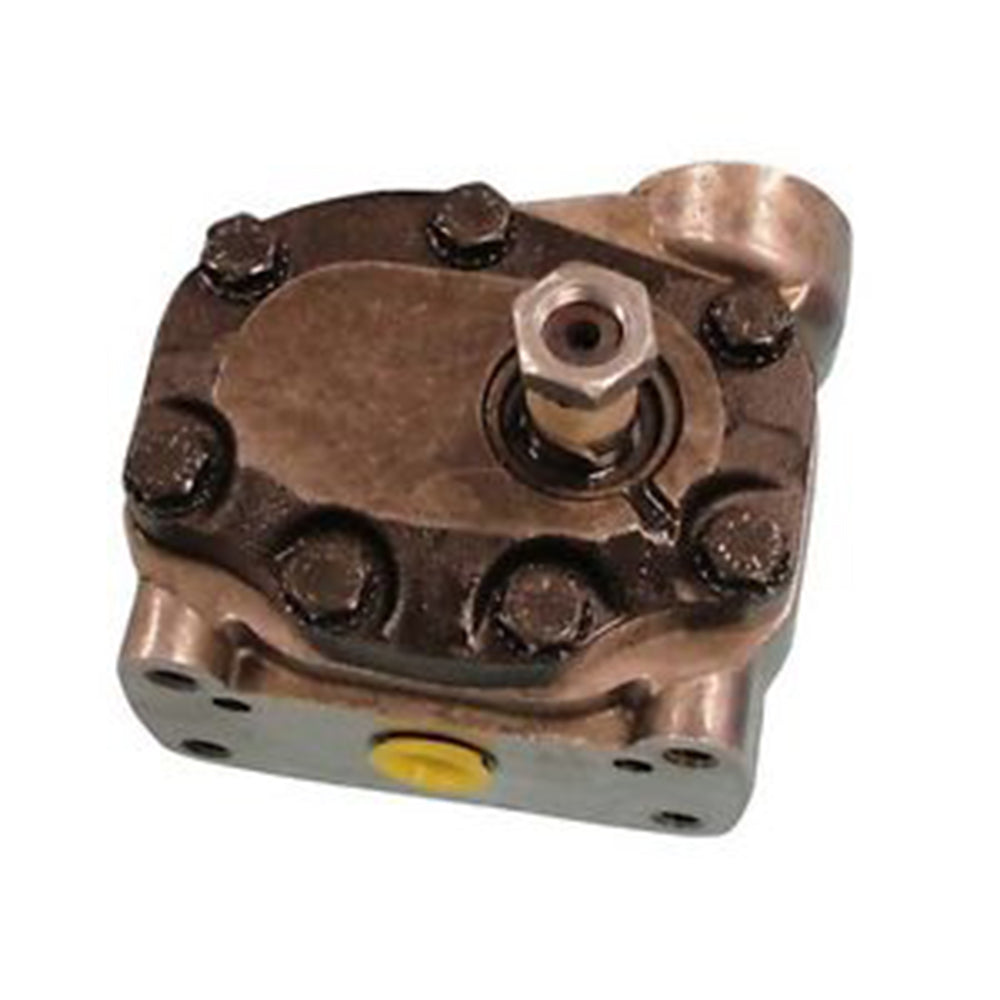

This is a new aftermarket replacement main hitch hydraulic pump Fits International Harvester (IH) and Fits Case IH tractors. Mounted in the rear frame, this closed-back single gear pump supplies hydraulic power to the hitch and auxiliary valve circuits. It is rated at 15 GPM with a maximum operating pressure of 2,250 PSI and features a keyed shaft drive. Note: Relief valve is not included. Before installation, flush the hydraulic system completely and refill with clean, new fluid.

IMPORTANT SERIAL NUMBER FITMENT RESTRICTION: This pump applies to specific serial number ranges on certain models. 986 Hi-Clear: s/n to 23999 and 28000 & up. 1066 Hi-Clear: s/n to 47999 and 55000 & up. 1486: s/n to 25999 and 29150 & up. 1586: s/n to 20999. 3088, 3288, 3688: models equipped with draft control and/or auxiliary valves only. Verify your serial number and equipment configuration before ordering.

Specifications

Pump Type: Single gear pump, closed-back design
Flow Rate: 15 GPM
Maximum Pressure: 2,250 PSI
Displacement: 20 cc
Drive Type: Keyed shaft
Relief Valve: Not included
Weight: approx. 7.4 lbs

Compatible Models

Fits International Harvester (IH) / Fits Case IH Tractors: 460, 656, 664, 666, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986 (Hi-Clear - see s/n restriction), 1026, 1066 (Hi-Clear - see s/n restriction), 1086, 1206, 1256, 1456, 1466, 1468, 1486 (see s/n restriction), 1566, 1568, 1586 (see s/n restriction), 3088 (w/ draft control and/or aux valves), 3288 (w/ draft control and/or aux valves), 3388, 3488, 3588, 3688 (w/ draft control and/or aux valves), 3788, 6388, 6588, 6788, HYDRO 186

Fits International Harvester Industrial/Construction: 2706, 2756, 2806, 2826, 2856, 21026, 21206, 21256, 21456

Replaces Part Number(s):

70932C91, 70932C91-A

Aftermarket Interchange Numbers

1949300C1

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

3388, 3588, 3788, 21206, 21256, 3288, 806, 1466, 2706, 21456, 826, 664, 766, 1206, 3688, 460, 686, 1586, 6788, HYDRO 186, 2756, 666, 1456, 2806, 1256, 706, 986, 2826, 2856, 6588, 1568, 966, 1486, 1468, 856, 1026, 1566, 1086, 3488, 786, 886, 21026, 6388, 756, 3088, 1066

Additional Information:

The system needs be flushed and replaced with clean, new fluid Drive Type: Keyed Max PSI: 2250 Pump Type: Single Relief Valve: Not Included Volume: 20 cc
