One New Aftermarket Replacement PTO Driveline for Kuhn Disc Mowers GMD600 and GMD700
This aftermarket replacement PTO driveline (replaces Kuhn OEM part number 4600331) is a complete disc mower driveline featuring quick disconnect (QD) yokes, Size 5, 100 Series construction rated for Category 4 duty (47 hp at 540 rpm). It transfers tractor PTO power to the disc mower gearbox and does not include an overrunning clutch. Note: it may be necessary to cut this driveline to length -- verify sufficient overlap of drive tubes in all working positions before use.
Specifications
- Series: 100 Series, Size 5
- Rating: Category 4 (47 hp @ 540 rpm)

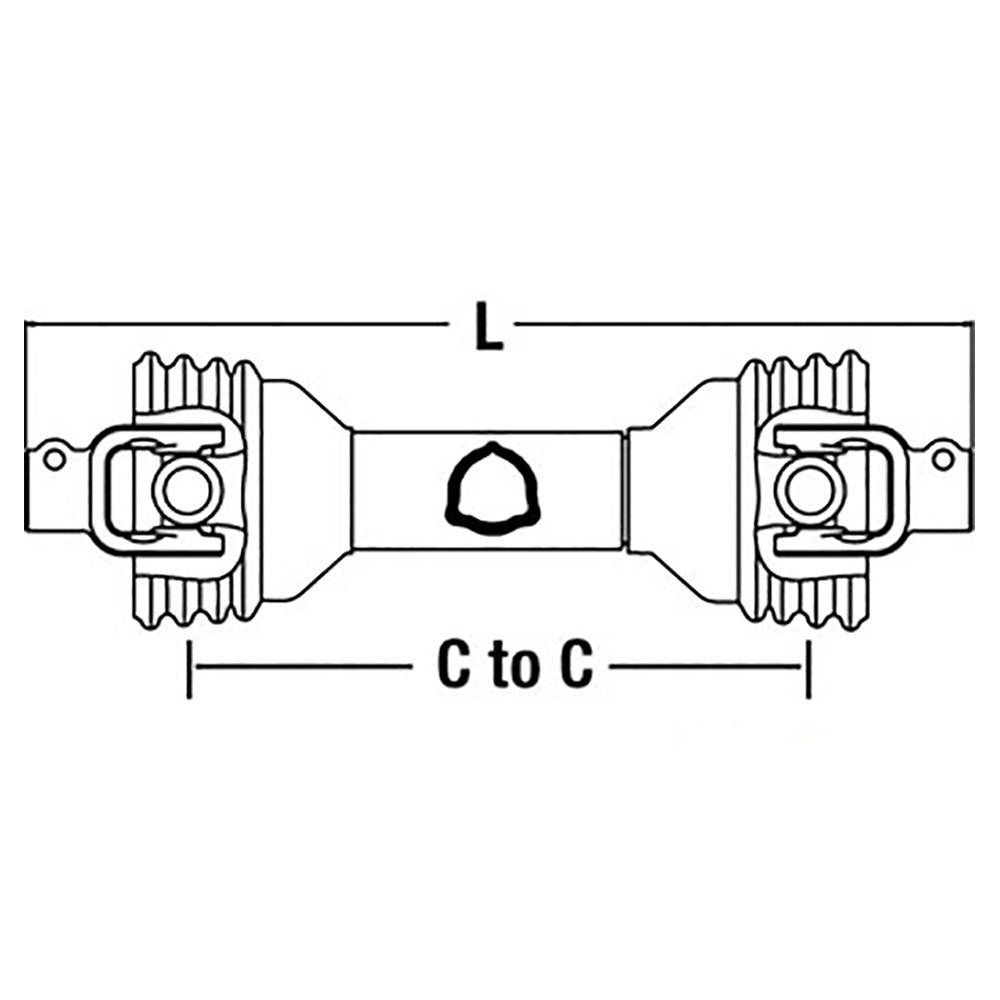

- Center-to-Center Length (min): 25 in (635 mm)
- Center-to-Center Length (max): 35 in (900 mm)
- Total Collapsed Length: 33 in (850 mm)
- Tractor End: 1-3/8 in - 6 Spline with Quick Disconnect
- Implement End: 1-3/8 in - 6 Spline with Quick Disconnect
- Overrunning Clutch: No
- Complete replacement -- components from original driveline will not interchange
Compatible Models
Kuhn Disc Mowers: GMD600, GMD700
Agriquip Disc Mowers: CM245, CM247, CM270
Bush Hog Disc Mowers: DM7, DM8, DM9, DM70, DM80, DM90
Fahr Disc Mowers: SM2.21, SM2.24, SM240
Fort Disc Mowers: F25
JF Disc Mowers: SB2000, SB2400, SB2800
Fits John Deere Flail Mowers: 25A, 340, 360, 370, 390
Land Pride Disc Mowers: DM3506, DM3507
M & W Disc Mowers: HC5, HC6, HC7
Mortl Disc Mowers: 204, 205, 206, 207, 2008, 2009, 2096, 225, 226, 227, 240D, 25A, 280D
Taarup / Krone Disc Mowers: AM202, AM203S, AM242, AM243S
Vicon Disc Mowers: CM167, CM1700, CM216, CM217, CM2200, CM240, CM2400
Replaces Part Number(s):
4600331 (Kuhn), ECC5251 (Edcor)
Aftermarket Interchange Numbers
CS52511, A-CS52511, ECC5251
New aftermarket replacement part - not remanufactured, not used.
