Piston Ring Set - Standard - Single Cylinder Fits International 706 3139594R91

Name: Piston Ring Set - Standard - Single Cylinder Fits International 706 3139594R91
SKU: AGER2387250
Price: 36.99 USD
Availability: InStock

Piston Ring Set - Standard - Single Cylinder Fits International 706 3139594R91

$36.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

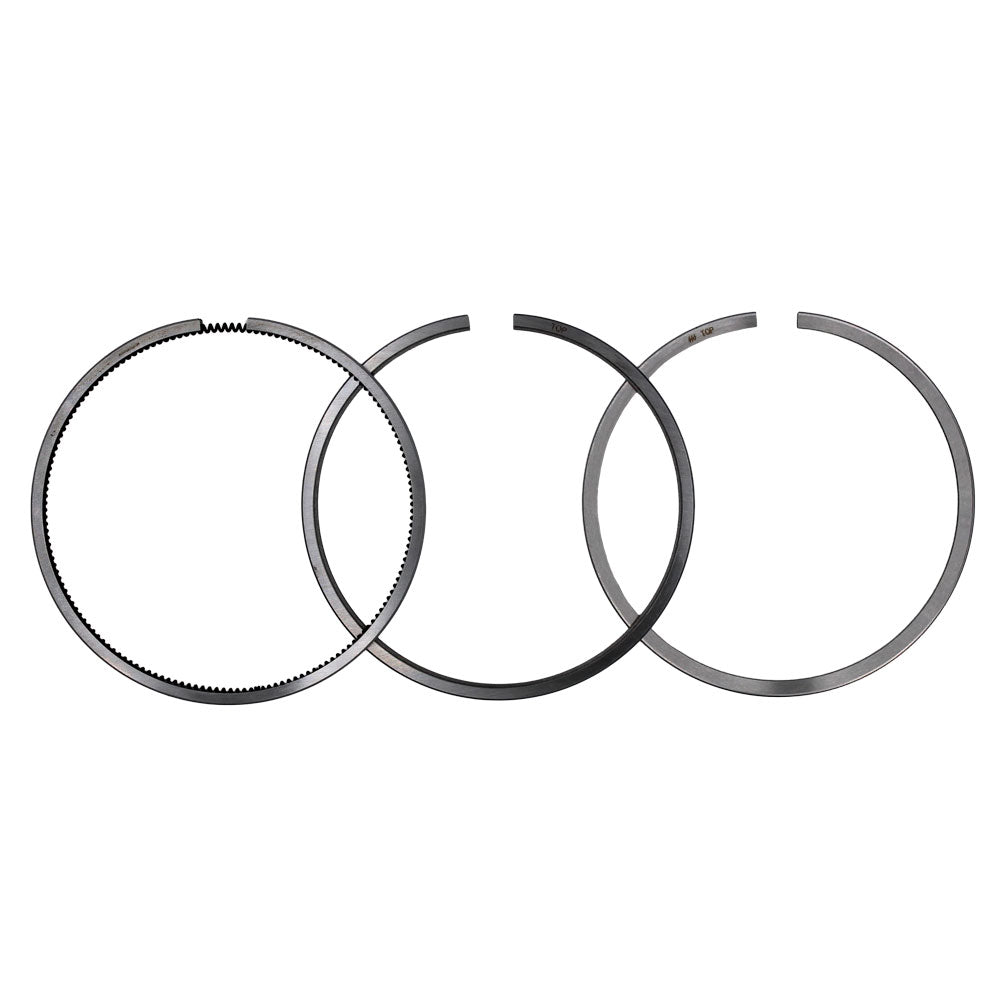

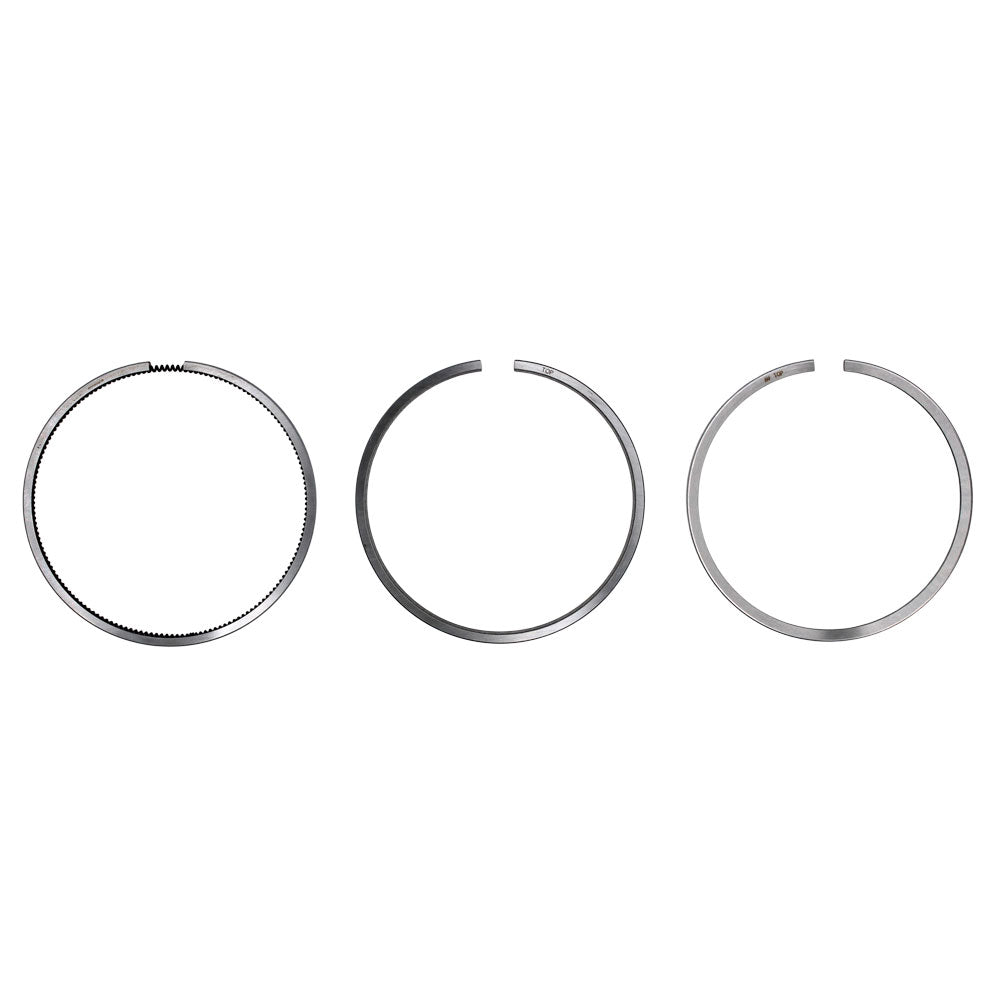

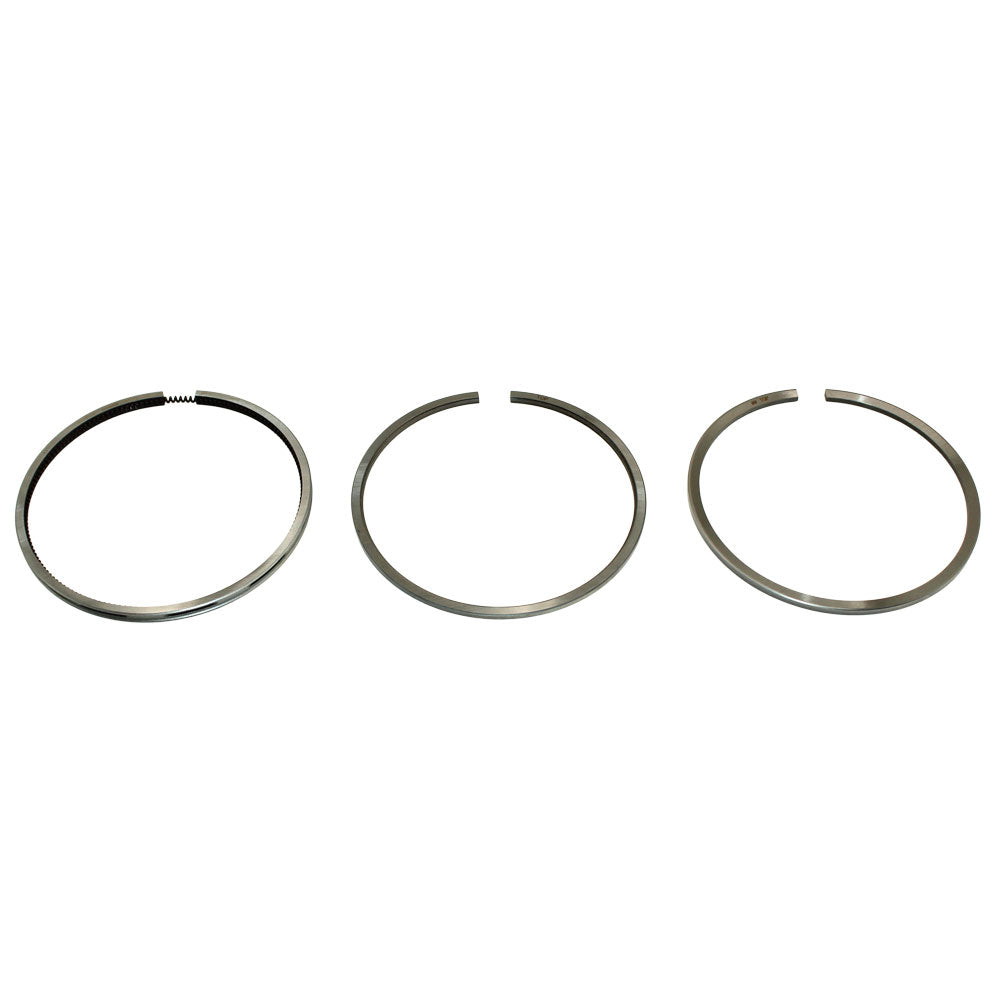

One New Aftermarket Replacement Standard Piston Ring Set (Single Cylinder) for Case/International Harvester (IH) Tractors and Combines

This standard-bore piston ring set provides a single-cylinder complement of three rings for Case/International Harvester (Case IH) diesel engines, including the D155, D179, D206, D239, D310, D358, and TD239 engine families. The set features a chrome-plated keystone top ring for superior sealing, a chrome-plated taper-faced internally stepped second ring, and a chrome-plated bevelled-edge oil control ring with helical coil spring for precise oil regulation. Replaces OEM part number 3139594R91.

Specifications

Bore: 3.875" (98.42mm) - Standard
Number of Rings: 3 (per cylinder)
Top Ring: Chrome Plated Keystone - 3.00mm (CK1)
2nd Ring: Chrome Plated Taper Faced Internally Stepped Top - 2.38mm (CT2)
3rd Ring: Chrome Plated Bevelled Edge with Helical Coil Spring - 4.76mm (CBEH)
Sold per cylinder

Compatible Models

Case/International Harvester Tractors: 268, 288, 433, 454, 474, 533, 574, 633, 644, 674, 684, 685, 685XL, 695, 695XL, 706, 733, 740, 743, 743XL, 744, 745, 745S, 745XL, 785, 785XL, 795, 795XL, 833, 840, 844, 844S, 844XL, 845, 845XL, 885, 885XL, 895, 895XL, 940, 955, 955XL, 956, 956XL, 995XL, 1046, 1055, 1055XL, 1056, 1056XL, 2400, 2500, 4210, 4220, 4230, 4240, HYDRO 84, HYDRO 86

Case/International Harvester Combines: 1620

International Harvester Backhoe/Industrial: 260A, 2400A, 2500A, 2500B, 2510B, 3400A, 3500A, 3514, 4500, 500C, TD7, 250A

Replaces Part Number(s):

3139594R91, 671510C91

Aftermarket Interchange Numbers

Sparex S.57633; Minneapolis Moline G907224; White 30-3090264; Case IH 674309C92

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

684, 745S, 824, 743XL, 674, HYDRO 86, 785, 1055, 474, 288, 885XL, 4240, 4210, 743, 268, 533, 633, 733, 955, 833, 745XL, 454, 795XL, 744, 844XL, 574, 1046, 895XL, 840, 1055XL, 782, 2500, 956XL, 795, 895, 845XL, 940, 724, 644, 844S, 685, 844, 2400, 845, 955XL, 1056XL, 695, 885, 995XL, 685XL, 745, 1056, 695XL, HYDRO 84, 740, 433, 785XL, 956, 4220, 4230

Additional Information:

Comes with 3 Rings Top Ring: CK1 - Chrome Plated Keystone (3.00mm) 2nd Ring: CT2 - Chrome Plated Taper Faced Internally Stepped Top (2.38mm) 3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (4.76mm)
