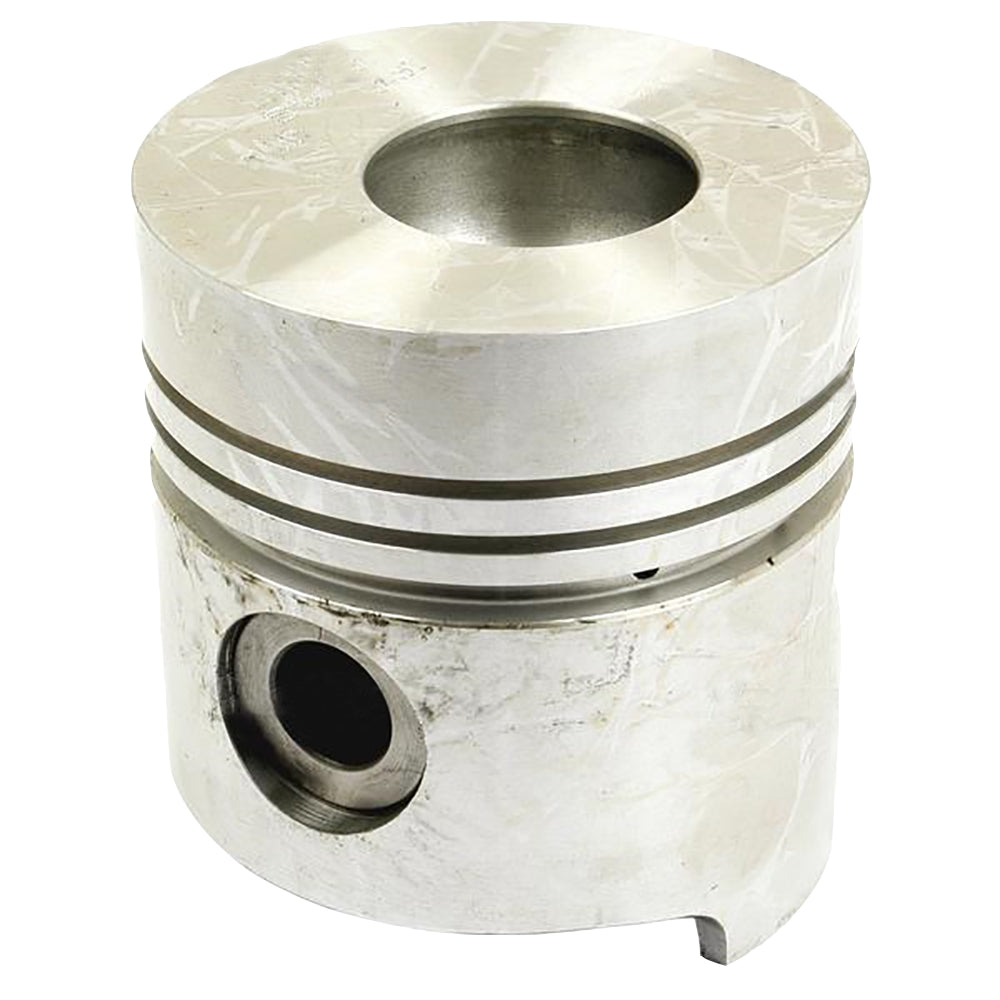

Piston Fits Case Replaces 1900691

Models This Part Fits:

460SD, 450, 2360, 1033, 445DT, 2460SD-DTC, 500, 560DT, 470, 900, 466, 453, 2360DTC, 460V, 550, 360, 5040, 480, 1355, 445SD, 2460SD, 260C, 1255, 445V, 300, 533, 460, 560DTE, 850, 550DT, 2460DTC, 1250A, 445, 353, 360C, 460DT, 2260, 560, 350, 2460

Additional Information:

Piston Length = 101.18mm. Chamber Depth = 23.58mm. Chamber Diameter 42.44mm. Pin Diameter 32mm. Compression Height = 59.66mm. To Fit Bore Diameter 94.99mm. No. of Rings = 2

Reference Numbers:

1900691
