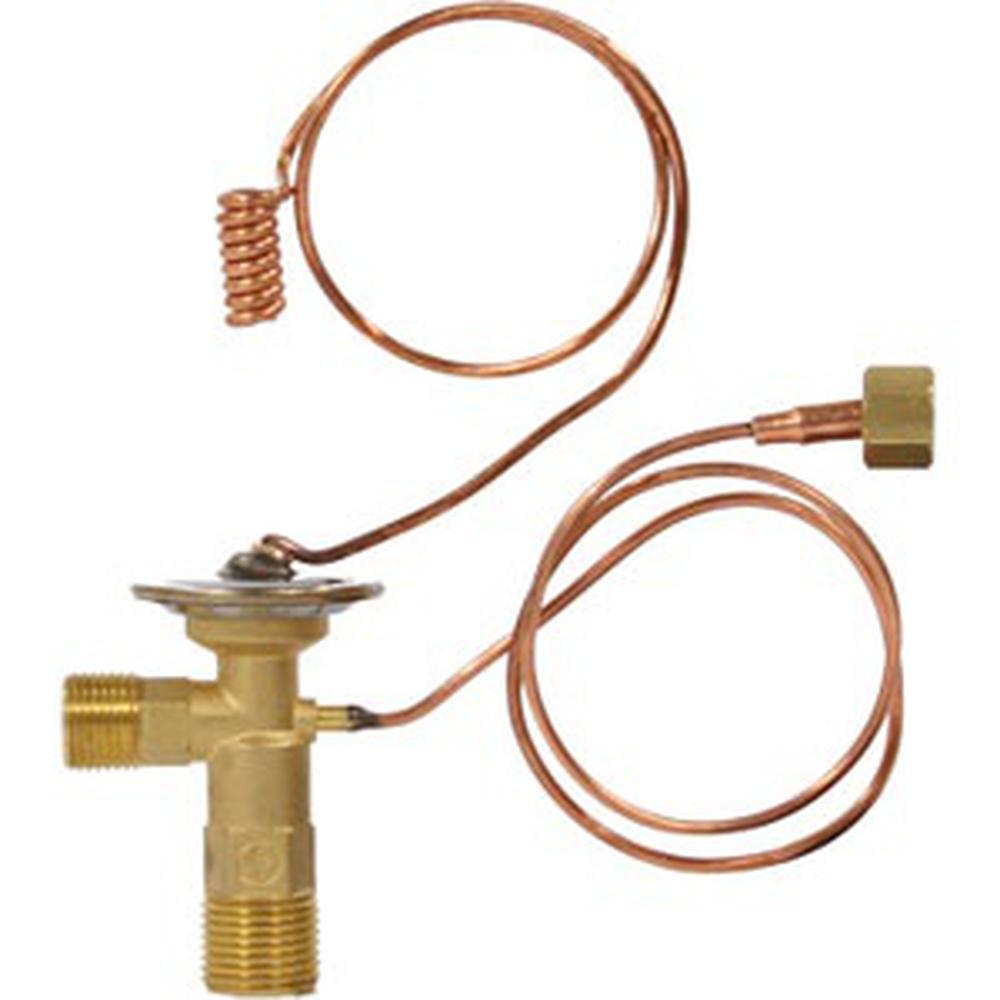

AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH

Name: AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH
SKU: AH140818_4
Price: 35.99 USD
Availability: InStock

AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH

$35.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

New Aftermarket Replacement O-Ring Type Externally Equalized Expansion Valve

Fits Case-IH Swather/Windrowers:
8820, 8825, 8825HP, 8830, 8840, 8850

Specifications:
Press.Line to Evap.Inlet
Female Capillary End
Bulb: 3/8" Coil
Capillary Length: 12"
Equalizer: 13"-1/4"FO
Inlet: 3/8" Male
Outlet: 1/2" Male
Super Heat: 8
Tonnage: 2

Replaces Part Numbers:
A-904-304, 904-243, 904-288, 904-296, 909205, 909220, A-AG726761, A-AH140818, A-AL37525, AR58482, A-RE13886, A-RE206757, A-V70267, 118305C3, A-1280333C2, A-1634663M1, 261764, A-274571, 3038918M91, A-3321511M91, A-3380223M1, A-70259379, A-70259978, 70261764, A-773361M91, 904-213

Models This Part Fits:

8825HP, 1065, 4760, 8825, 2855N, SPX3185, F100, 2040S, Hydro 186, TL80A, 3130, 160-90, TL70, 2-105, 685, 2040, 9910, 7080, 3525, 1486, 260, 2140, 1420, 256V, 8030, 276II, 5820, 130-90, 2350, 7440, 1594, 644C, 6620, 7060, 70-90DT, 276V, 3040, 4050, 7040, 9030, 210, 1075, 207, 4630, 4040, G, 2840, F, Challenger 65, 65-94, 4240, 209, 2940, 2115, 1157, 9030E, 5730, 4230, F130, 8650, 9030V, 7445, 4850, E, 3055, 915, 140-90, 2550, 344E, TL90A, 895, 115-90DT, 699, 203, 5500, 1169HY/4, 555, 2855, 3505, 675, 8450, 6060, 755A, 9960, 2675, 986, 3140, 9920, 8850, 275, 622, 1896, 1166HY/4, 3640, 2850, 5830, Dominator 86, 3150, SPX3150, 8430, 1174HY/4, 698, 90-90DT, 4955, 595, 1075HY/4, 8630, 4040S, 7720, 90-90, 85-90, 6700, 55-90, 2640, 2-150, 1188HY/4, 4650, 201, 544 ROGATOR, 554 ROGATOR, 4030, T4050, 1177, 695, 140-90DT, 4560, 690B, 3388, 82-94DT, 616, 7722, 3155, 3650, 1586, 8040, 8050, 9940, 444E, 755B, 1640, 270, 3210, 3640S, 555A, 4750, GH, 6070, 205, 4450, 4186, F140, 1086, TR95, 9976, 4000, TR88, 4255, 4240S, 130-90DT, 6500, 180-90, 2-155, 4430, 1166, 7050, 2950, 250, 7020, 180-90DT, 1470, 100-90, 60-90DT, 4455, SPX4260, 885, 206, 1460, SPX2130, SPX3200, 82-94, 2955, 2355, 2-110, 2420, 65-90, 4440, 65-94DT, 2775, SPX3200B, 3588, 655A, 95, 2750, 208, 115-90, 8840, 60-94, 9970, 4555, 2-115, 4055, 6622, 88-94DT, 7010, 4640, 782, 4960, 670, 815, 1055, T5070, 3350, 220, 9950, Dominator 76, 9935, TL80, 786, 110-90, 268, M, 2650, 60-94DT, 4425, 585, 1155, 1158, 1169, TR96, 4755, 3788, 150, 484, 5720, 72-94DT, 4700, 1085HY/4, 88-94, 2100, TR75, 1068H, 1072, 7455, 5000, 2250, 655, 80-90DT, 1174, 8070, 240, 80-90, T5050, 1466, 280 Farmer, TL100, TL90, 2805, 892DLC, 200, 70-90, 2555, 65-90DT, 3430, 3830, 6080, T5040, 110-90DT, 160-90DT, 1188, 690, 8820, 256, Dominator 96, 2-135, 3255, 276, 85-90DT, 1690, 890A, 2450, 800, F120, TR85, 7000, 8440, 2-180, 4250, 4166, 4350, 1480, 3545, E3, 8060, 2705, 1400, 3050, 4435, 9930, 1900, 1440, 8830, 7450, 2755, 4840, 2745, 886, 8550, 72-94, F115, 655B, 8080, L, 2320, 555B, 1085, 160, 8640, TL100A, 1915, 6100, 3185, 7580, 6000 Hi-Cycle, 7045, 60-90, 6600, 3030, K, 715, 100-90DT, Challenger 75, 7030, 9965

Additional Information:

Valve Type: Peanut Inlet Size: #6 Inlet Type: O-ring Outlet Size: #8 Outlet Type: O-Ring Tonnage: 2.0T Superheat: 8 Capillary Length: 14-1/2" Equalizer Length: 18" Equalizer Fitting: 7/16-20 UNF

Reference Numbers:

AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, 70268470, 70261764, 70259978, 70259379, 700712704, 700711760, 261764, F205550050180, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 80449624, E3NN19849AA, V70267, 274571, 47597455, 47597457, BN69872, 86000562, V48724, V70267, 118305C3, 1280333C1, 1280333C2, 274571, 47597455, 47597457, 128033C1, 128033C2, 118305C3, 1280333C2, 274571, 47597455, 47597457, 60012-5002, AG726761, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 274571, 9966200, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 274571, 47597455, 47597457, 80449624, E3NN19849AA, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, AG726761, 176.713.0
