MR32N Tractor Heavy Duty Needle Roller Bearings Complete Assm w/o Inner Ring
MR32N Tractor Heavy Duty Needle Roller Bearings Complete Assm w/o Inner Ring
Couldn't load pickup availability
One New Aftermarket Replacement Heavy Duty Needle Roller Bearings Complete Assembly without Inner Ring Fits Various Manufacturers' Tractor Models.

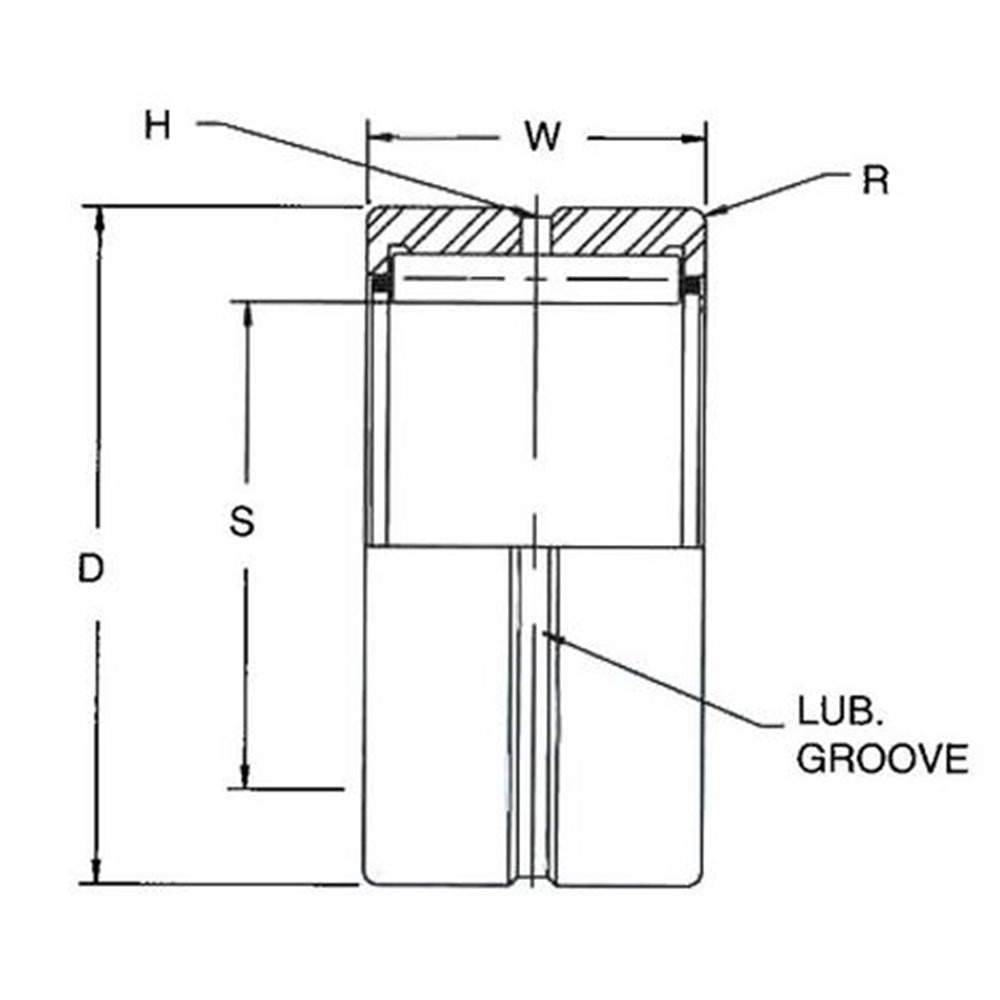

Outer ring and roller assembly without separable inner ring
The outer ring and roller assemblies (MR) shown in this table are for use without inner rings on a ground shaft for which a minimum hardness of 58 Rockwell "C" scale is recommended.
(S) Shaft Diameter: 2"
(S) Shaft Diameter Tolerance: + 0.0000/-0.0004
(D) Dimension: 2.5625"
(D) Dimension Tolerance: +0.0000/-0.0006
(W) Dimension: 1"
(W) Dimension Tolerance: +0.000/-0.005
(H) Hole Diameter: 3/32"
(R) Max Fillet for Housing: 0.060"
Stationary Housing Bore Diameter: 2.5632"
Stationary Housing Bore Diameter: +0.0000/-0.0007 Rotating Housing Bore Diameter: 2.5621"
Rotating Housing Bore Diameter Tolerance: +0.0000/-0.0007
