Motion Drive Belt 1/2" x 30" Fits Murray 37X65 37X65MA 037X65MA Engine Rider

Name: Motion Drive Belt 1/2" x 30" Fits Murray 37X65 37X65MA 037X65MA Engine Rider
SKU: AGER783330
Price: 12.99 USD
Availability: InStock

Motion Drive Belt 1/2" x 30" Fits Murray 37X65 37X65MA 037X65MA Engine Rider

$12.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Motion Drive Belt for Murray (and Craftsman/Sears) 25" and 30" Rear Engine Riders with Transaxle

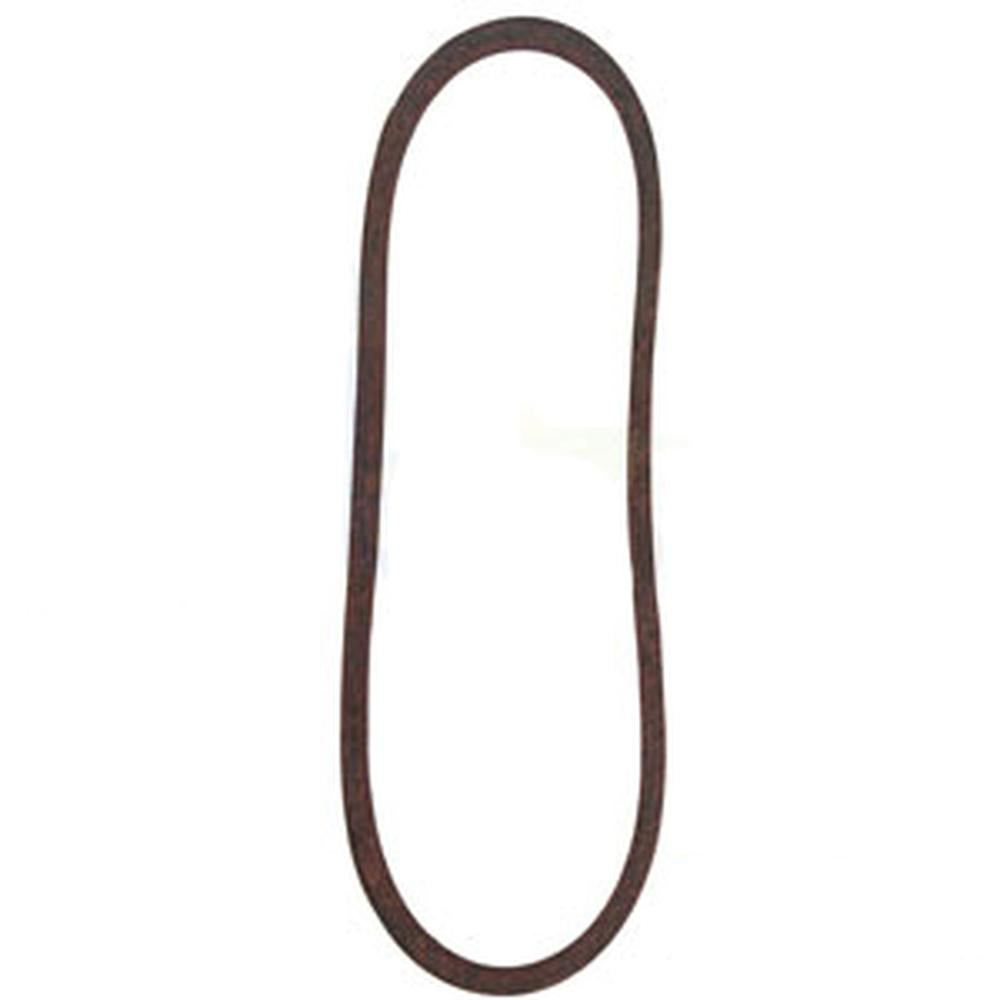

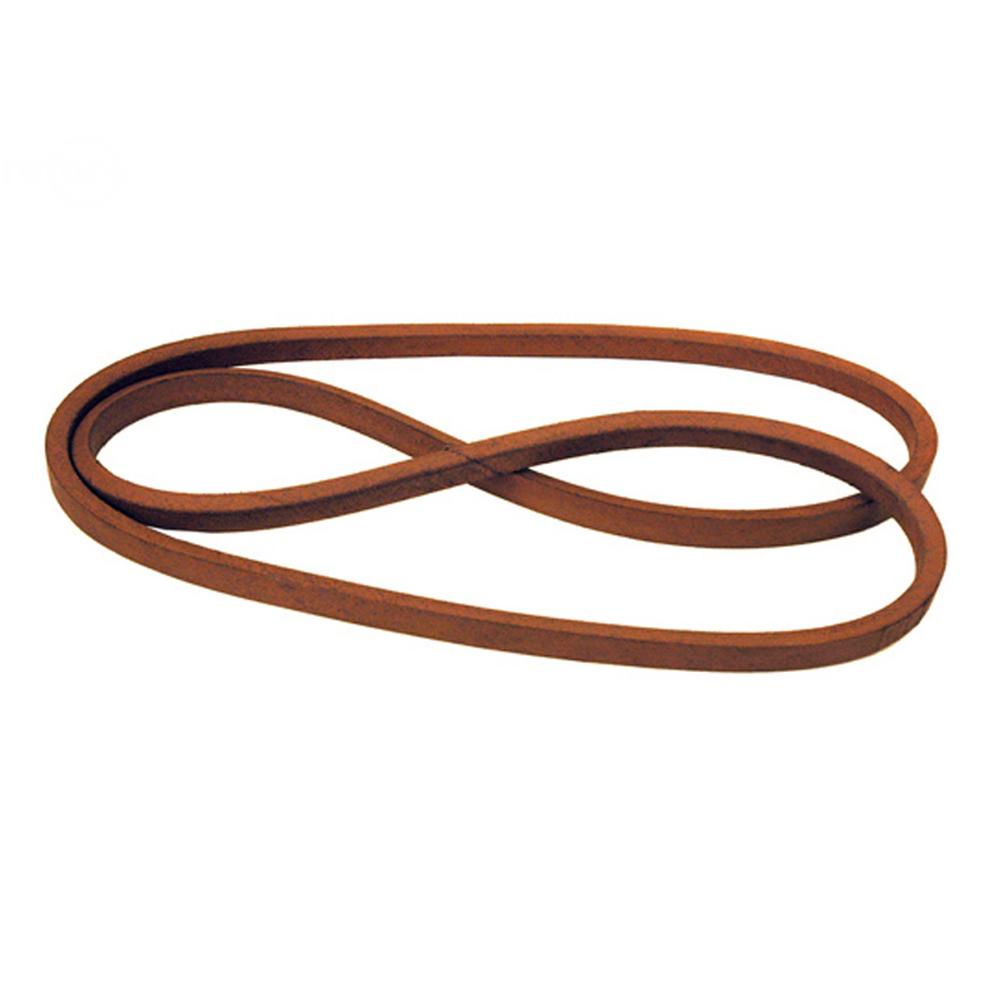

This 1/2" x 30" wrapped V-belt is the motor-to-transaxle drive belt on Murray and Craftsman (Sears) rear engine riding mowers equipped with a transaxle. It transmits power from the engine to the transaxle to propel the machine forward and in reverse. Made with aramid cord for improved strength and heat resistance. Fits Murray 25-inch and 30-inch rear engine riders with transaxle, 1990 and newer.

Specifications

Width: 1/2"
Length: 30.25"
Thickness: 0.308"
Belt Type: Wrapped V-Belt
Cord Material: Aramid
Application: Motion Drive (Motor to Transaxle)

Compatible Models

Murray 25" Rear Engine Riders (w/ Transaxle): 25500X92A, 2550092A, 25511X1A, 25511X1C, 25515A, 25515B, 25515C, 25517X10A

Murray 30" Rear Engine Riders (w/ Transaxle): 3055A, 3055X92A, 3056, 30500X92A, 30503X11A, 30504X20E, 30504X92A, 30505X92A, 30508X34A, 30534X1A, 30535X1A, 30535X1B, 30535X1C, 30535X1D, 305351B, 30536X1A, 30537X1A, 30538X1A, 30539X1A, 30539X1B, 30540A, 30540X10A, 30540X20F, 30540X20G, 30540X29A, 30540X29B, 30540X29D, 30540X5A, 30540X66F, 30540X67A, 30540X67C, 30540X67D, 30540X67F, 30540X98A, 30540X98B, 30541A, 30542X58A, 30543X4A, 30544192A, 30544X92A, 30544X92B, 30544X92C, 30544X92D, 30545X92A, 30545X92B, 30545X192A, 30546X4A, 30546X99A, 30546X199A, 305060X1A, 305518, 30550A, 30550B, 30550C, 30550E, 30550F, 30550G, 30550H, 30550X30A, 30550X92A, 30550X92B, 30550X92C, 30550X92D, 30550X100A, 30550X199A, 30551A, 30551B, 30551D, 30552X12A, 30560A, 30560B, 30560C, 30560C15A, 30560D, 30560E, 30560F, 30560X5B, 30560X5D, 30560X20E, 30560X50A, 30560X50C, 30560X51A, 30560X51B, 30560X51C, 30560X59A, 30560X60B, 30560X66B, 30560X70D

Craftsman/Sears Models: 502.154190, 502.154191, 502.251220, 502.251250, 502.254110, 502.254111, 502.254112, 502.254113, 502.254114, 502.254160, 502.254180, 502.254190, 502.255010, 502.255011, 502.255020, 502.255030, 502.255040, 502.255050, 502.255060, 502.255071, 502.255090, 502.255091, 502.255092, 502.255093, 502.255094, 502.255170, 502.255171, 502.255172, 502.256210, 502.257310, 502.257330, 502.258170, 536.270111, 536.270112, 536.270211, 536.270212

Replaces Part Number(s):

37X65, 37X65MA, 037X65MA, MXV4300, B1037X65MA, B1037X64MA

Aftermarket Interchange Numbers

Stens 265-265, Rotary 7245

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

502.255040, 30534X1A, 30540A, 30551A, 502.255171, 30550X92D, 502.255091, 305351B, 30540X67D, 25511X1C, 536.270211, 30550D, 30552X12A, 502.257310, 502.254160, 502.255094, 30540X98A, 30560X50A, 30560X51B, 30560X59A, 30550X30A, 502.256210, 30560X66B, 30560A, 30540X29D, 30505X92A, 30550H, 30540X29B, 25517X10A, 30550E, 30560X50C, 502.254180, 305060X1A, 30550X92A, 30551D, 30550X92C, 502.255020, 25500X92A, 502.25516A, 502.154190, 502.255011, 30535X1A, 30545X192A, 502.255090, 30540X67C, 30545X92A, 25515A, 30508X34A, 502.255010, 30560C, 502.251250, 536.270112, 30545X92B, 30560X5B, 30560X5D, 30550F, 30560C15A, 305518, 30540X67A, 30535X1B, 502.255170, 502.255050, 536.270212, 30560X70D, 502.255030, 536.270111, 30500X92A, 30544X92C, 30540X29A, 30550X100A, 502.254111, 30560X60B, 25515B, 30540X20G, 502.255172, 30540X66F, 3056, 30544192A, 502.254110, 30544X92B, 30540X5A, 30544X92A, 30504X92A, 30546X4A, 502.254190, 30540X10A, 30535X1C, 502.258170, 30550X92B, 30560B, 3055X92A, 30540X20F, 30550G, 30536X1A, 30560X51A, 502.254113, 30504X20E, 30560X20E, 30544X92D, 502.255060, 502.254112, 30539X1B, 3055A, 25515C, 30535X1D, 30540X67F, 30560F, 30538X1A, Rear Engine Rider with Transaxle, 30 INCH REAR ENGINE (w/ transaxle), 30503X11A, 502.251220, 30550A, 30560D, 30543X4A, 502.254114, 2550092A, 30540X98B, 30560E, 25511X1A, 30546X199A, 30550X199A, 30541A, 502.257330, 30550C, 30542X58A, 30560X51C, 30550B, 30539X1A, 30537X1A, 502.255093, 30546X99A, 502.255092, 30551B, 502.255071
