86529587 Air Filter Fits John Deere Tractors 5200 5300 5300N 5400 5400N

Name: 86529587 Air Filter Fits John Deere Tractors 5200 5300 5300N 5400 5400N
SKU: M132089
Price: 118.99 USD
Availability: InStock

86529587 Air Filter Fits John Deere Tractors 5200 5300 5300N 5400 5400N

$118.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Outer Air Filter Fits John Deere, Deutz, and Fiat Tractors

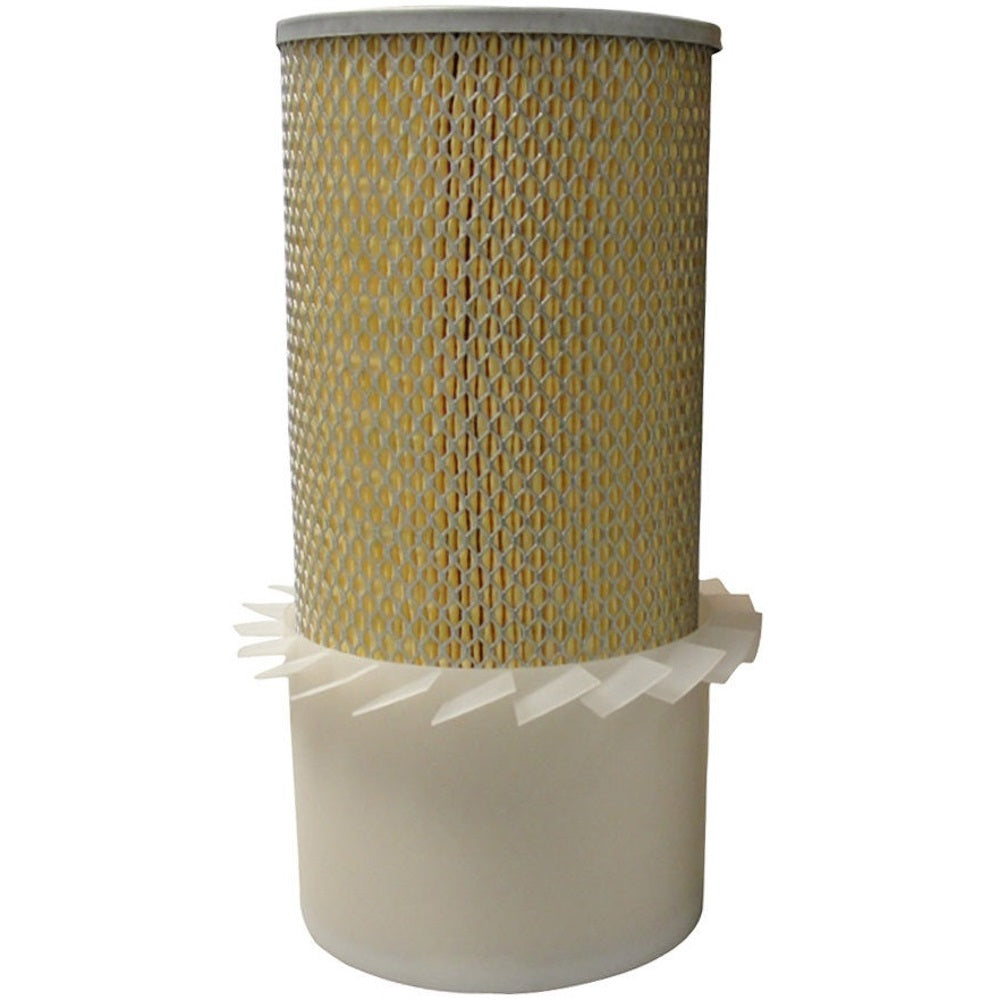

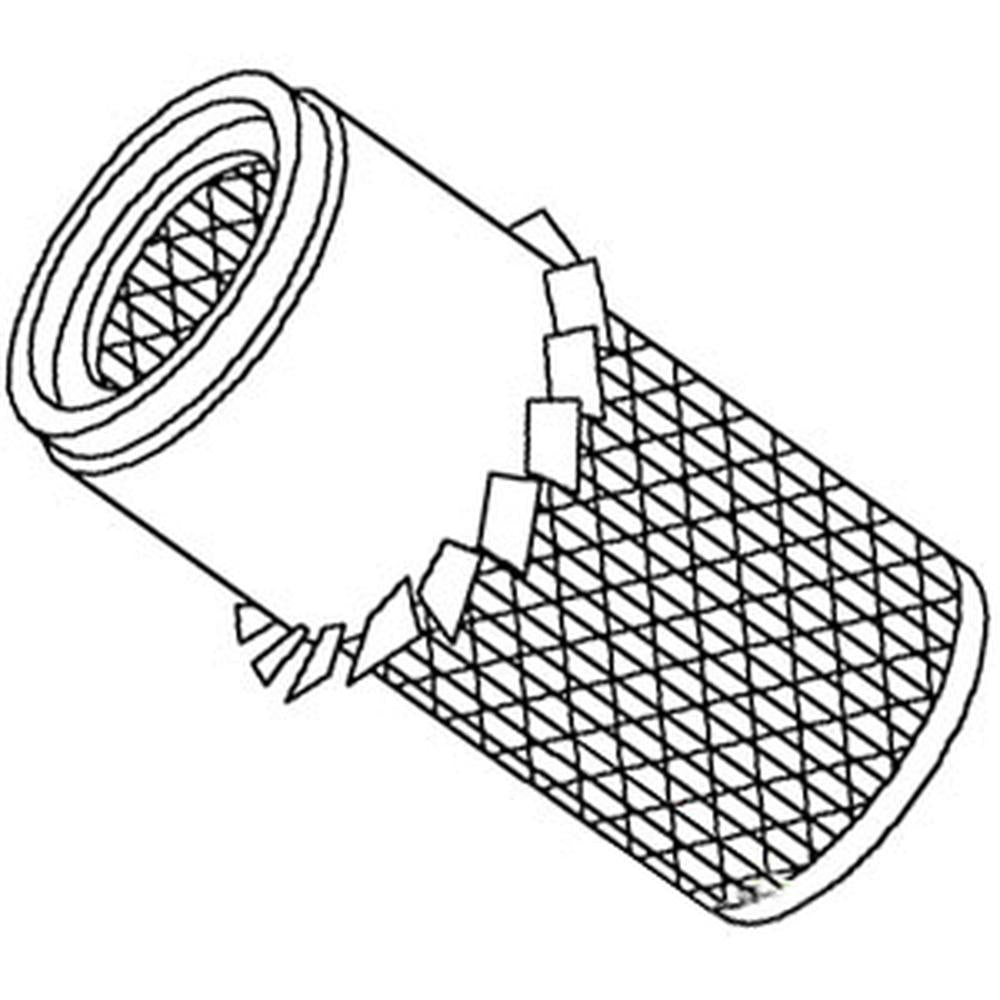

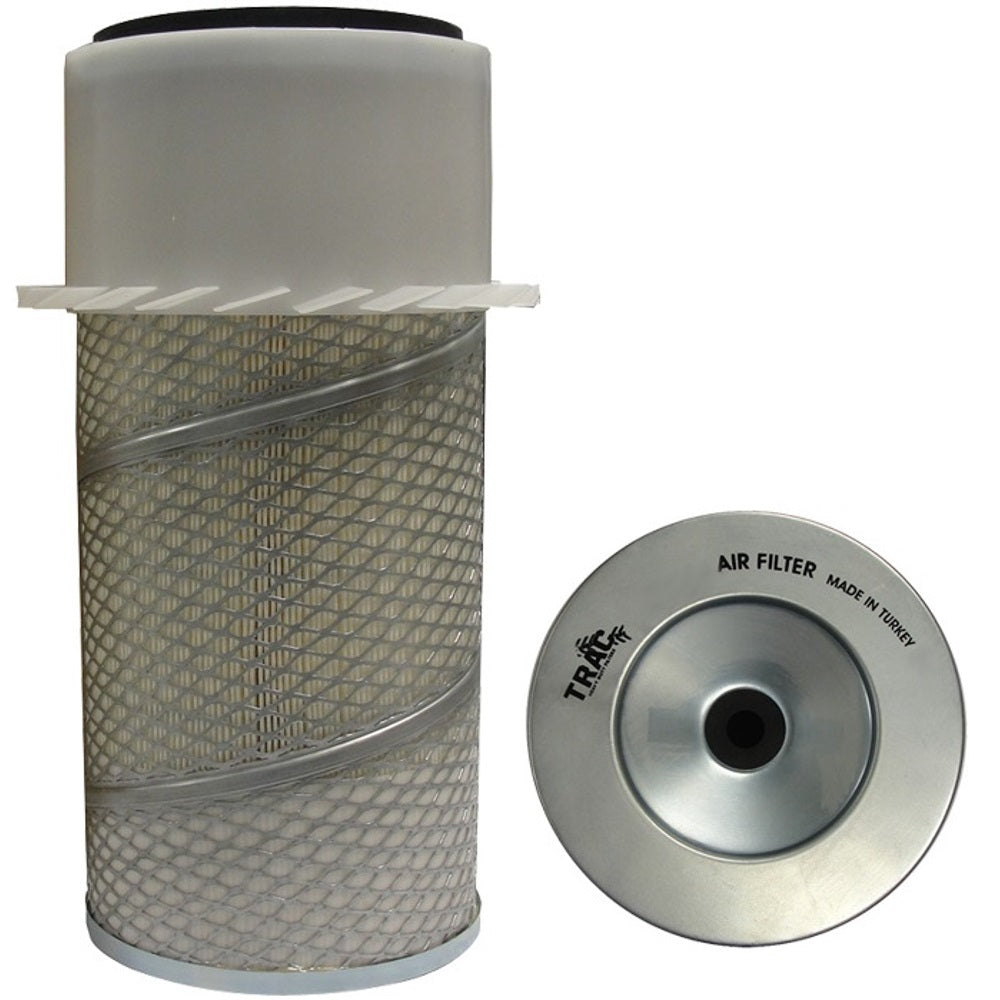

This outer air filter element (with fins) protects the engine air intake system by capturing dust, debris, and contaminants before they can reach engine components. It fits a wide range of Fits John Deere (Fits JD) 5-Series tractors as well as Deutz DX-Series and Fiat 90-Series agricultural tractors. Replaces OEM part numbers from Fits John Deere, Deutz, and Fiat/Fits New Holland.

Specifications

Filter Type: Outer Air Element with Fins
Gasket Type: F-Gasket G103-N
Filter Length: 13-1/2 in. (342.9 mm)
Outer Diameter (body): 6-3/32 in. (154.8 mm)
Outer Diameter (fins): 7-13/16 in. (198.4 mm)
Inner Diameter: 3/4 in. (19.1 mm) and 3-15/32 in. (88.1 mm)

Compatible Models

Fits John Deere (Fits JD) 5-Series Tractors: 5200, 5300, 5300N, 5400, 5400N, 5500, 5500N

Deutz / Deutz-Fahr DX-Series Tractors: DX4.10, DX4.30, DX4.31, DX4.50, DX4.70, DX6.05, DX6.10, DX6.30, DX80, DX85, DX86, DX90, DX92, DX110, DX120

Deutz / Deutz-Fahr Other Tractors: 680, 680DT, 780, 780DT, 880, 880DT, 880-5, 880-5DT, 980, 980DT

Fiat 90-Series Tractors: 55-90, 55-90DT, 60-90, 60-90DT, 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-55, 85-90, 85-90DT, 90-90, 90-90DT, 95-55, 95-90, 95-90DT, 100-90, 100-90DT, 110-90, 110-90DT

Replaces Part Number(s):

M132089 (Fits John Deere), RE45827 (Fits John Deere), 86529587 (Fits New Holland/Fiat), VPD7074, 04319257, 1909116, 5102236

Aftermarket Interchange Numbers

Baldwin PA3779-FN, Fits Donaldson P546566, WIX 46487, 46537, 546487, 546537, Luber-Finer LAF8429

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

DX90, 55-90DT, DX4.70, DX80, 60-90, 110-90, 880, 95-90, 90-90, 5500N, DX6.05, 80-90, 5300N, 5500, 100-90, 880DT, 95-90DT, 90-90DT, DX86, DX4.31, 5200, 780DT, 70-90, 65-90, DX6.10, DX6.30, 85-55, 85-90, 85-90DT, 980DT, 5400, 680DT, 110-90DT, DX120, 65-90DT, DX85, 5400N, DX4.10, 680, DX4.50, 60-90DT, DX92, 980, DX110, 780, 80-90DT, 880-5DT, 880-5, 70-90DT, DX4.30, 100-90DT, 5300, 55-90, 95-55

Additional Information:

F-Gasket G103-N Filter Length: 13 1/2 Inches Filter O.D. : 6 3/32 Inches Inner Dimension 3/4 (19.1) & 3 15/32 (88.1) Length 13 1/2 (342.9) Outer Dimension 6 3/32 (154.8) Fins 7 13/16 (198.4)
