FUEL SENDING UNIT Fits John Deere 4200 4210 4300 4310 4400 4410 4500 4510 4600
FUEL SENDING UNIT Fits John Deere 4200 4210 4300 4310 4400 4410 4500 4510 4600
Regular price
$69.99 USD
Regular price
Sale price
$69.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

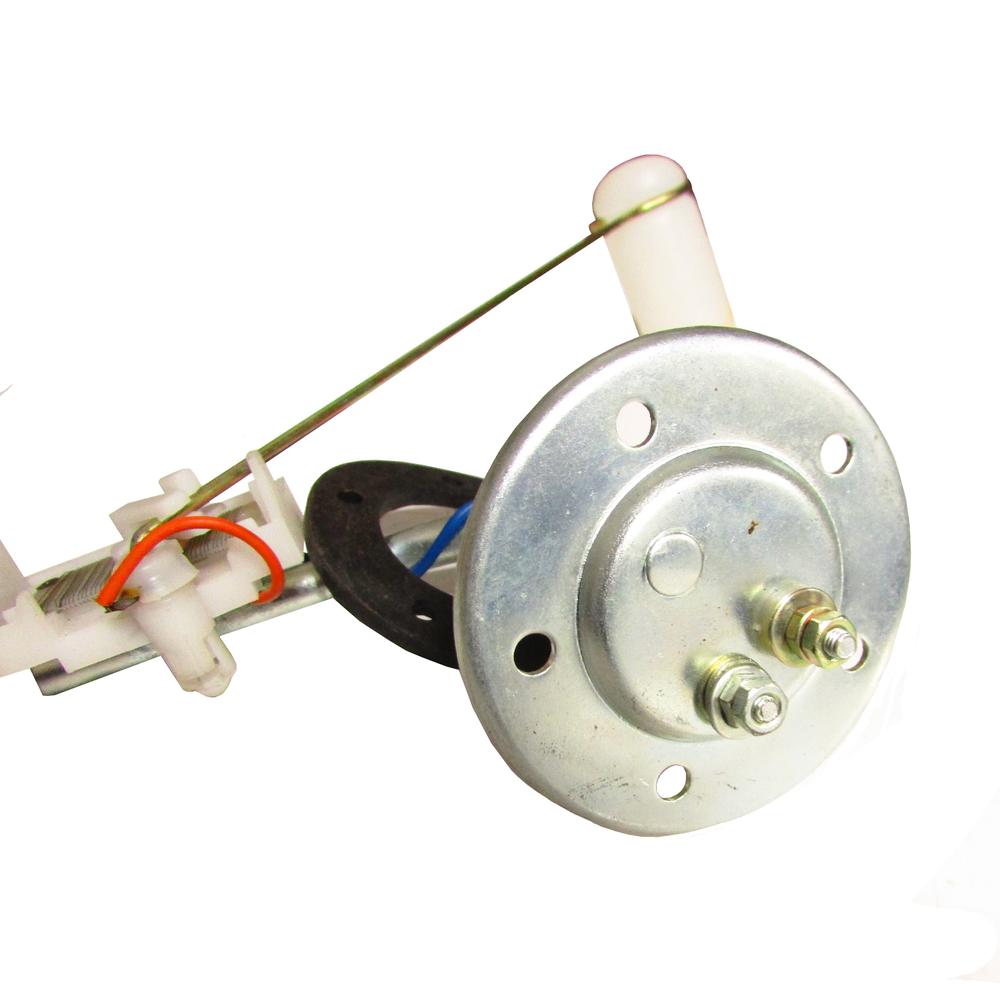

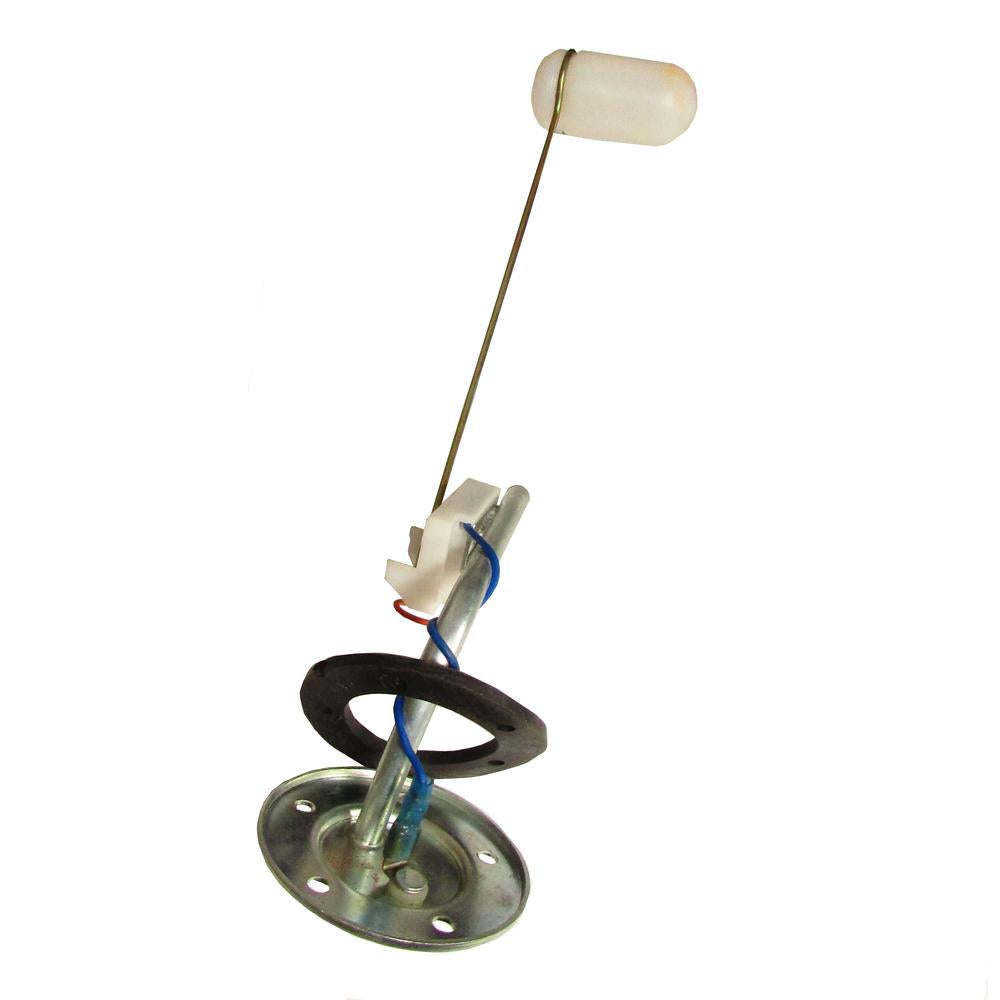

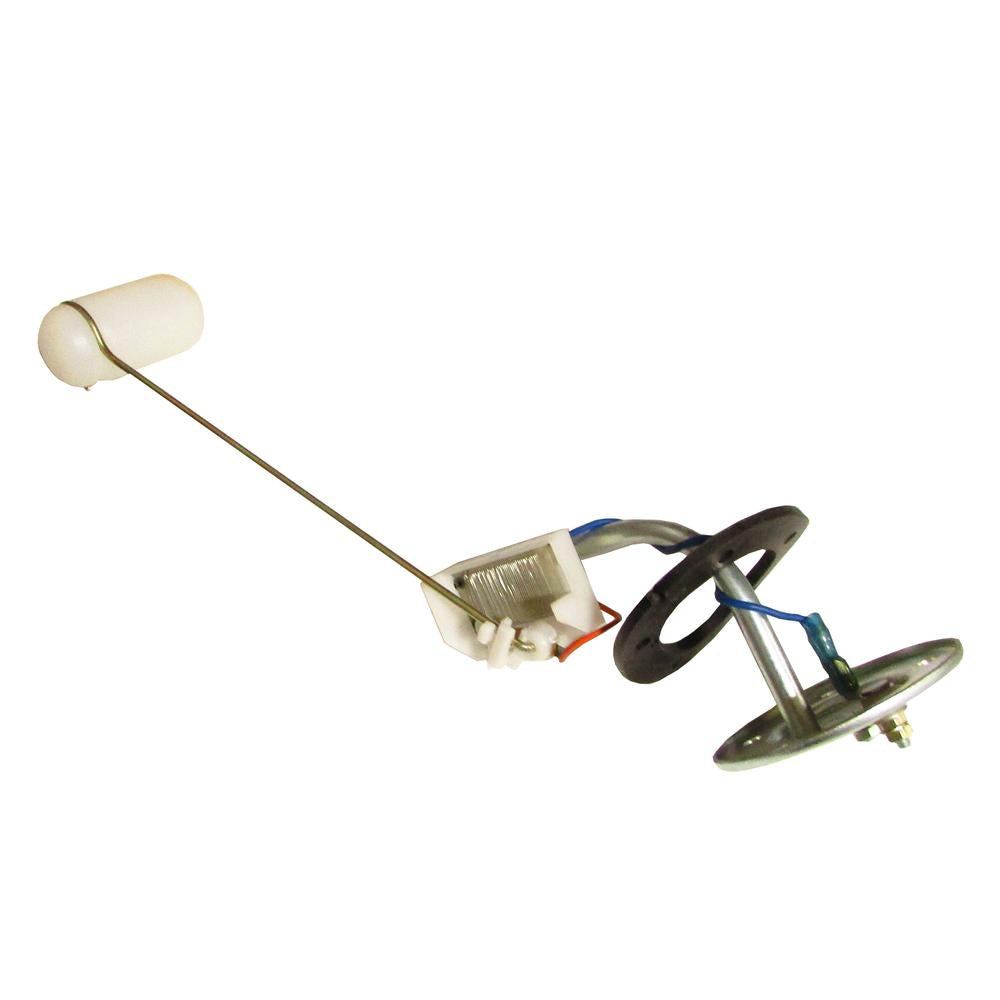

One New Aftermarket Replacement Fuel Sending Unit Fits John Deere Compact Tractors
This aftermarket replacement fuel sending unit monitors the fuel level in the tank and transmits that reading to the dashboard fuel gauge. It installs in the fuel tank and includes a gasket for a proper seal. Designed as a direct replacement Fits John Deere (Fits JD) compact tractor applications using OEM part number LVA12714 or the earlier LVA10996.
Specifications
- Includes gasket
- Length to Hinge: 3.752 in.
- Length to Float: 7.087 in.
- Total Drop: 14.173 in.
- Float Arm Length: approx. 8.5 in.
- Ohms at Empty: 95
- Ohms at Full: 8
- Bolt Circle Diameter: 2.126 in.
- Bolt Hole Diameter: 0.220 in.
- Connector Style: C
- Body Style: A
- Offset Length: 1.500 in.
Compatible Models
Fits John Deere (Fits JD) Compact Tractors: 4200, 4210, 4300, 4310, 4400, 4410, 4500, 4510, 4600, 4610, 4700, 4710
Replaces Part Number(s):
LVA12714, LVA10996, LVA10318
New aftermarket replacement part - not remanufactured, not used.
