Load Control Shaft Bushing Fits John Deere 4010 4000 5020 5010 4020 R26505
Load Control Shaft Bushing Fits John Deere 4010 4000 5020 5010 4020 R26505
Couldn't load pickup availability

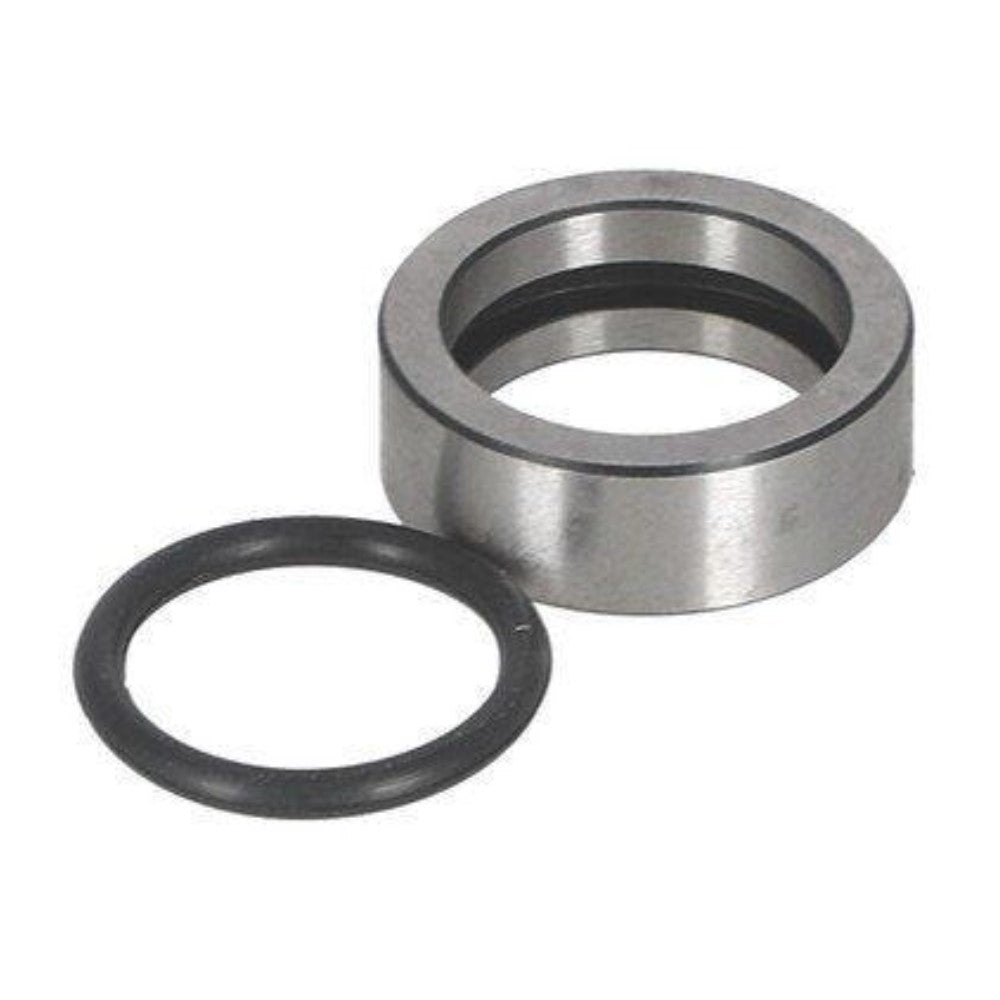

One New Aftermarket Replacement Load Control Shaft Bushing with O-Ring Fits John Deere Tractors
This aftermarket replacement load control shaft bushing with included o-ring fits the draft/load sensing system on Fits John Deere 4000, 4010, 4020, 5010, and 5020 tractors. The bushing seats in the hydraulic lift housing where the load control shaft passes through, providing the bearing surface and seal for the shaft. Two bushings are required per machine. Note: The Fits John Deere 4000 and 4020 applications are serial number restricted -- this bushing fits s/n 250000 and earlier only.
Specifications
- Outside Diameter: 1.565 in.
- Inner Diameter: 1.11 in.
- Height: 0.40 in.
- Weight: 0.11 lbs.
- Includes o-ring (replaces A3606R)
Compatible Models
Fits John Deere Tractors: 4000 (s/n 250000 and earlier), 4010, 4020 (s/n 250000 and earlier), 5010, 5020
Fits John Deere Industrial/Construction: 600, 700A
Replaces Part Number(s):
R26505, R26505-A
Aftermarket Interchange Numbers
JDA3606R
New aftermarket replacement part - not remanufactured, not used.
