Mower Deck Rebuild Kit Includes 2 Spindles 2 Blades LH Idler RH Idler & Belt
Mower Deck Rebuild Kit Includes 2 Spindles 2 Blades LH Idler RH Idler & Belt
Couldn't load pickup availability
One New Aftermarket Replacement Mower Deck Rebuild Kit

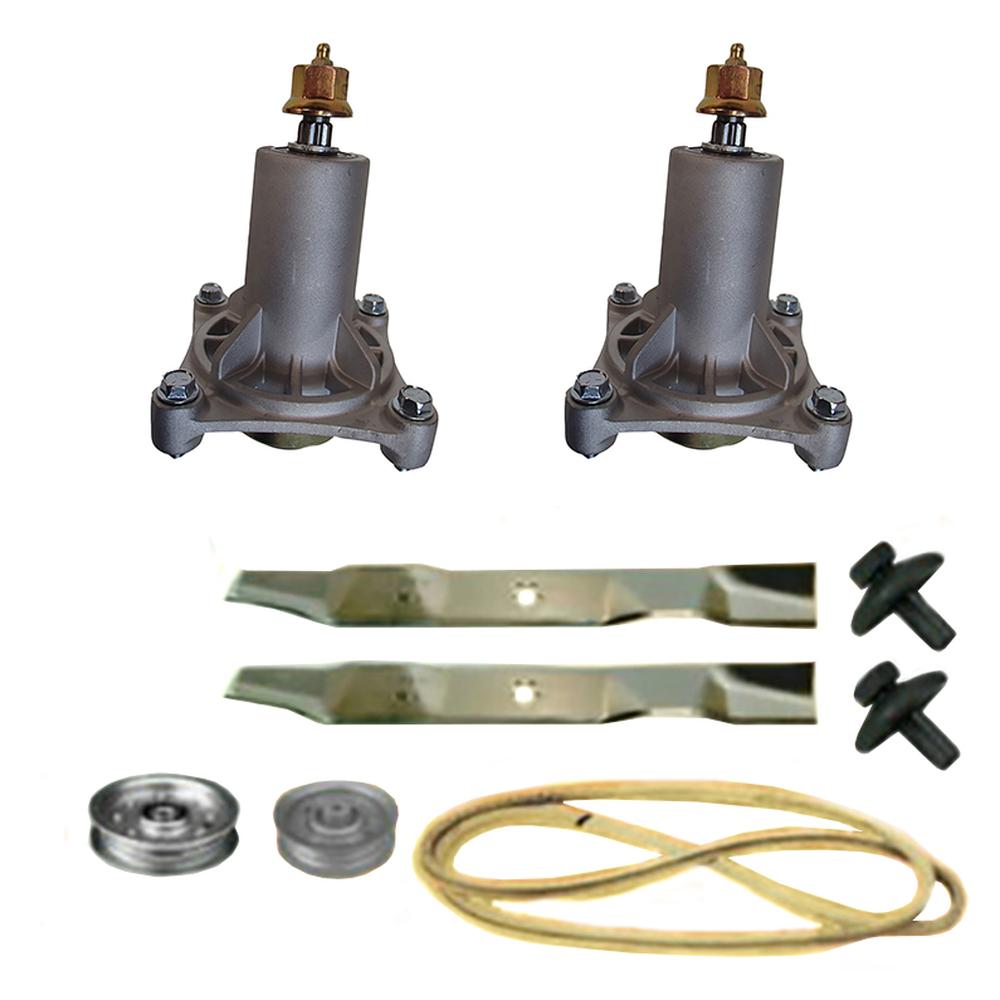

This Kit Includes the Following:
(2) 3 in 1 Blades
(2) Spindle Assemblies
(1) Flat Idler Pulley
(1) Flat Idler Pulley
(1) Belt
Flat Idler Pulley: Flat Idler w/ Flanges. Steel. Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors. 3.875" (3 7/8'') OD, .375'' (3/8") ID.
Flat Idler Pulley: Height: 1", ID: 3/8", OD: 4 1/2", Material: Heavy Duty Metal
(2) Spindle Assemblies: 4-Bolt Long Housing, 5-Point Star Blade Mount, Threaded Mounting Holes for , Shaft is Splined for Spline-Type Pulleys
Includes Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts
Deck Belt: Made With Aramid Cord, Thickness: 0.35", Width: 1/2", Length: 90.2"
(2) 3 in 1 Blades: Length: 19-5/16", Width: 2-1/4", Thickness: .150", Center Hole: 5 Point Star, Used for Mulching, Bagging, and Side Discharge.
Fits Husqvarna Riding Mowers:
LTH141 96011030101 (Deck 38" 2012-08)
LTH141 96011030102 (Deck 38" 2013-08)
LT131 96011026408 (Deck 38" 2013-08)
LT131 96011026407 (Deck 38" 2012-08)
Fits Murray Riding Mower:
38L12G50X8A 96012007605 (Deck 38")
Fits Sears/ Fits Craftsman Riding Mowers:
917.253100, 917.253101, 917.253201, 917.253620, 917.253621, 917.254010, 917.254190, 917.254191, 917.254690, 917.254691, 917.256330, 917.256340, 917.256350, 917.256351, 917.280150, 917.280151, 917.280152, 917.287010, 917.287011, 917.287012, 917.287013, 917.288190, 917.986191
Fits Yard King Riding Mower:
7800733 96012009500 (Deck 38")
Replaces Part Numbers:
B1193214, A-193214, 131494, 107620, 532134148, 187281
