Spindles Blades Belt Pulleys Fits Sears PGT9000 Fits Craftsman 54" Mower Deck

Name: Spindles Blades Belt Pulleys Fits Sears PGT9000 Fits Craftsman 54" Mower Deck
SKU: LAB40-0628REBUILD
Price: 315.99 USD
Availability: InStock

Spindles Blades Belt Pulleys Fits Sears PGT9000 Fits Craftsman 54" Mower Deck

$315.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

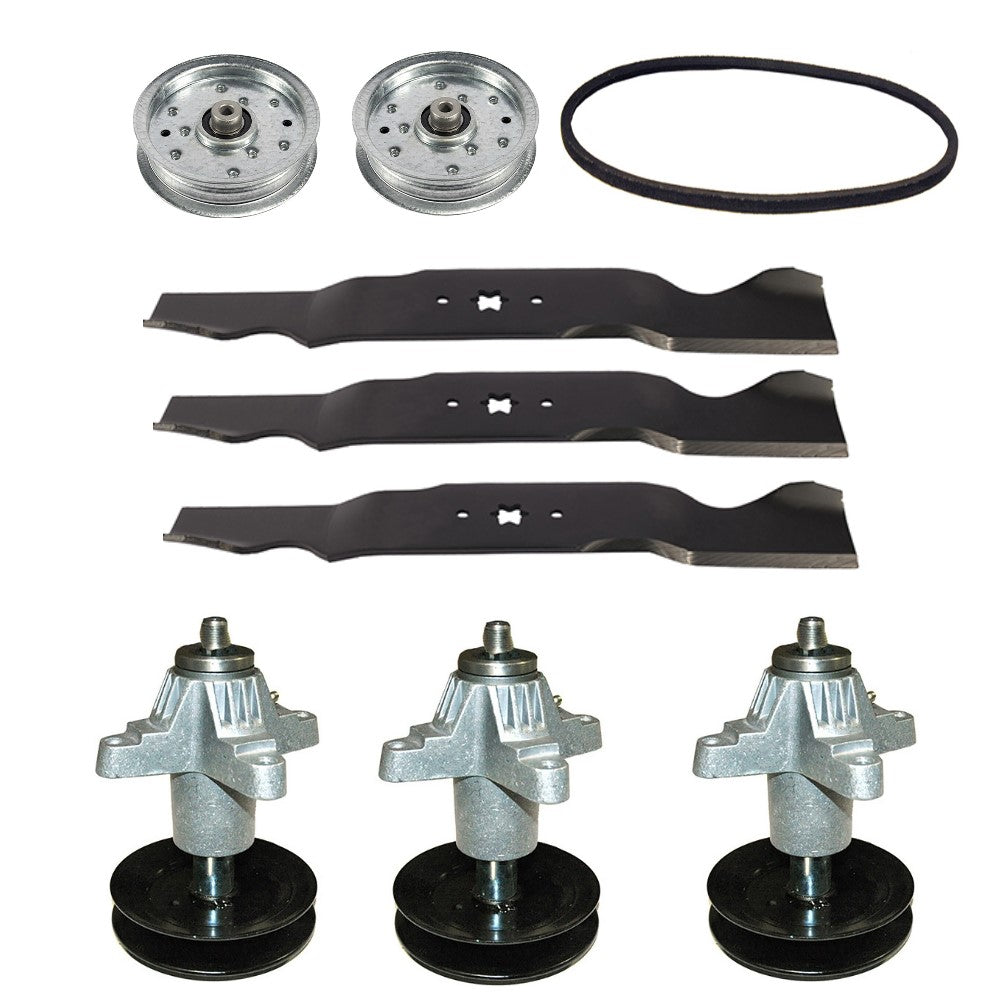

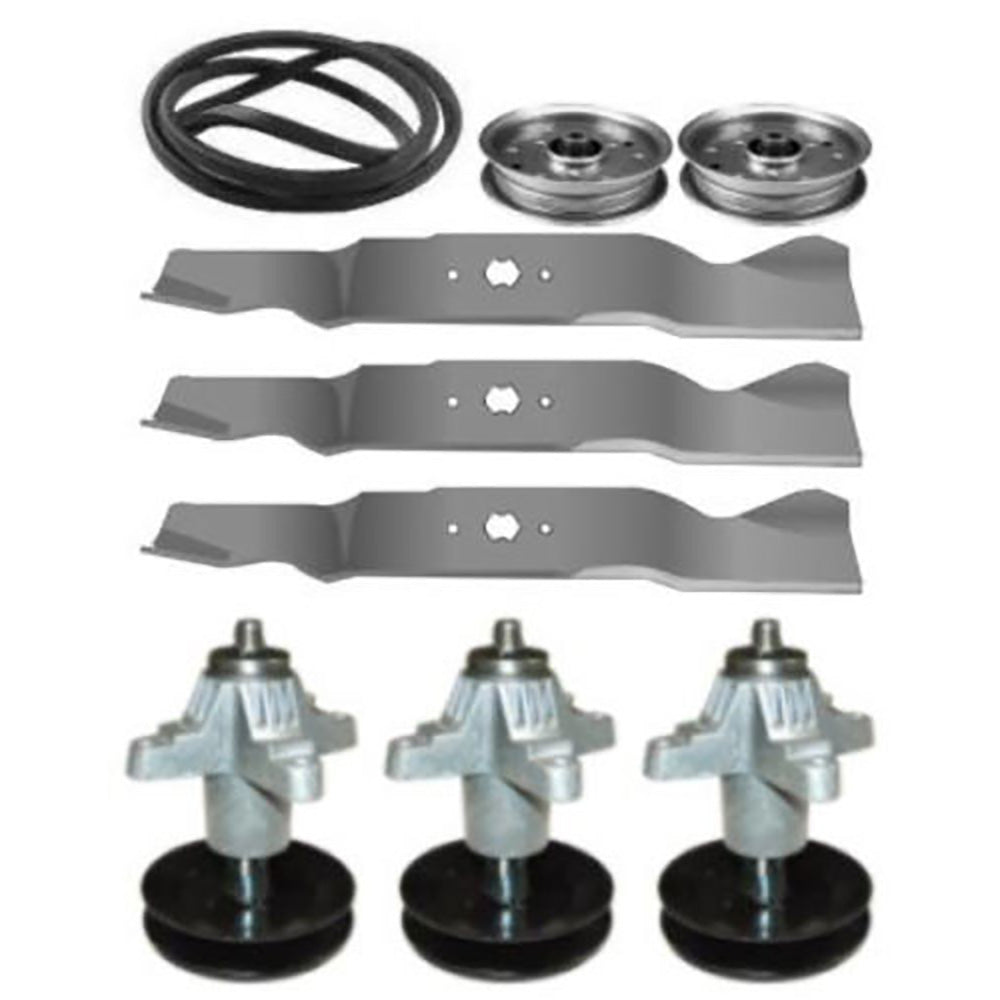

New One Aftermarket Deck Rebuild Kit for 54" Lawn Mower Decks

Kit Contains:
(3) Mower Blade,
(3) Spindle Assembly,
(2) Flat Idler Pulley,
(1) Deck Belt

Fits Sears / Fits Craftsman:
PGT9000 (247.289840) 14AW94PK099 (2010)
PGT9000 (247.289841) 14AW94PK099 (2011)
PGT9000 (247.289842)

Mower Blade Tech Info:
Length: 18-1/2"
Width: 3"
6-Point Star Center Hole
Replaces Part Numbers:
742-0677A, 7420677A, 742-0677B, 7420677B, 7420677, 942-0677, 9420677, 942-0677A, 9420677A, 942-0677B, 9420677B

Spindle Assembly Tech Info:
Height: 7-5/16"
Pulley OD: 5-1/2"
6-Point Star Blade Mount
No Threads in Housing - Use Self-Tapping Screws (Not Included)
Replaces Part Numbers:
618-04608, 61804608, 618-04608A, 61804608A, 618-0671, 6180671, 618-0671B, 6180671B, 618-0671D, 6180671D, 918-04608A, 91804608A, 918-0671, 9180671, 918-0671B, 9180671B, 918-0671D, 9180671D

Flat Idler Pulley Tech Info:
Material: Metal (Zinc Coated)
ID: 3/8"
OD: 4-7/8"
Height: 1"
Replaces Part Numbers:
753-08171, 75308171, 756-04129, 75604129B, 75604129C, 956-04129, 95604129

Deck Belt Tech Info:
Length: 138-3/4"
Width: 5/8"
Replaces Part Numbers:
197242, 532197242, 532 19 72-42, 593773401, 71460096, 33154

Models This Part Fits:

PGT9000

Additional Information:

(3) Spindle Assemblies 7-5/16" Overall Height 5-1/2" Pulley Outer Diameter 6 Point Star Spindle Shaft Replaces Part Numbers: 618-0671, 618-0671A, 618-0671B, 618-0671C, 618-0671D, 618-04608, 618-04608A, 918-0671, 918-0671A, 918-0671B, 918-0671C, 918-0671D, 918-04608, 918-04608A, 6180671, 6180671B, 6180671D, 9180671, 9180671B, 9180671D, 61804608, 61804608A, 91804608A, 742-04053B, 942-04053C (3) Mower Blades 18-1/2" Length 3" Width 6 Point Star Center Hole Replaces Part Numbers: 742-0677, 742-0677A, 742-0677B, 7420677, 7420677A, 7420677B, OCC-742-0677, OCC7420677, OEM-742-0677, OEM7420677, 942-0677, 942-0677A, 942-0677B, 942-0677-S, 942-0677-X, 9420677, 490-110-M117, 490110M117, 490-110-C125, 742-0679, 742-0679-0637, 942-04338-0684, 942-0616, 942-0679, 942043380684, 9420677A, 9420677B, 9420677S (2) Flat Idler Pulleys Made with Zinc Material 3/8" Inner Diameter 4-7/8" Outer Diameter 1" Height Replaces Part Numbers: 753-08171, 75308171, 756-04129, 75604129B, 75604129C, 956-04129, 756-04129B, 756-04129C, 954-04083 (1) Deck Belt 138.7" Length 0.608" Width 0.43" Thick Wrapped Made With Aramid Cord Replaces Part Numbers: 197242, 532197242, 532 19 72-42, 593773401, 33154, 71460096
