AM137757, AM141035, GX10168 48" Mower Deck Rebuild Kit Fits John Deere Models

Name: AM137757, AM141035, GX10168 48" Mower Deck Rebuild Kit Fits John Deere Models
SKU: LAB40-0229DECKRBLDKIT
Price: 285.99 USD
Availability: InStock

AM137757, AM141035, GX10168 48" Mower Deck Rebuild Kit Fits John Deere Models

$285.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement 48" Mower Deck Rebuild Kit

Fits John Deere 48" Cut Lawn Mowers

Please Verify that All Parts Will Fit Your Machine Before Ordering!

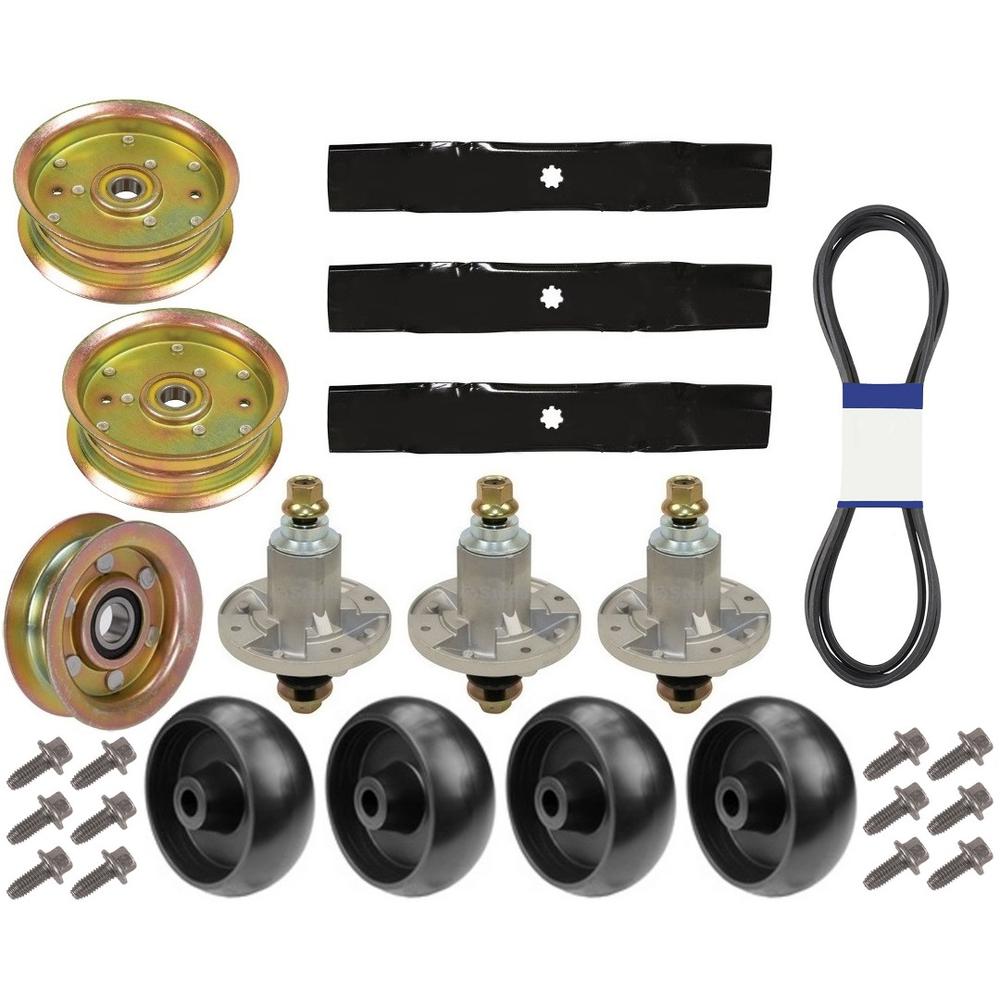

Kit Contains:
(3) Spindle Assembly with Nut
(3) 48" Mower Blade

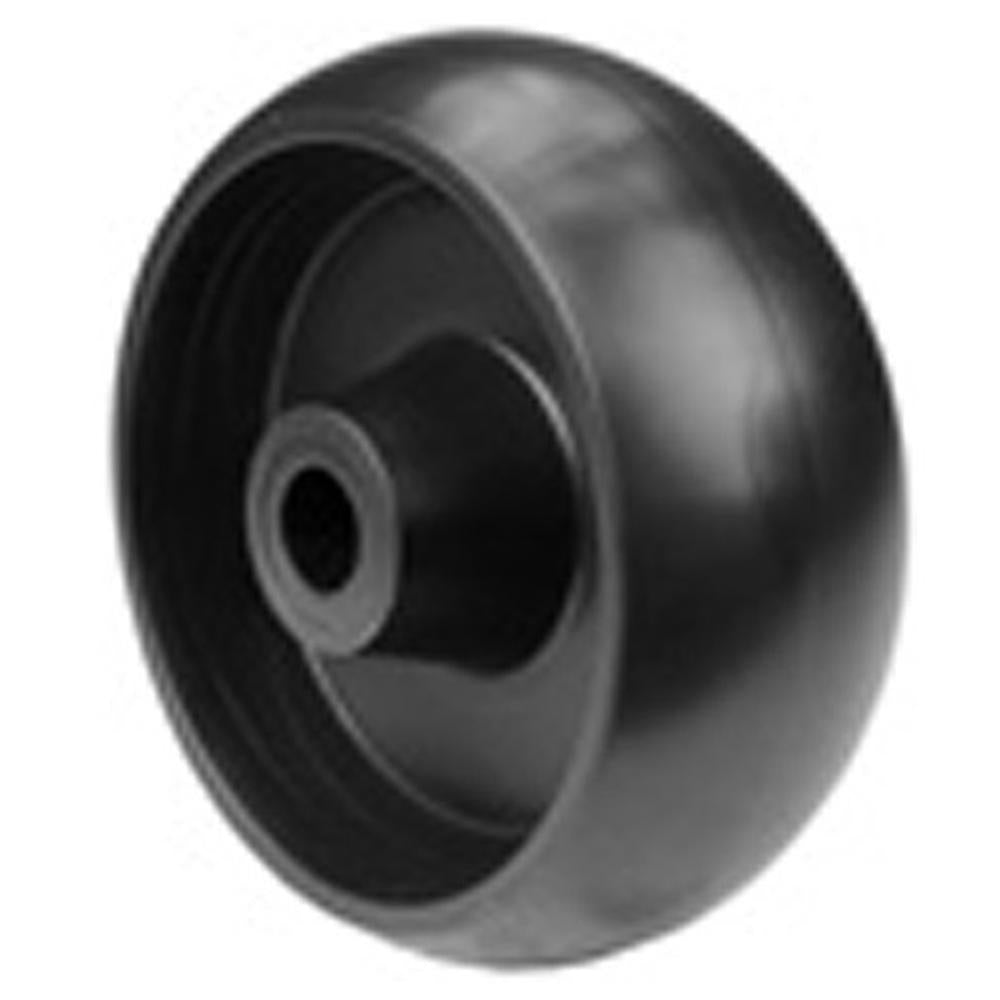

(4) Deck Wheel

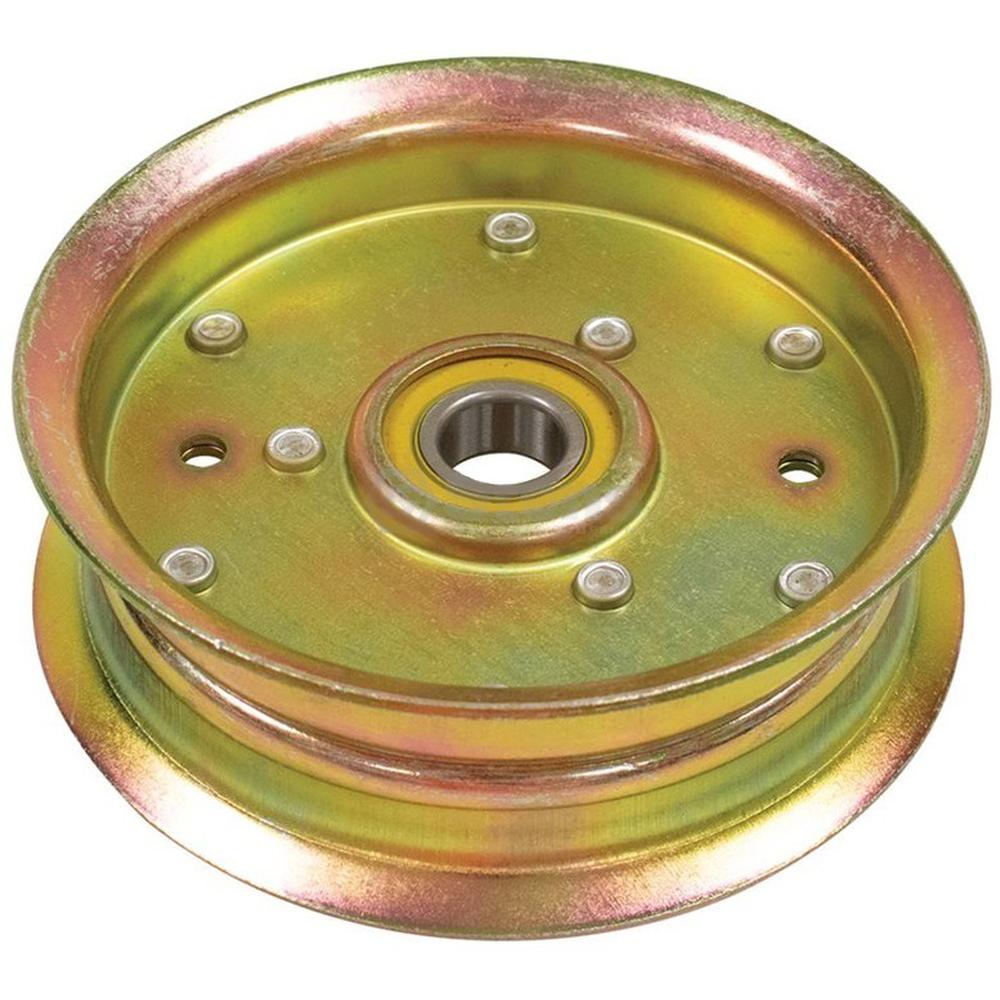

(2) Steel Flat Idler Pulley with Flanges

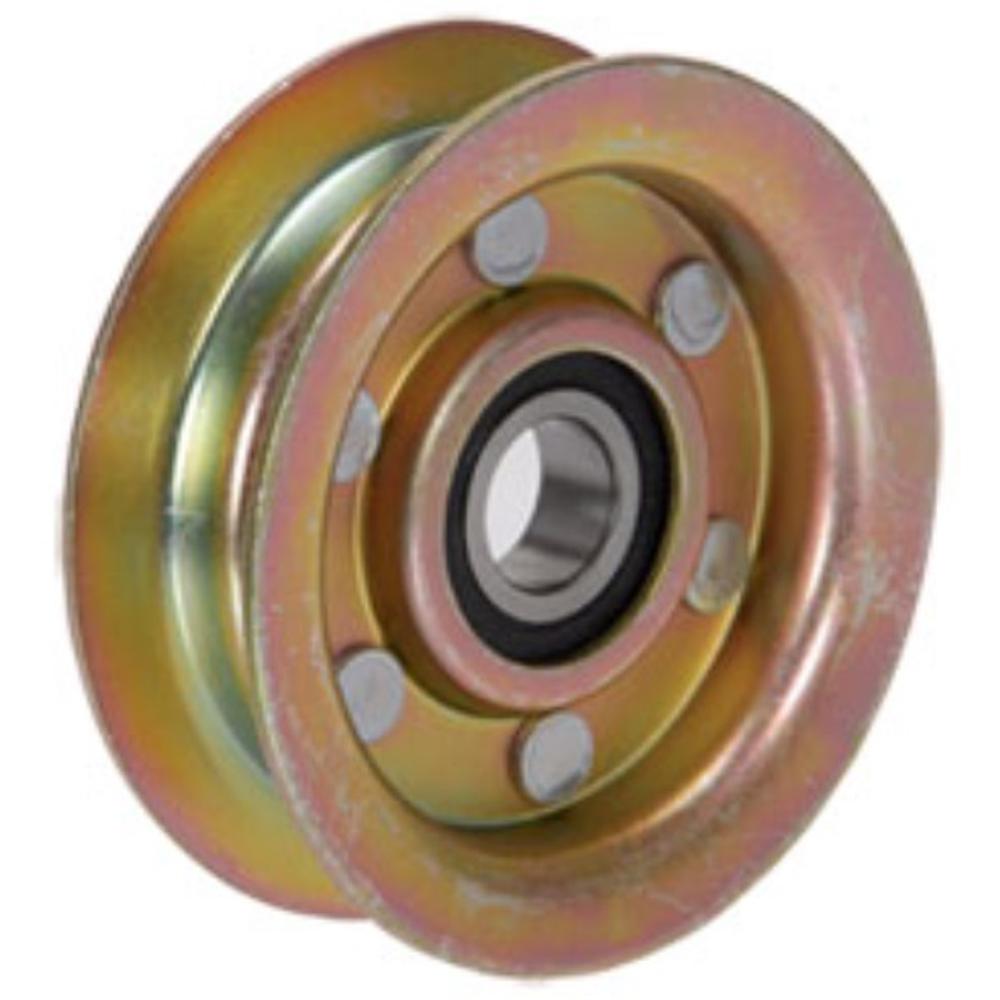

(1) Flat Idler Pulley

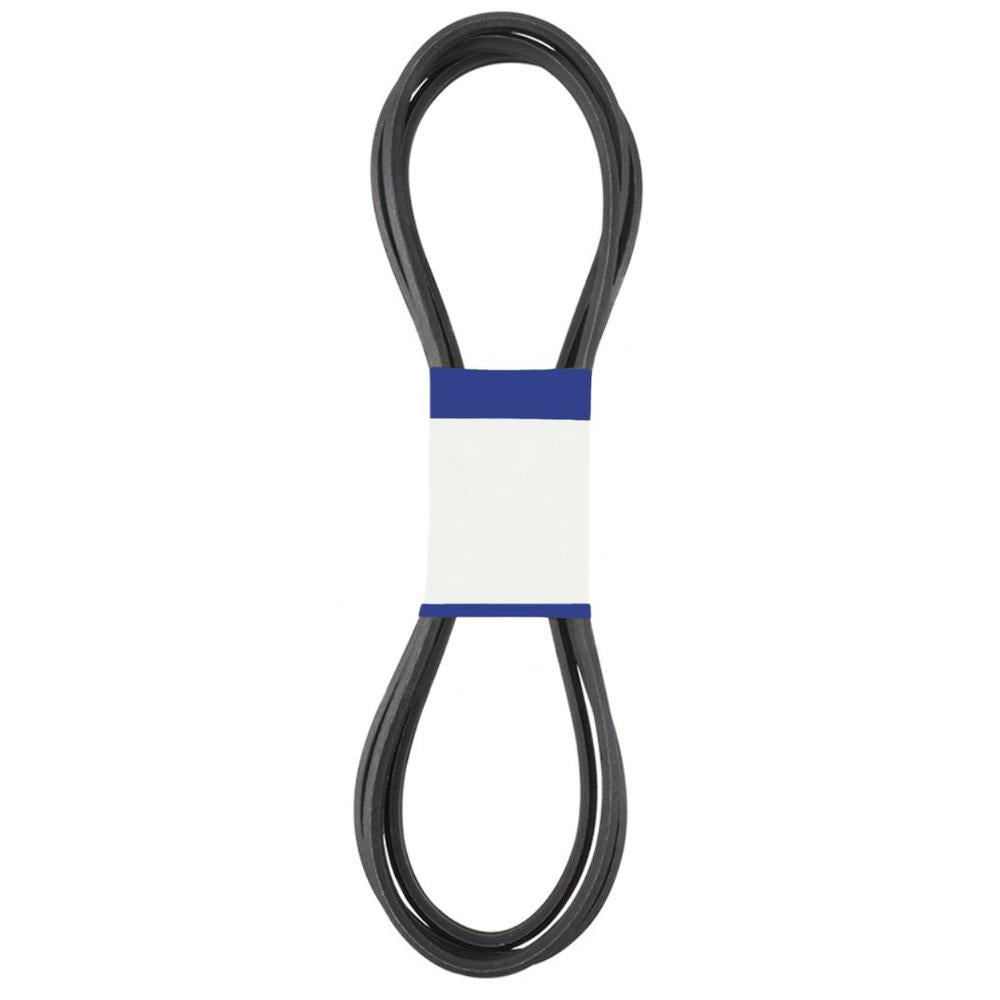

(1) Belt

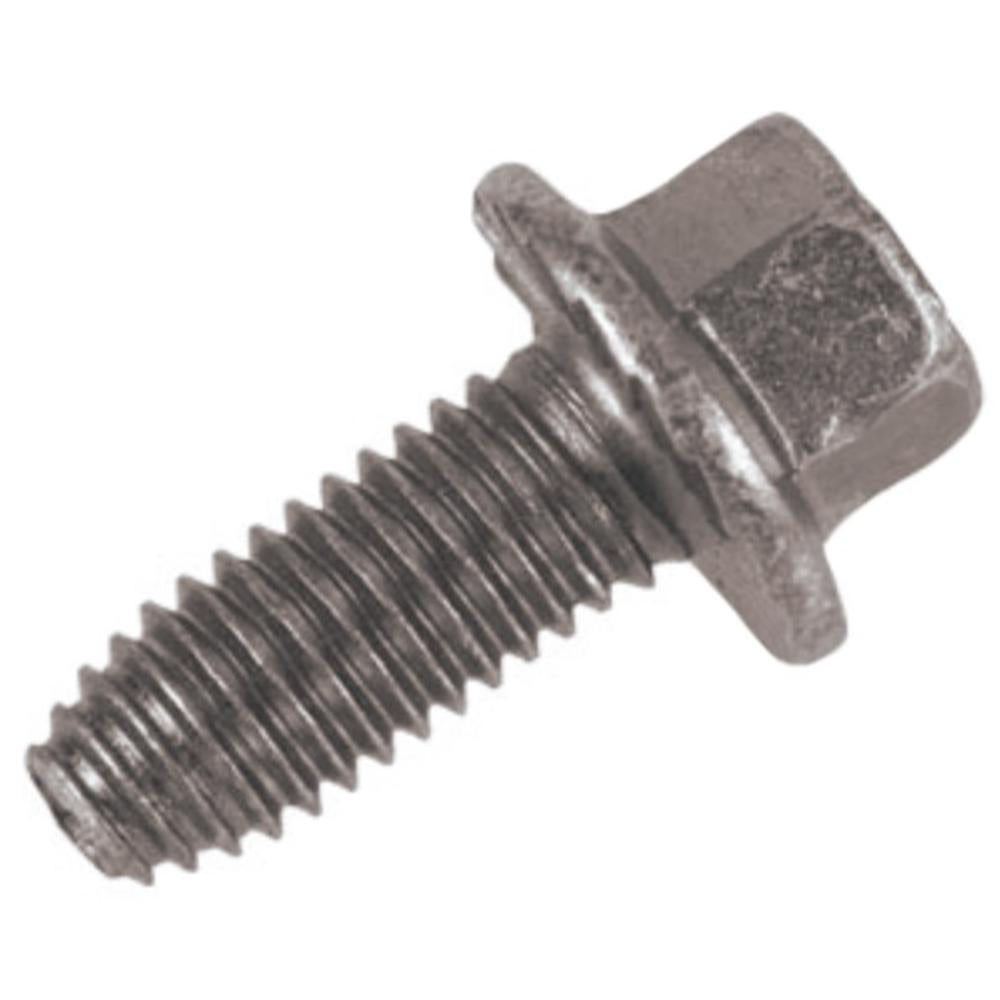

(12) Thread Cutting Bolt

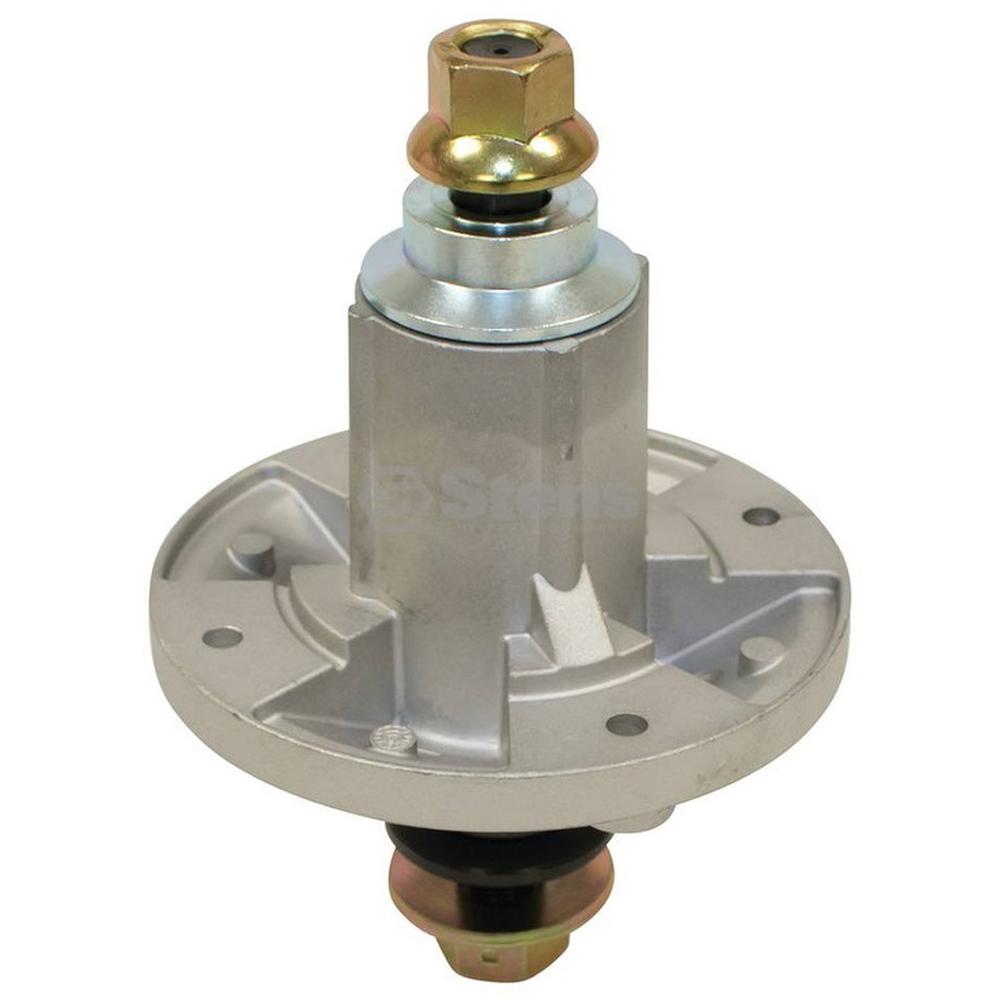

Spindle Assembly with Nut
Tech Info:
7 Lobe Center Hole (NOT 4 !!)
Fits John Deere Models: D100, D100-D160, D105 D125 D155, D110, D125, D130, D140, D150, D160, L100, L105, L110, L120, LA100, LA100 - LA165, LA100-LA165, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA155, LA165, X110, X120, X140
Replaces Part Numbers: 285-851, GY2045, GY20454, GY20454 GY20962 GY21098, GY20692, GY20867, GY20962, GY21098, GY21099

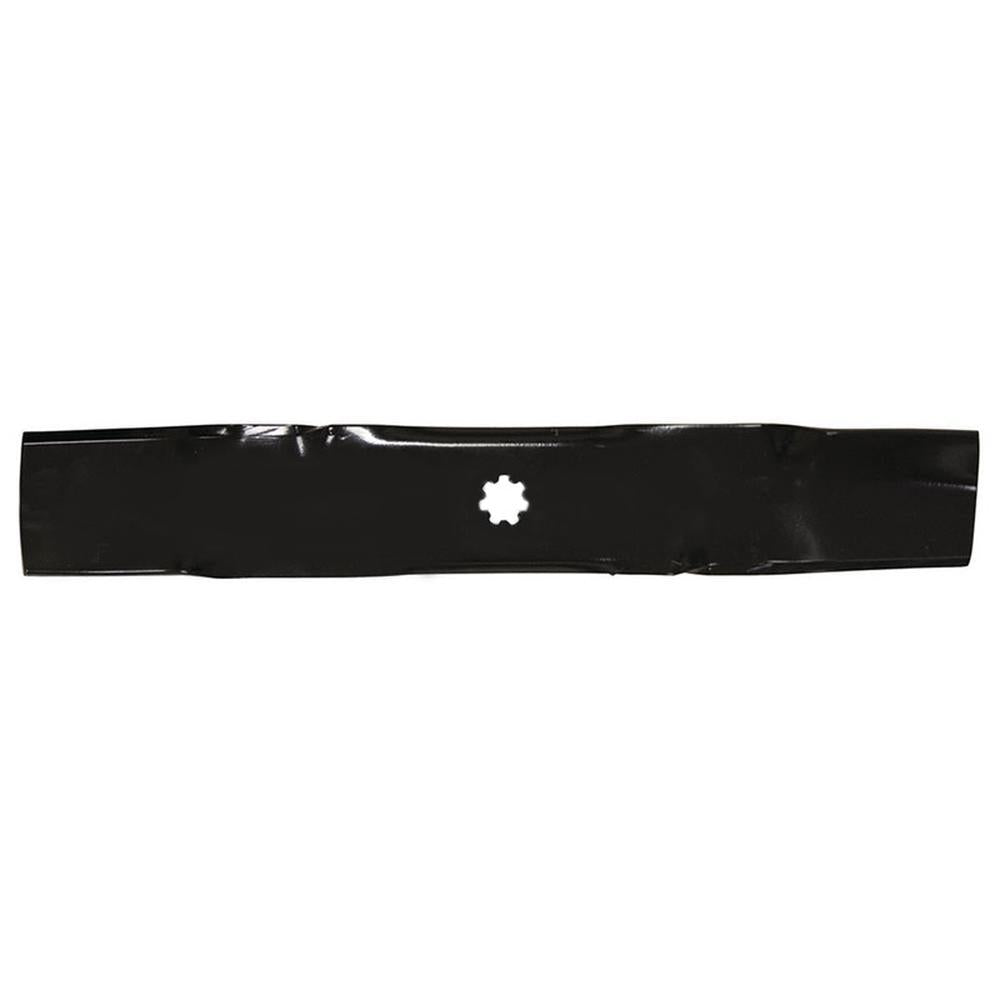

48" Mower Blade
Tech Info:
(3) blades required for 48" cut

Models This Part Fits:

48" Cut Lawn Mower

Additional Information:

(3) Spindle Assembly w/ Nut Includes Grease Zerk Specially Designed to Fit 7 Pt. Star Spindle Shaft Height 7 3/16" Replaces Part Number(s): AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625 (3) Mower Blades Center Hole: 7 lobe Length: 17" Width: 2-3/4" Thickness: 0.1600" Replaces Part Number(s): AM137757, AM141035, GX21784, GY20852 (4) Deck Wheel Center Hole (Bore): 5/8" Hub: 1-3/4" Offset Tread: Smooth Bearing Type: None Wheel Size: 5" x 2" (1.785" Wide) Material: Plastic Wheel Color: Black Replaces Part Number(s): GX10168 (2) Steel Flat Idler Pulley w/ Flanges 5-1/4" OD Including Flanges 11/16" ID 1-3/4" Height. Measurements taken from in stock part Replaces Part Number(s): AUC17621, GY20110, GY20629, GY22082 (1) Flat Idler Pulley OD: 3-5/8", ID: 11/16", Height: 1-3/16" Replaces Part Number(s): GY20067, GY22172 (1) Belt 1/2" x 141-1/8" Made With Aramid Cord Replaces Part Number(s): GX20571, GX21833 (12) Thread Cutting Bolts 5/16"-18 3/4" Long Replaces Part Number(s): GX20234, GX22456

Reference Numbers:

AM137757, AM141035, GX10168, GX20234, GX20571, GX21784, GX21833, GX22456, GY20067, GY20110, GY20454, GY20629, GY20852, GY20867, GY20962, GY21098, GY22082, GY22172
