K206954 New STD Piston for David Brown 1410 1412 1490 1690 1394 1494 1594 1694
K206954 New STD Piston for David Brown 1410 1412 1490 1690 1394 1494 1594 1694
Regular price
$160.99 USD
Regular price
Sale price
$160.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

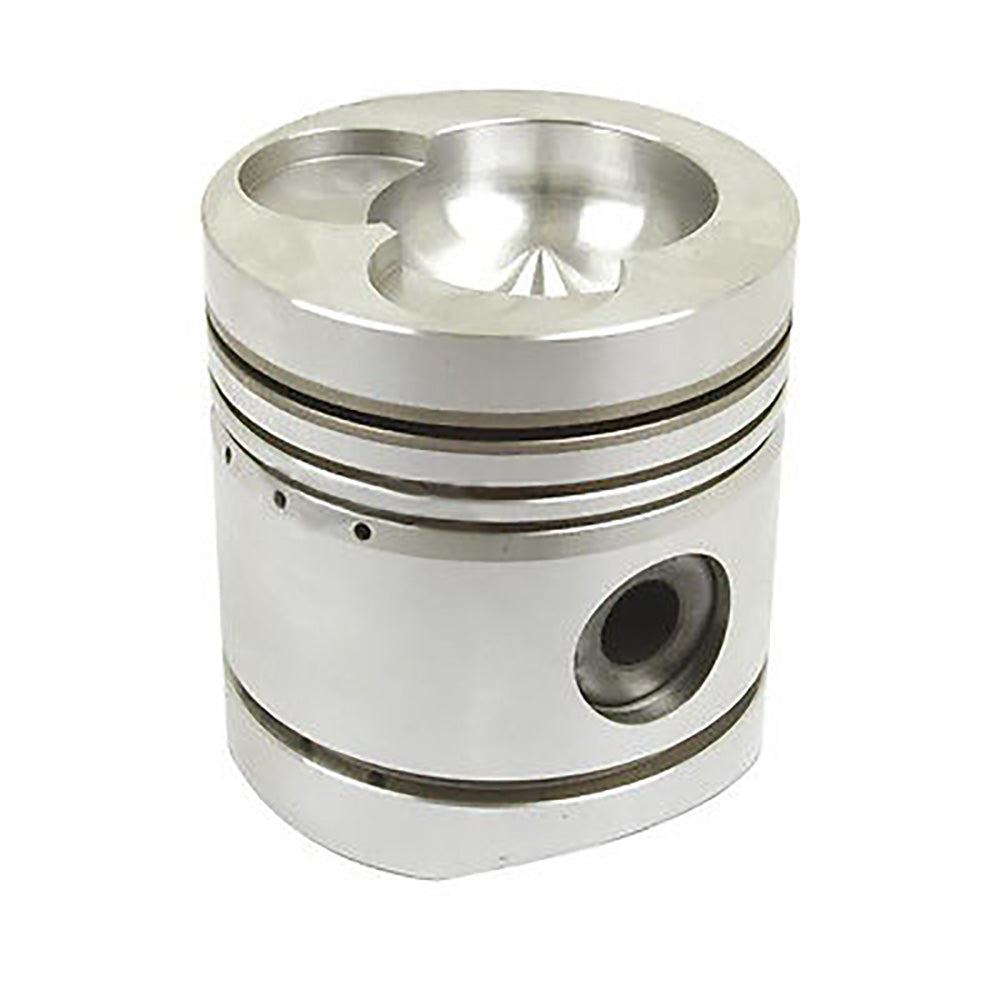

One New Aftermarket Replacement Standard Piston for David Brown (Fits Case/Fits Case IH) Tractors
This standard-size replacement piston fits the David Brown AD4/55, AD4/55T, and AD6/55 diesel engines used across the David Brown and Fits Case/Fits Case IH 10, 90, and 94 Series tractors. It features a dish-top (F5) combustion chamber crown with an aluminum fin (Al Fin) ring groove for the oil control ring, and accepts four piston rings. Designed as a direct drop-in replacement at standard bore size.
Specifications
- Size: Standard (STD)
- Bore Diameter: 100.00 mm (3.94 in)
- Piston Length: 4.16 in (105.58 mm)
- Compression Height: 2.38 in (60.35 mm)
- Bowl Depth: 20.35 mm
- Chamber Diameter: 2.32 in (58.87 mm)
- Pin Diameter: 31.75 mm (1.25 in)
- Number of Rings: 4
- Crown Type: Dish Top
- Chamber Type: F5
- Ring Type: Al Fin Ring
Compatible Models
David Brown / Fits Case / Fits Case IH: 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1690 Turbo, 1694
Replaces Part Number(s):
K206954, K206954-A, K944573, PA771, PA772, 57507, B512657
New aftermarket replacement part - not remanufactured, not used.
