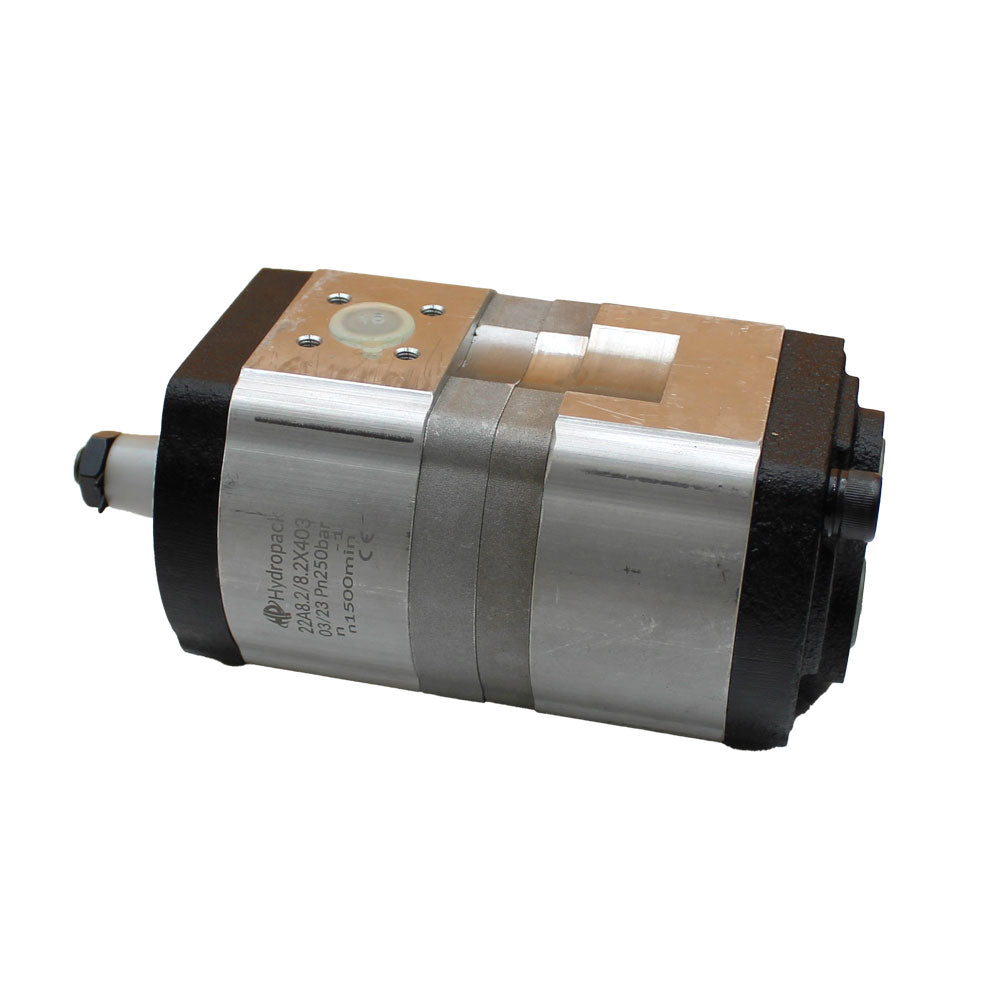

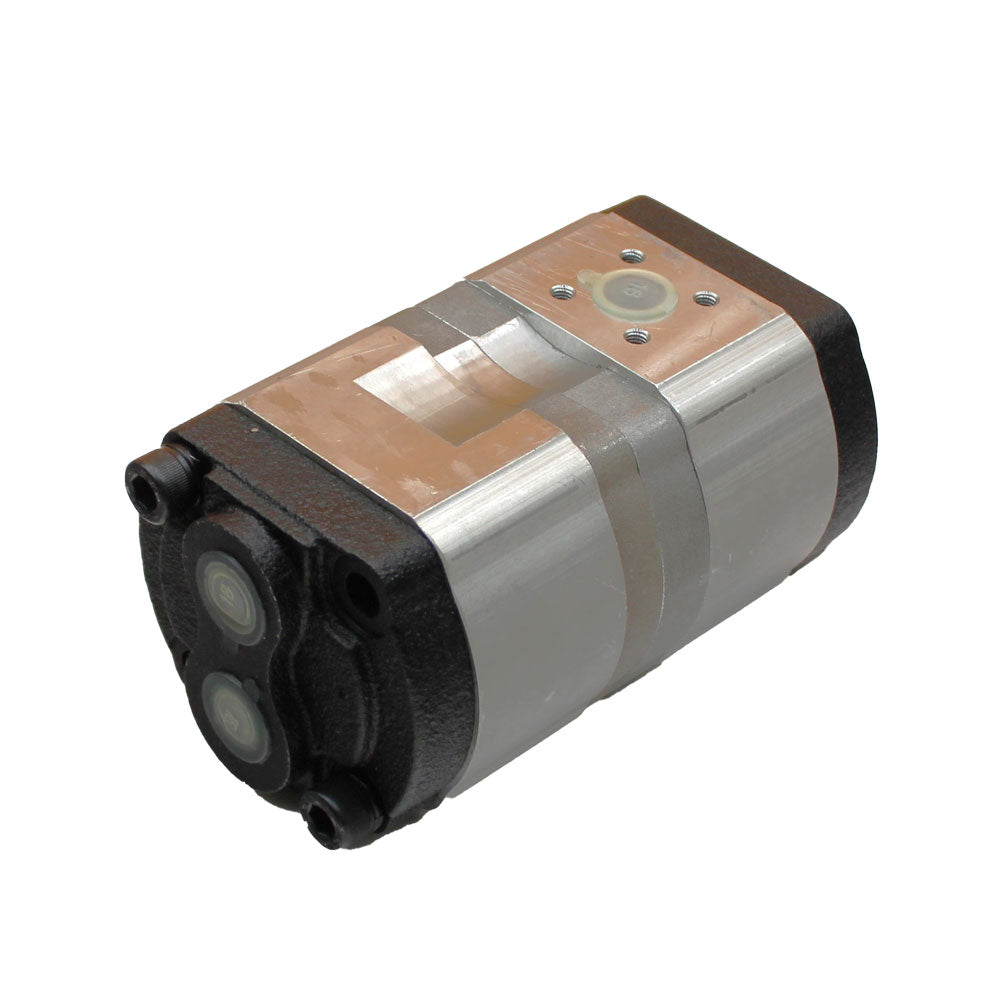

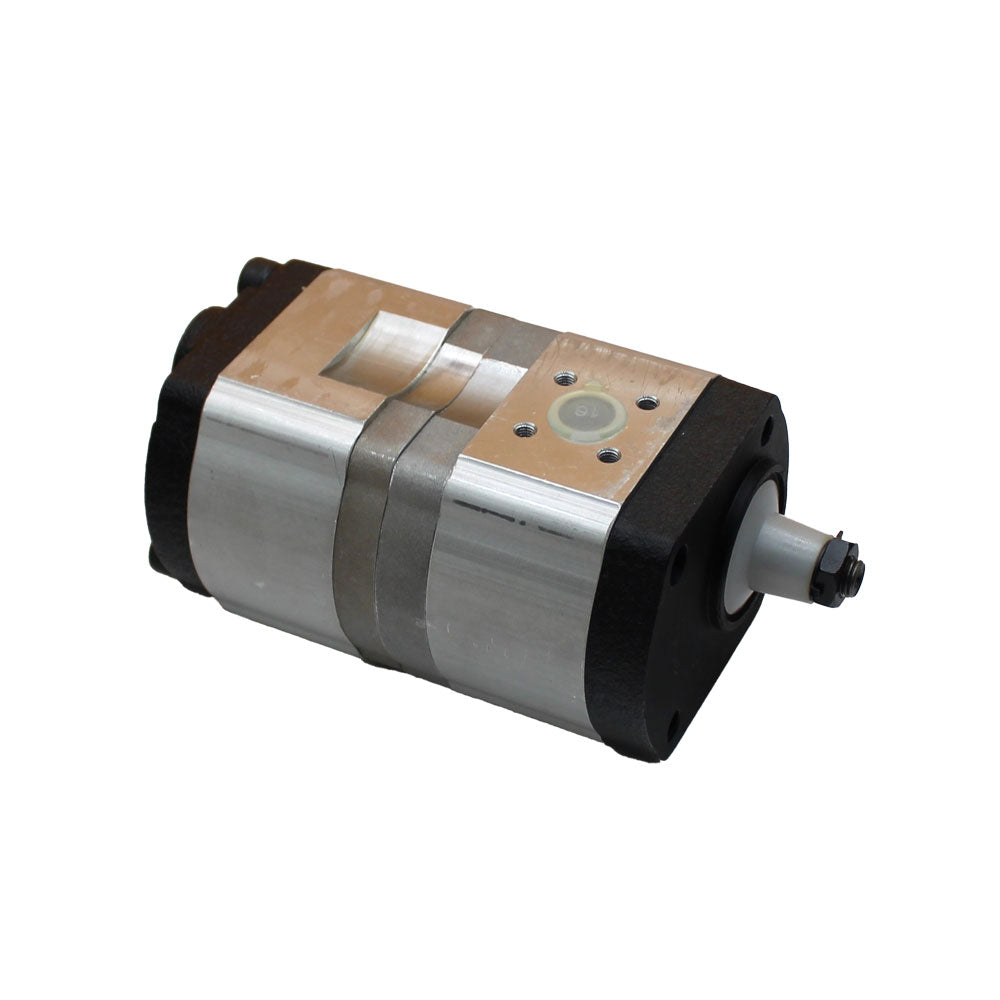

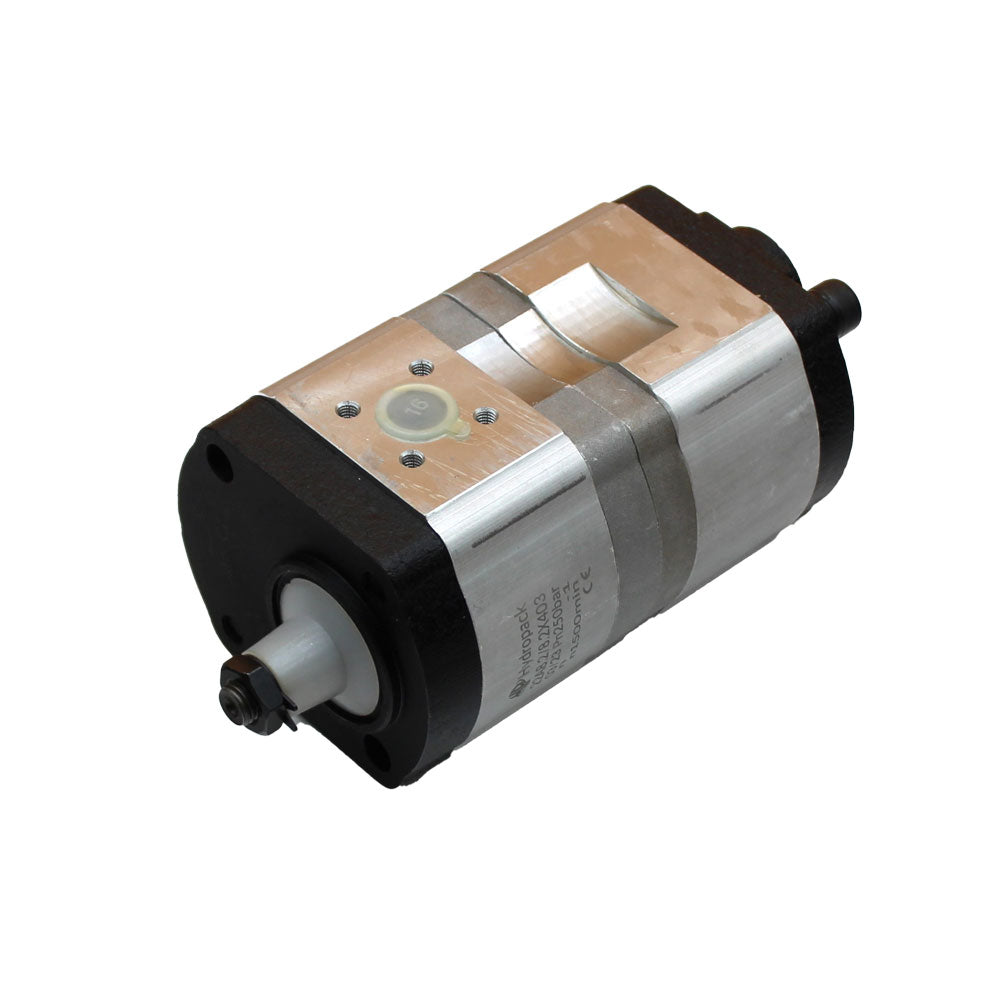

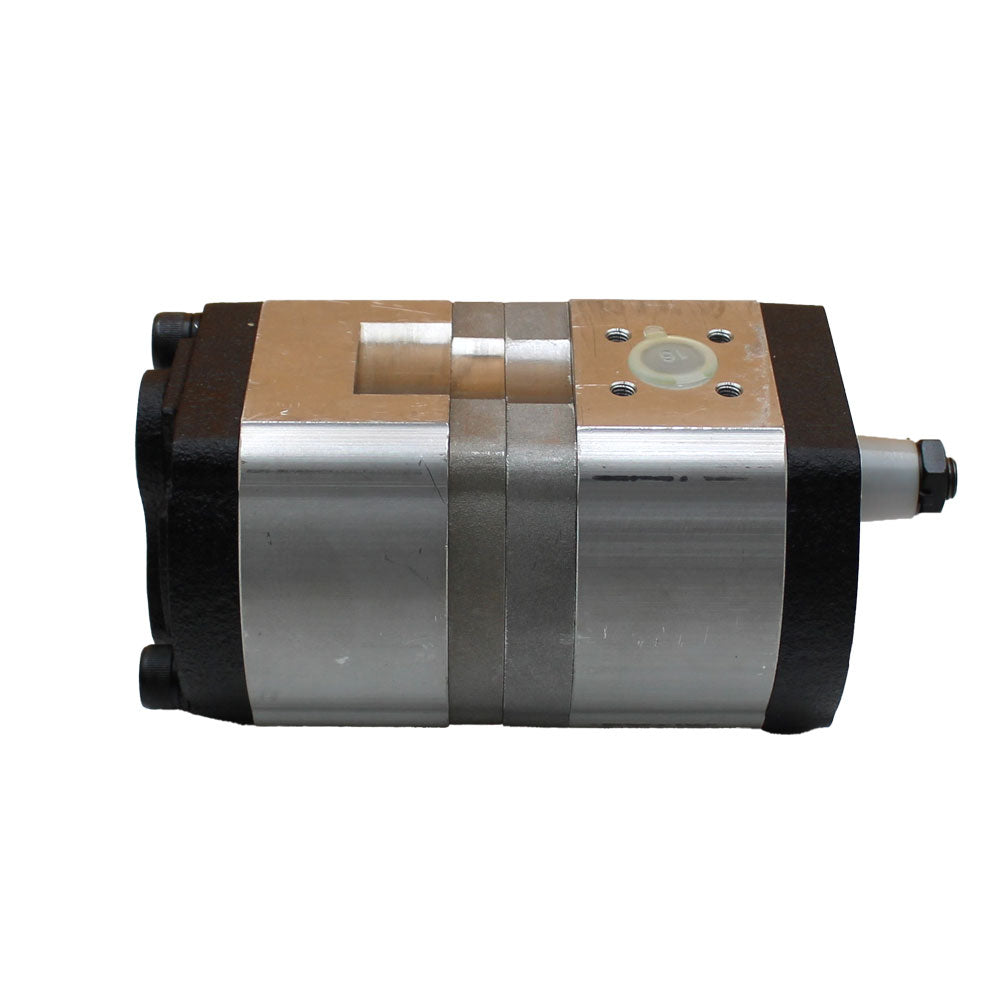

Hydraulic Pump 3147535R93 Fits Case/International Tractors 743XL 833 640

Name: Hydraulic Pump 3147535R93 Fits Case/International Tractors 743XL 833 640
SKU: HYI60-0014
Price: 399.99 USD
Availability: InStock

Hydraulic Pump 3147535R93 Fits Case/International Tractors 743XL 833 640

$399.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hydraulic Pump

Fits Case-IH Tractor Models: 433, 533, 633, 733, 833, 440, 540, 640, 840, 940, 644, 744, 844, 844S, 645, 745, 745S, 845, 743XL, 745XL, 845XL

Tech Info:
Front inlet hole fixing hole size: M6
Front inlet hole fixing hole spacing: 40mm
Front inlet hole size: 20mm
Front outlet hole fixing hole size: M6
Front outlet hole fixing hole spacing: 35mm
Front outlet hole size: 15mm
Inner max. GPM: 6.3
Inner max. LPM: 24
Length: 161.8mm
Maximum Pump Speed rpm: 3000
Outer max. GPM: 6.3
Outer max. LPM: 24
Pump rotation: Anti-Clockwise
Pump type: Tandem Pump
Rear Inlet Hole Size: M18 x 1.5mm
Rear Outlet Hole Size: M18 x 1.5mm
Side hole spacing: 60mm
Top hole spacing: 60mm

Replaces Part Numbers: 3147535R93, 3147535R91, 3147535R92, VPK0103, 1986964C1, 3147535R94

Models This Part Fits:

844S, 833, 433, 743, 533, 744, 745S, 844, 633, 745, 644, 733

Additional Information:

Front inlet hole fixing hole size: M6 Front inlet hole fixing hole spacing: 40mm Front inlet hole size: 20mm Front outlet hole fixing hole size: M6 Front outlet hole fixing hole spacing: 35mm Front outlet hole size: 15mm Inner max. GPM: 6.3 Inner max. LPM: 24 Length: 161.8mm Maximum Pump Speed rpm: 3000 Outer max. GPM: 6.3 Outer max. LPM: 24 Pump rotation: Anti-Clockwise Pump type: Tandem Pump Rear Inlet Hole Size: M18 x 1.5mm Rear Outlet Hole Size: M18 x 1.5mm Side hole spacing: 60mm Top hole spacing: 60mm
