One New Aftermarket Replacement Hydraulic Cylinder for MTD / Fits Cub Cadet Log Splitters (25-Ton to 28-Ton Range)

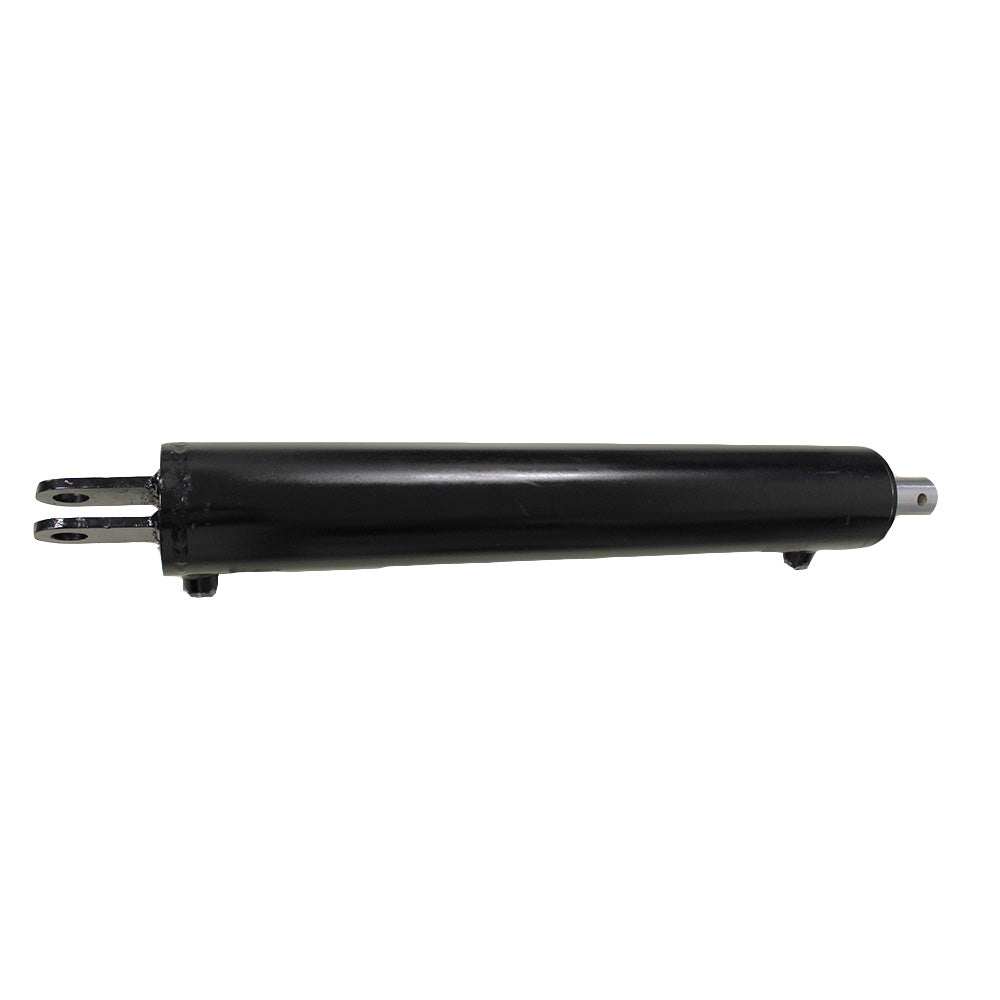

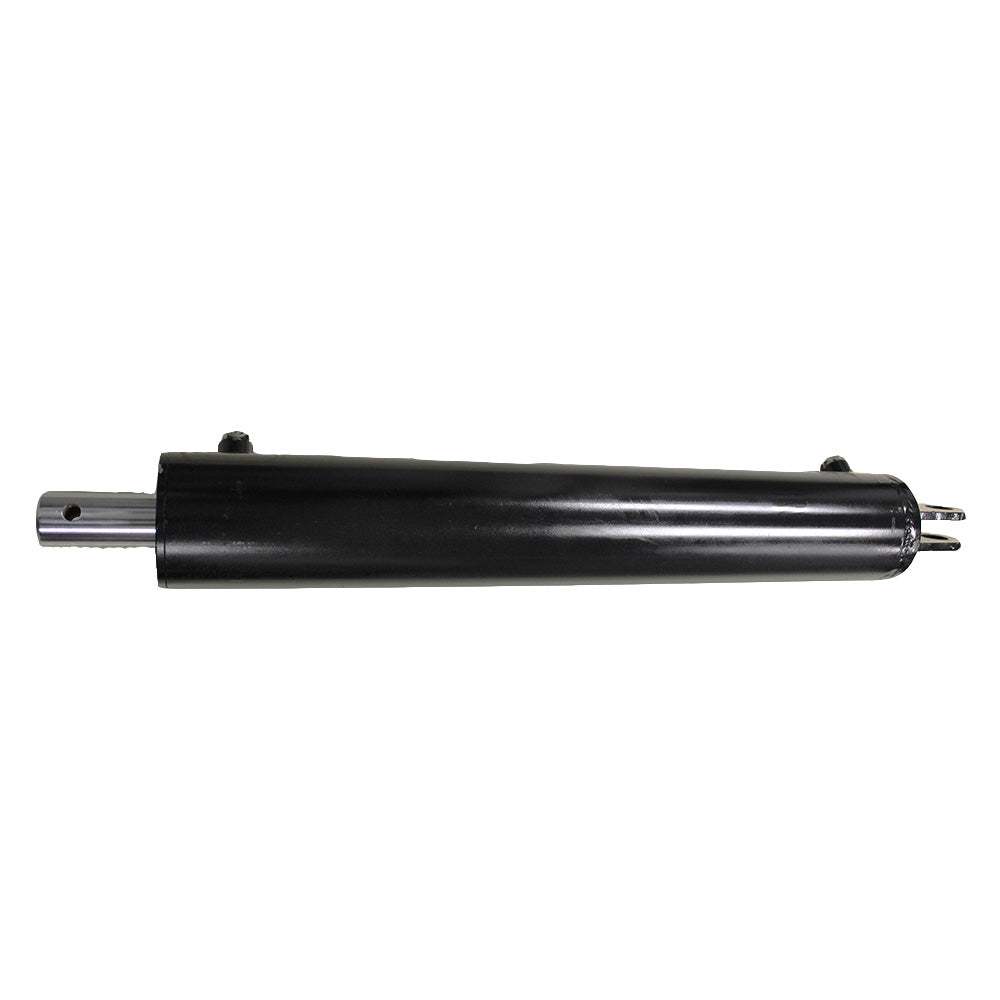

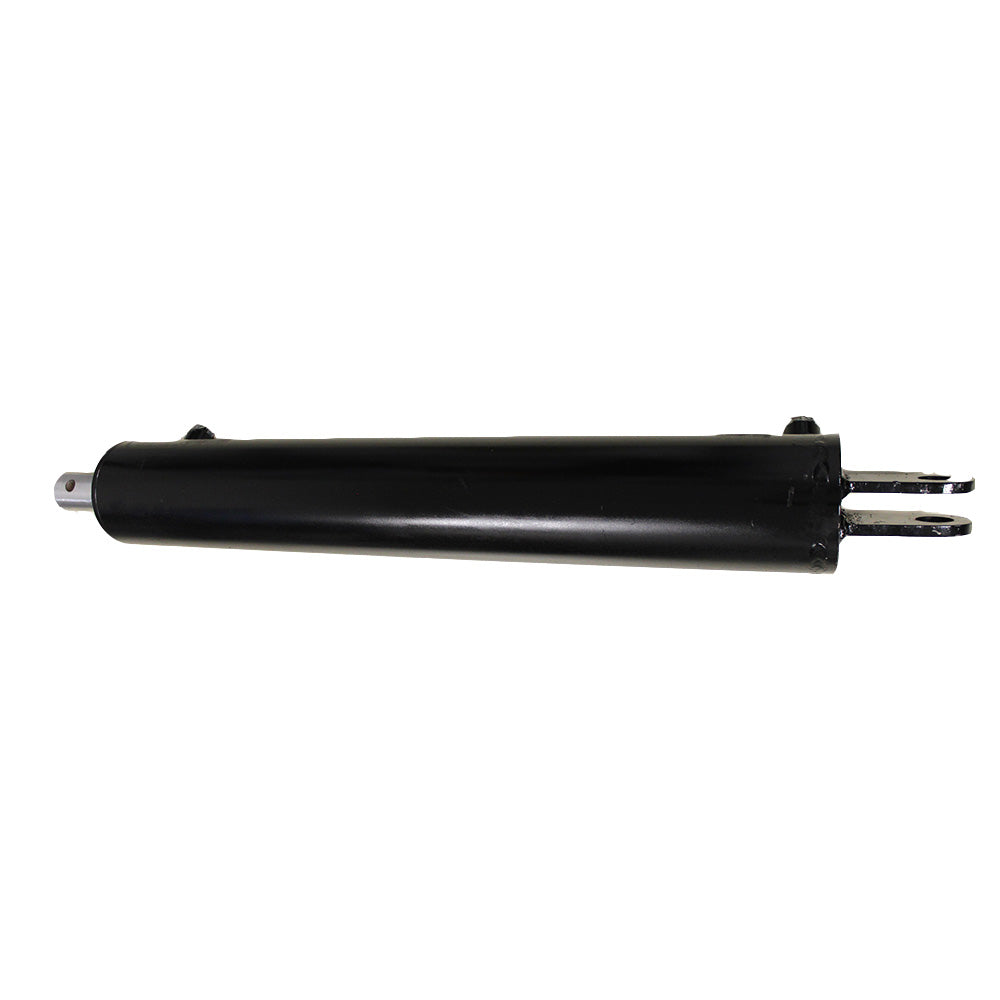

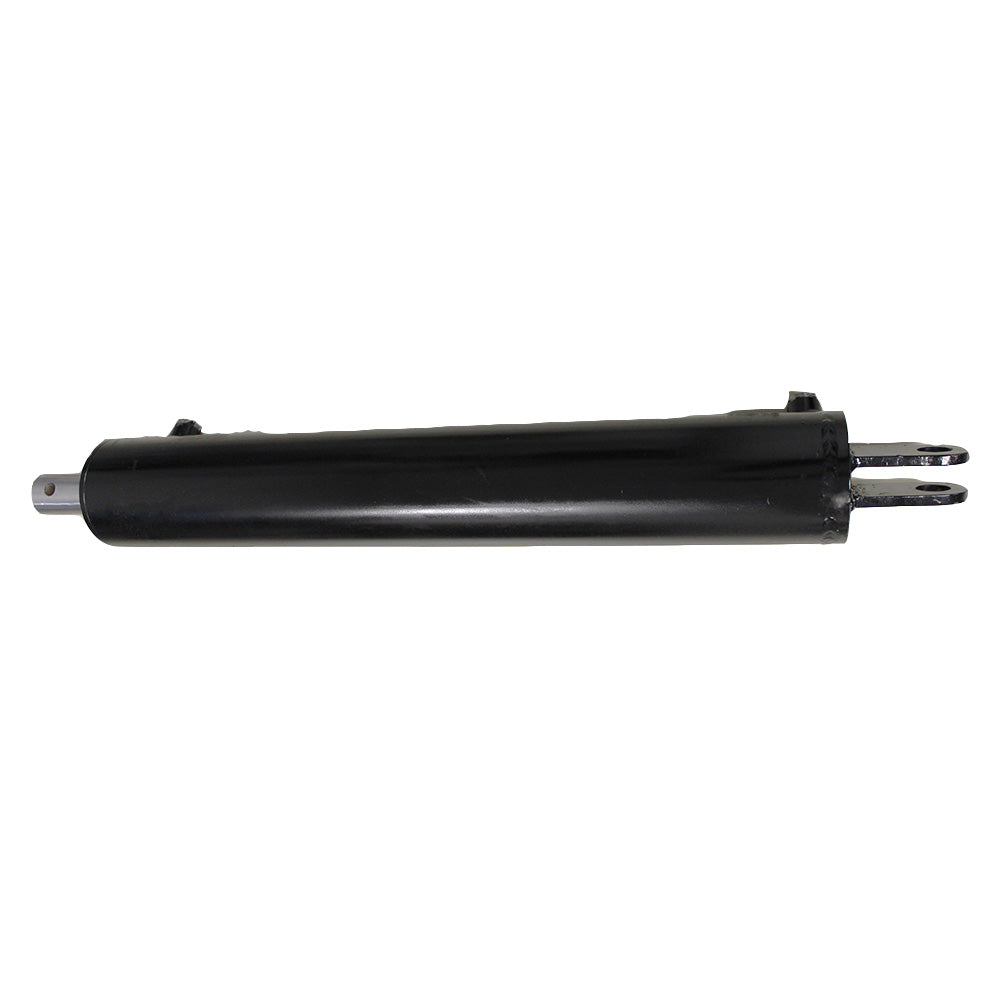

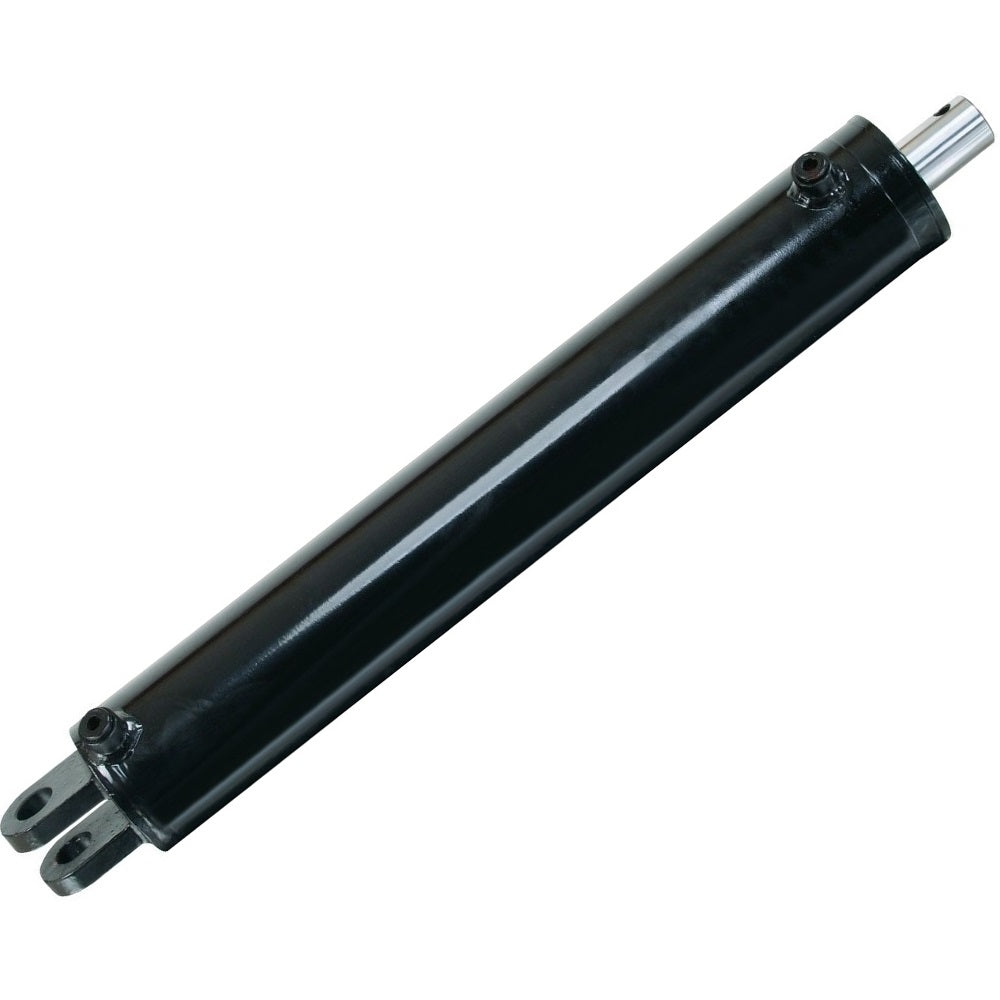

This double-acting aftermarket replacement hydraulic cylinder drives the splitting ram on MTD, Fits Cub Cadet, Troy-Bilt, and Bolens trunnion-mount log splitters in the 25-ton to 28-ton range. The trunnion mount design and double clevis configuration allow direct bolt-in replacement of failed or worn OEM cylinders on compatible units, including the 1999 MTD 24BD556B062.
Specifications
- Bore: 4" Diameter
- Stroke: 24"
- Center-to-Center Bolt Holes: 34.5"
- Maximum Operating Pressure: 3,500 PSI
- Hydraulic Ports: 1/2" NPT
- Rod Diameter: 1-3/4" with 9/16" mounting hole for wedge mounting
- Clevis Mounting Holes: 1-1/8"
- Action: Double acting (double action)

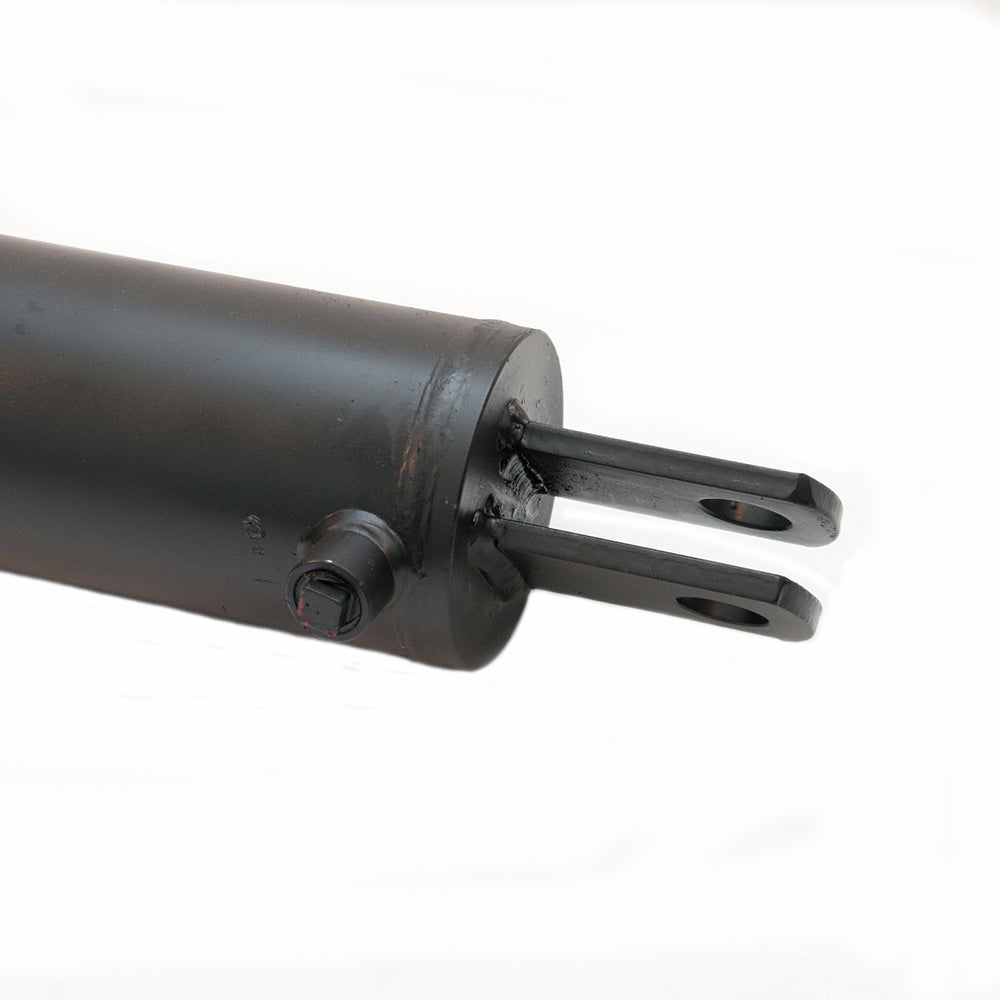

- Mount Style: Trunnion mount with double clevis design
Compatible Models
MTD / Fits Cub Cadet / Troy-Bilt / Bolens Log Splitters (25-Ton to 28-Ton Range): 24BD556B062 (1999), 24AF510B790 (2005), 24AF570C022 GS-27-T (2002), 24AF570L790 (2005), 24BF510B090 LS-21WH (2007), 24BF510B790 (2006), 24BF570F290 (2007), 24BF570L090 LS-27WH (2007), 24BF570L790 LS-27 (2006), and additional MTD-family 25- to 28-ton trunnion-mount log splitter models
Replaces Part Number(s):
718-0769, 918-0769A
New aftermarket replacement part - not remanufactured, not used.
