Hydraulic Adapter 1/2" MALE ORING X 1/2” MALE PIPE
Hydraulic Adapter 1/2" MALE ORING X 1/2” MALE PIPE
Couldn't load pickup availability

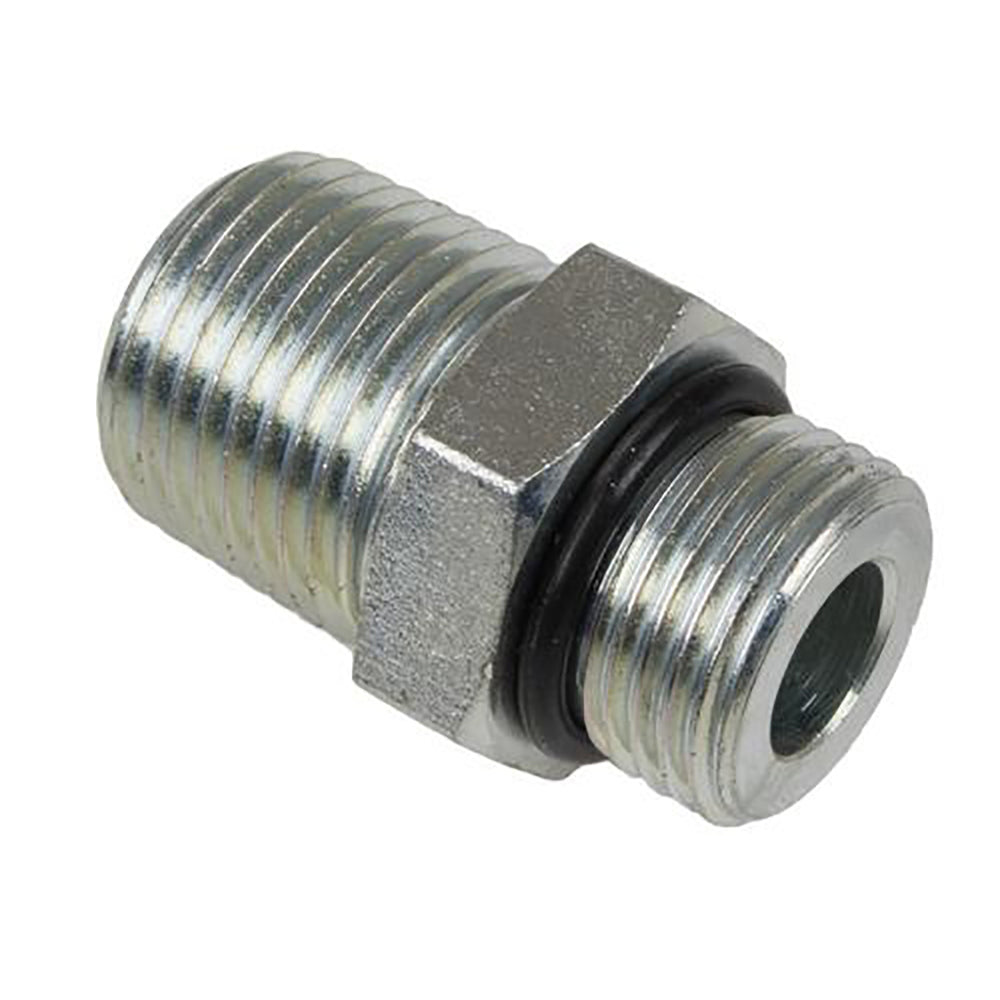

One New Aftermarket Replacement Hydraulic Adapter - 1/2" Male O-Ring Fits Boss (ORB) x 1/2" Male NPT Pipe, Straight
This straight hydraulic adapter fitting connects a 1/2" SAE O-Ring Fits Boss (ORB) male port to a 1/2" NPT (National Pipe Thread) male pipe end. The O-Ring Fits Boss end uses a 3/4"-16 straight thread with an O-ring seal for leak-free, high-pressure connections in agricultural, construction, and industrial hydraulic systems. Manufactured from pressure-resistant carbon steel for durability in demanding hydraulic environments.
Specifications
- Fitting Type: Straight Adapter
- End 1: 1/2" SAE O-Ring Fits Boss (ORB) Male - 3/4"-16 Straight Thread
- End 2: 1/2" NPT Male Pipe - 1/2"-14 Tapered Thread
- Material: Carbon Steel
- Configuration: Straight
Compatible Applications
Universal hydraulic fitting suitable for use in agricultural equipment, construction machinery, lawn and garden equipment, and industrial hydraulic systems wherever a 1/2" ORB male to 1/2" NPT male straight adapter connection is required.
Replaces Part Number(s):
HYM40-0415, 2H208M120RM, 6401-8-8, 640108X08, 8MB8MP, 8MB8NP, C2H208M120RM, C3249X8X8, CHCA244, HCA244
Aftermarket Interchange Numbers
Parker F50F, Weatherhead C3249 - interchanges with Aeroquip, Adaptall, Weatherhead, and Parker equivalent fittings in the 6401-08-08 series.
New aftermarket replacement part - not remanufactured, not used.
