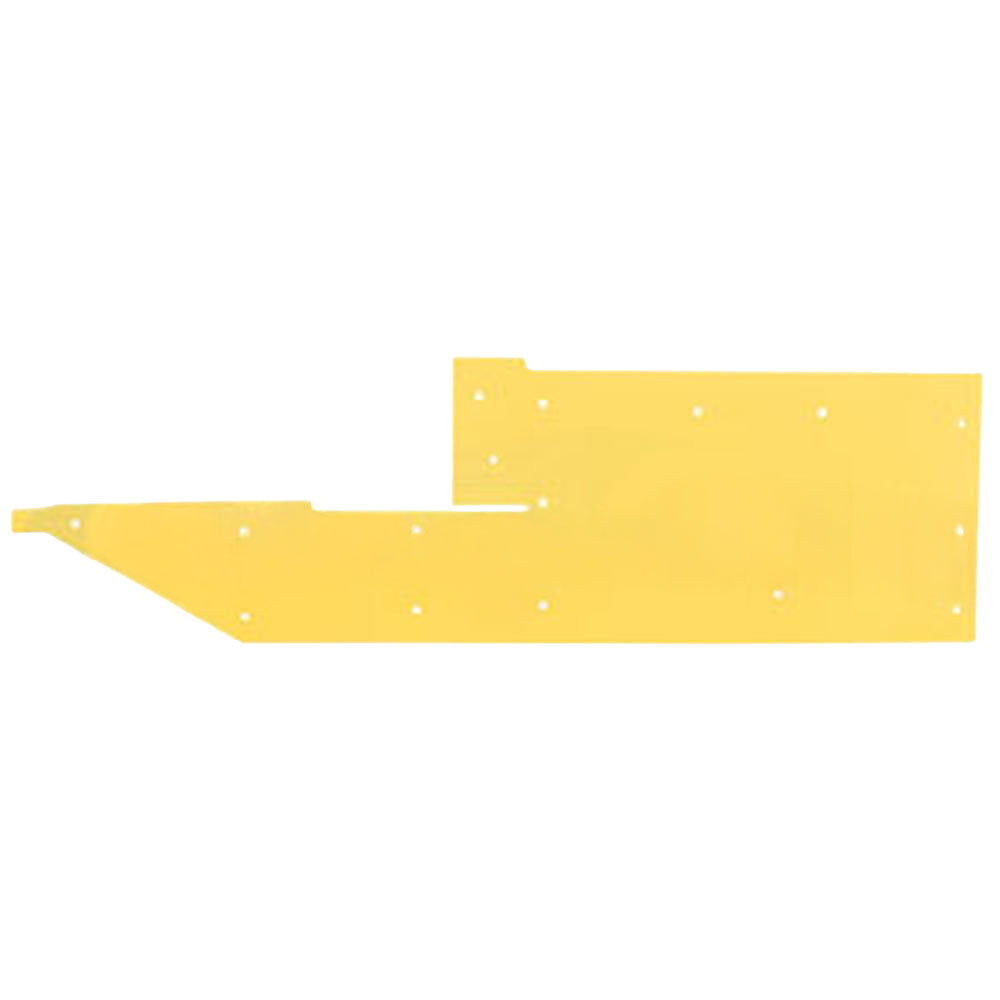

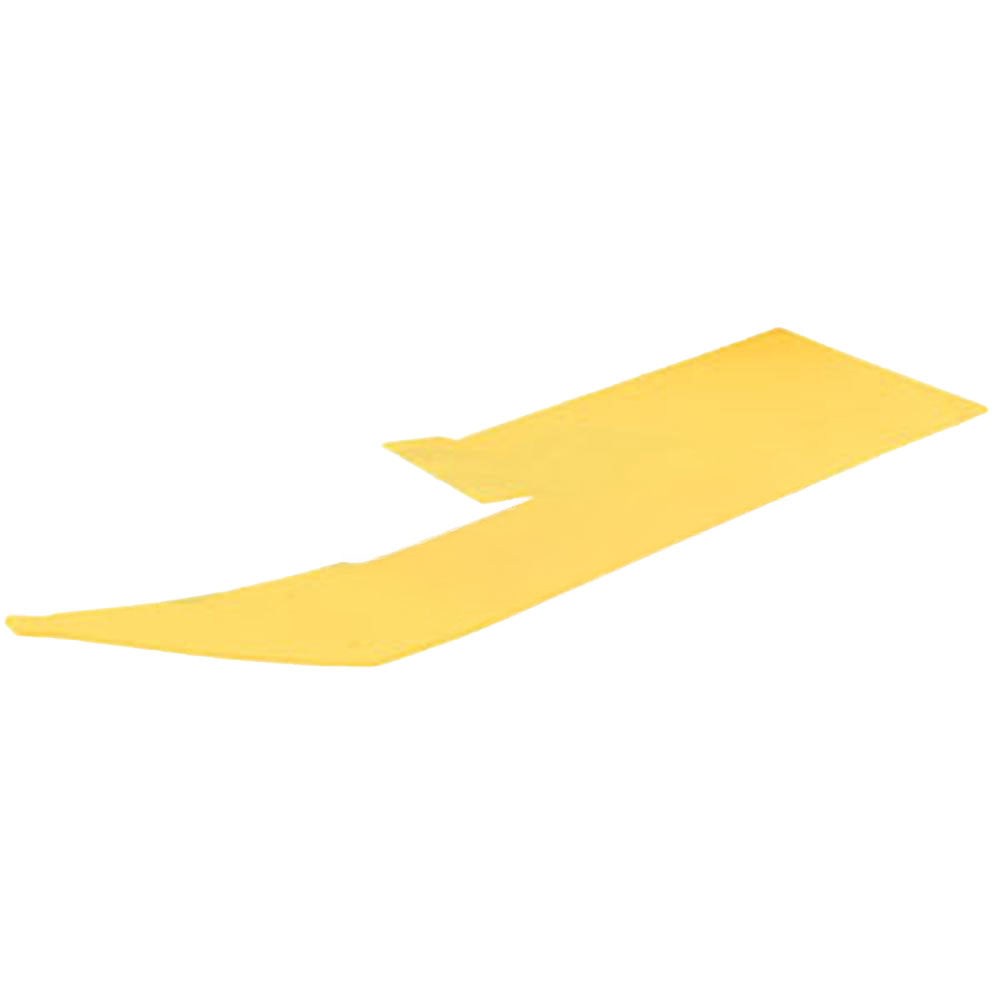

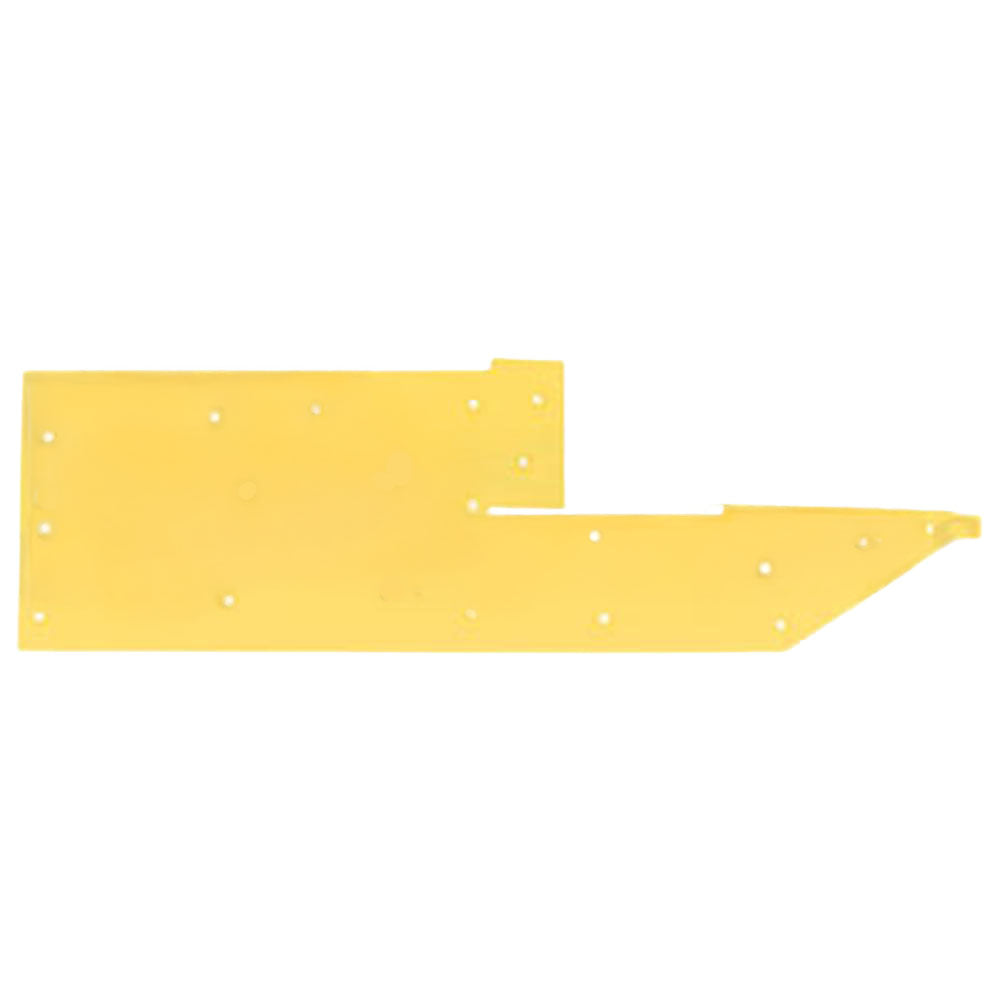

HXE59506 PLATE SKID; POLY LH

One New Aftermarket Replacement Left-Hand Poly Skid Plate Fits John Deere (Fits JD) Flex Draper Platforms

This aftermarket replacement left-hand (LH) poly skid plate mounts to the left outer end shoe of Fits John Deere 600 Series flex draper cutting platforms. The polyethylene skid panel protects the platform end shoe as it rides over the ground during harvest, reducing wear on structural components. Rivets are not included -- order rivet set A-RVT531 (Brazier Head, .250" x .531", package of 25) separately.

Specifications

• Material: Polyethylene (poly)
• Dimensions: Approximately 33" x 9.88"
• Position: Left-Hand (LH), left outer end
• Mounting: Rivet-on (rivets sold separately)

Compatible Models

Fits John Deere (Fits JD) Flex Draper Cutting Platforms: 630FD (to s/n 784999, standard cut height), 635FD (to s/n 784999, standard cut height), 640FD (to s/n 784999, standard cut height)

Note: Serial number restriction applies -- fits platforms to s/n 784999 with standard cut height only. Verify your platform serial number and cut height configuration before ordering.

Replaces Part Number(s):

HXE59506, HXE10619

Aftermarket Interchange Numbers

A-HXE59506 (A&I Products), APJ60FD506 (Poly Tech Industries), CSX59506 (CFC Distributors), SH60065 (Shoup)

New aftermarket replacement part - not remanufactured, not used.
