HM801310 bearing cup Fits Timken
HM801310 bearing cup Fits Timken
Couldn't load pickup availability

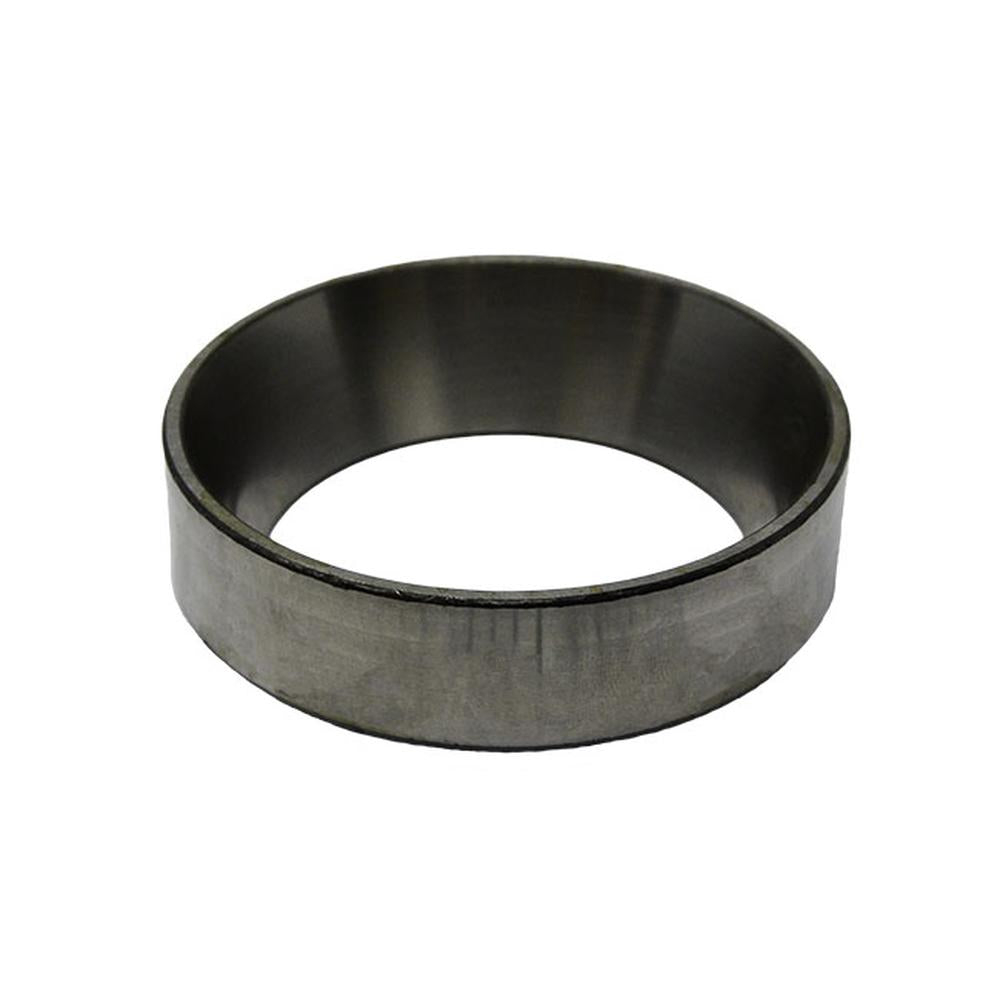

One New Aftermarket Replacement HM801310 Tapered Roller Bearing Cup - Timken Series HM
This HM801310 is a single tapered roller bearing cup (outer ring/race) from the Timken HM series. It serves as the outer raceway for tapered roller bearing assemblies, designed to handle both radial and axial loads in wheel hubs, axles, transmissions, differentials, and other heavy-duty applications across agricultural, construction, and industrial equipment. For maximum service life, replace the cup and cone together at the same time.
Specifications
- Type: Single Tapered Roller Bearing Cup (Outer Race)
- Series: HM (Imperial)
- Outside Diameter: 3.2500 in
- Width: 0.9063 in
- Material: Chrome Steel
- Flange Type: Non-Flanged
- Lubrication Hole: None
- Finish: Uncoated
- ABMA Precision Rating: Class 2
- Weight: 0.67 lbs
- Compatible Cones: HM801346, HM801346X, HM801349
Compatible Applications
This is a universal-fit bearing cup used across a wide range of equipment types, including construction vehicles, agricultural tractors and combines, industrial gearboxes, wheel hubs, and axle assemblies. Verify housing bore diameter (3.250 in) before ordering.
Replaces Part Number(s):
HM801310
Aftermarket Interchange Numbers
National Seals HM801310; NTN 4T-HM801310; WJB HM801310; Assembly set reference: HM801346/HM801310, HM801349/HM801310
New aftermarket replacement part - not remanufactured, not used.
