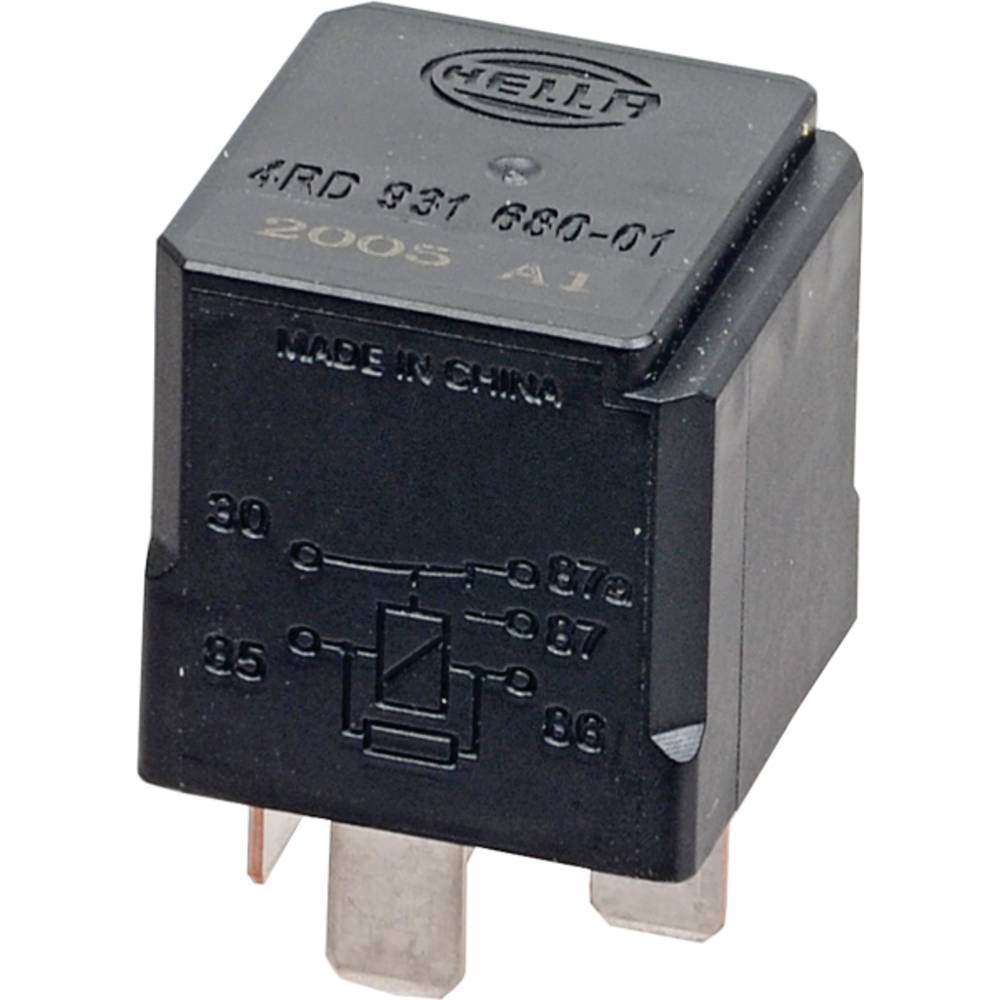

HLA-931680011-JN Hella Mini Relay

HLA-931680011-JN Hella Mini Relay

$30.99 USD
$30.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Hella Mini Relay

Tech Info:
-Hella: 4RD93168001, 87102, 87429, 931680011, 931680017, H41388061, H41680011
-VOLT: 12, AMPS: 40, TERMINAL ID 2: 30, TERMINAL 2 SIZE: 6.3mm x 0.8mm, TERMINAL ID 3: 85, TERMINAL 3 SIZE: 6.3mm x 0.8mm, TERMINAL ID 4: 86, TERMINAL 4 SIZE: 6.3mm x 0.8mm, TERMINAL ID 5: 87, TERMINAL 5 SIZE: 6.3mm x 0.8mm, TERMINAL ID 6: 87a, TERMINAL 6 SIZE: 6.3mm x 0.8mm, CAP COMPOSITION: Plastic, CONTACT CONFIG: Single Pole, Double Throw (SPDT), DUTY CYCLE: Continuous, INCLUDES: Mounting Bracket, NO OF TERMINALS: 5, PLATED TERMINALS: TRUE, RESISTANCE TYPE: Resistor, RESISTANCE: 680 ohms

Replaces Part Number(s): HLA-931680011

Additional Information:

Hella: 4RD93168001, 87102, 87429, 931680011, 931680017, H41388061, H41680011, VOLT: 12, AMPS: 40, TERMINAL ID 2: 30, TERMINAL 2 SIZE: 6.3mm x 0.8mm, TERMINAL ID 3: 85, TERMINAL 3 SIZE: 6.3mm x 0.8mm, TERMINAL ID 4: 86, TERMINAL 4 SIZE: 6.3mm x 0.8mm, TERMINAL ID 5: 87, TERMINAL 5 SIZE: 6.3mm x 0.8mm, TERMINAL ID 6: 87a, TERMINAL 6 SIZE: 6.3mm x 0.8mm, CAP COMPOSITION: Plastic, CONTACT CONFIG: Single Pole, Double Throw (SPDT), DUTY CYCLE: Continuous, INCLUDES: Mounting Bracket, NO OF TERMINALS: 5, PLATED TERMINALS: TRUE, RESISTANCE TYPE: Resistor, RESISTANCE: 680 ohms

Reference Numbers:

HLA-931680011
