Straight Clevis 7/8" x 4-1/4" 16,000 LB WLL
Straight Clevis 7/8" x 4-1/4" 16,000 LB WLL
Couldn't load pickup availability

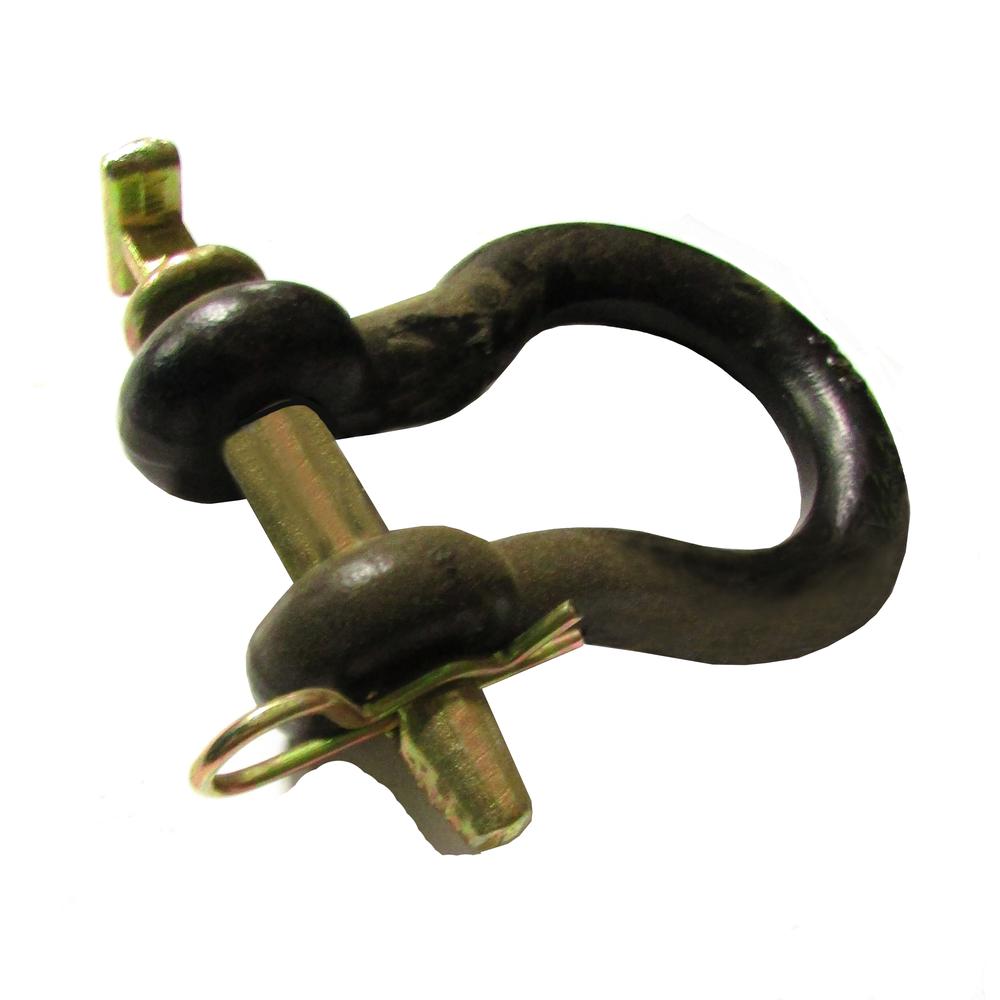

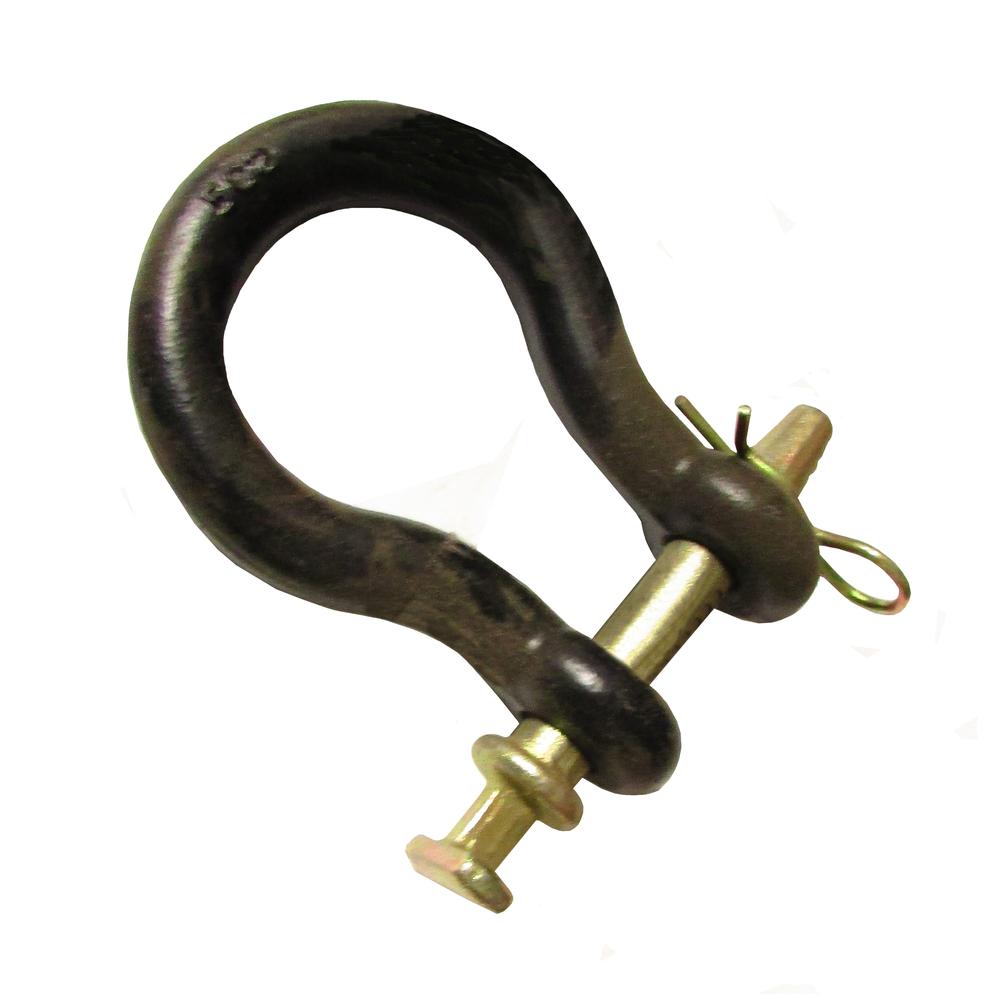

One New Aftermarket Replacement Straight Clevis - 7/8" x 4-1/4", 16,000 LB WLL
This forged steel straight clevis is a heavy-duty hitch and drawbar connection hardware used in agricultural, construction, and general farm applications. Rated at 16,000 lb Working Load Limit (WLL), it connects implements, chains, and tow lines to tractor drawbars and hitch assemblies. Fits John Deere and a wide range of agricultural and farm equipment using standard clevis hitch connections. Pin is included.
Specifications
- Body Diameter: 7/8"
- Usable Length: 4-1/4"
- Pin Diameter: 3/4"
- Opening Width: 1-1/4"
- Working Load Limit (WLL): 16,000 lb
- Construction: Forged steel, black painted finish
- Includes: Clevis pin and clip
Compatible Models
Fits John Deere and Universal Fit: Fits John Deere tractors and implements requiring a standard 7/8" straight clevis connection. Also suitable for general agricultural and farm equipment hitch applications across multiple brands.
Replaces Part Number(s):
PM18178, TPB8878, B8178
Aftermarket Interchange Numbers
M8178, MB8178, 152-81780, CL490106, 567-MB8178, 24016, 25-11, P25-11
New aftermarket replacement part - not remanufactured, not used.
