H4 Magneto Tune up kit Fits FARMALL Super A Super C Super H Super HV Tractor

Name: H4 Magneto Tune up kit Fits FARMALL Super A Super C Super H Super HV Tractor
SKU: ELI80-0188COMPLETETUNEUP_3
Price: 98.99 USD
Availability: InStock

H4 Magneto Tune up kit Fits FARMALL Super A Super C Super H Super HV Tractor

$98.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement H4 Magneto Tune up kit Fits FARMALL Super A, Super C, Super H, Super HV Tractor

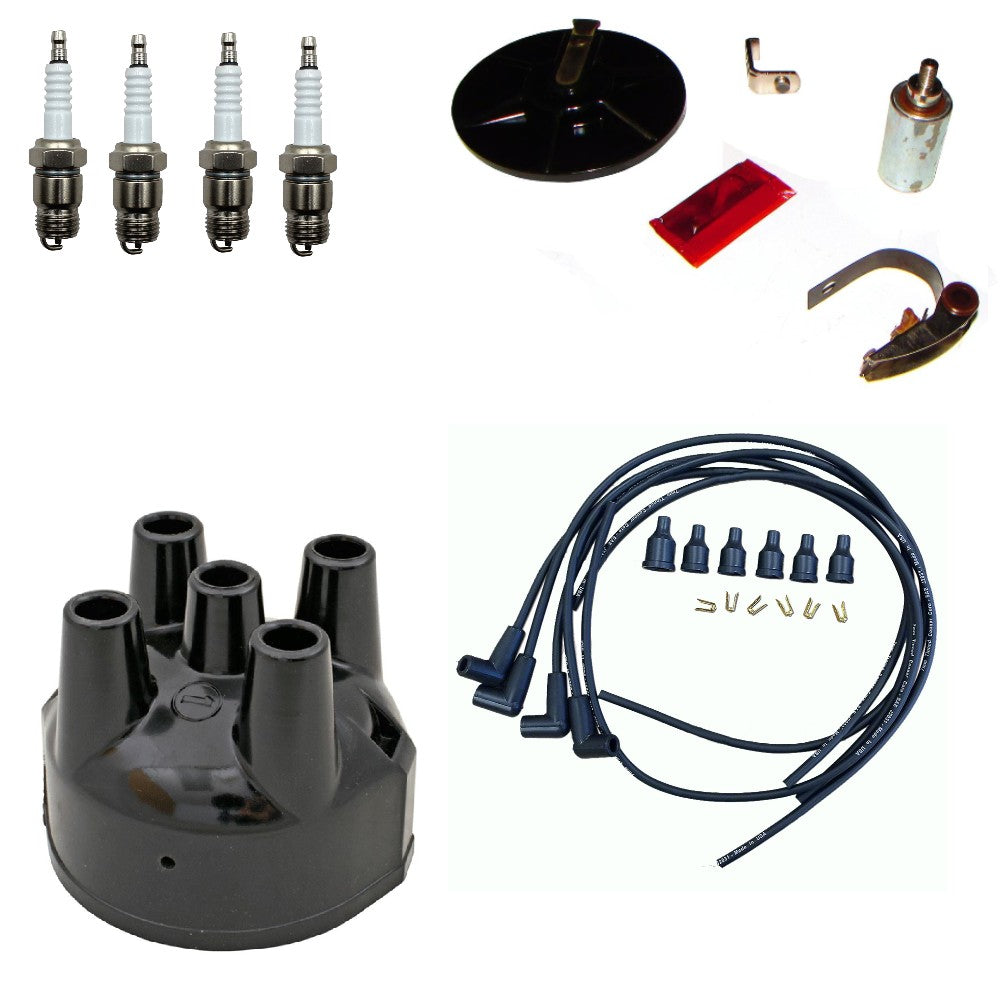

Tune up kit: Rotor, Points, Condenser, Copper Core Spark plug wire set, 4 Autolite 386 Spark Plugs

Fits: 4 Cylinder Fits IH Fits FARMALL: A, AV, B, BN, C, H, HV, I9, ID9, M, MD, MDV, MTA, MV, O4, O6, ODS6, OS4, OS6, Super A, Super C, Super H, Super HV, Super M, Super MD, Super MDV, Super MV, Super W4, Super W6, Super WD9, Super WDR9, T5, T9, TD14, TD14A, TD6, TD9, W4, W6, W6TA, W9, WD6, WD9, WDR9, WR9, WR9S, 100, 130, 200, 230, 300, 350, 400, 450, 600, 650 Select models, W6TA (Select Diesel models), Wheatland: 400, 450 (Select Models)

Models This Part Fits:

OS6, T5, OS4, Super MV, O4, 600, AV, Super HV, Super C, 400, ODS6, WR9S, I9, Super W6, Super MD, WD6, TD14A, Super WD9, MV, M, 300, T9, ID9, Super MDV, W6TA, Super M, BN, TD6, TD9, W9, C, WR9, 230, H, B, HV, 100, 450, 200, O6, 650, WD9, Super A, 350, A, Super WDR9, TD14, MDV, Super H, W4, WDR9, 130, W6, MD, Super W4, MTA

Additional Information:

(1) 4 Cylinder Spark Plug Wiring Set -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. -Note: You must cut the wires to length and crimp the ends with a crimping tool. -Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (1) Distributor Cap Only fits models using an IHC H4 magneto Replaces Part Number(s): 47413DYC (1) Ignition Kit Contains points, condensers & rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs -M18-1.50mm thread, -1/2" Thread reach, -7/8" Hex, -Preset Gap 0.034", -Medium hot, -Power tip / Non-Resistor
