SELECTIVE SECTOR PLATE and Fits John Deere L110 L111 L118 L120 L130

Name: SELECTIVE SECTOR PLATE and Fits John Deere L110 L111 L118 L120 L130
SKU: GX20052BLE-HardwareKit
Price: 23.99 USD
Availability: InStock

SELECTIVE SECTOR PLATE and Fits John Deere L110 L111 L118 L120 L130

$23.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Steering Sector Plate Kit Fits John Deere L Series Lawn Tractors

This steering sector plate and pinion gear rebuild kit restores precise steering control to Fits John Deere L Series lawn and garden tractors. The kit contains all the key components needed to replace worn or stripped steering gears, bushings, and hardware in the front steering assembly. Note: The L Series and LA Series mowers do NOT use the same steering sector plate -- verify your model is listed below before ordering.

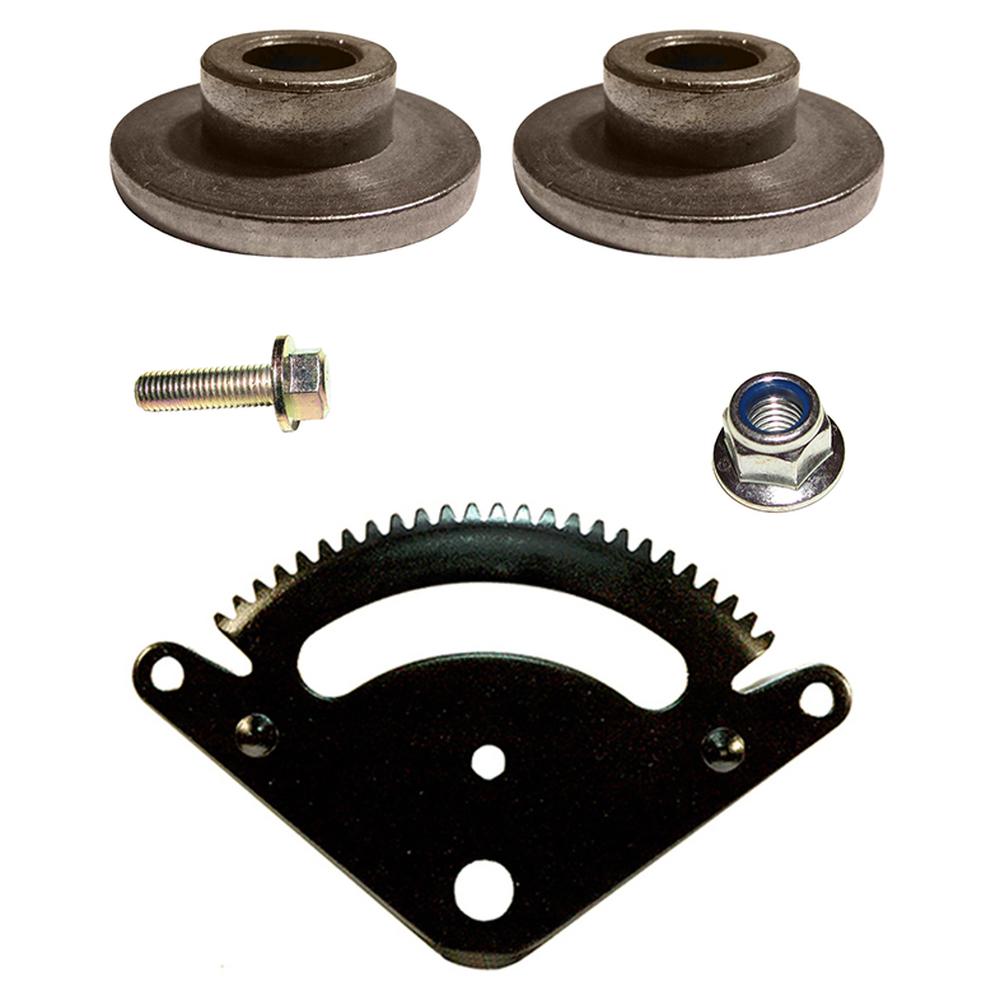

Kit Includes

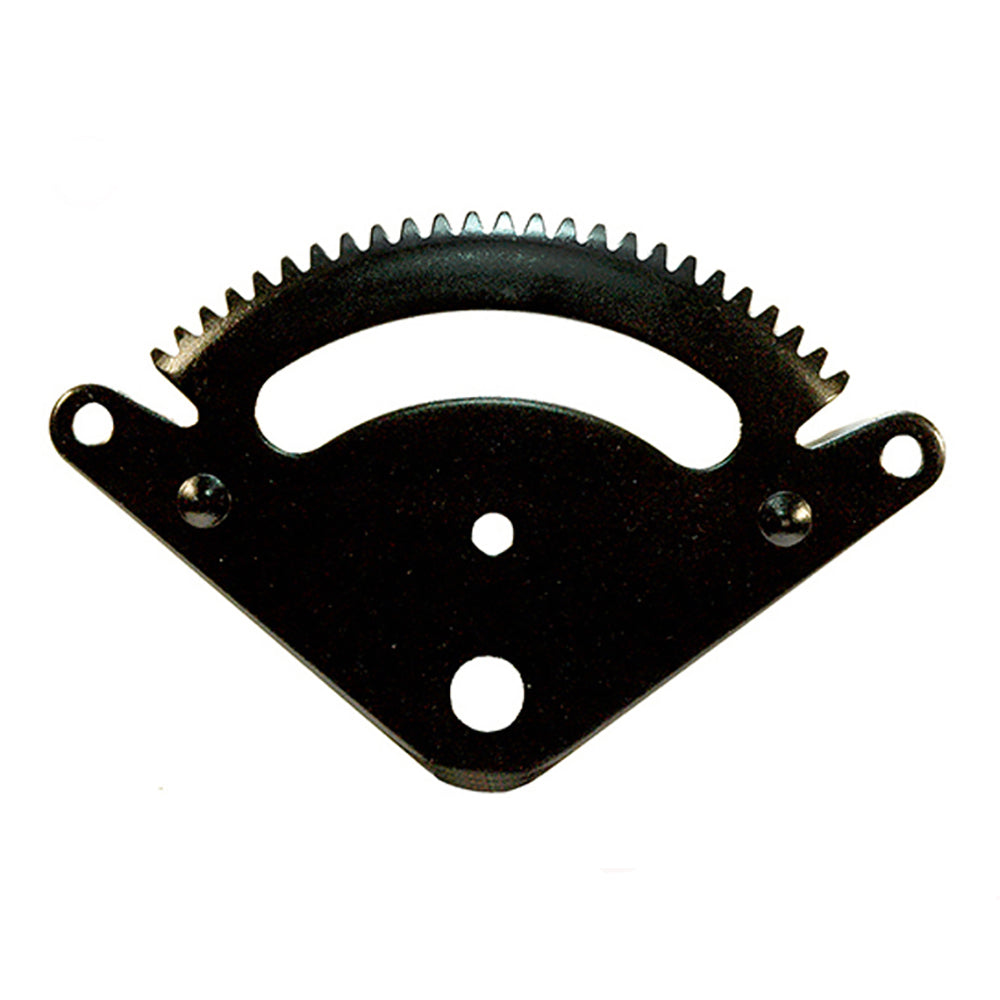

(1) Sector Gear -- 25 Teeth -- Replaces GX20052, GX20052BLE
(1) Pinion Gear -- HRC 30, Height: 1 in., OD: 1-3/8 in. -- Replaces GX20053

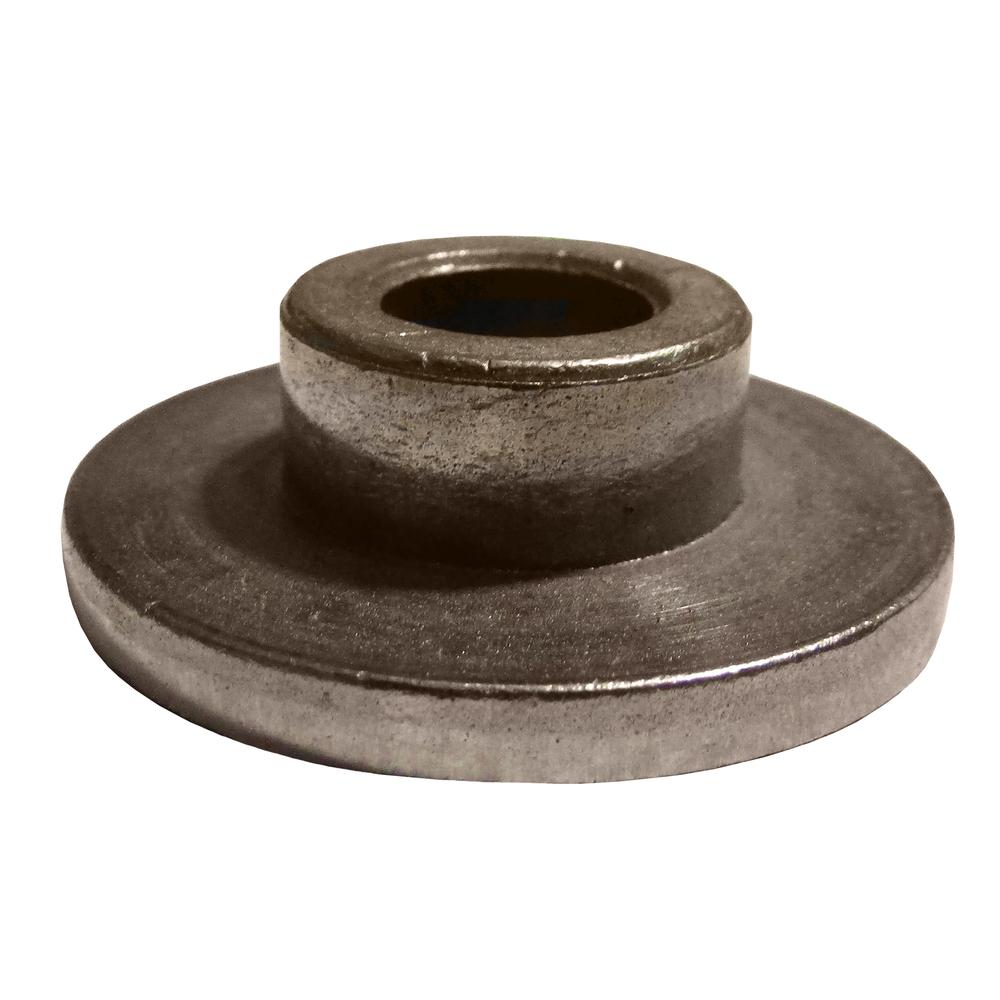

(2) Steering Gear Bushings -- Flange Thickness: 0.16 in., Flange OD: 1.382 in., Inside Diameter: 0.407 in., Length: 0.45 in., Outside Diameter: 0.710 in. -- Replaces UC13360, GX20054

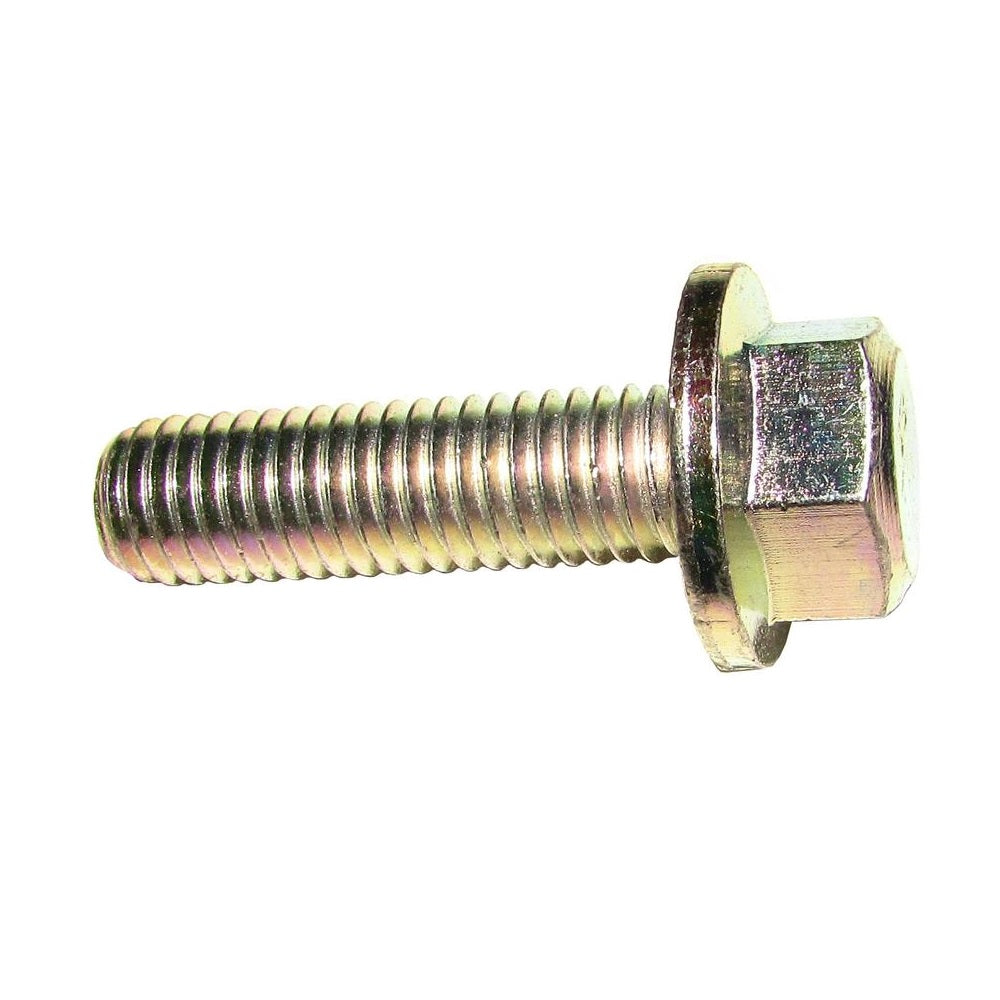

(1) Steering Bolt -- Hex Flange Bolt, 10mm x 35mm, Thread Pitch: 1.25mm -- Replaces 19M7835

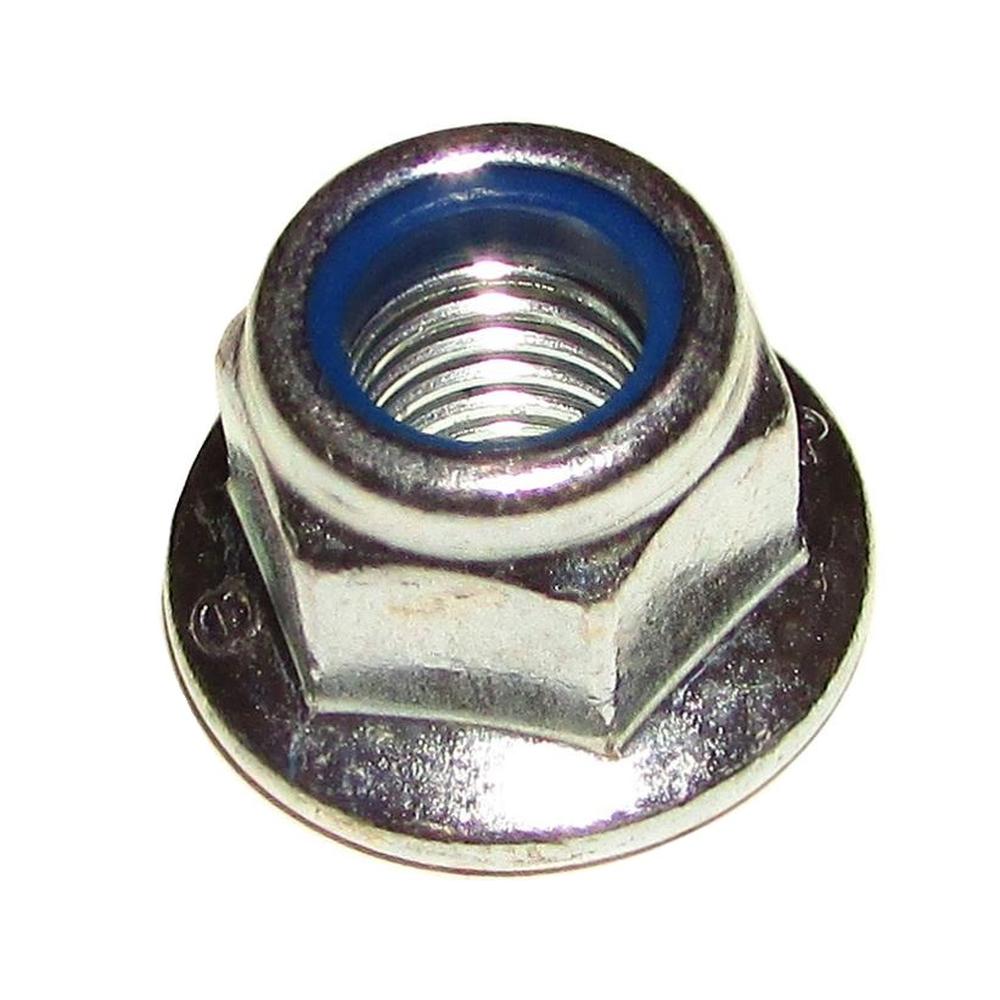

(1) Lock Nut -- 10mm Nylon Locking Hex Flanged Nut -- Replaces 14M7400

Compatible Models

Fits John Deere L Series: G110, L100, L105, L107, L108, L110, L111, L118, L120, L130

Sabre: 14.542GS, 1642HS, 17.542HS

Scotts: L1742, L17.542, L2048, L2548

Replaces Part Number(s):

GX20052, GX20052BLE, GX20053, GX20054, UC13360, 19M7835, 14M7400

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

D140, E160, E100, L100, X126, E130, D155, X105, G110, S240, X146R, E170, X155R, D125, L108, X166R, L111, 92H, 107S, E110, X135R, L120, D130, D160, E150, L110, 107H, L107, X165, X125, E180, X106, L130, D170, X166, X115R, E120, E140, X116R, D110, D105

Additional Information:

(1) Sector Gear 25 Teeth Replaces Part Number(s): GX20052, GX20052BLE (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Lock Nut 10mm Nylon locking nut Hex Flanged Nut Replaces Part Number(s): 14M7400 (2) Steering Gear Bushings Flange Thickness: 0.16" Flange Outside Diameter: 1.382" Inside Diameter: 0.407" Length: 0.45" Outside Diameter: 0.710" Replaces Part Number(s): UC13360, GX20054
