GENERATOR REBUILD KIT 6 VOLT FOR PART 10467830 10473403 12320060 16-7503 1836664

Models This Part Fits:

1100507, 1101358, 1101369, 1101390, 1101732, 1102501, 1101651, 1101398, 1101383, 1101413, 1101391, 1100505, 1101397, 1101003, 1101858, 1101855, 1100506, 1101403, 1101426, 1101748, 1100992, 1100966, 1101739, 1101852, 1101757, 1101382, 1100530, 1101430, 1101385, 1101355, 1101657, 1100952, 1101652, 1101860, 1101769, 1100998, 1101373, 1101688, 1100504, 1101741, 1101393, 1100968, 1101402, 1101387, 1101416, 1101401, 1101733, 1100517, 1101357, 1101673, 1101356, 1101363, 1101425, 1100528, 1101384, 1100965, 1101422, 1100523, 1101377, 1100509, 1101378, 1101354, 1100991, 1101404, 1101366, 1101771, 1101371, 1101853, 1101854, 1100508, 1101705, 1101419, 1101857, 1101379, 1101723, 1100529, 1100516, 1101423, 1101414, 1101406, 1101851, 1101710, 1101431, 1101659, 1101415, 1101386, 1101421, 1101411

Additional Information:

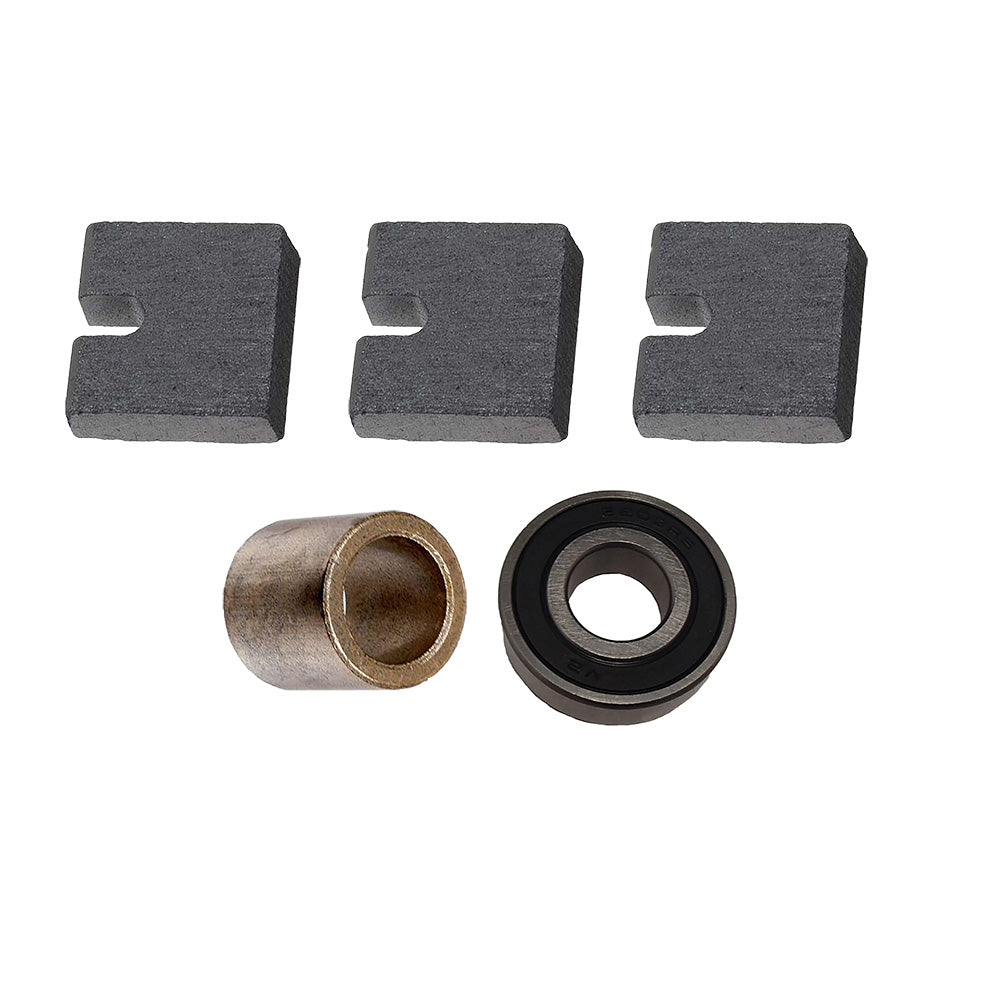

Includes: (3) Generator Brush: Height: 0.256" (6.500mm) Length: 0.709" (18 mm) Width: 0.728" (18.500mm) Replaces Part Numbers: 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709 (1) Generator Bushing: ID: 0.563" (14.300 mm) OD: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Location Used: CE Housing Replaces Part Numbers: 1850786, 812823, D1634 (1) Sealed Ball Bearing (Econ Version): ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C

Reference Numbers:

812823, 1850786, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709, 1850786, 812823, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
