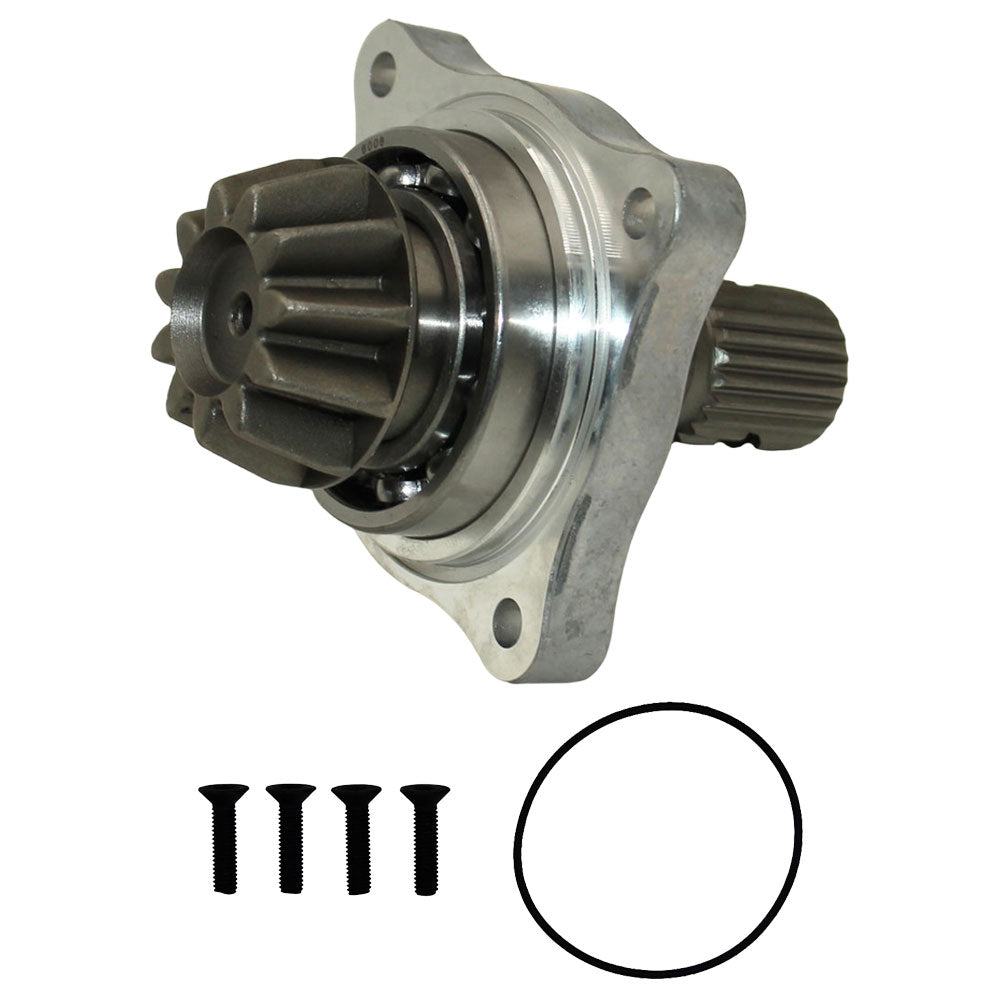

Front Drive Pinion with Cover Fits Polaris Replaces 2206588

Models This Part Fits:

Sportsman 1000 Highlifter (2016-2017)

Additional Information:

Overall Length (Pinion Shaft): Approximately 6.5 to 7 inches (165–178 mm). Spline Count (Shaft End): 22 Splines (This is a critical "check-point" for Polaris owners). Cover Diameter: Approximately 4.75 to 5 inches (120–127 mm). Bolt Hole Pattern: 4-Bolt mounting configuration. Pinion Gear Diameter: Approximately 1.5 to 1.75 inches (38–44 mm) at the widest point of the gear teeth.

Reference Numbers:

2206588
