Fits Stens Safety Switch 430-413 for Ariens 02754100

Name: Fits Stens Safety Switch 430-413 for Ariens 02754100
SKU: AGER1232534
Price: 16.92 USD
Availability: InStock

Fits Stens Safety Switch 430-413 for Ariens 02754100

$16.92 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Safety Switch (Seat Switch) for Ariens, Fits John Deere, Scag, Fits Kubota, and More

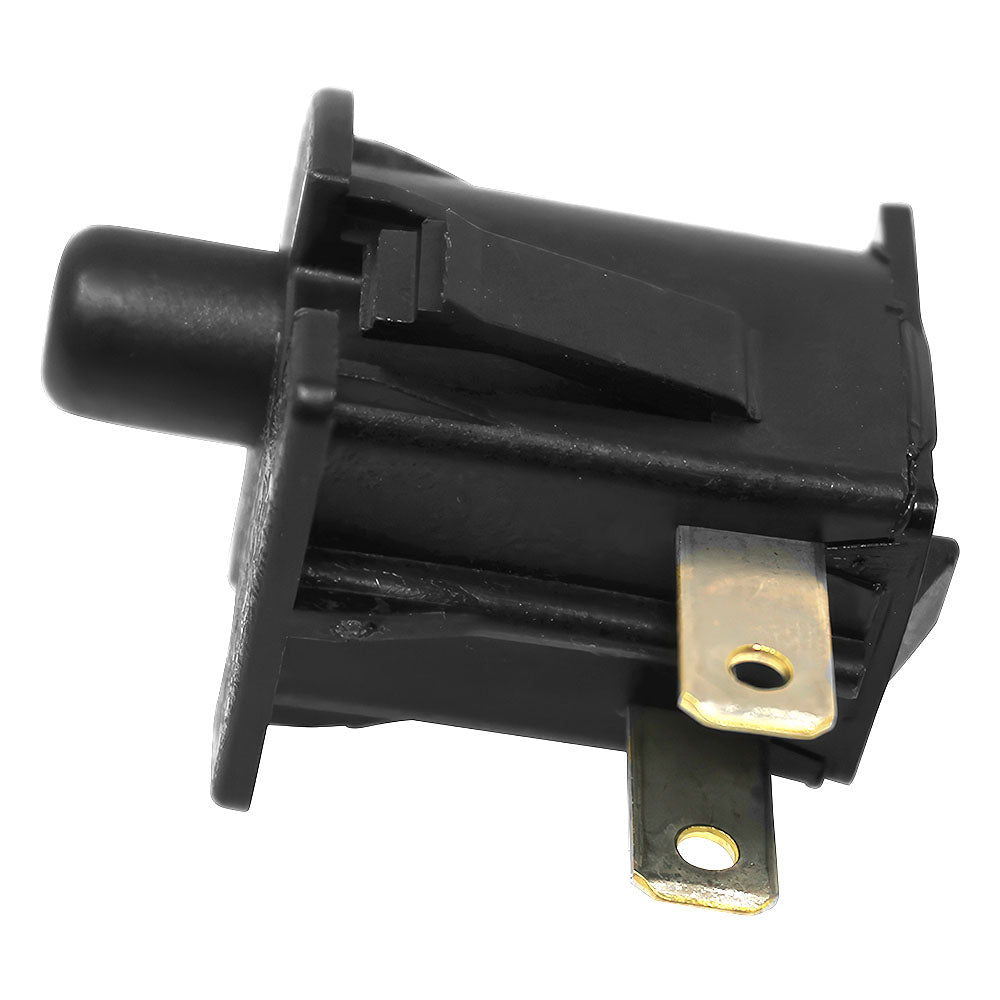

This seat presence safety switch prevents the engine from running when no operator is seated. Manufactured by Delta Systems Inc., it uses a right-angle, snap-in mount with a single post and two terminals in a normally open configuration -- contacts close when the operator is seated, cutting the circuit when the seat is vacated to stop the engine. A direct aftermarket replacement Fits Stens 430-413 and Ariens 02754100, fitting a wide range of lawn and garden tractors, zero-turn mowers, and commercial walk-behind mowers.

Specifications

Type: Seat Presence Safety Switch
Mount Style: Right-angle, snap-in
Post: Single post
Terminals: 2
Positions: 2
Contact Type: Normally open
Rated: 14V DC, 10A
Manufactured by: Delta Systems Inc.

Compatible Models

Ariens: 927037, 927043, 927045-924056, 927061, 927063, 927065, 927301-927308, 927310

Fits Husqvarna: IZ4821T, IZ6125T

Fits John Deere: 240, 245, 260, 285, 320, STX30, STX38, front decks 510 and F525

Fits Poulan: PP20H46A, PP24H50A

Scag: Cheetah, Cougar, Sabre Tooth Tiger, Tiger Fits CAT, Tiger Fits Cub, Turf Tiger, Wildcat (walk-behind models)

Fits Toro: All commercial-grade walk-behinds with 14, 16, 18, and 20 HP engines

Wright Mfg. (Wright): Stander with 48", 52", and 61" decks

Replaces Part Number(s):

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Turf Tiger and Wildcat, 52", 510, Cougar, 927045-924056, 320, Sabre Tooth Tiger, IZ6125T, 240, All, 927043, 61" decks, 260, 245, Several, F525, 927037, IZ4821T, 927301-927308, 927061, 927310, 285, 927063, STX30, 927065, Cheetah, 48", Tiger Cub, Tiger Cat, STX38, PP24H50A, PP20H46A

Additional Information:

Right Angle Snap in Mounted Single Post 2 Terminal 2 Position Normally Open

Reference Numbers:

02754100, 03086600, 50048610, 481638, 4124009, 430-413, AM103119, 160784, 532160784, 52410002, 52410003, 532160784, 539107523, 6440-04, 82-2190, K1122-62280, K1122-62282, 1-5707, 1732004SM, 7015707, 7015707YP, 1704379, 1704379SM, 21704379, 21704379SM
