Fits Bobcat S300, S330 Hydraulic Tilt Cylinder Skid Steer Loader Bobtach 7208419

Name: Fits Bobcat S300, S330 Hydraulic Tilt Cylinder Skid Steer Loader Bobtach 7208419
SKU: HYI40-1045_5
Price: 367.78 USD
Availability: InStock

Fits Bobcat S300, S330 Hydraulic Tilt Cylinder Skid Steer Loader Bobtach 7208419

$367.78 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

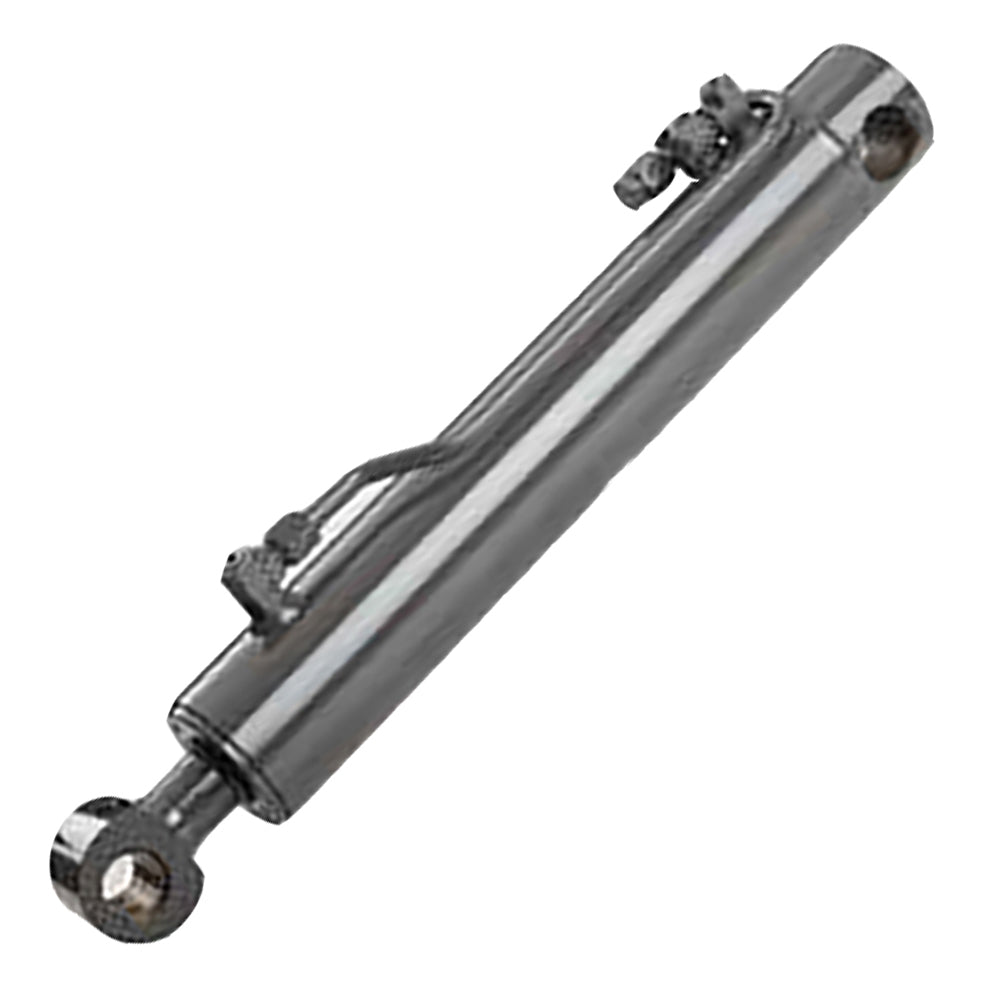

One New Aftermarket Replacement Bucket Tilt Hydraulic Cylinder for Bobcat Skid Steer Loaders, Track Loaders, and All-Wheel Steer Loaders

This aftermarket replacement bucket tilt cylinder controls the tilt and dump motion of the bucket or other Bobtach attachment on your Bobcat skid steer, track loader, or all-wheel steer loader. The cylinder connects to the Bobtach quick-attach system and delivers the hydraulic force needed for precise bucket positioning in demanding jobsite conditions. Replaces OEM part number 7208419 (supersedes 6810233).

Specifications

Rod Diameter: 1.5 in.
Bore: 3.0 in.
Stroke: 15.0 in.
Retracted (Closed) Length: 24 in.
Operating Pressure: 3000-3500 psi (seals rated to 7250 psi)
Seal Temperature Rating: 250 degrees F
Cast iron gland with buttress threads (vs. aluminum OEM gland - resists galling and thread damage)
Hardened chrome-plated rod (resists bending)
Cast iron piston
SAE and JIC flared ports
Grease ports on both pin eyes

Compatible Models

Bobcat Skid Steer Loaders: S220, S250, S300, S330

Bobcat Track Loaders: T250, T300, T320

Bobcat All-Wheel Steer Loader: A300

Replaces Part Number(s):

7208419 (supersedes 6810233)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

T300, S330, T320, A300, S220, S250, S300, T250

Additional Information:

Rod: 1.5" Bore: 3.0" Stroke: 15.0" Seal rated for 250°F and up to 7250 psi; resulting in extended seal life. Cast iron gland with buttress threads versus aluminum OEM gland means less galled or damaged threads. Hardened chrome rod which is less susceptible to bending. Cast iron piston Cast iron gland with buttress threads Pressure rated 3000-3500 psi SAE and JIC flared ports Grease ports on both pin eyes
