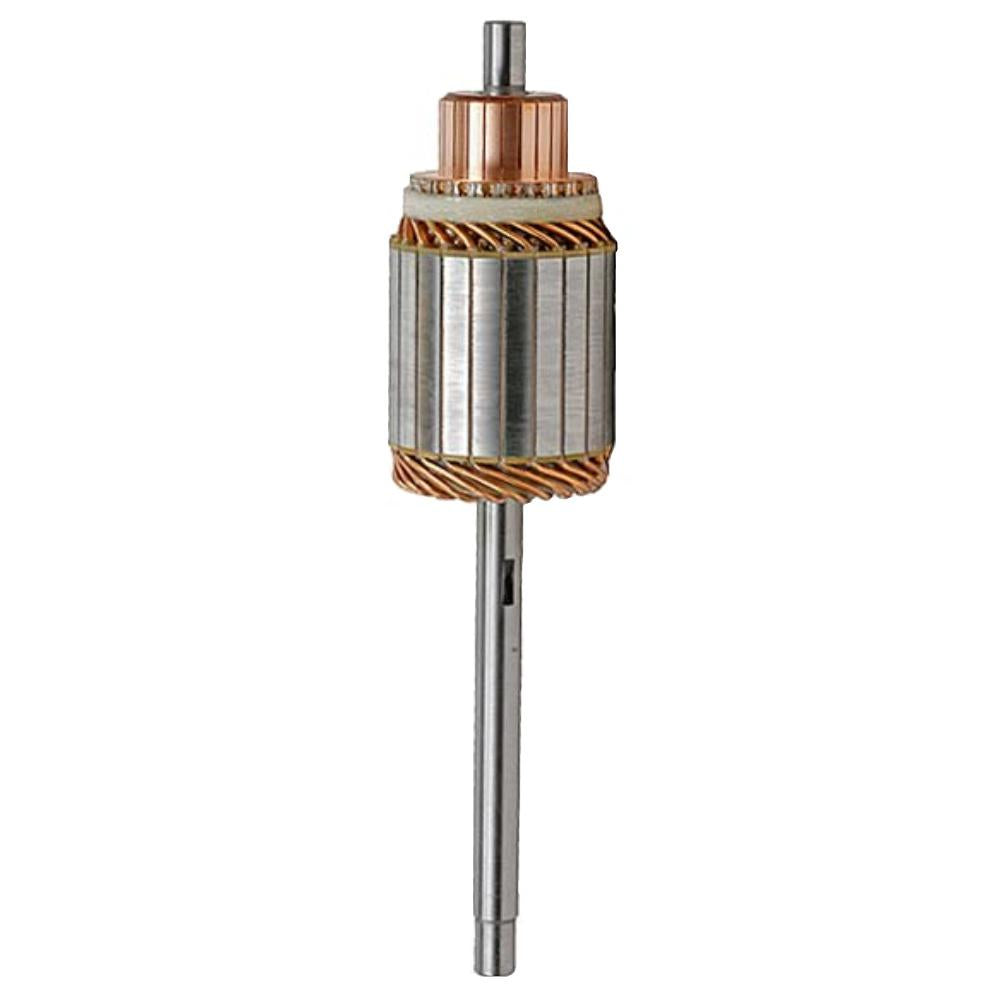

Starter Armature Fits Minneapolis-Moline Replaces ELS60-1017

Starter Armature Fits Minneapolis-Moline Replaces ELS60-1017

$92.99 USD
$92.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Starter Armature

Tech Info:
 -Voltage: 6/12
 -Rotation: CW/CCW
 -Body OD: 2.937" (74.6mm)
 -CE OD: 0.563" (14.3mm)
 -DE OD: 0.563" (14.3mm)
 -Length: 12.469" (316.7mm)
 -CE to Bearing/Bushing Stop: 0.827" (21mm)
 -DE to Bearing/Bushing Stop: 7.165" (182mm)
 -Number of Comm Bars: 23
 -Lam Stack Thickness: 2.614" (66.4mm)
 -High Torque
 -Set Screw & Keyway on DE

Fits Minneapolis-Moline:
 Engines Models: 165-4A, 206-4A, 206-4A, 206H-4A, 206H-4A, 206H-4B, 206H-4B
 Model Breaks: 165-4A (1948-1954, Single Engine), 206-4A (1948-1956, Single Engine), 206-4A (1957-1958, Single Engine), 206H-4A (1948-1956, Single Engine), 206H-4A (1957-1958, Single Engine), 206H-4B (1948-1956, Single Engine), 206H-4B (1957-1958, Single Engine)
 Tractor Models: 335, 335, 4 Star Super, 4 Star, 4000, 445, 6000, Jet Star, UNI ZAS, ZBE, ZBN, ZBU
 Model Breaks: 335 (1957, 165A-4 Gas Engine), 335 (1957, D206-H Diesel Engine), 4 Star Super (1959, 206H-4 Gas), 4 Star (1959-1961, 206H-4 Gas), 4000 (1960-1961, M-220A Engine), 445 (1956-1958, 206H-4 Gas), 6000 (1960-1961, M-220A Engine), Jet Star (1959, 4-206 Gas), UNI-Tractor (1960-1961, V-206-4 Engine), ZAS (1954-1958, 206G-4 Gas), ZBE (1954-1958, 206G-4 Gas), ZBN (1954-1958, 206G-4 Gas), ZBU (1954-1958, 206G-4 Gas)
 Harvester Models: G-4
 Model Breaks: G-4 (1944-1955, 206J-4 Engine), G-4 (1956-1957, 206J-4 Engine)

Models This Part Fits:

206H-4B, 6000, ZBN, ZBU, 335, 445, ZBE, 4 Star Super, UNI ZAS, 4 Star, G-4, 165-4A, Jet Star, 206-4A, 4000, 206H-4A

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE

Reference Numbers:

12072, 12072-A, 1872505, 1873354, 2027
